FOLED-SUF Fixture recessed (FW08333V1)

The FOLED-SUF luminaire is suited for architects aiming to create a distinct light line "cutting through" the stretch ceiling. An ideal LED integration for modern interiors.

Installation of lighting and stretch films to ceilings
Line of light flush with the surface

With the possibility of sealing up to IP20

Configure

WATCH INSTRUCTIONAL VIDEO

Description

Installation of lighting and stretch films to ceilings
Line of light flush with the surface

Application

- lighting recessed in surfaces made of stretch film

Mounting

- to the surface, using properly selected screws

Additional information

- the extrusion has grooves for the attachment of the hooks from the stretch film
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

download

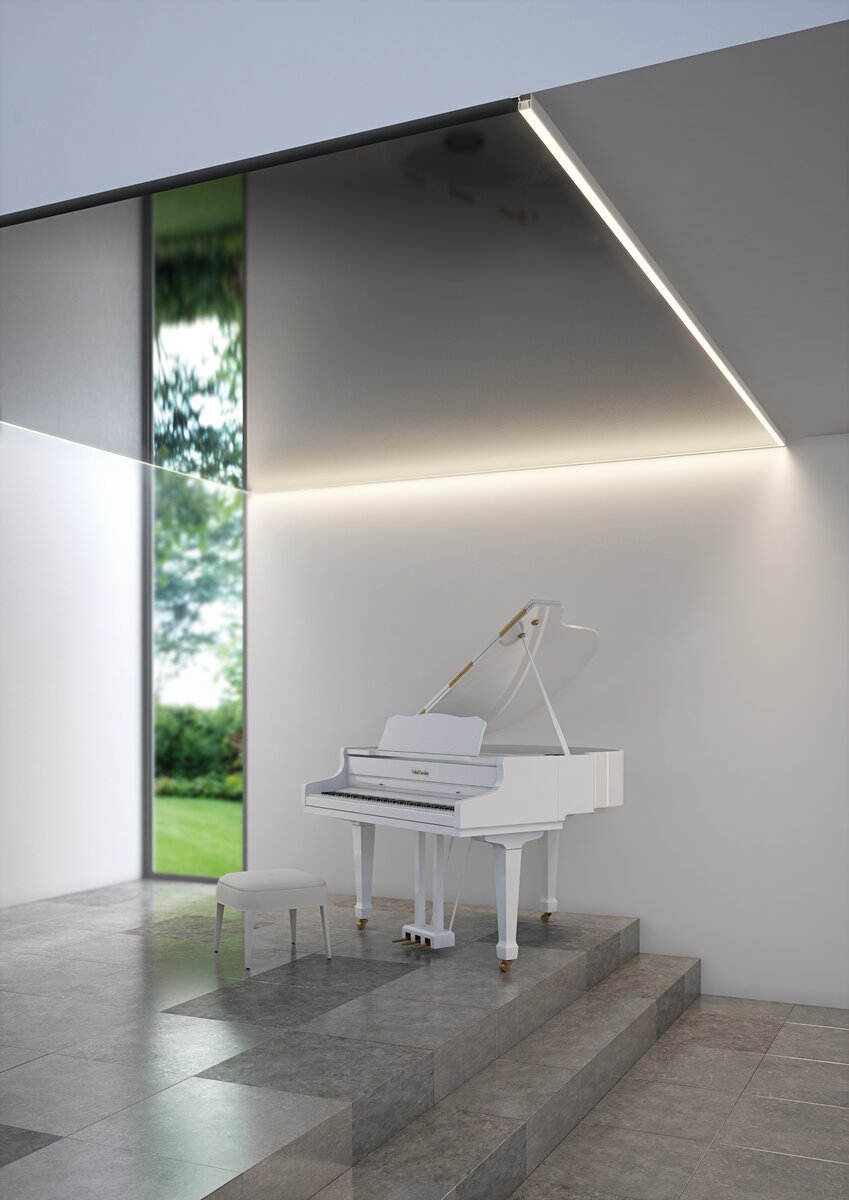

Usage examples

Description
download

Application

- lighting recessed in surfaces made of stretch film

Mounting

- to the surface, using properly selected screws

Additional information

- the extrusion has grooves for the attachment of the hooks from the stretch film
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

Declaration of Conformity UKCA

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

Possible fixture shapes

linear, polygonal

Profile cross-section

rectangular

Max power of a single KLUŚ LED strip

7.3 W/ft

Width

2.1" (52.2 mm)

Height

1.4" (35.5 mm)

LED gluing width A

0.5" (13 mm)

Max. number of LED strips A (0.31" wide)

Wire out back of extrusion

Yes

Building type

Commercial, Retail, Entertainment/ Arts, Hotel / Restaurant

Facility zone

office
