Note: Archival product

HR-17 Cover

Ref No: B17151F
  • For the construction of sealed lighting fixtures
  • Possibility of sealing in dedicated profiles
  • Increased pressure resistance
  • Made of PC with increased resistance to weather conditions
High mechanical resistance
Color
frosted
  • For the construction of sealed lighting fixtures
  • Possibility of sealing in dedicated profiles
  • Increased pressure resistance
  • Made of PC with increased resistance to weather conditions
Application
  • - LED protection and light diffusion in lighting fixtures
Mounting
  • - to the extrusion, by pressing
Additional information
  • - ATTENTION! rigid cover, not intended for bending or deformation
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

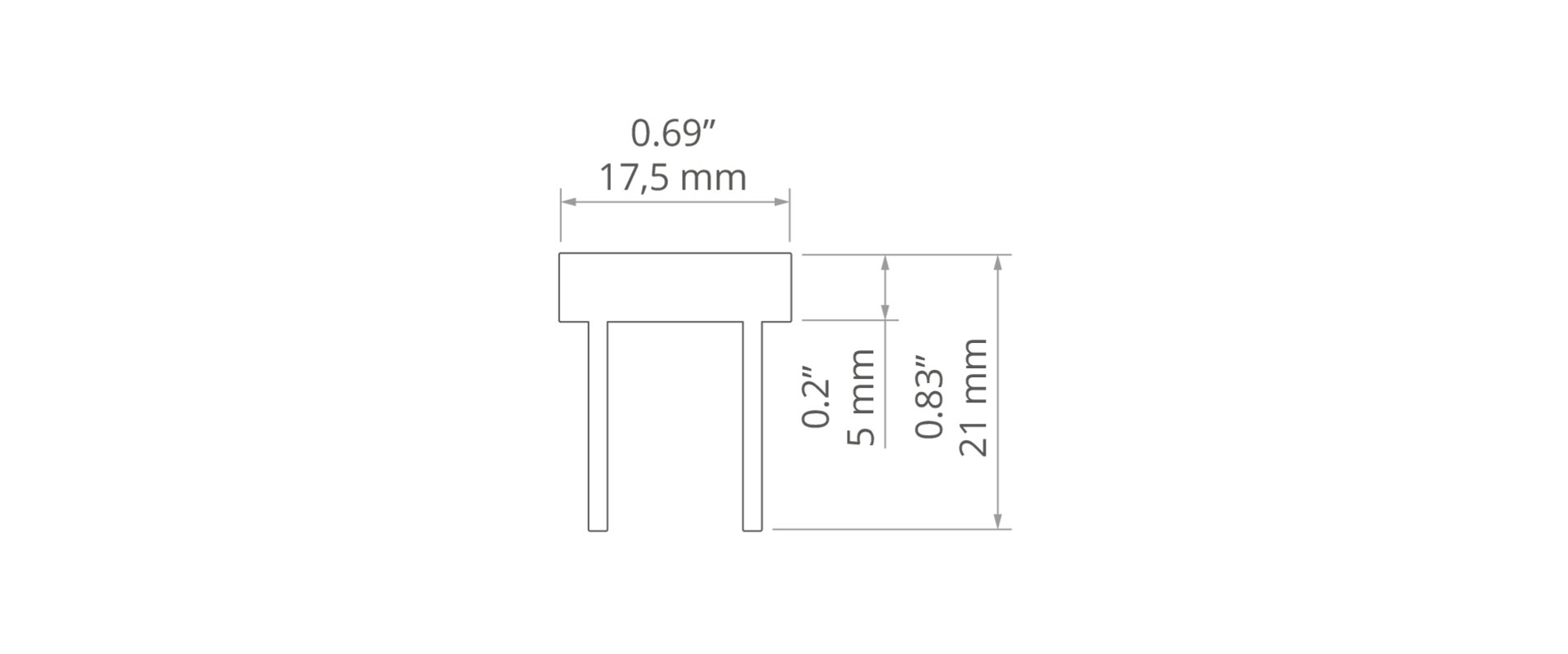

Technical drawing
HR-17 Cover PC 0.7" Technical drawing - B17151F
Technical specification
Material
PC
Shape
flat
Maximum length on request
19'08" (6000 mm)
Width
0.7" (17 mm)
High mechanical resistance
Yes
Color Light transmittance [%] Length Ref No
frosted
38 %
39.4" (1000 mm)
78.9" (2005 mm)
118.5" (3010 mm)
B17151F_1
B17151F_2
B17151F_3
