HR-SLIM Extrusion

Ref No: A00015

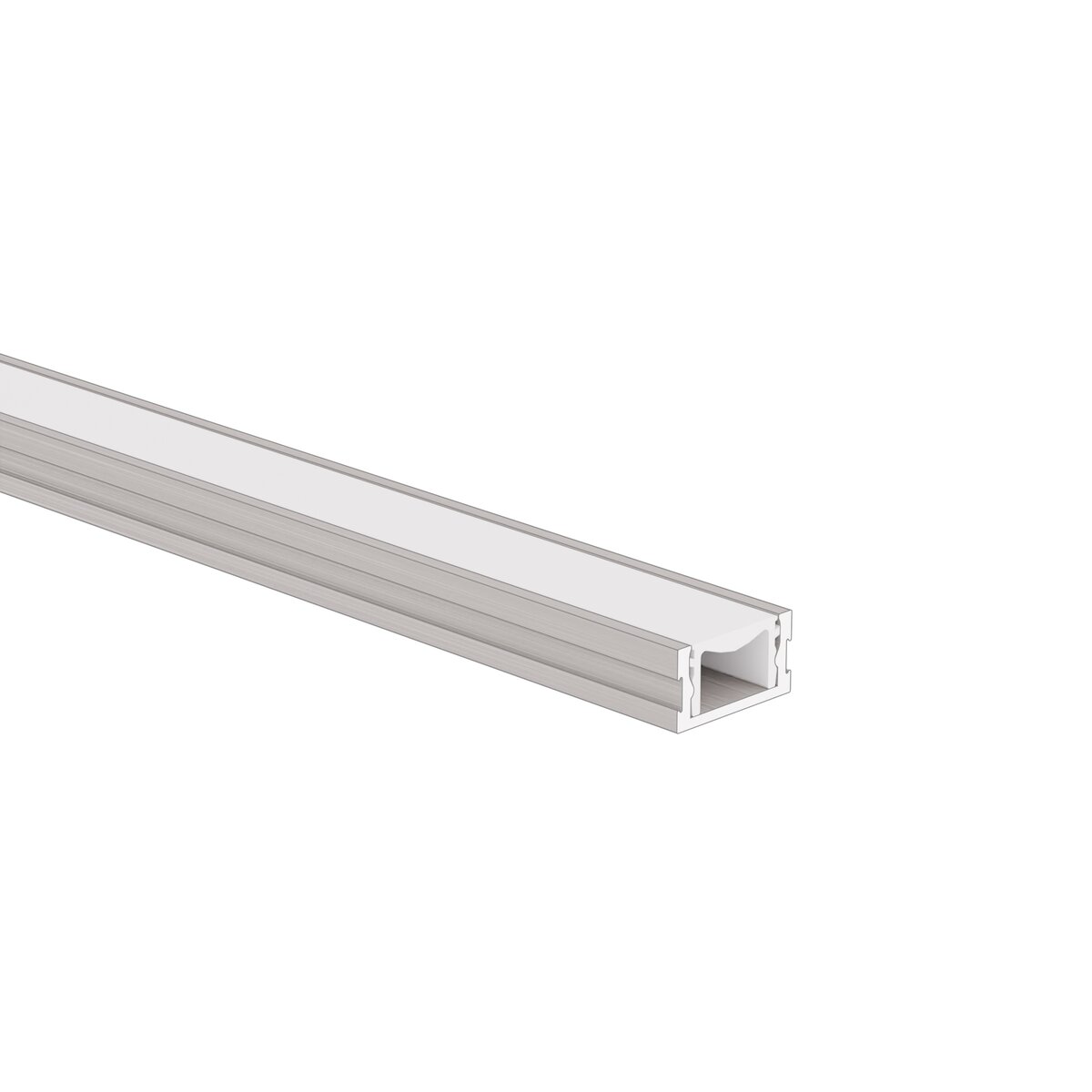

HR-SLIM Extrusion
HR-SLIM Extrusion
  • LED profile that enables the transition of a light line from the floor to the wall and then to the ceiling, creating uniform illumination without visible diodes
  • It is ideal for residential spaces, including dining rooms, bedrooms, living rooms, and bathrooms, allowing users to enhance interiors with the glow of light
  • A profile perfectly suited for use with ceramic tiles, terracotta, and quartz sinters
  • Once the cover (pressed from above) is installed, it is walkable, scratch-resistant, and crack-resistant
  • Resistant to high pressure, with a maximum load capacity of up to 500 kg, IK08
  • Allows the creation of circles and arcs on floors, walls, and ceilings
  • Sealing to IP65 is possible with a dedicated cover that is very easy to install – click-in system
  • No dimming effect of the light line towards corners or at profile connections
  • IP67 sealing can be achieved using silicone sealing
Recessed
For ground
Impact protection IK08
Possibility of bending
With the possibility of sealing up to IP20
With the possibility of sealing up to IP65
With the possibility of sealing up to IP67
CE Certificate
UKCA Certificate
RoHS Certificate
Configure
Color
silver
  • LED profile that enables the transition of a light line from the floor to the wall and then to the ceiling, creating uniform illumination without visible diodes
  • It is ideal for residential spaces, including dining rooms, bedrooms, living rooms, and bathrooms, allowing users to enhance interiors with the glow of light
  • A profile perfectly suited for use with ceramic tiles, terracotta, and quartz sinters
  • Once the cover (pressed from above) is installed, it is walkable, scratch-resistant, and crack-resistant
  • Resistant to high pressure, with a maximum load capacity of up to 500 kg, IK08
  • Allows the creation of circles and arcs on floors, walls, and ceilings
  • Sealing to IP65 is possible with a dedicated cover that is very easy to install – click-in system
  • No dimming effect of the light line towards corners or at profile connections
  • IP67 sealing can be achieved using silicone sealing
Application
  • - decorative and signal lighting
Mounting
  • - in the substrate or to the surface, using mounting adhesives or screws
Additional information
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

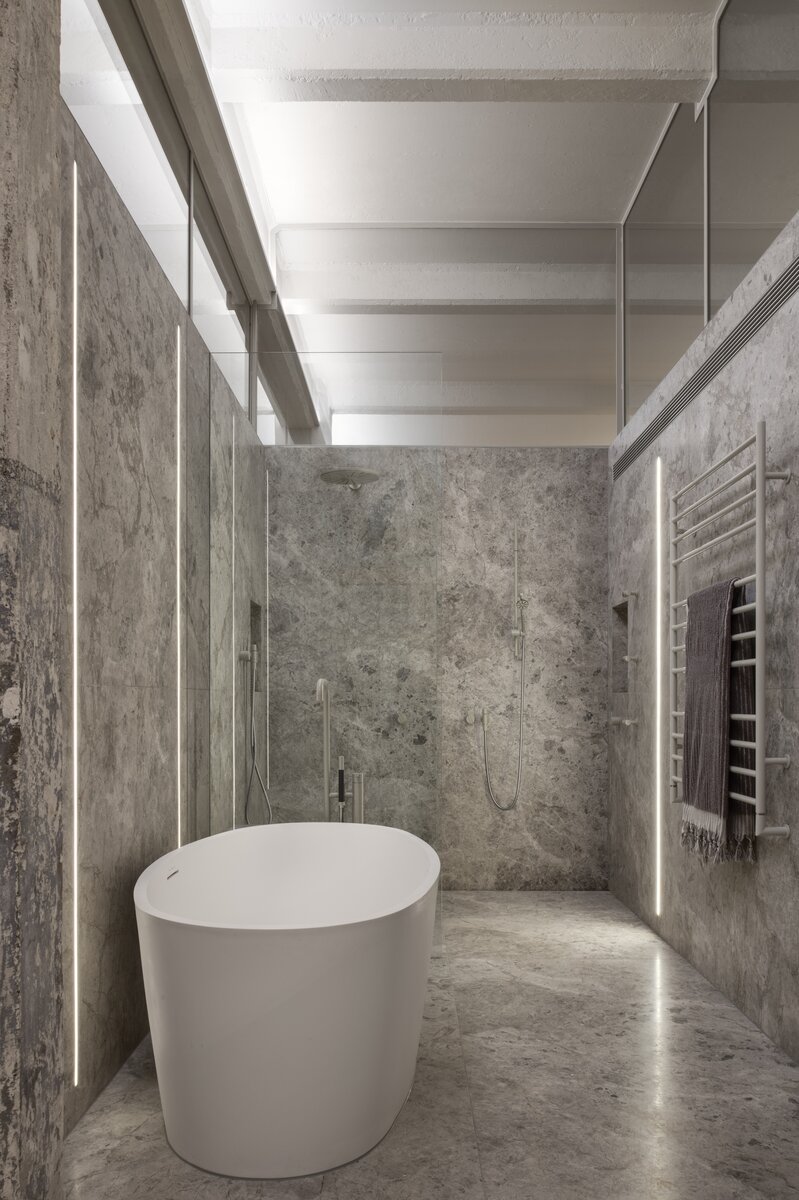

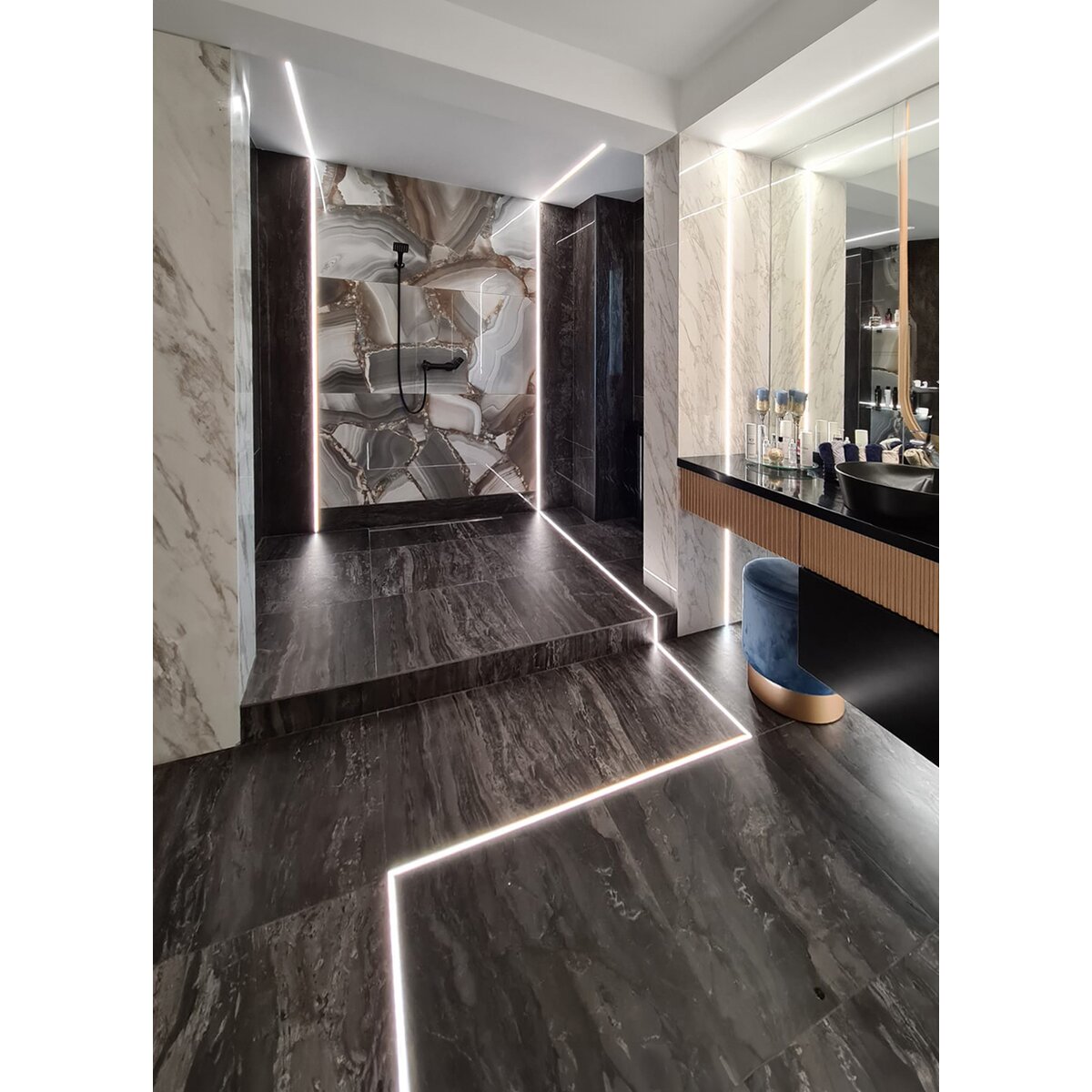

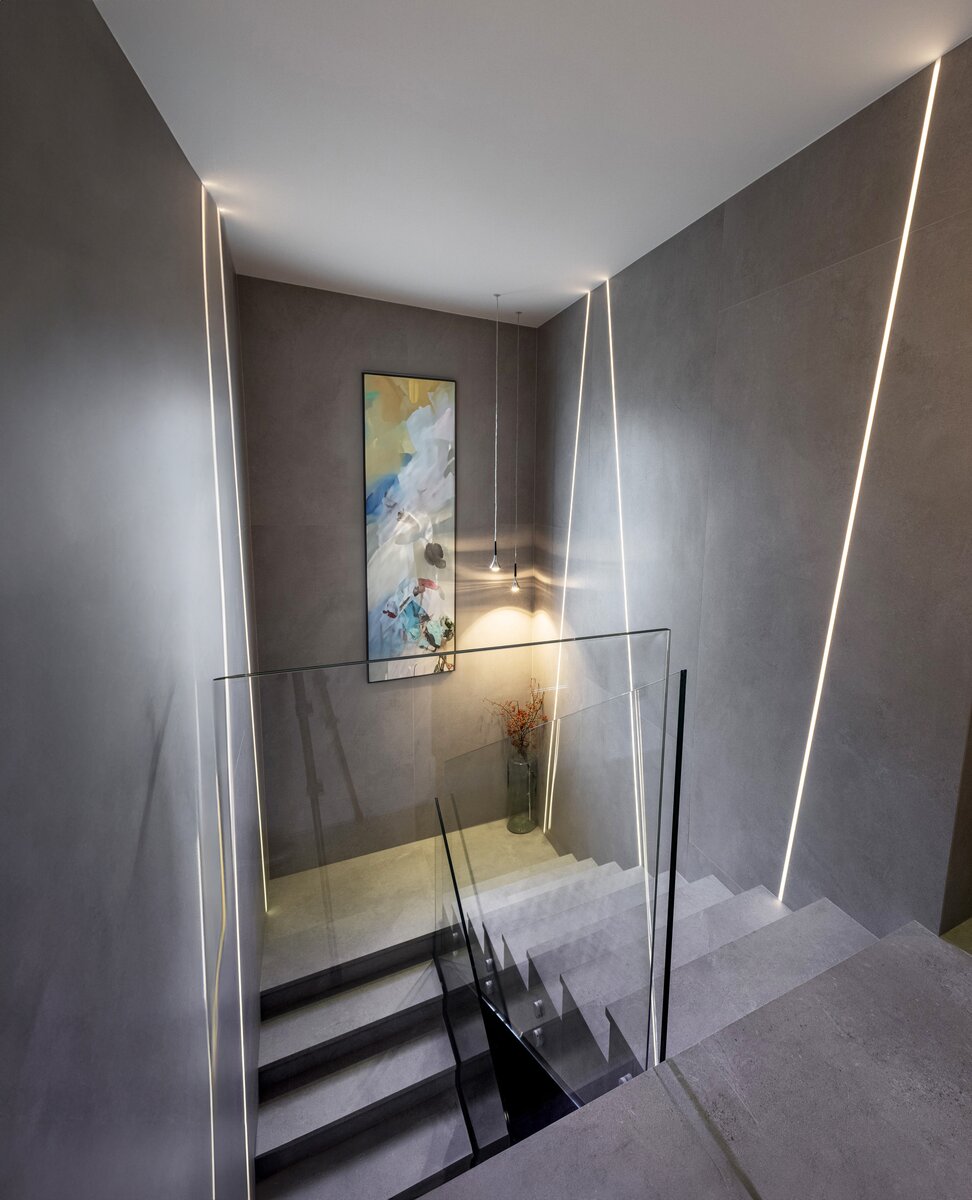

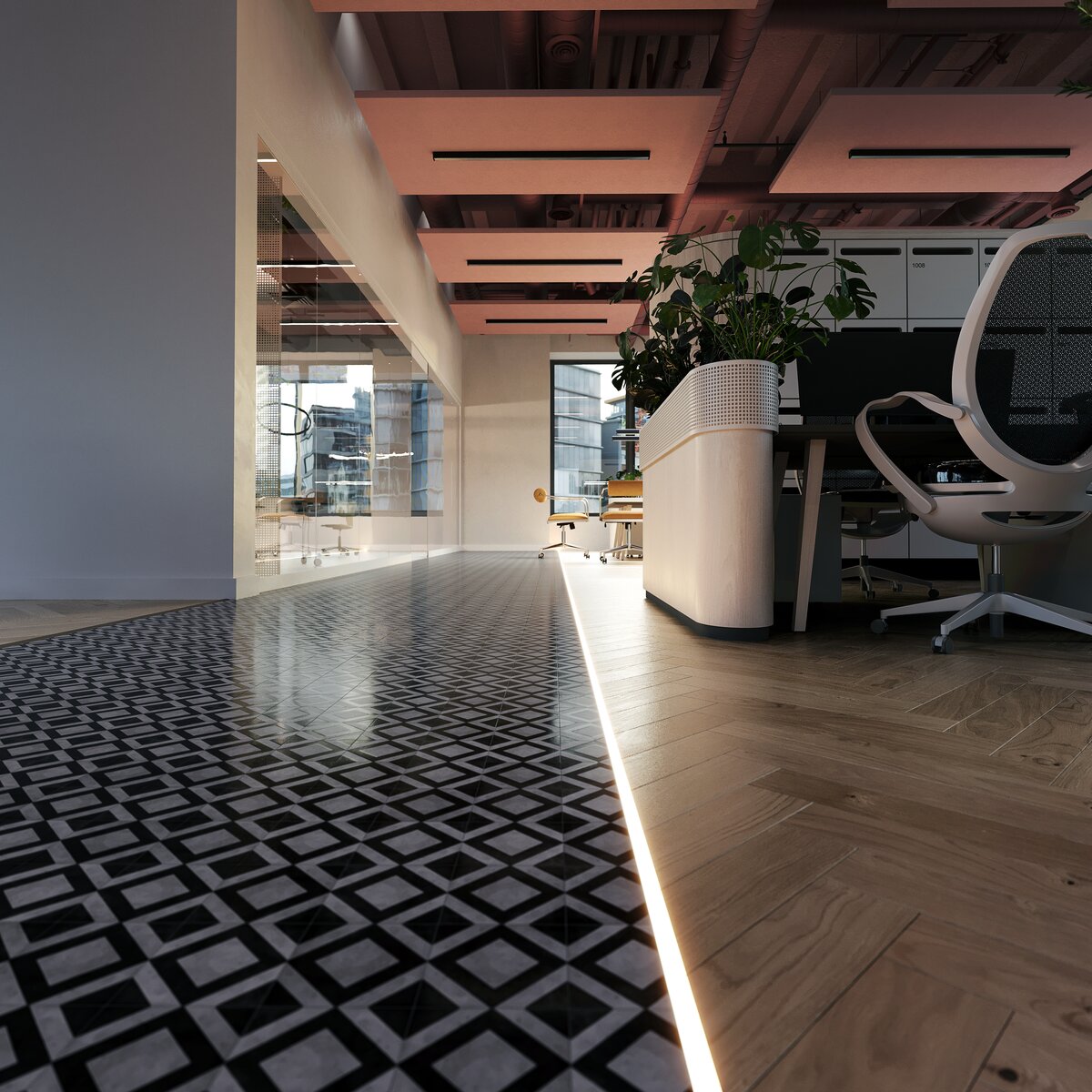

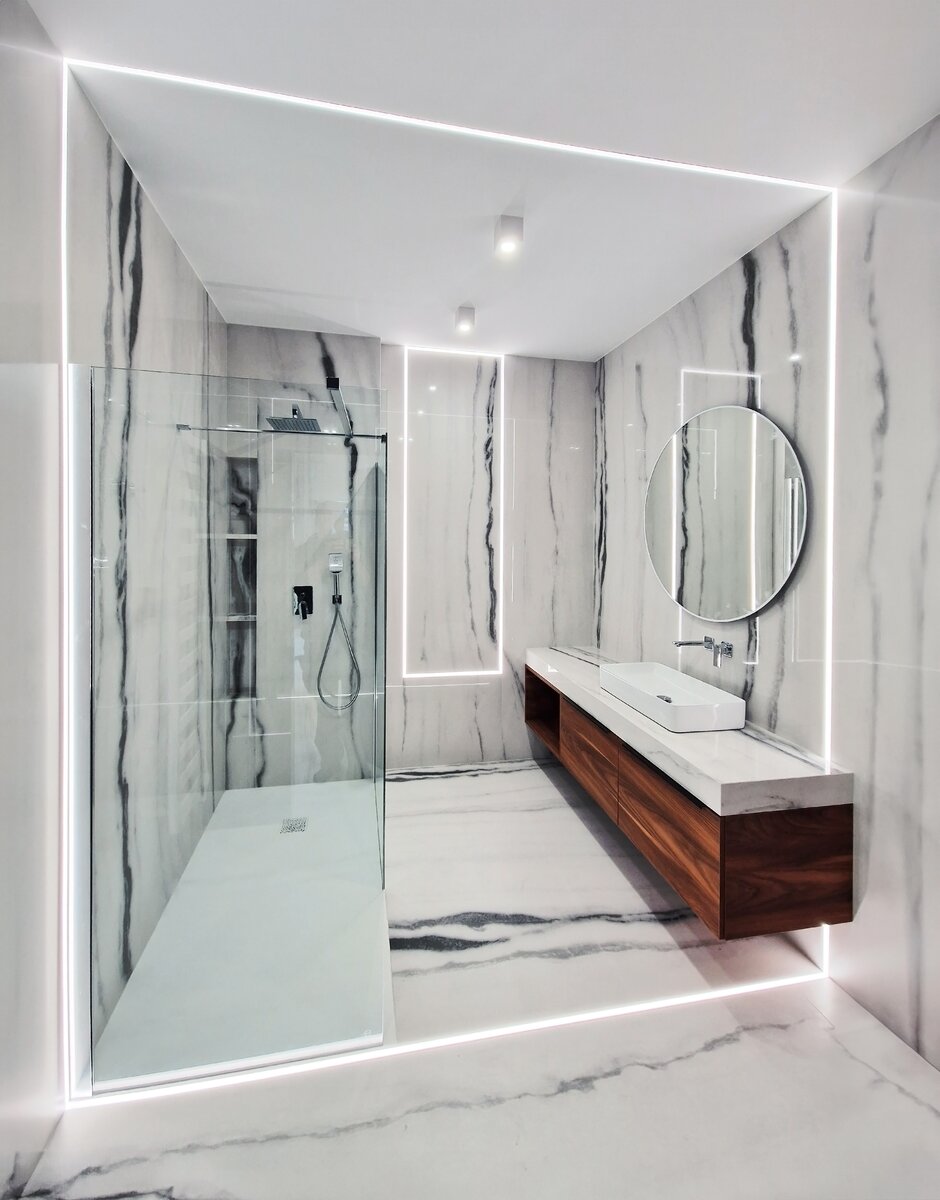

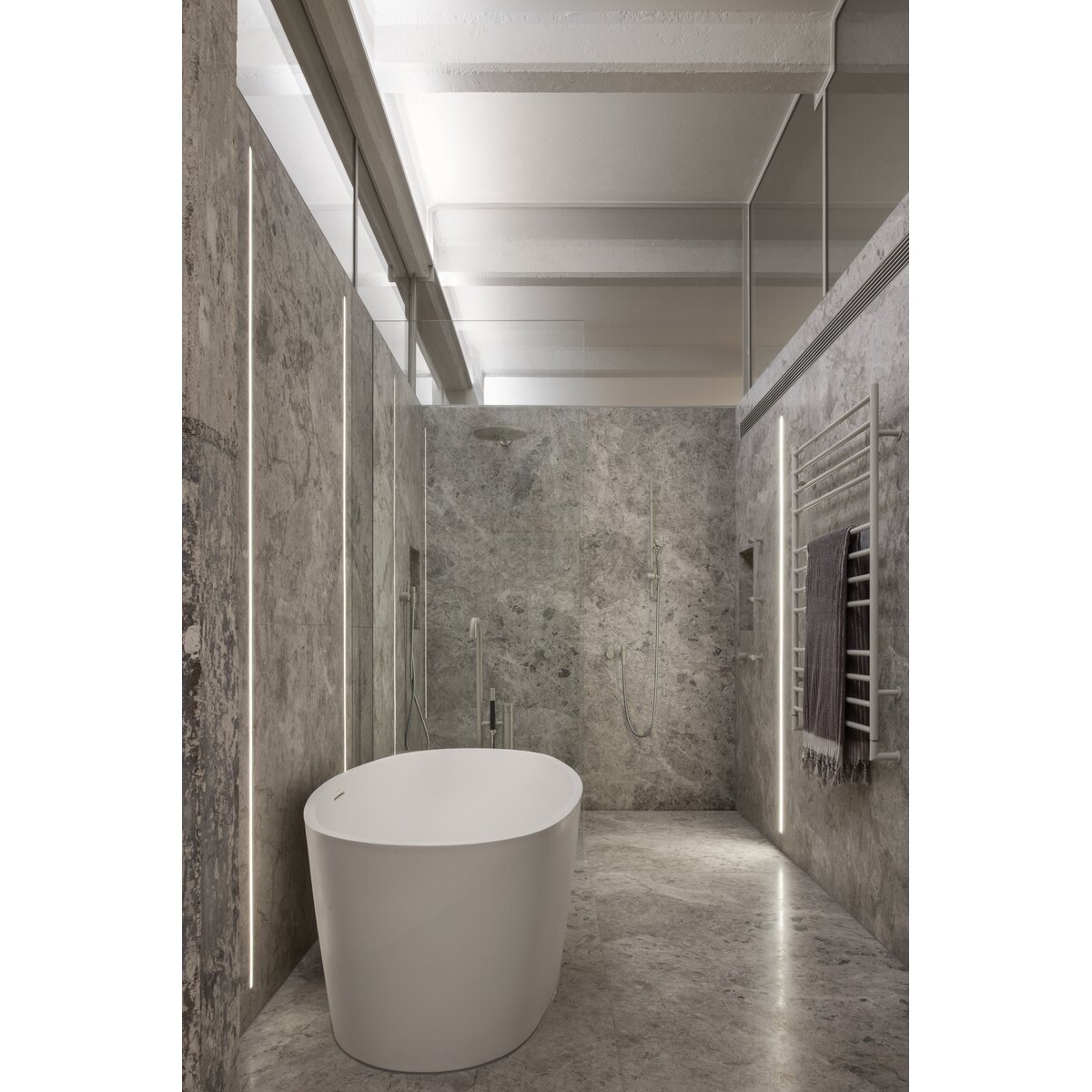

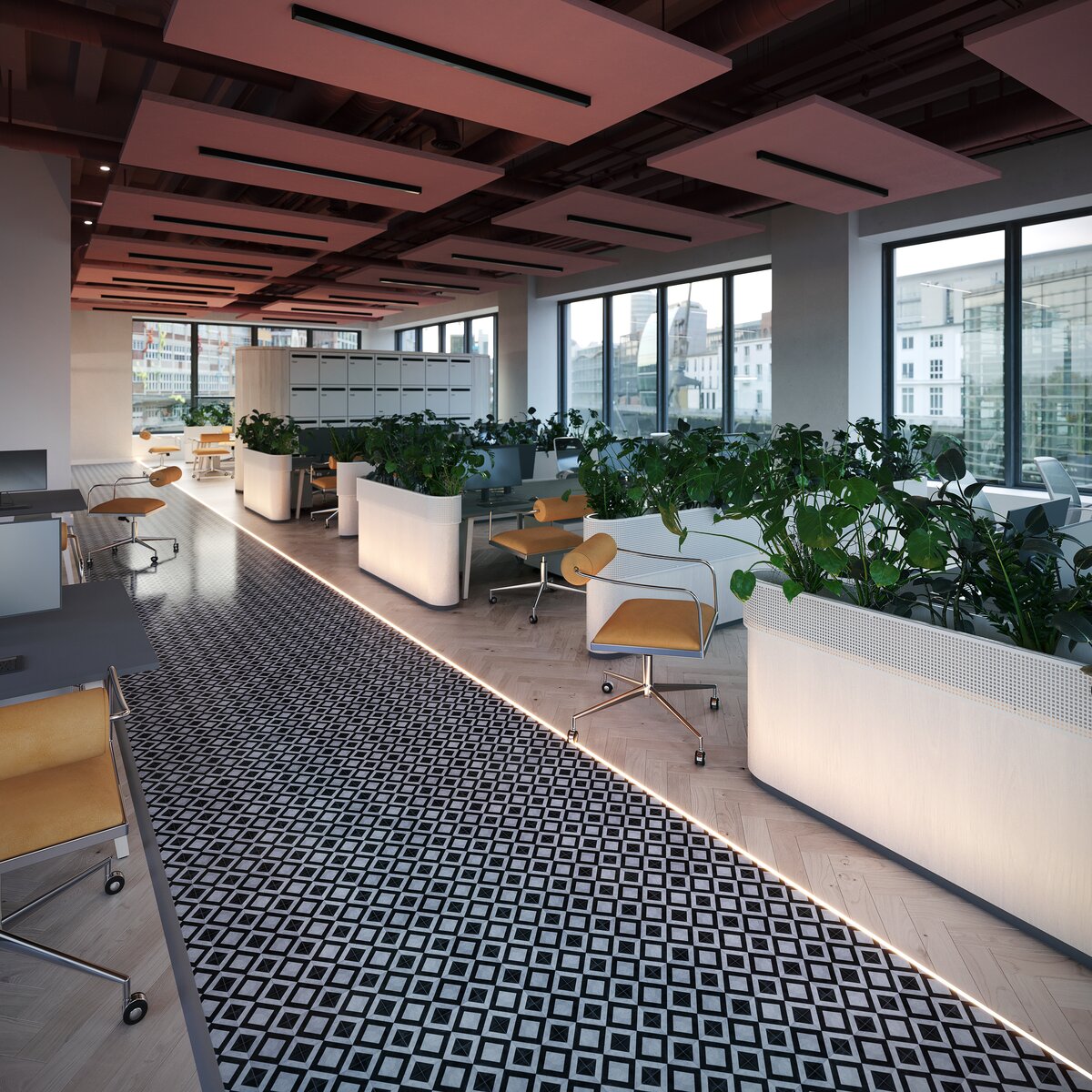

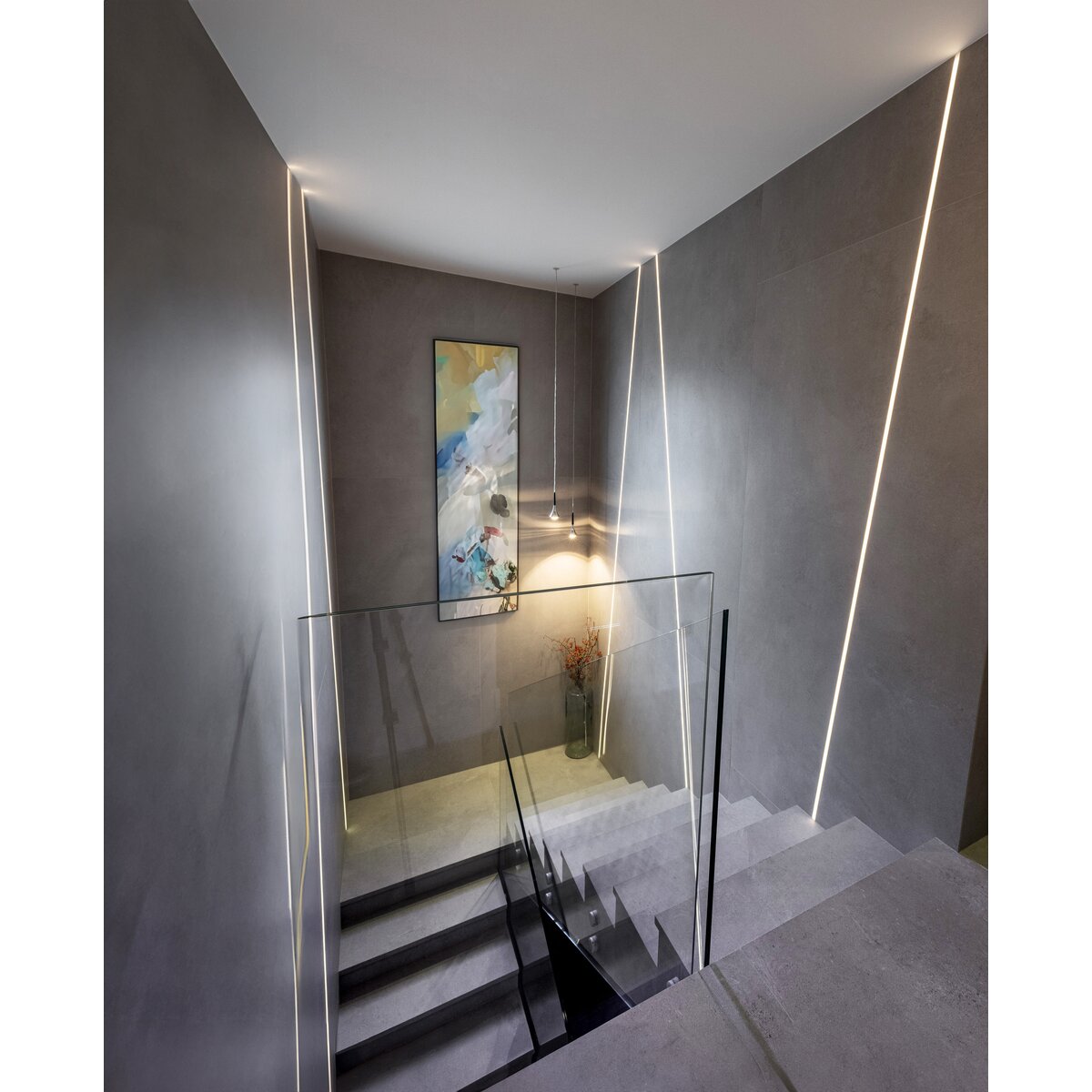

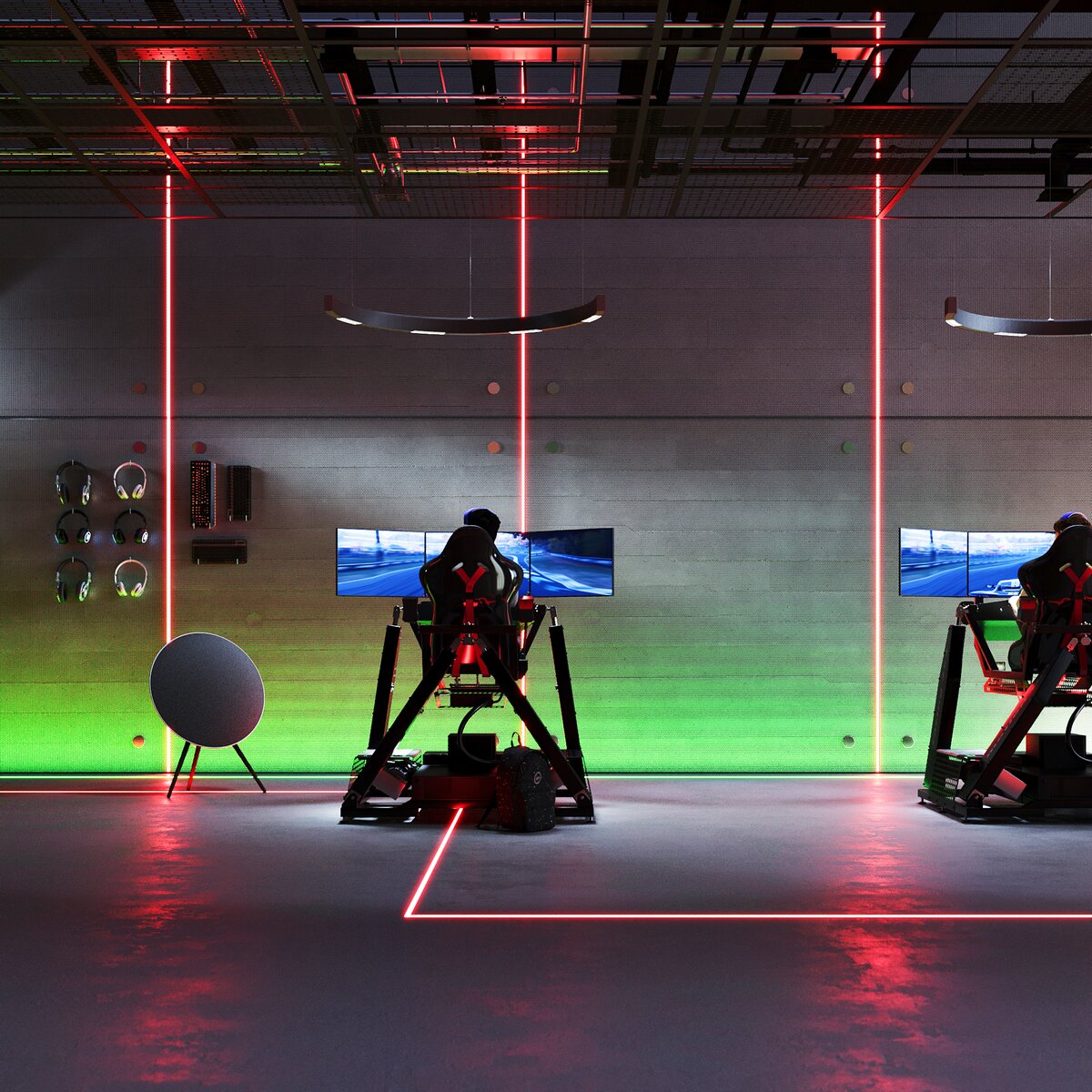

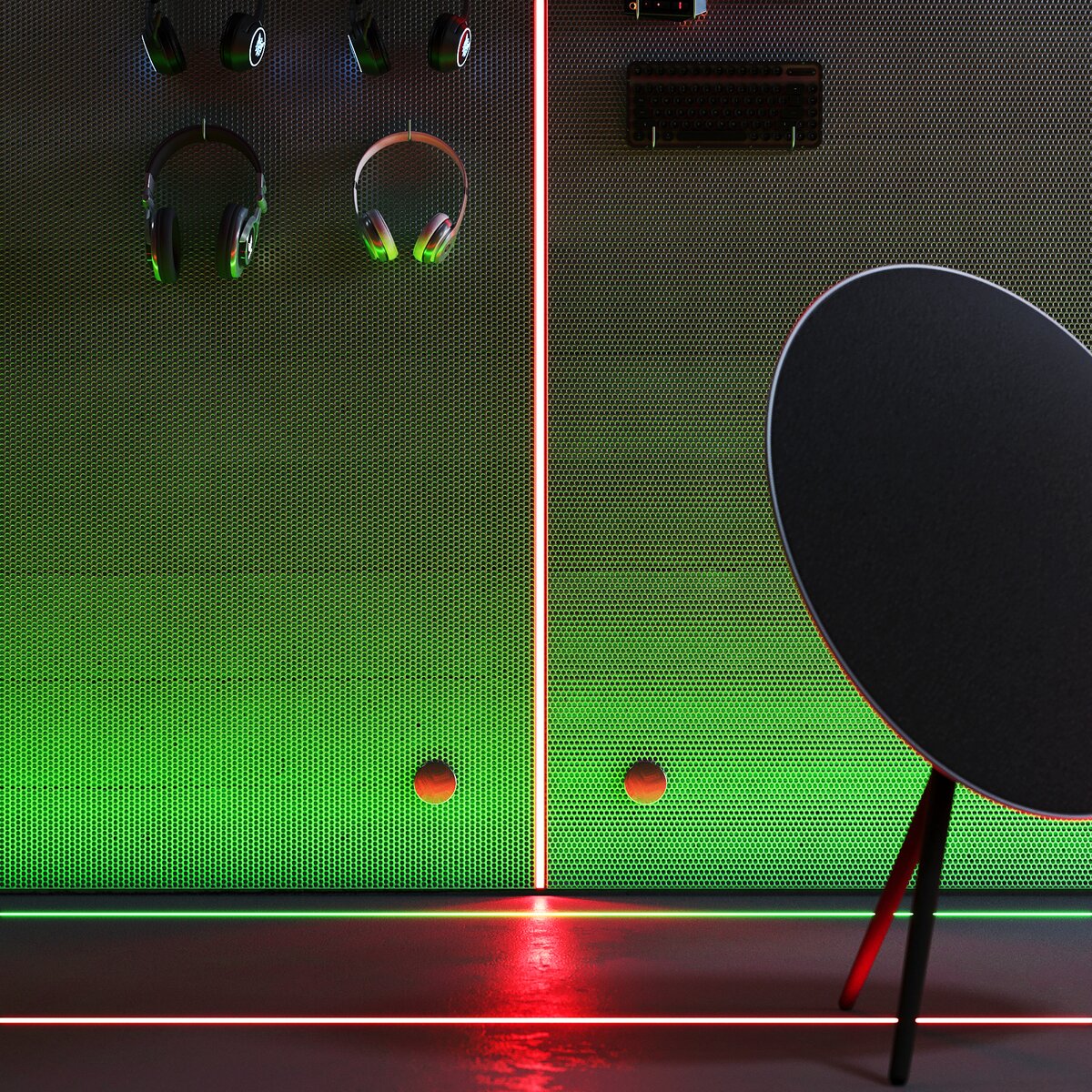

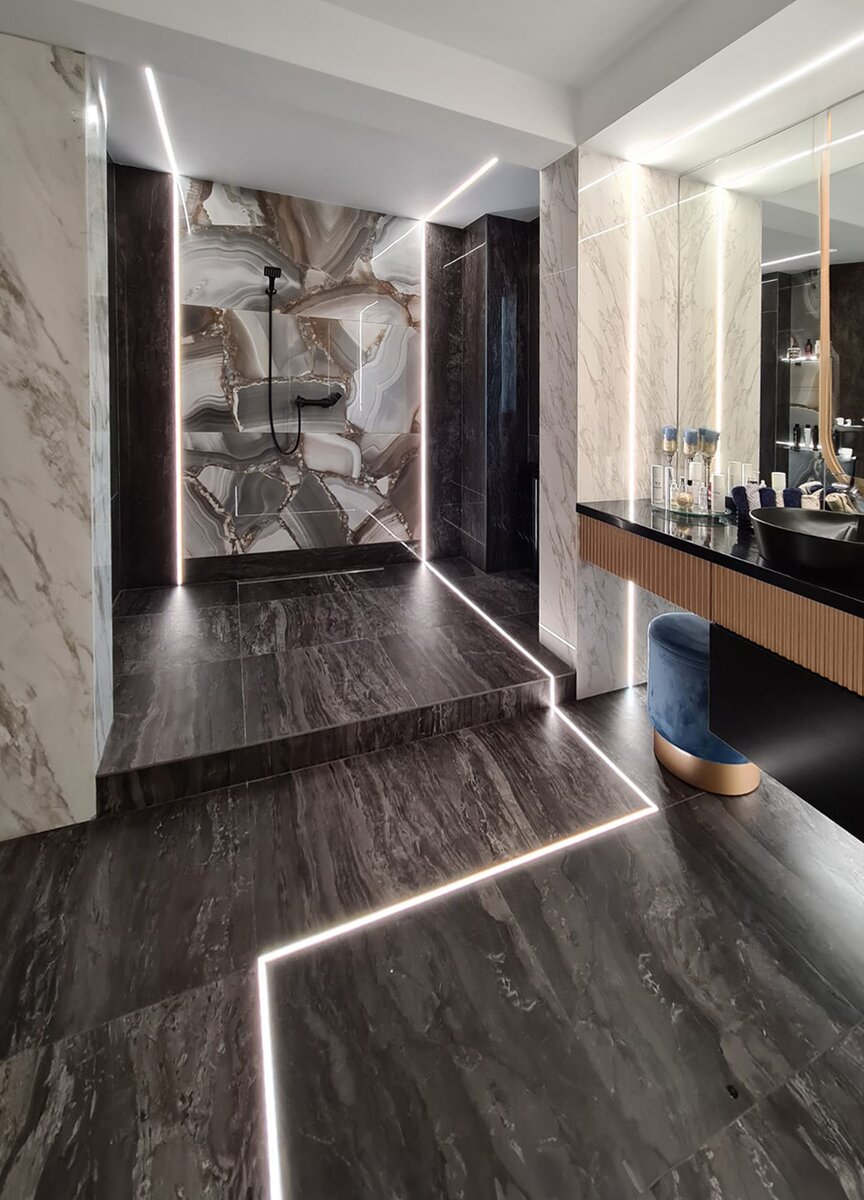

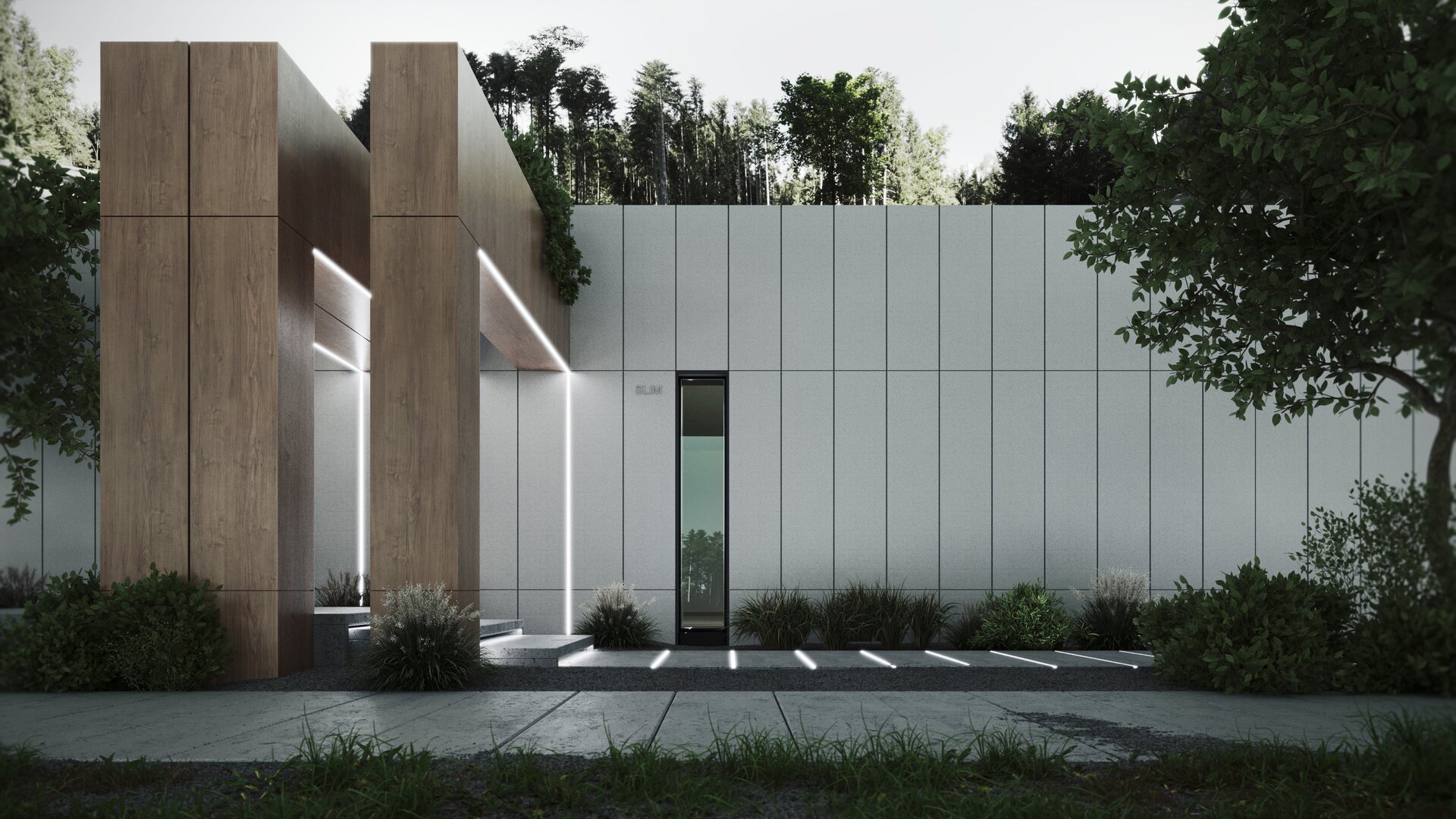

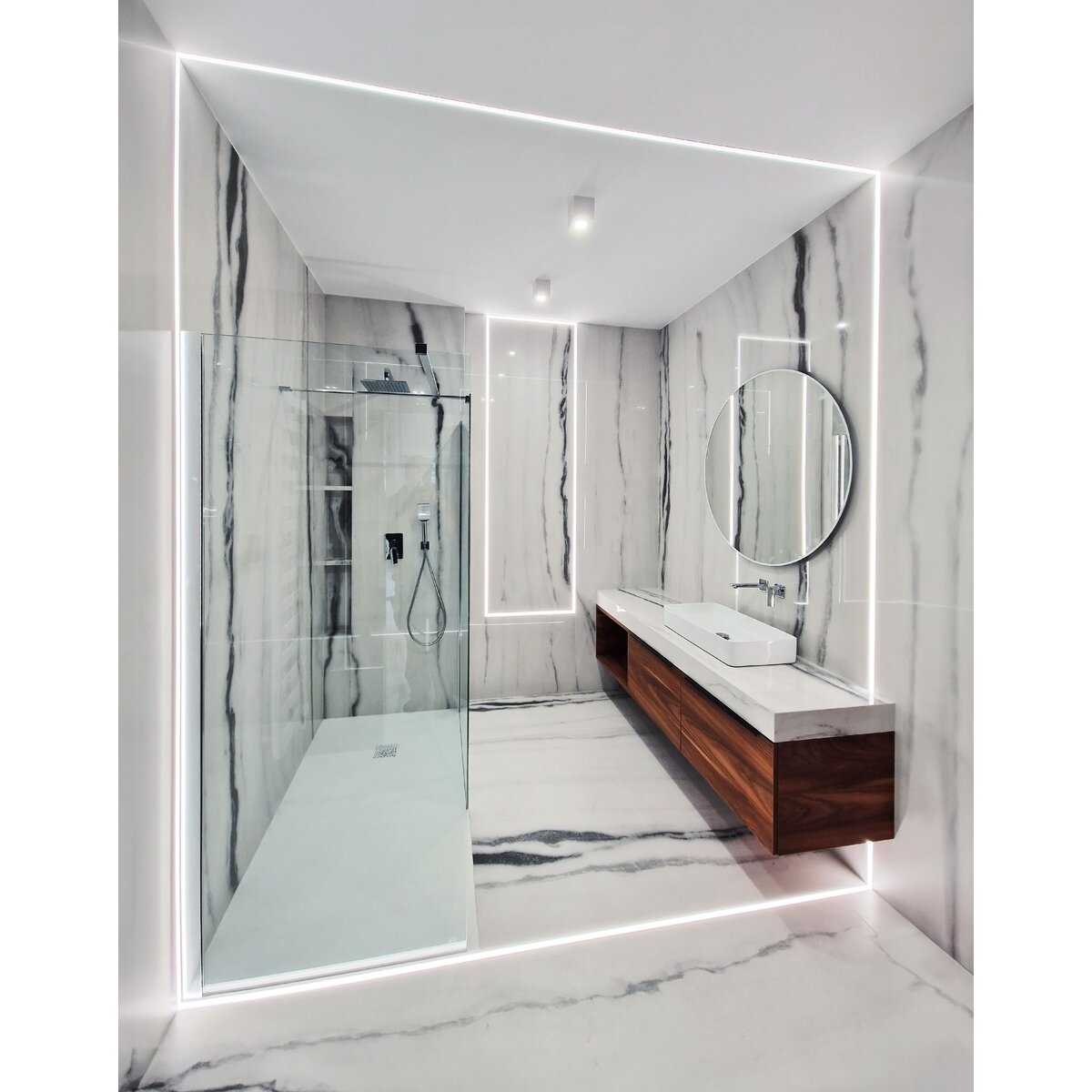

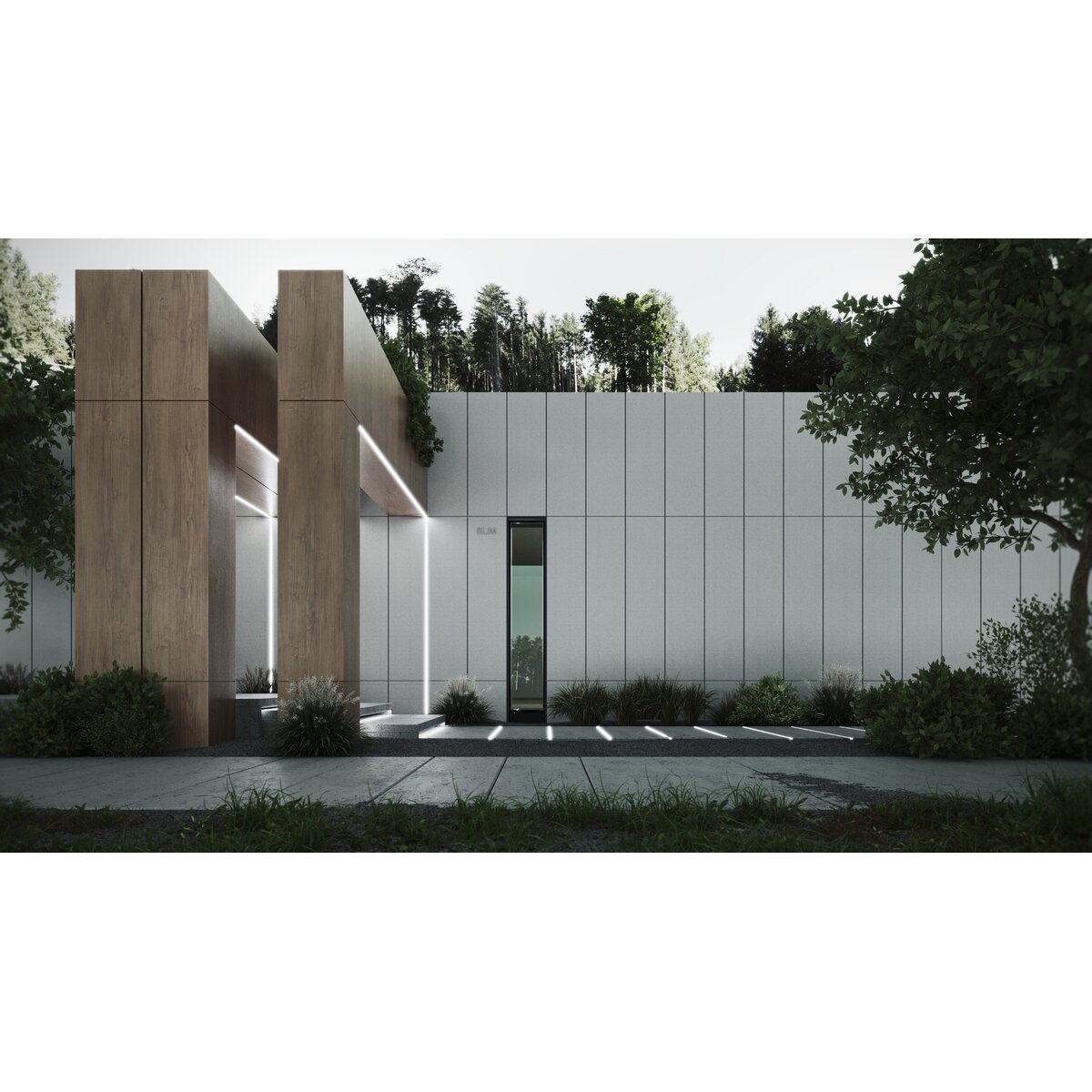

Usage examples

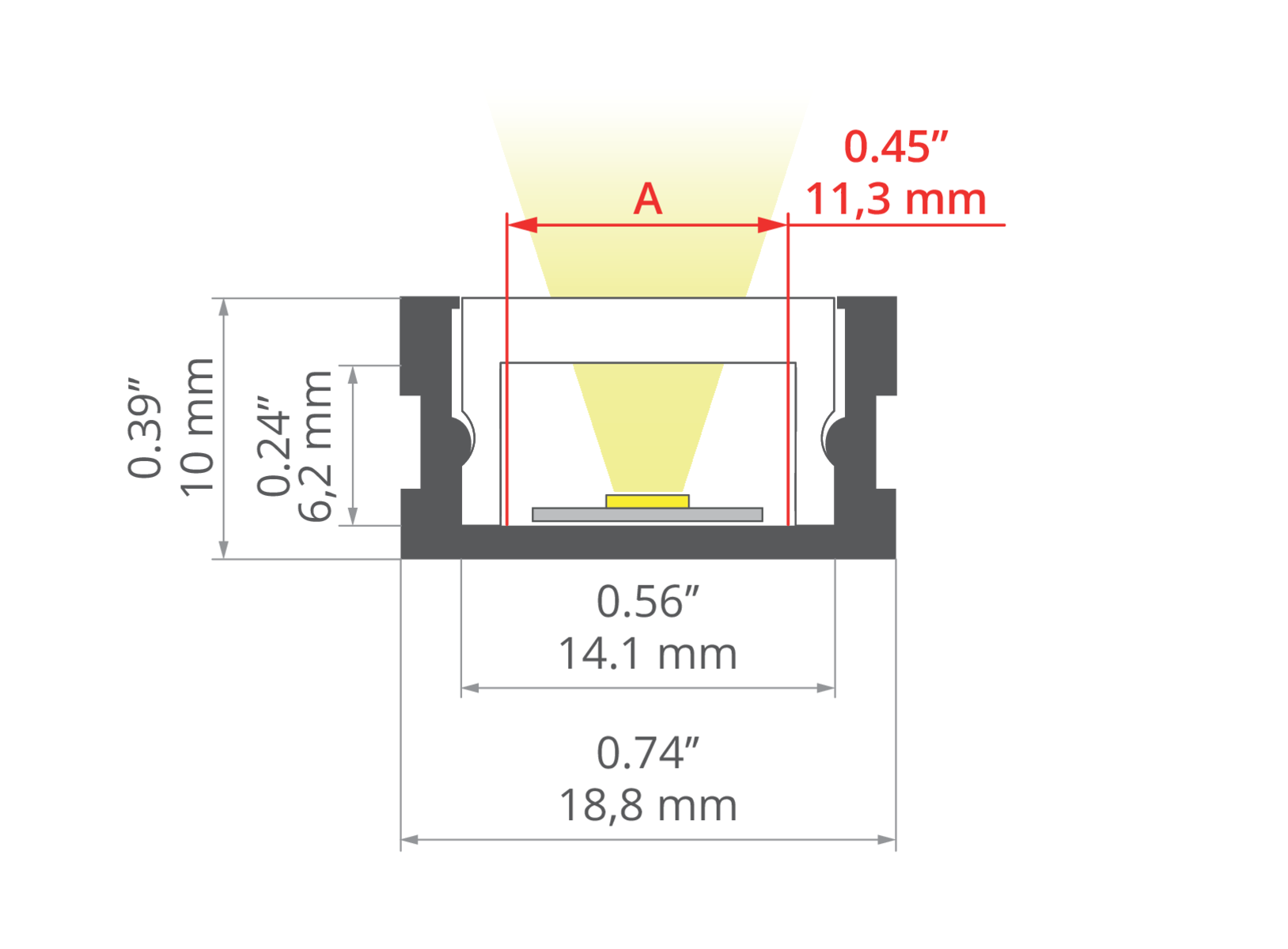

Technical drawing
HR-SLIM Extrusion aluminum Technical drawing - A00015
Technical specification
Material
aluminum
Possible fixture IP
20, 65, 67
Profile cross-section
rectangular
Max power of a single KLUŚ LED strip
5.9 W/ft
Width
0.7" (18.8 mm)
Height
0.4" (10 mm)
LED gluing width A
0.4" (10 mm)
Max. number of LED strips A (0.31" wide)
1
The cover is cut to the length of the profile
Yes
Wire out back of extrusion
Yes
Possibility of bending in the light plane
Yes
Impact protection IK08
Yes
Possibility of obtaining a line of light
Yes
Possibility of bending
Yes
Minimum radius of the light arc
Radius of the light arc
Yes
Inside
500 mm
Outward
1000 mm
Downward
1000 mm
Building type
Commercial, Residential, Hotel / Restaurant, Retail, Entertainment/ Arts, Outdoor
Facility zone
lobby / foyer, communication routes and corridors, bathroom, kitchen, fascade lighting
Color Length Ref No
silver anodized
78.9" (2005 mm)
118.5" (3010 mm)
A00015A_2
A00015A_3
Line of Light Table for Pixel Free Illumination
LED Tapes Covers
Categories LED tape type HR-IP-15 Cover frosted
CRI 90+ KWP-GHD-1640-24 Line of Light for a number (X) of rows (1)
KWP-GHD-1910-24 Line of Light for a number (X) of rows (1)
KWP-GHD-0530-24 Line of Light for a number (X) of rows (1)
RGB / RGB-W / RGB-CTT KWP-GRGBW-1530-24 Line of Light for a number (X) of rows (1)
K-RGBW-1920-160-24 Line of Light for a number (X) of rows (1)
Line of Light for a number (X) of rows
Line of Light for a number (X) of rows - Pixel free imaging
Centered Line of Light
Centered Line of Light - Concentrated in middle
None
None - Visible dotting from diodes
Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes
similar profiles
Recessed
Trimless
HR-SLIM-KOZ
Ref No: A00037
Related products
Product name Material Key features Light transmittance [%] Color Ref No
HR-IP-15 Cover
PC - UV resistant
- Sealing up to IP65
- High mechanical resistance (IK08, pressure up to 500 kg)
- Suitable for use in bent luminaires
41 %
frosted
B17154F
No results found for the selected filters.
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
KWP-GHD-1640-24 LED tape, 364-503 lm/ft, IP65,
65 gel cover 5 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- high LED density
KWP-GHD22-1640-24
KWP-GHD25-1640-24
KWP-GHD27-1640-24
KWP-GHD30-1640-24
KWP-GHD35-1640-24
KWP-GHD40-1640-24
KWP-GHD50-1640-24
KWP-GHD-1910-24 LED tape, 227-279 lm/ft, IP65,
65 gel cover 2.8 W/ft
2200K
2700K
3000K
3500K
4000K
- high LED density
KWP-GHD22-1910-24
KWP-GHD27-1910-24
KWP-GHD30-1910-24
KWP-GHD35-1910-24
KWP-GHD40-1910-24
KWP-GHD-0530-24 LED tape, 81-152 lm/ft, IP65,
65 gel cover 1.6 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
WP-K-22-0530-HD-IP65-24V
WP-K-25-0530-HD-IP65-24V
WP-K-27-0530-HD-IP65-24V
WP-K-30-0530-HD-IP65-24V
WP-K-35-0530-HD-IP65-24V
WP-K-40-0530-HD-IP65-24V
WP-K-50-0530-HD-IP65-24V
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-120-24
KWP-GRGBW-1530-24 LED tape, 3000K, 193 lm/ft, 4.7 W/ft, IP65
65 gel cover 4.7 W/ft
RGB+W
3000K
- RGBW (3000K)
KWP-GRGBW-1530-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,
20 - 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,
65 silicon sleeve 5.9 W/ft
RGB+W
3000K
- RGBW (3000K)
KWP-GRGBW-1920-120-24
No results found for the selected filters.
Product name Material Color Ref No
HR-SLIM End cap
stainless steel
silver
C28302C01
No results found for the selected filters.
Product name Material Color Ref No
TECH-15 Protective insert
PCV
gray
C28287C02
No results found for the selected filters.
