Note: Archival product

LINO Extrusion

Ref No: A08287

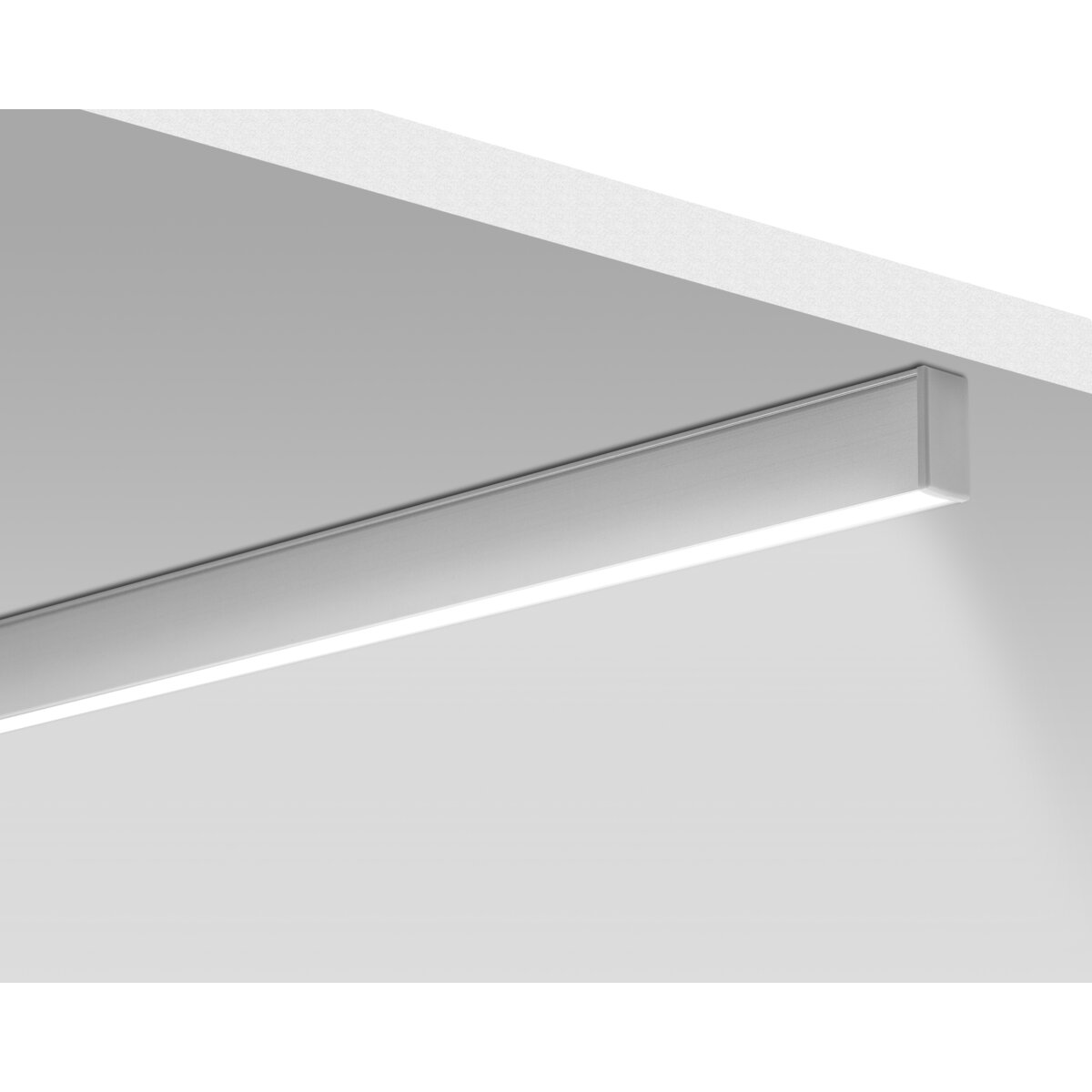

LINO Extrusion
LINO Extrusion
  • Minimum width
Suspended
With the possibility of sealing up to IP20
With the possibility of sealing up to IP67
CE Certificate
CE Certificate
RoHS Certificate
ETL
Closet Rated
Color
silver
  • Minimum width
Application
  • - furniture and decorative lighting
Mounting
  • - to the surface, suspended or recessed, using dedicated accessories, properly selected screws, with double-sided adhesive tape or mounting adhesive
  • - easy assembly and disassembly by snapping in and out
Additional information
  • - for suspending small-size extrusion, it is recommended to use a wire with a diameter of 0.5 mm
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

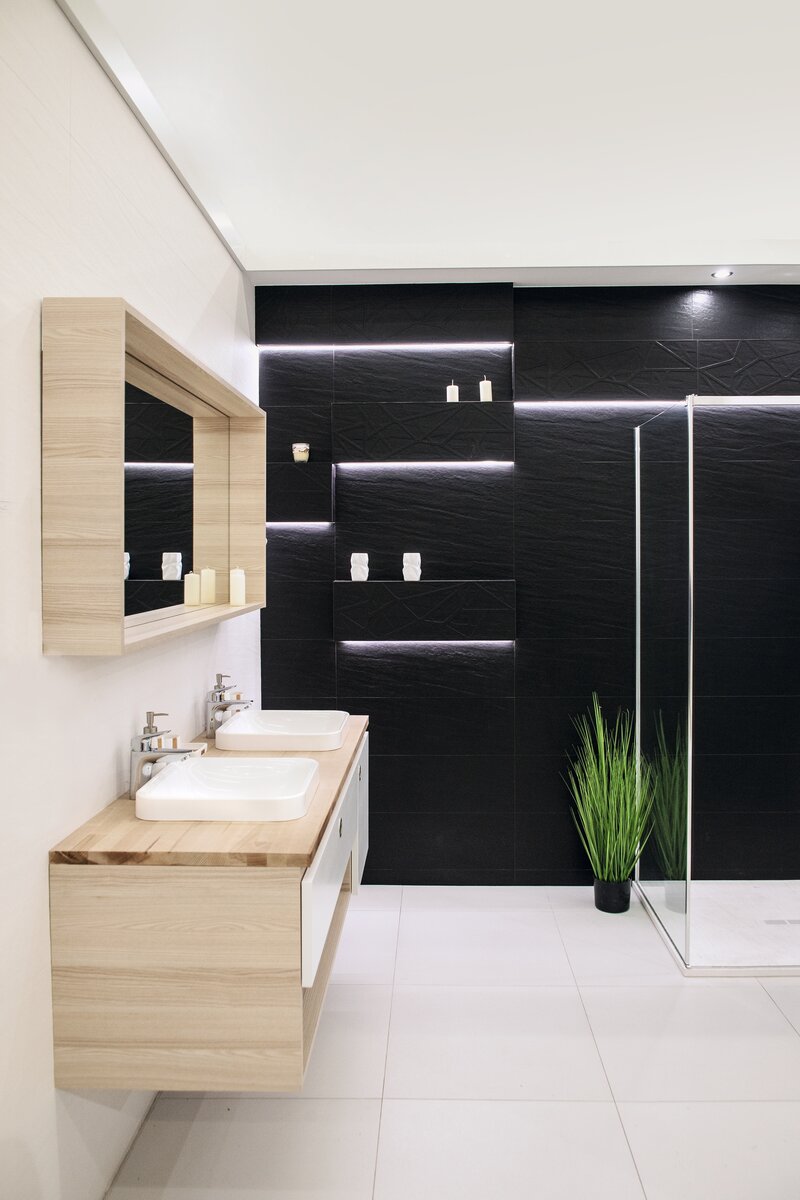

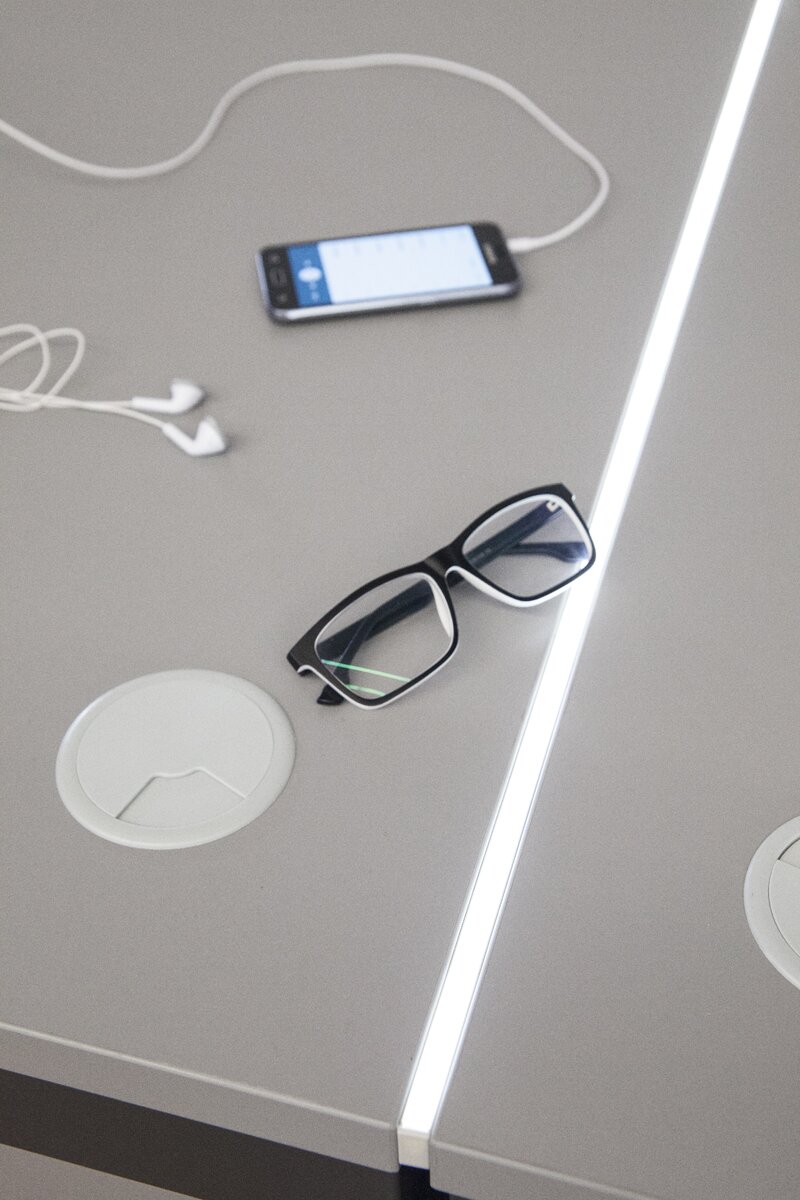

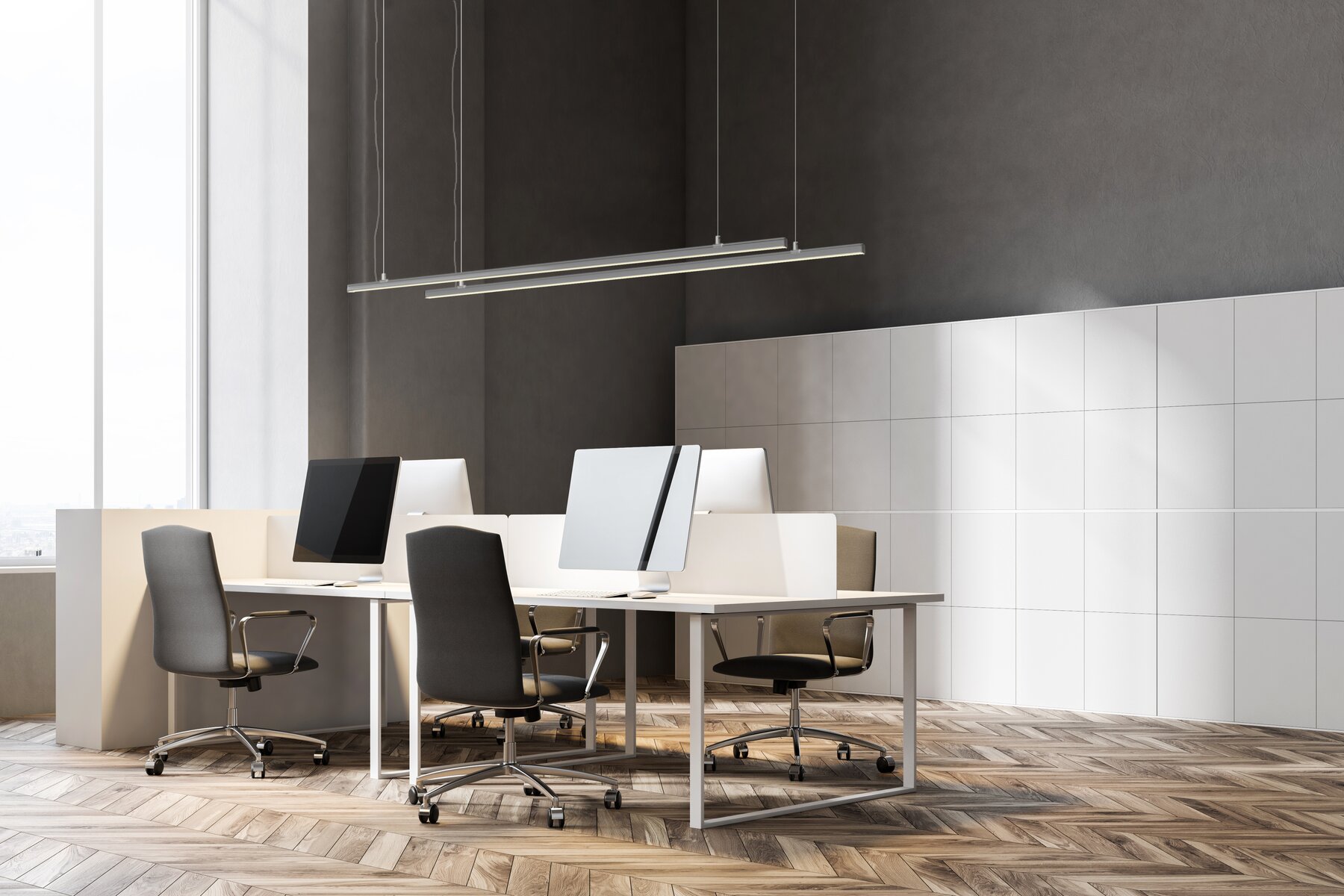

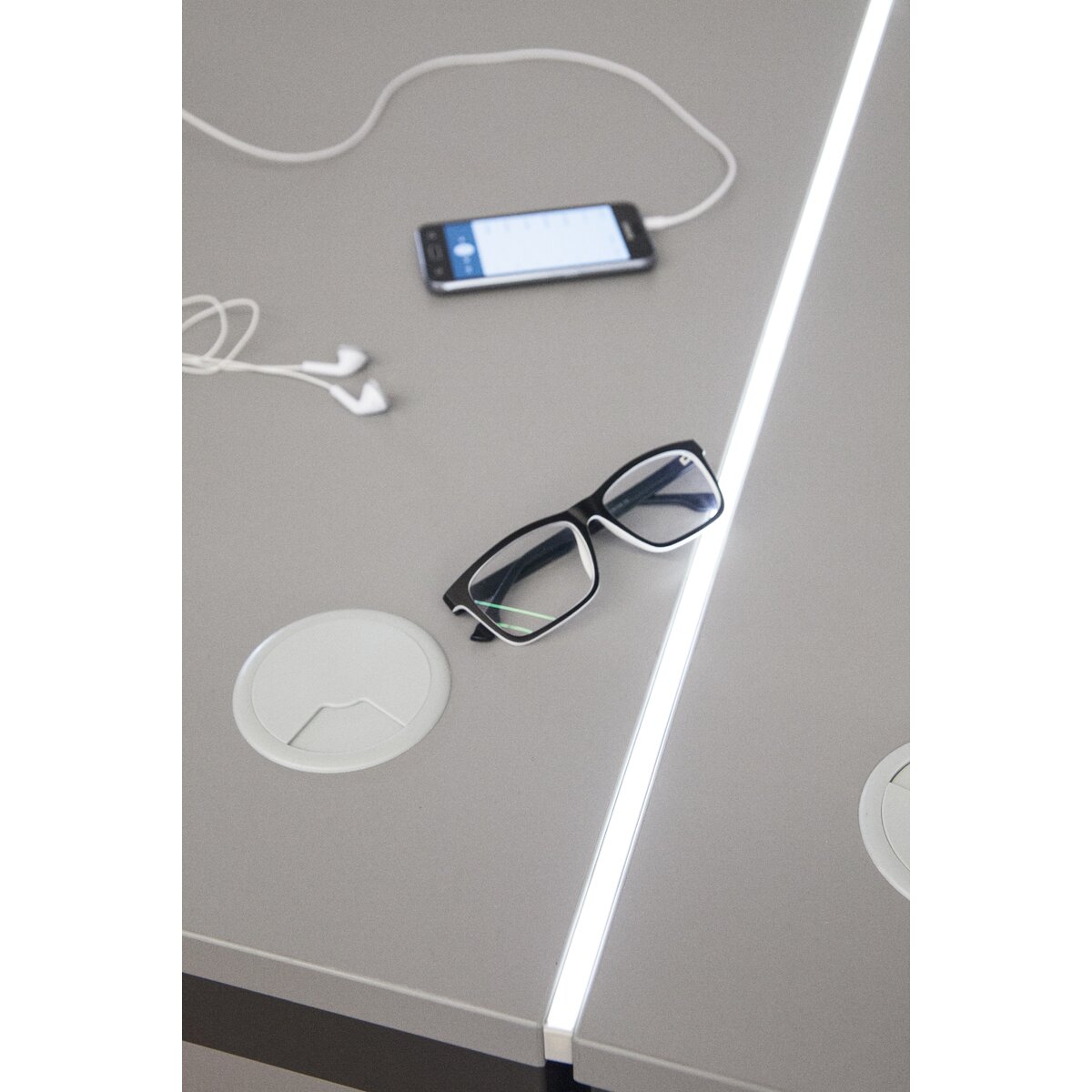

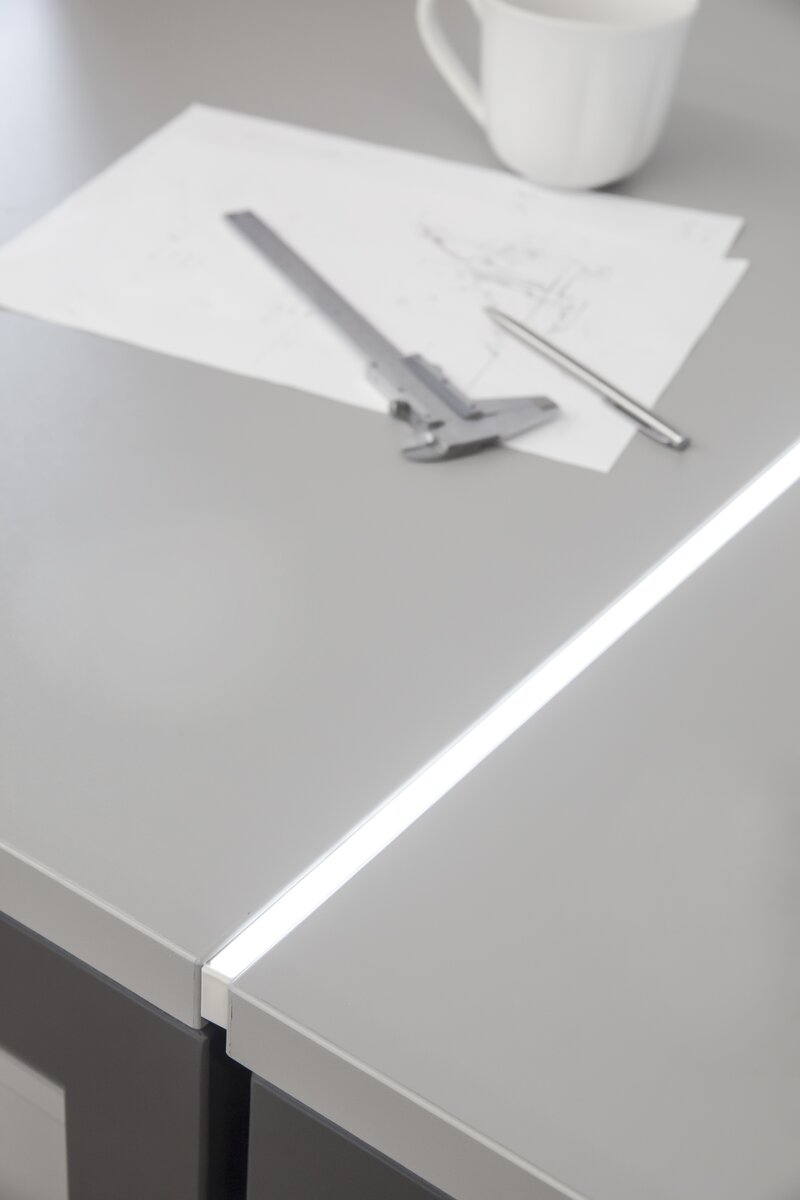

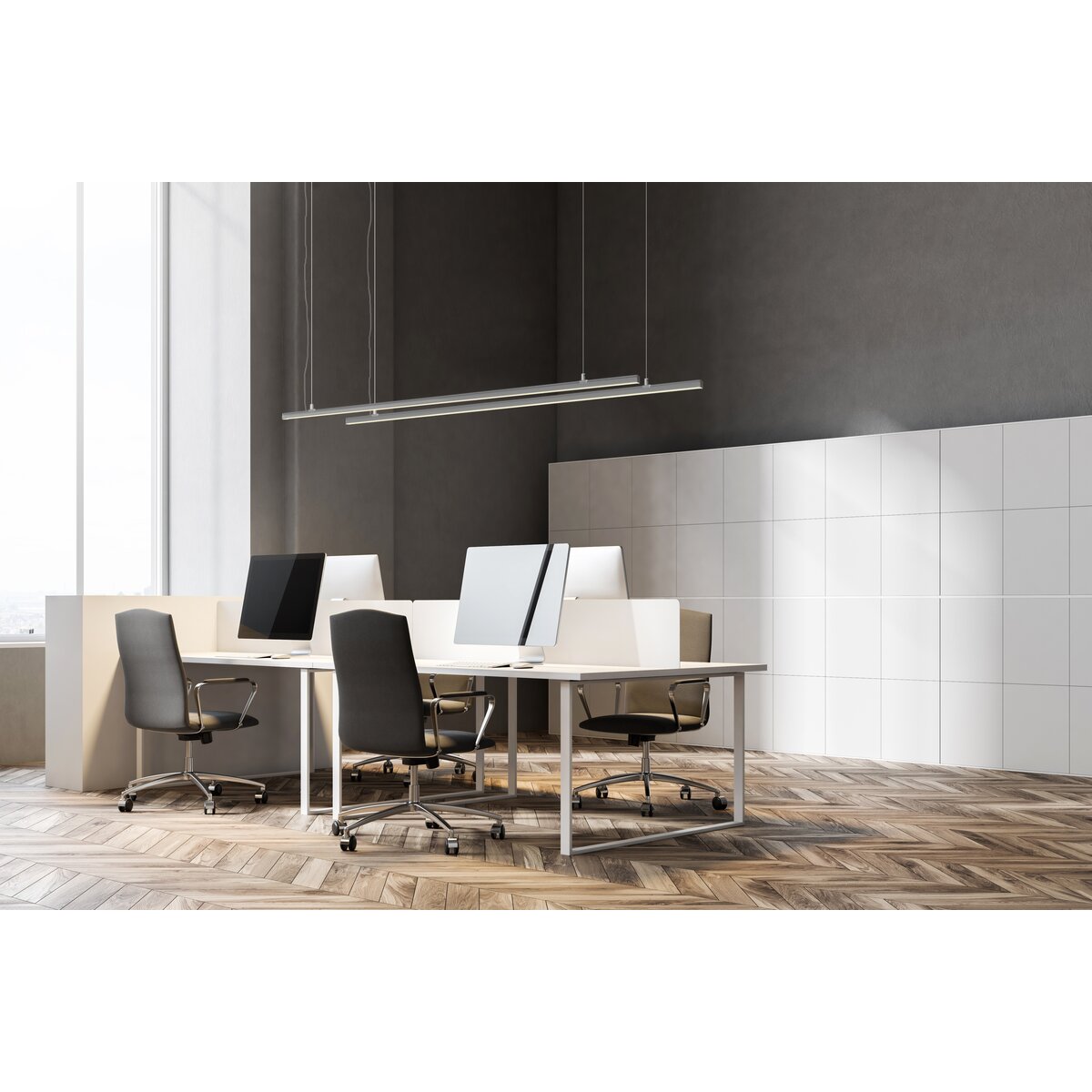

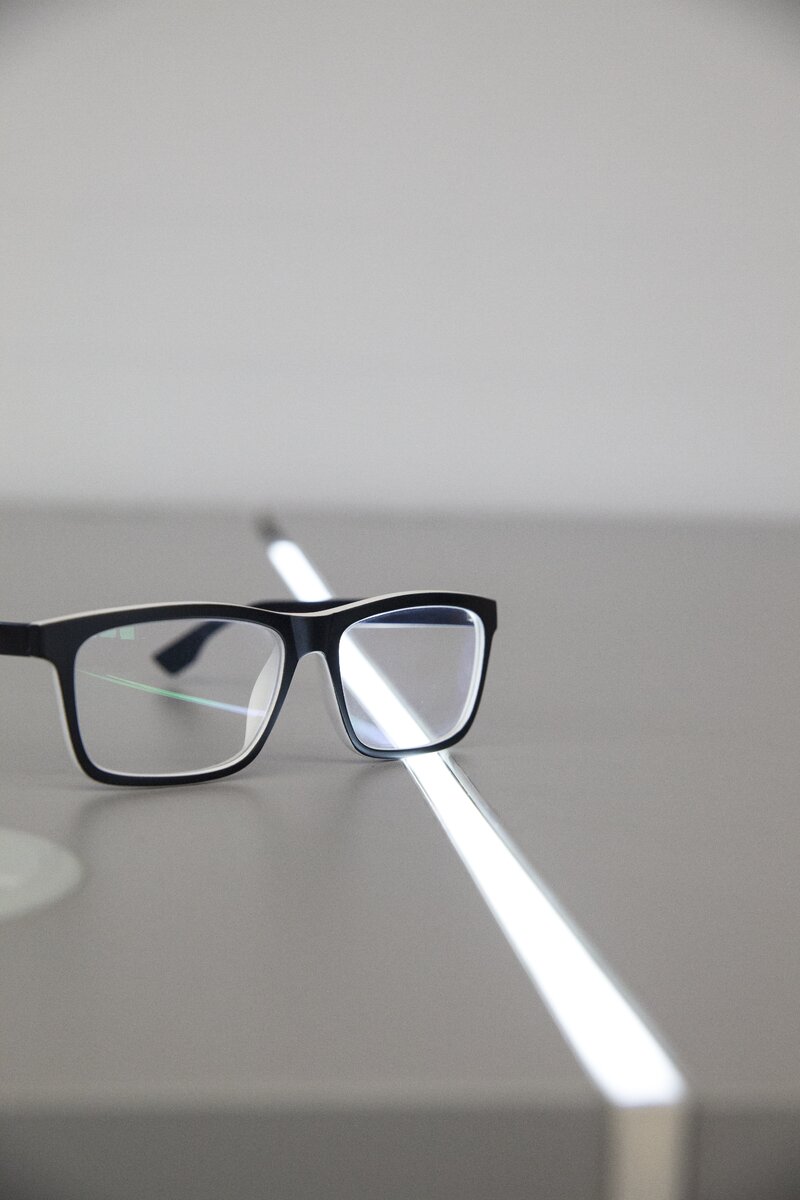

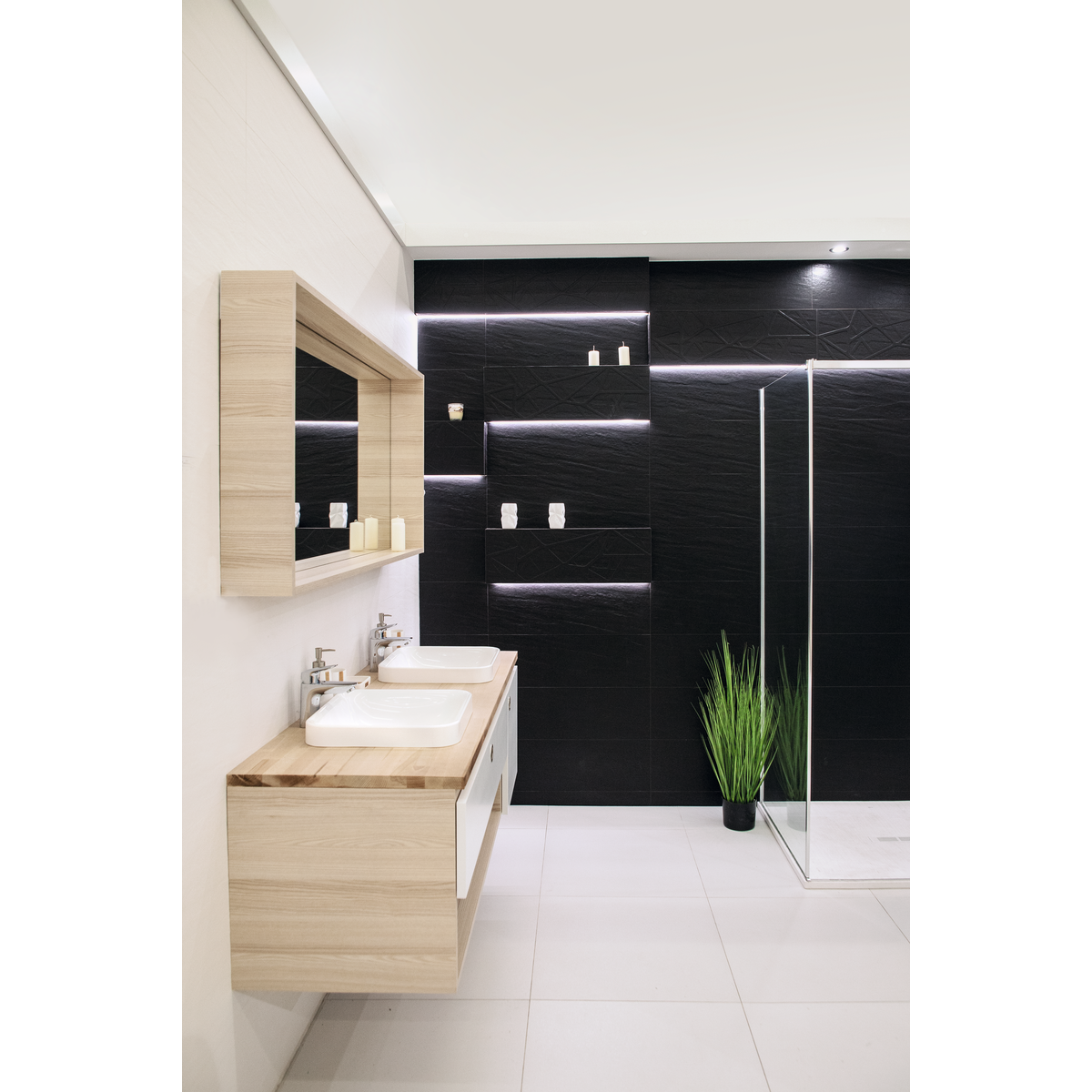

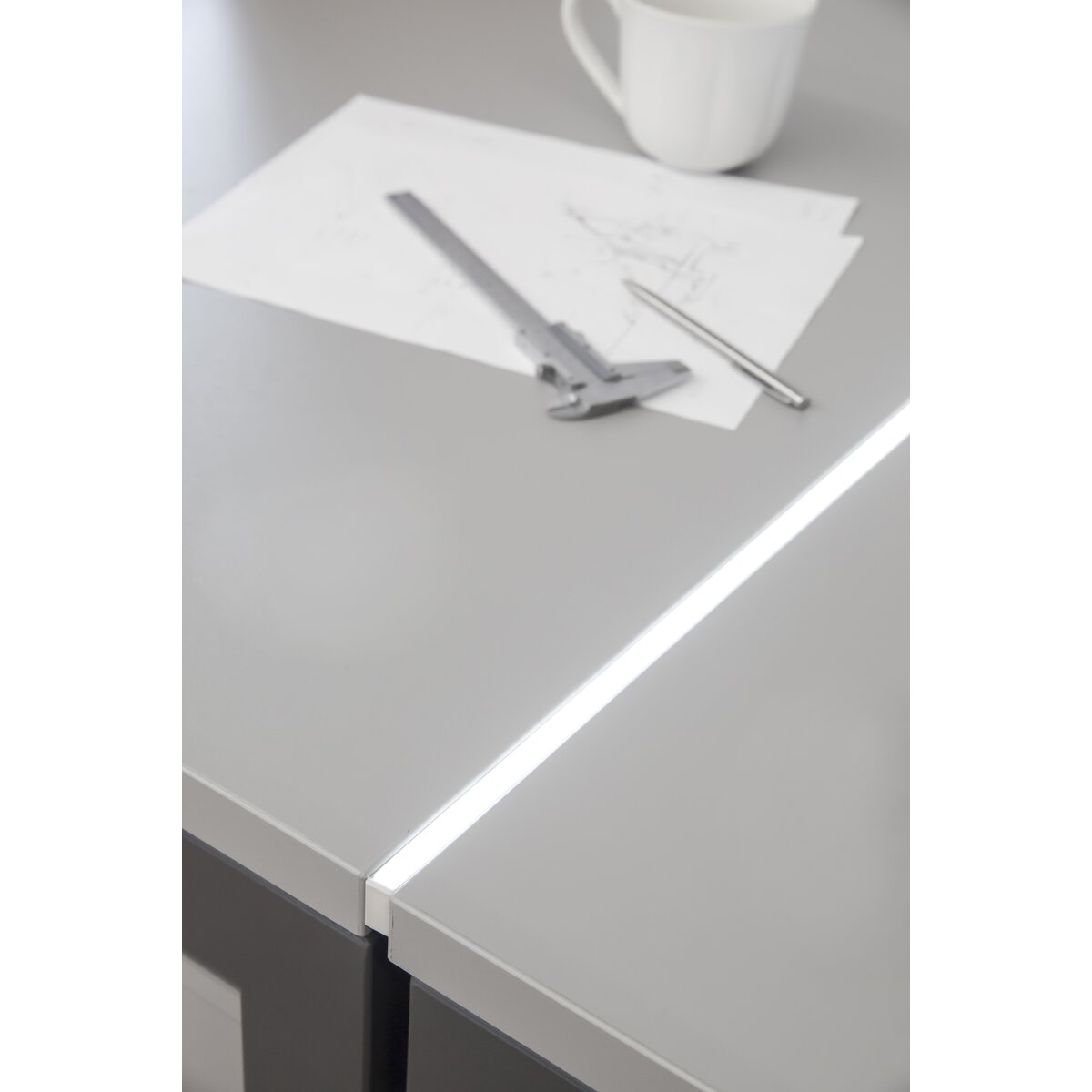

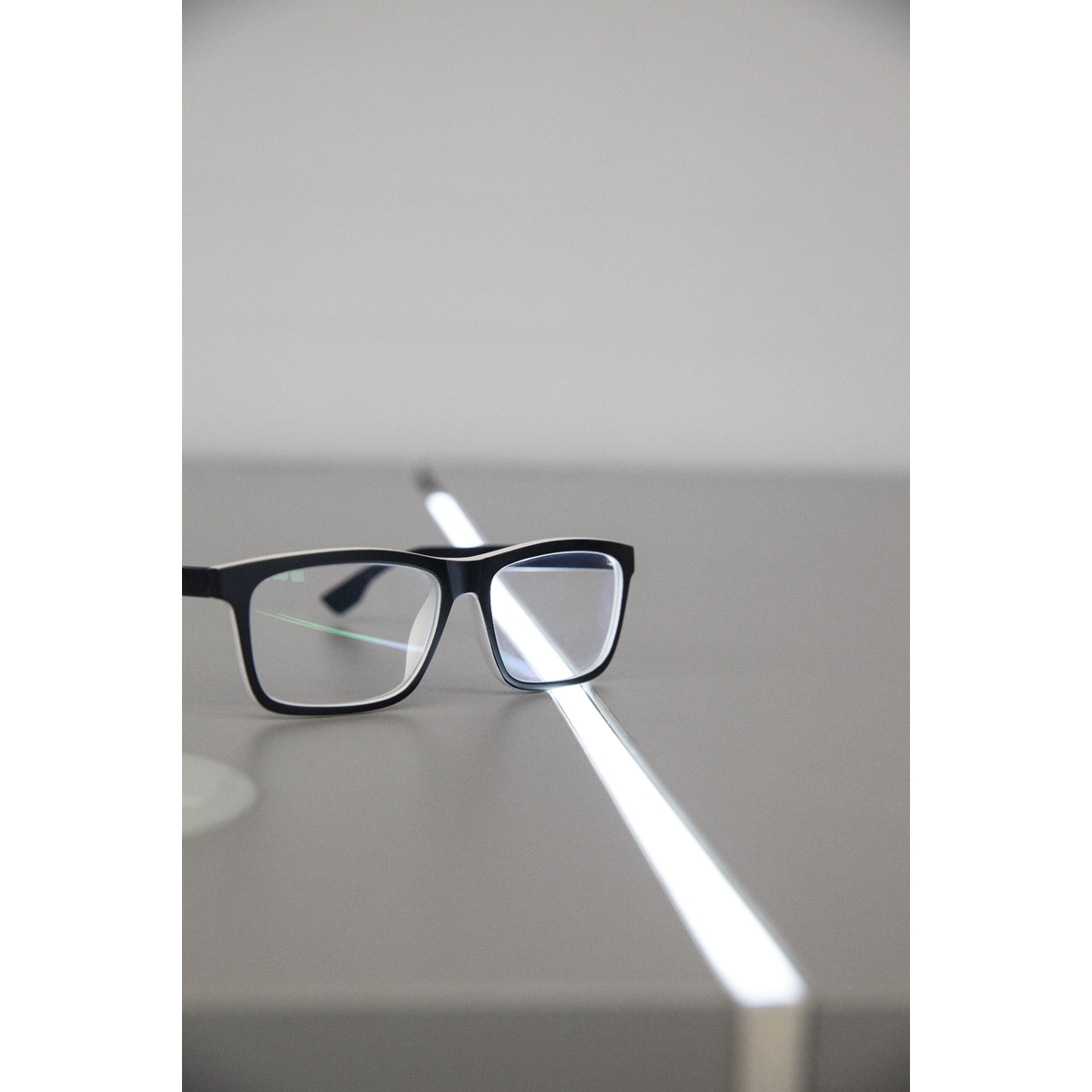

Usage examples

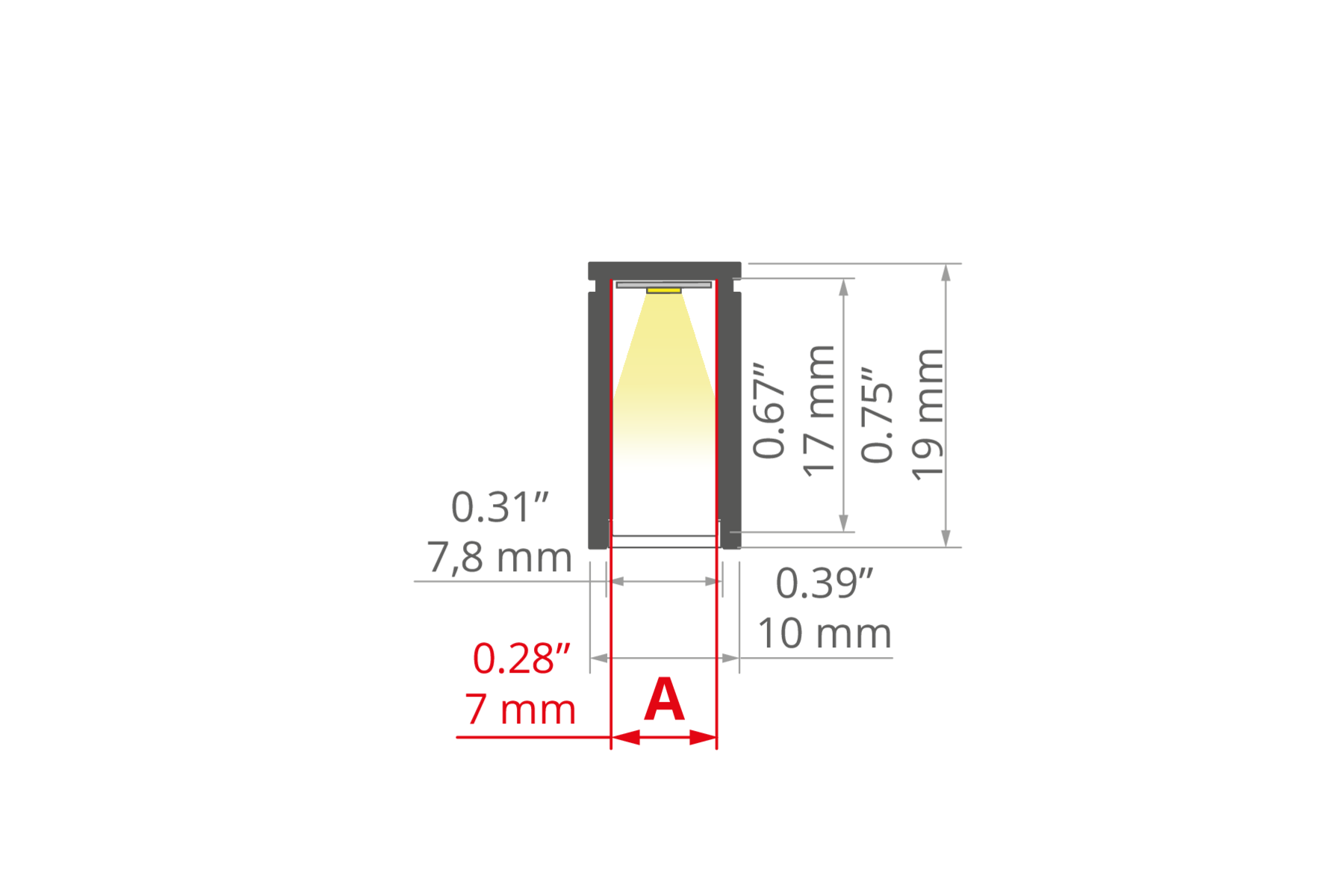

Technical drawing
LINO Extrusion aluminum Technical drawing - A08287
Technical specification
Material
aluminum
Possible fixture IP
20, 67
Possible fixture shapes
linear
Profile cross-section
rectangular
Max power of a single KLUŚ LED strip
2.9 W/ft
Width
0.4" (10 mm)
Height
0.7" (19 mm)
LED gluing width A
0.3" (7 mm)
Easy assembly and disassembly by snapping in and out
Yes
The cover is cut to the length of the profile
Yes
Wire out end cap
Yes
Wire out back of extrusion
Yes
Closet Rated
Yes
Possibility of obtaining a line of light
Yes
Building type
Residential, Hotel / Restaurant, Commercial
Facility zone
kitchen, bathroom, office, exhibition / tradeshow / display, decorative, fitness / spa, media rooms / av
Color Length Ref No
silver anodized
39.4" (1000 mm)
78.9" (2005 mm)
A08287A_1
A08287A_2
Line of Light Table for Pixel Free Illumination
LED Tapes Covers
Categories LED tape type PIKO-7 Cover satin
CRI 90+ K-SHD-0960-24 Line of Light for a number (X) of rows (1)
Line of Light for a number (X) of rows
Line of Light for a number (X) of rows - Pixel free imaging
Centered Line of Light
Centered Line of Light - Concentrated in middle
None
None - Visible dotting from diodes
Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes
Related products
Product name Material Key features Light transmittance [%] Color Ref No
PIKO-7 Cover
PMMA - For indoor and outdoor applications
- perfectly diffusing
- UV resistant
- Thin line of light
B17001
BENCO-7 Cover
silicon - indoor use
- perfect for bent extrusions
B17069
No results found for the selected filters.
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-SHD-0960-24 LED tape, 193-268 lm/ft, IP20,
20 - 2.9 W/ft - - ideal for use with black covers
- high LED density
K-SHD-0960-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-RGB-1560-24 LED tape, 194 lm/ft, IP20,
20 - 4.8 W/ft
RGB
- RGB
K-RGB-1560-24_
No results found for the selected filters.
Product name Key features Material Color Ref No
K-10 Mounting bracket
- Transparent – aesthetic installation of minimalist linear fixtures
PC
transparent
C24340C00
Product name Key features Material Color Ref No
Fi-60mm Canopy
- Convenient cable length adjustment, in the ZM system
steel
C24540
Product name Key features Material Color Ref No
K-10-PP Fastener
- Cross mounting
stainless steel, PC
silver
C28235N00
No results found for the selected filters.
Product name IP rating Key features Ref No(Ref. arch.)
UNI Proximity switch
20 - touchless switch
- width only 7mm
E61579
No results found for the selected filters.
Product name Material Color Ref No
Gland 6x1,2
C24517C07
No results found for the selected filters.
