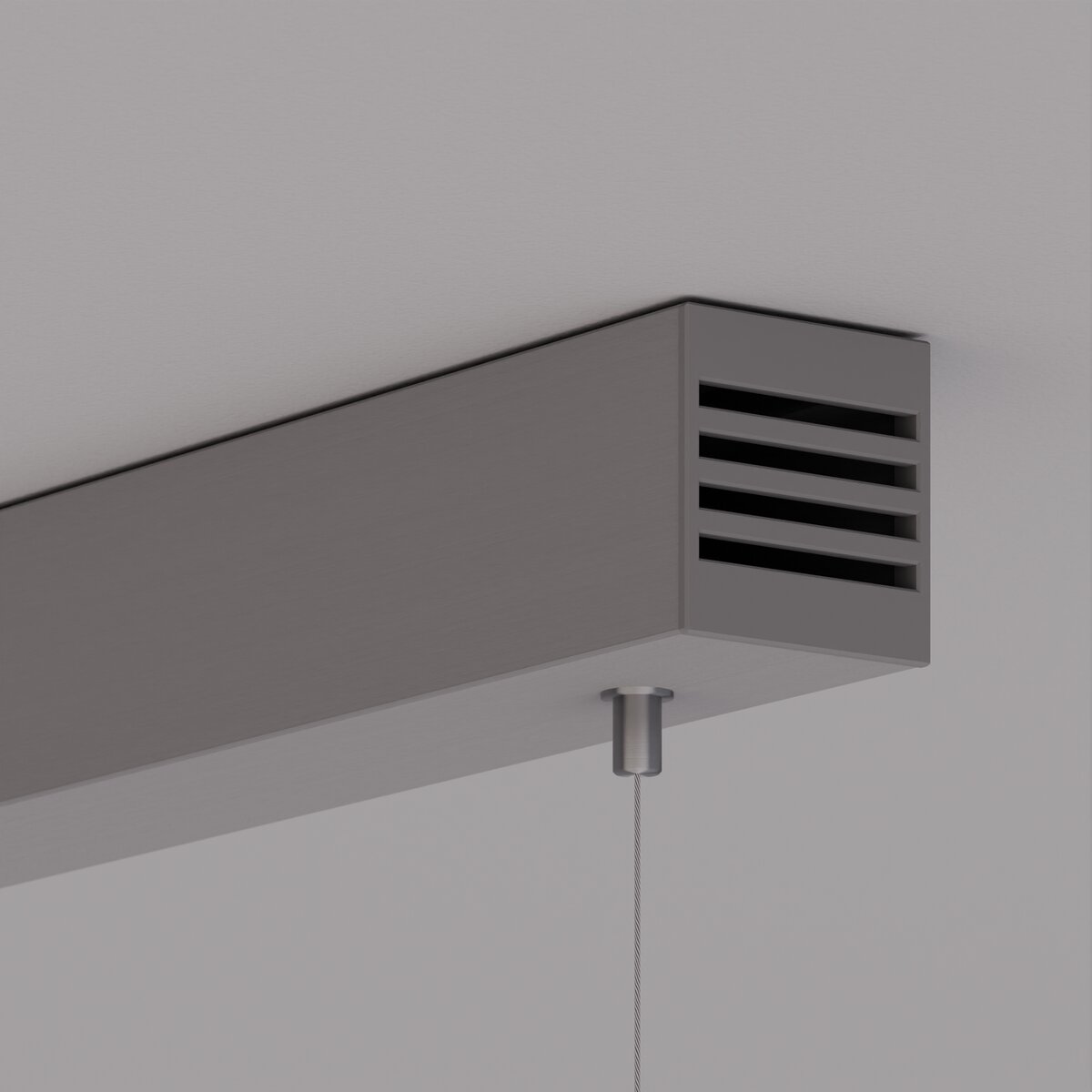

NIBO Extrusion

Ref No: A18010
NIBO Extrusion
NIBO Extrusion
  • Mounting track
  • Easy maintenance
Surface mounted
With the possibility of sealing up to IP20
CE Certificate
CE Certificate
RoHS Certificate
Color
silver
  • Mounting track
  • Easy maintenance
Application
  • - mounting of power supplies and electronic components
Mounting
  • - to the surface, using a dedicated mounting track and properly selected screws
Additional information
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ
Usage examples

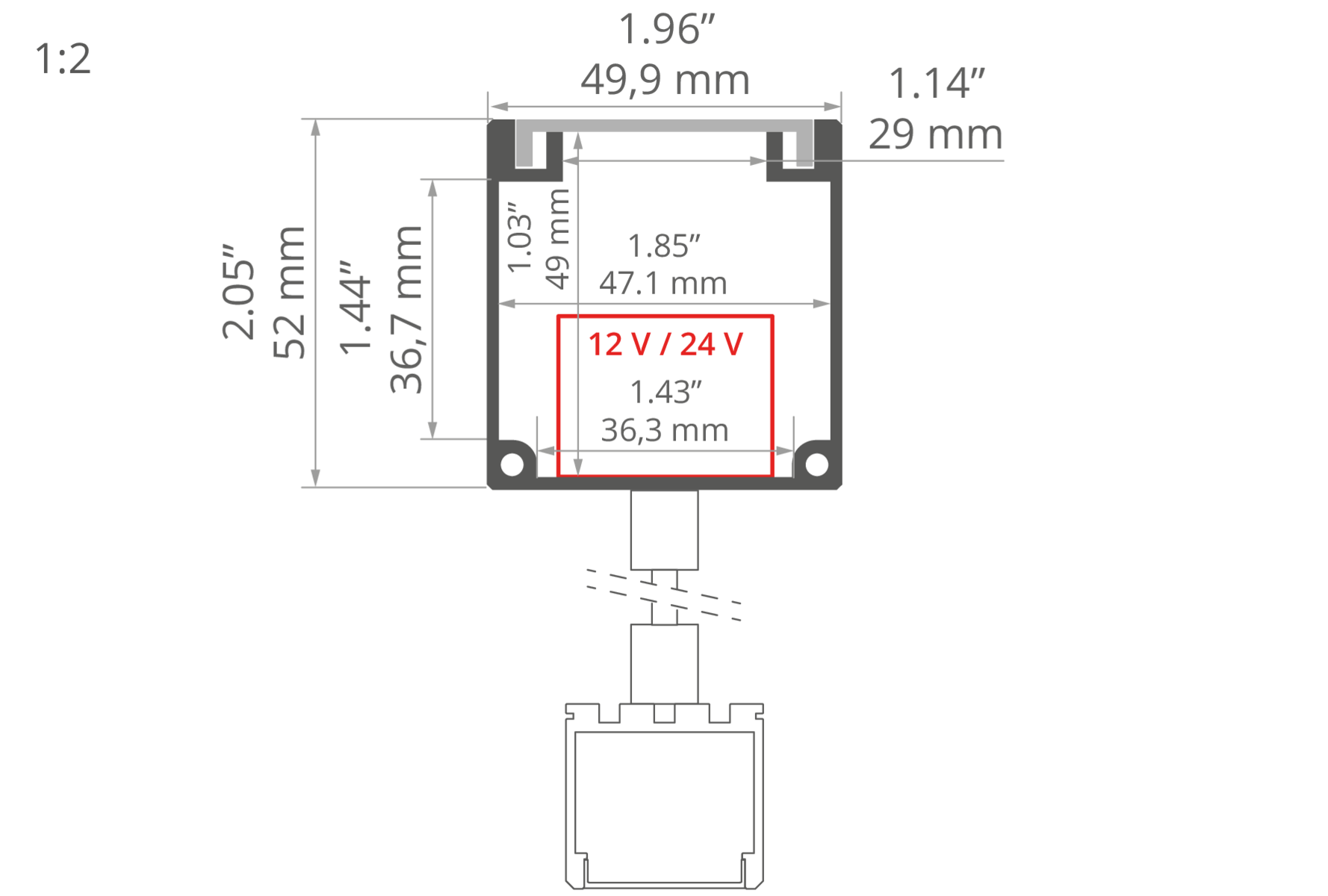

Technical drawing
NIBO Extrusion aluminum Technical drawing - A18010
Technical specification
Material
aluminum
Possible fixture IP
20
Possible fixture shapes
linear
Profile cross-section
rectangular
Width
2" (49.9 mm)
Height
2" (52 mm)
Wire out back of extrusion
Yes
Dedicated space for power supply
Yes
Building type
Other, Commercial, Residential, Hotel / Restaurant
Facility zone
office, parking / garage / driveway
Color Length Ref No
silver anodized
39.4" (1000 mm)
78.9" (2005 mm)
118.5" (3010 mm)
A18010A_1
A18010A_2
A18010A_3
