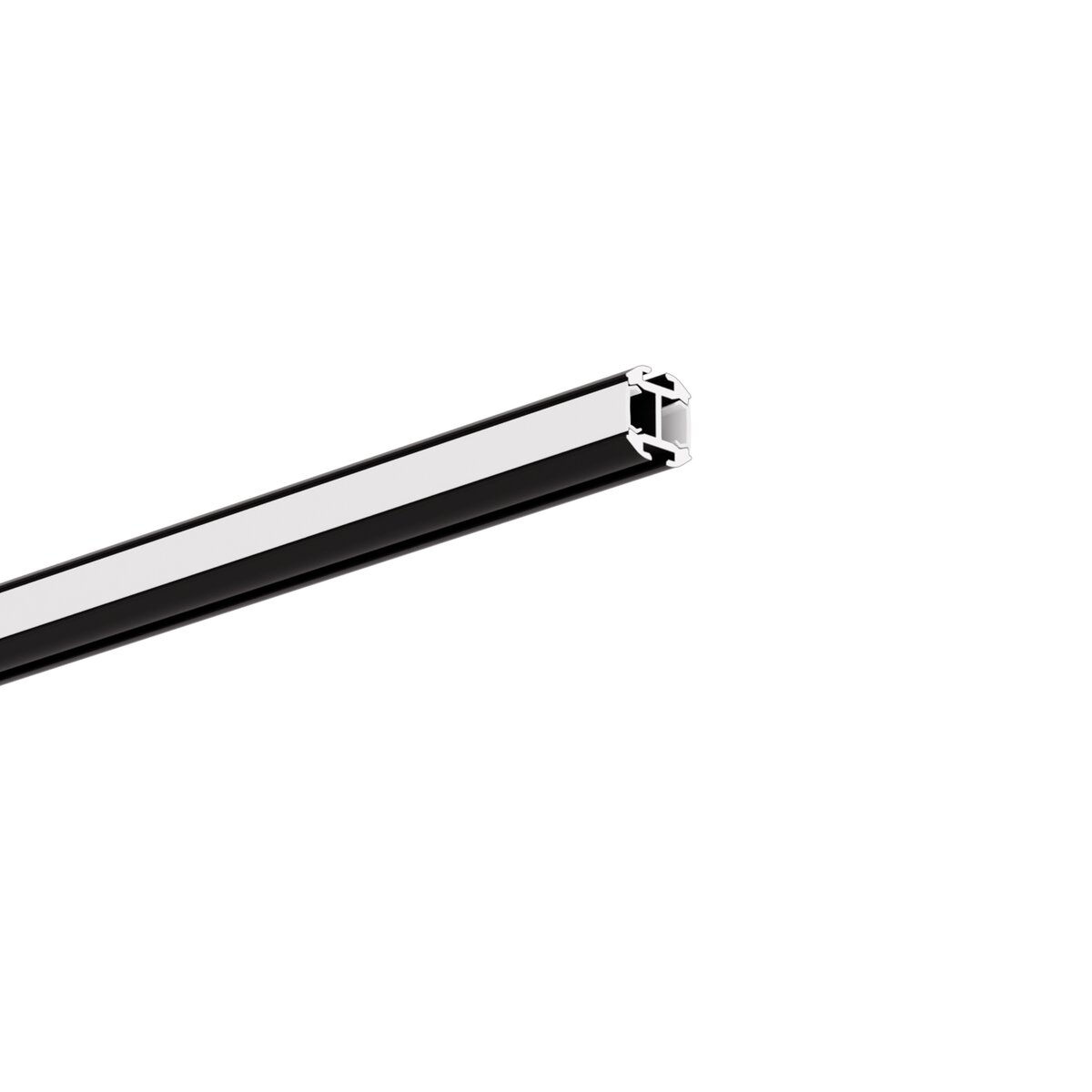

PIKO-DUO Extrusion (A00022)

Compare

Compared

Ease of creating geometric figures
Up/down lighting
Minimum dimensions
Small bending radius
Possibility of bending in the light plane
A wide range of accessories and mounting options
Possibility of installing sealed 5K series LED strips
Possibility to integrate a touchless UNI switch

With the possibility of sealing up to IP20

With the possibility of sealing up to IP65

Color

Description

Ease of creating geometric figures
Up/down lighting
Minimum dimensions
Small bending radius
Possibility of bending in the light plane
A wide range of accessories and mounting options
Possibility of installing sealed 5K series LED strips
Possibility to integrate a touchless UNI switch

Application

- decorative lighting and functional

Mounting

- suspended, using dedicated accessories

Additional information

- for suspending small-size extrusion, it is recommended to use a wire with a diameter of 0.5 mm

download

Usage examples

Description
download

Application

- decorative lighting and functional

Mounting

- suspended, using dedicated accessories

Additional information

- for suspending small-size extrusion, it is recommended to use a wire with a diameter of 0.5 mm

Declaration of Conformity UKCA

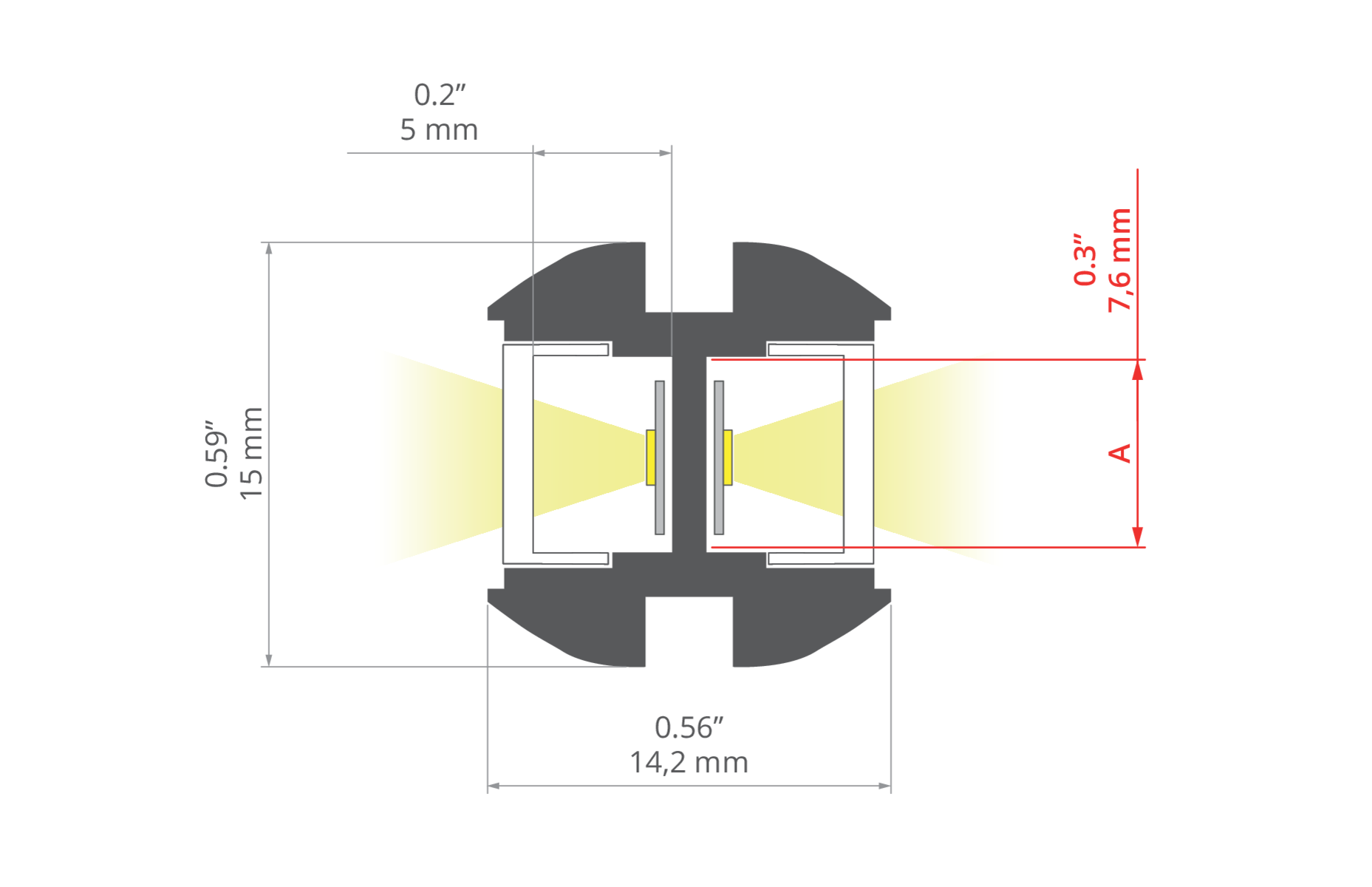

Technical drawing

Technical specification

Finish

anodized

Material

aluminum

Possible fixture IP

20, 65

Possible fixture shapes

linear, round, rectangular, polygonal

Max power of a single KLUŚ LED strip

2.9 W/ft

Width

0.6" (15 mm)

Height

0.6" (14.2 mm)

LED gluing width A

0.3" (7 mm)

LED mounting width B [inch]

0.3" (7 mm)

Can be easily connected into runs

Yes

Decorative lighting

Yes

Possibility of bending in the light plane

Yes

Possibility of twisting

Yes

Possibility of obtaining a line of light

Yes

Possibility of bending

Yes

Minimum radius of the light arc

Radius of the light arc

Yes

Inside

200 mm

Outward

200 mm

Downward

250 mm

Color	Length	Ref No
silver anodized	39.4" (1000 mm) 78.9" (2005 mm)	A00022A_1 A00022A_2
black anodized	39.4" (1000 mm) 78.9" (2005 mm)	A00022A07_1 A00022A07_2
white lacquered	39.4" (1000 mm) 78.9" (2005 mm)	A00022L10_1 A00022L10_2
