Note: Archival product

Fastener W-M-Z-49

Ref No: 42556

Fastener W-M-Z-49

Description
download

Application

- attachment to the surface for LED lighting fixture suspension systems

Mounting

- to the surface, using the included accessory kit
- to a rod or cable, using a set bolt

Installation in solid masonry surfaces
Longitudinal suspension for rods and wires
Single pole conductivity possible
Large masking cover to hide damage to the mounting surface

Conducting electricity

Conducting electricity

Color

silver

Installation in solid masonry surfaces
Longitudinal suspension for rods and wires
Single pole conductivity possible
Large masking cover to hide damage to the mounting surface

Application

- attachment to the surface for LED lighting fixture suspension systems

Mounting

- to the surface, using the included accessory kit
- to a rod or cable, using a set bolt

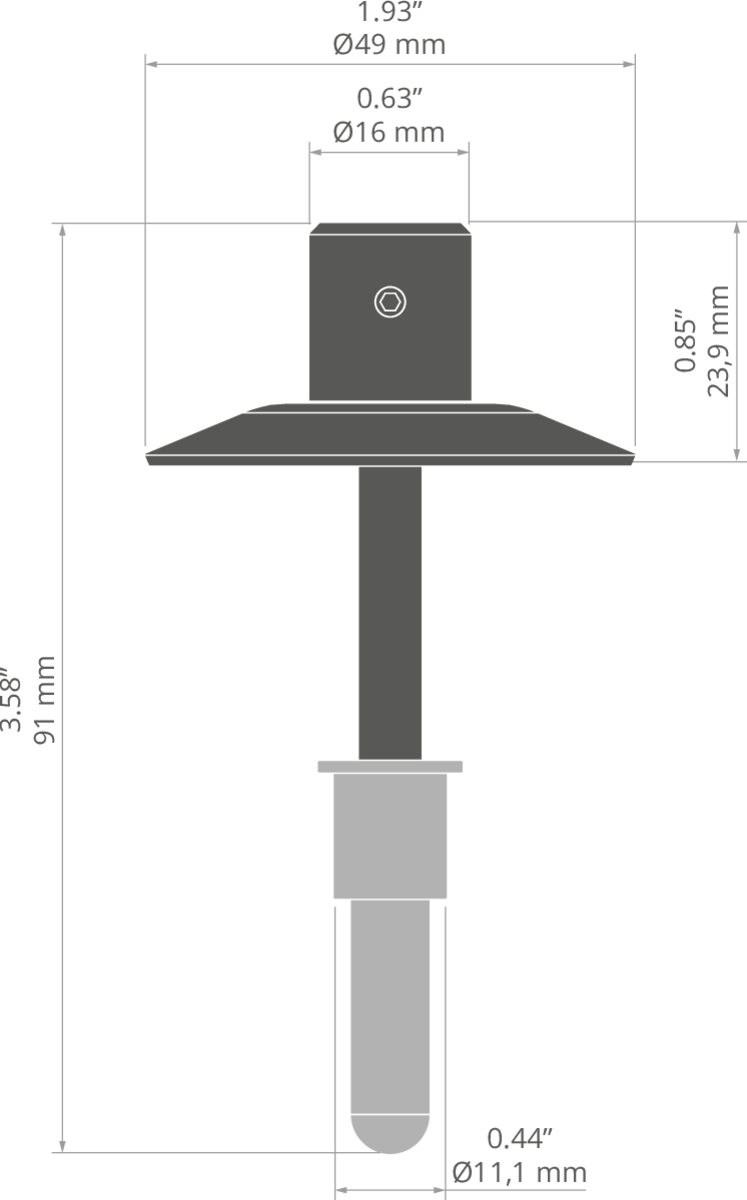

Technical drawing

Fastener W-M-Z-49 steel Technical drawing - 42556

Technical specification

Conducting electricity

Yes

Material

steel

Diameter

0.6"

Conducting electricity

Yes

Working temperature

140°F

Lifting capacity

22 lb

Maximum current intensity

8 A

Power loss

0.12 V

Width x Height

1.9" x 3.6"

Related products

Accessories

Accessories
Suspension accessories
Wires and rods

Product name	Material	Color	Ref No
FI-1 39.4" Stainless steel wire	steel	silver	C24522N00
Rod FI-3 1m	brass	silver	42501
Rod FI-3 53 cm	stainless steel	silver	C24528N00
