010-96-AUX-24V Power supply

Ref No: 010-96-AUX-24V
  • 0-10V Dimming compatible
  • Smooth flicker-free dimming, down to 1%
  • Universal input voltage - 120 to 277 VAC
  • 22VDC Aux Output to power accessories
  • IP21
  • 5-year warranty
  • Compatible with PWM Dim to Warm LEDs, not 0-10V versions
IP21 protection rating
RoHS Certificate
Warranty: 5 years
Color
black
Usage examples

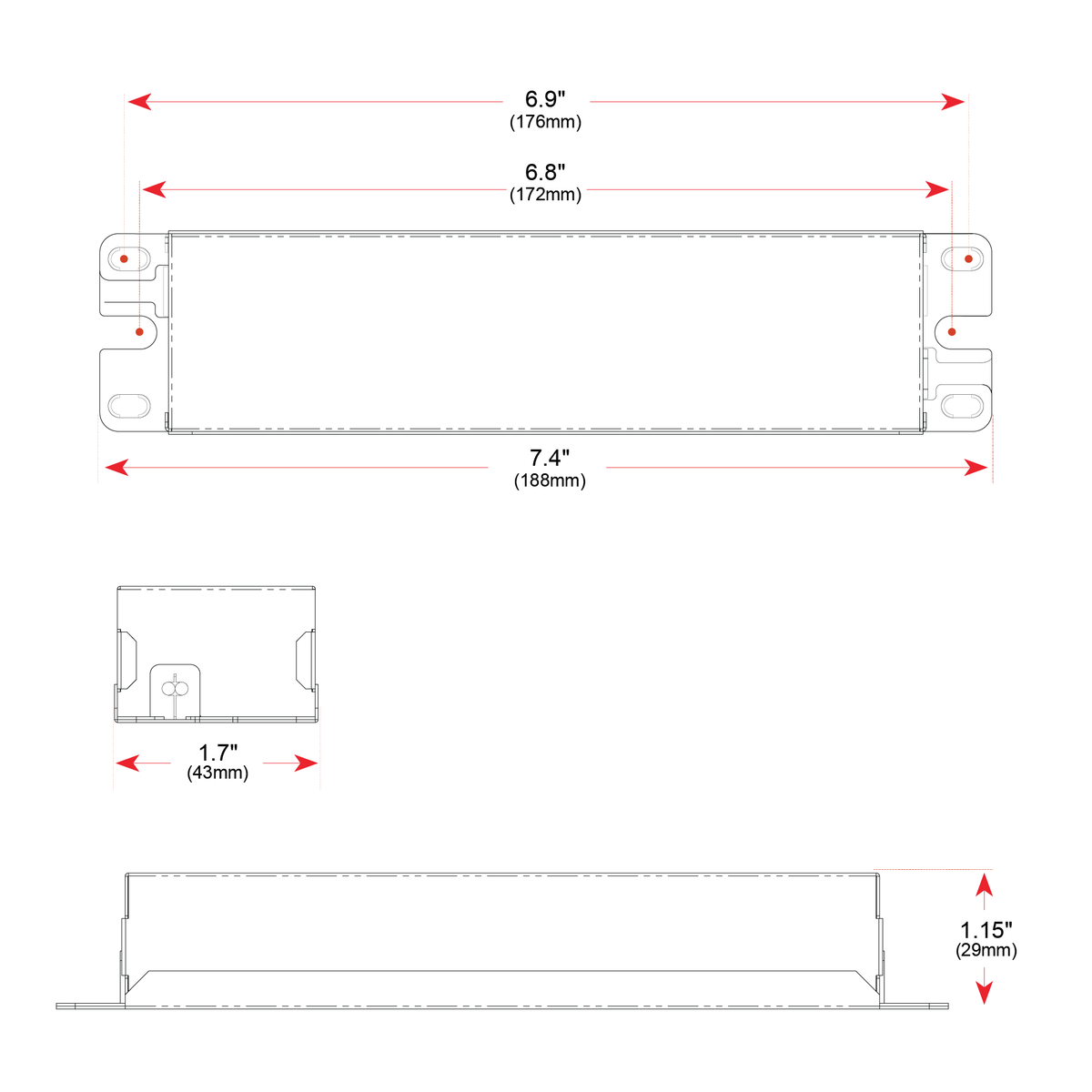

Technical drawing
010-96-AUX-24V Power supply Technical drawing - 010-96-AUX-24V
Technical specification
IP protection rating
21
Seria US
010V DIM, AUX Series
Dimming range
1-100%
Control / Communication
0-10V
Rated input voltage
24V DC
Maximum output power
96 W
Minimum input voltage
120 V AC
Maximum input voltage
277 V AC
Dimensions
Width
1.7"
Height
1.1"
Length
7.4"
Working temperature
Minimum working temperature
-40°F
Maximum working temperature
140°F
Frequency
60 Hz
Efficiency at full load
85 %
Minimum output current
1.4 A
Protection
overload, overvoltage, thermal, short circuit
Insulation class
II
THD
20 %
Switch-on time
0.5 s
