Head 45-ZZ

Ref No: C28112N00
  • Crosswise suspension on a rod
  • Single pole conductivity possible
  • Power connector outside the lighting fixture
Conducting electricity
UV radiation resistance
Color
silver
  • Crosswise suspension on a rod
  • Single pole conductivity possible
  • Power connector outside the lighting fixture
Application
  • - for suspending LED lighting fixtures
Mounting
  • - to the lighting fixture, using a mounting bracket
  • - to the rod with a pressure screw

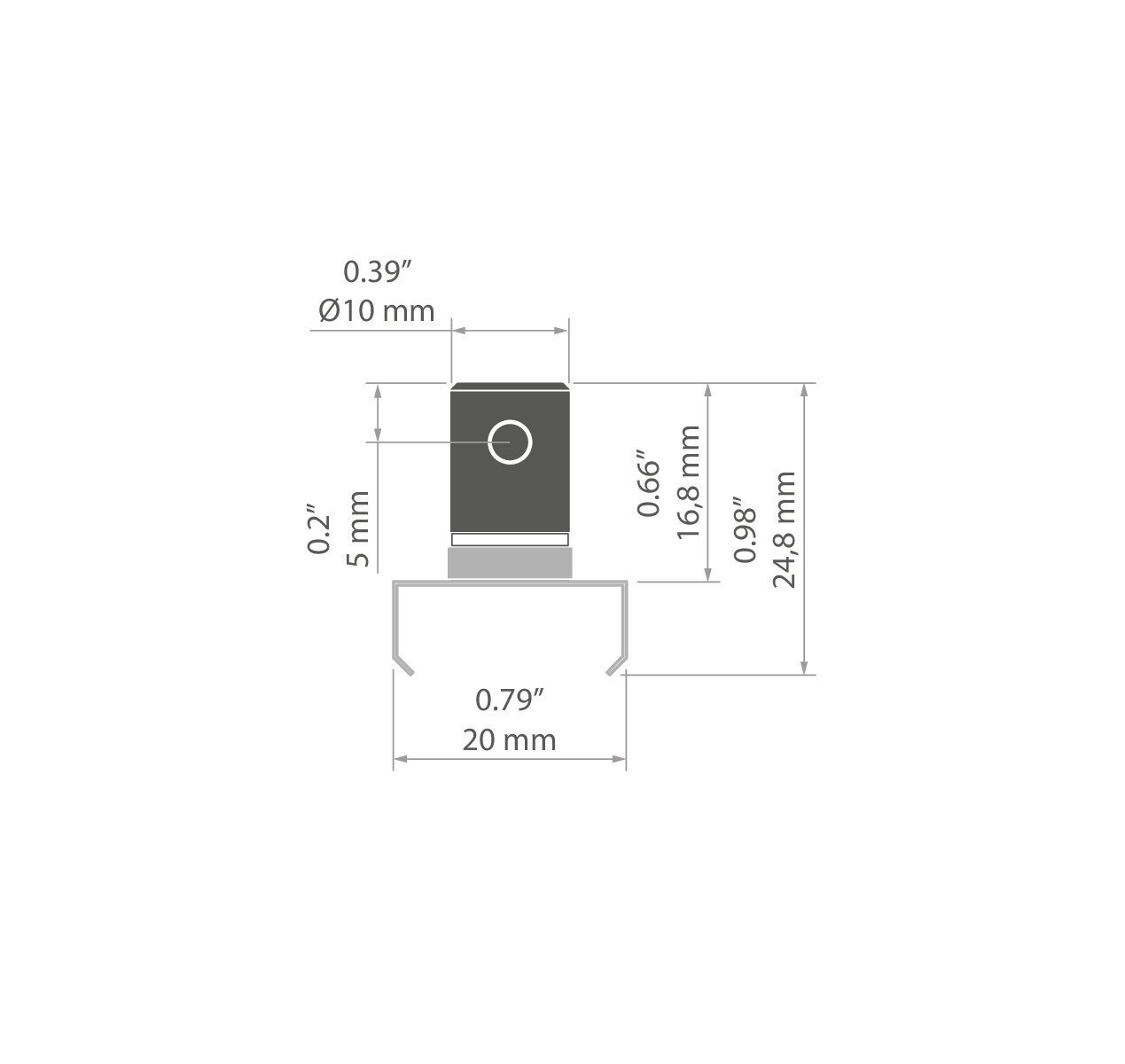

Technical drawing
Head 45-ZZ stainless steel Technical drawing - C28112N00
Technical specification
Material
stainless steel
Conducting electricity
Yes
UV radiation resistance
Yes
Working temperature
140°F
Lifting capacity
19.8 lb
Maximum current intensity
9 A
Power loss
0.06 V
Width x Height
0.8" x 1"
Related extrusions
SILER
Ref No: A09325
Related products
Product name Material Color Ref No
Arm K1-AB300
brass
silver
C42201N00
