DES Fixture suspended

The DES luminaire is an advanced lighting solution for architects and lighting designers. Features bi-directional lighting and UGR <19 for user comfort. A wide range of accessories facilitates customization to specific project needs.
  • Up/down lighting
  • Possiblity to obtain UGR < 10
  • Easy maintenance
  • Wide range of accessories
Suspended
Two directional lighting for suspended fixtures
With the possibility of sealing up to IP20
With the possibility of sealing up to IP54
CE Certificate
UKCA Certificate
RoHS Certificate
ETL
Configure
  • Up/down lighting
  • Possiblity to obtain UGR < 10
  • Easy maintenance
  • Wide range of accessories
Application
  • - main and decorative lighting
Mounting
  • - suspended, using a dedicated mounting track and dedicated accessories
Additional information
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ
  • - NCS Premium paint option - minimum order quantity 30pcs - available on order within 14 days

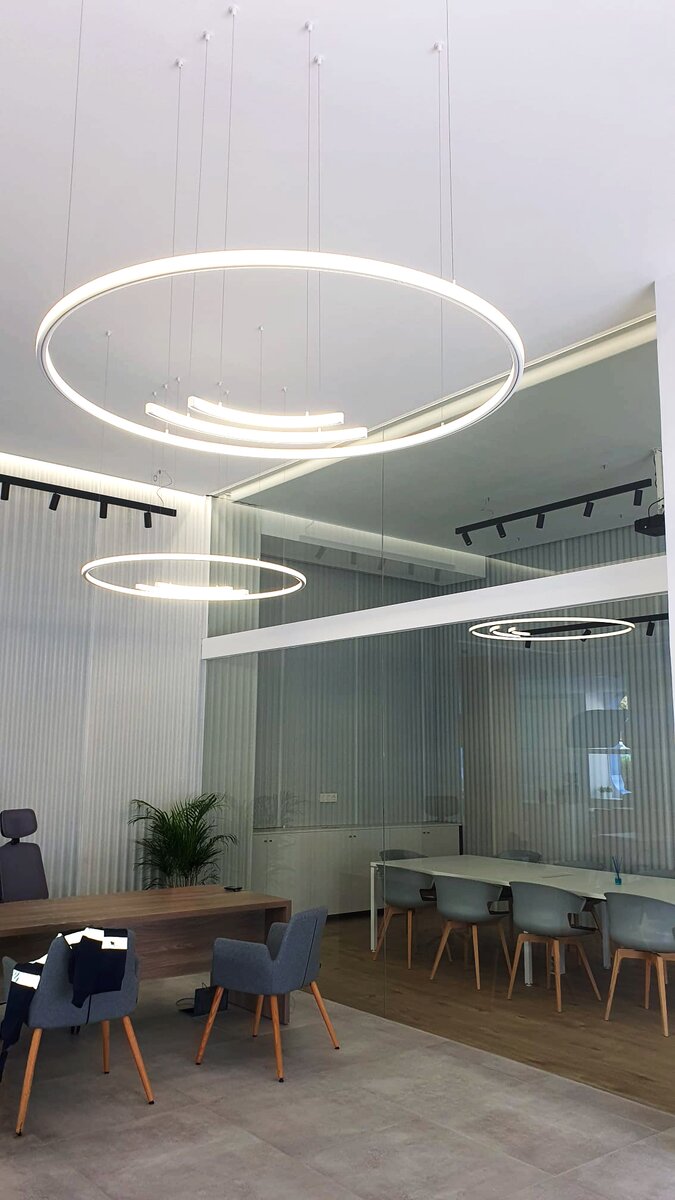

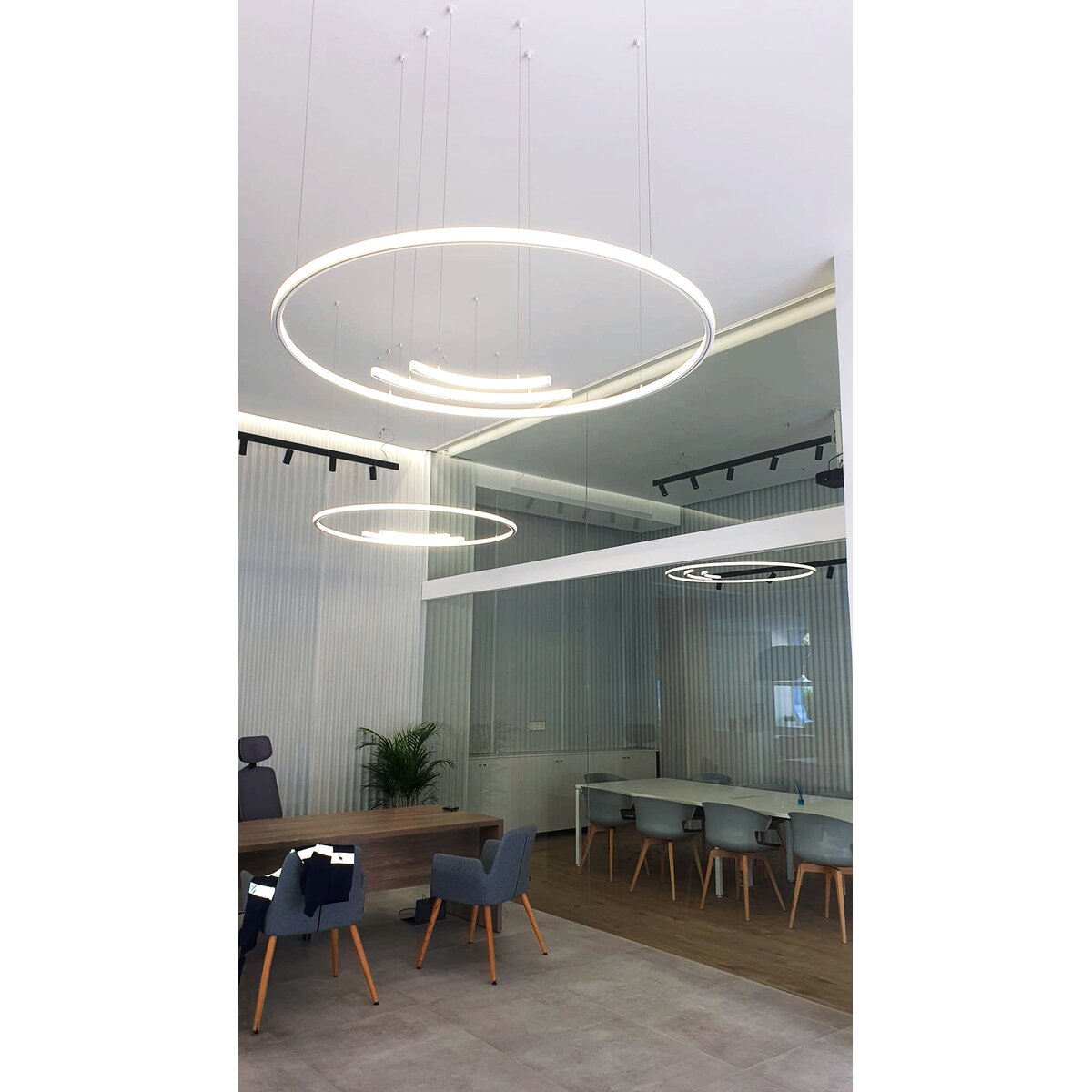

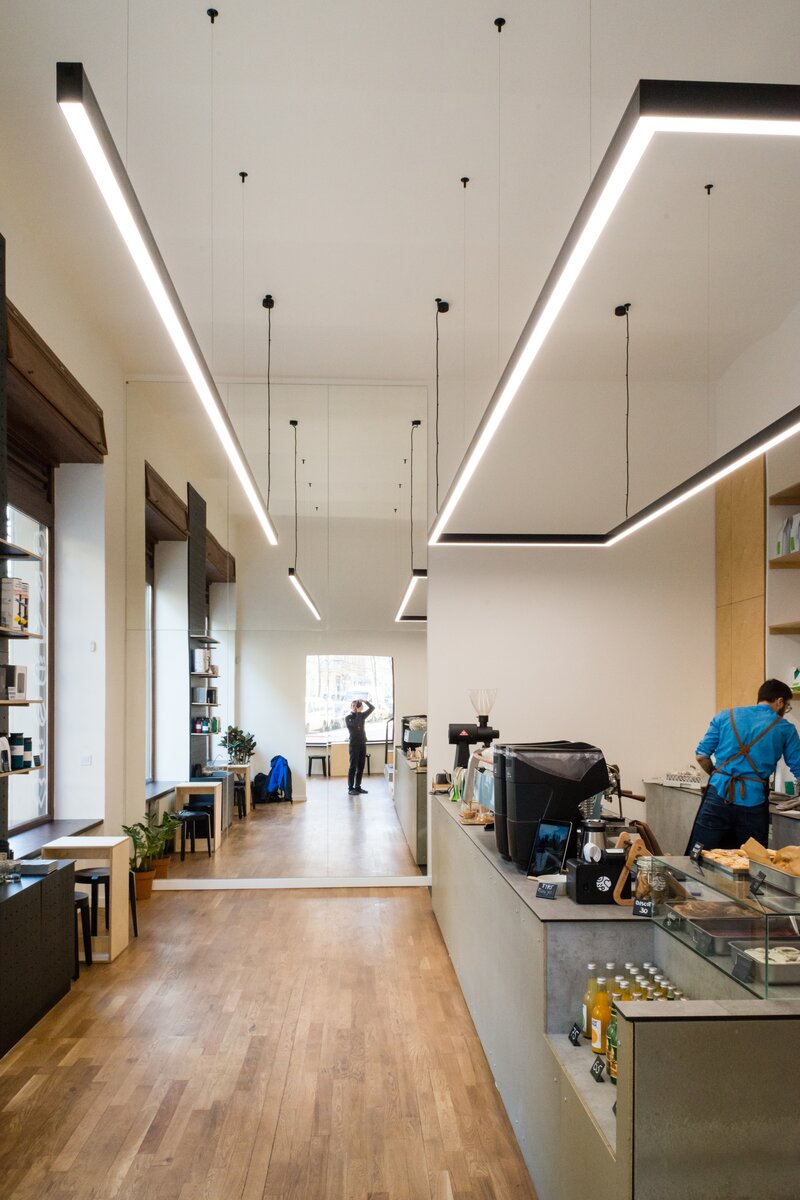

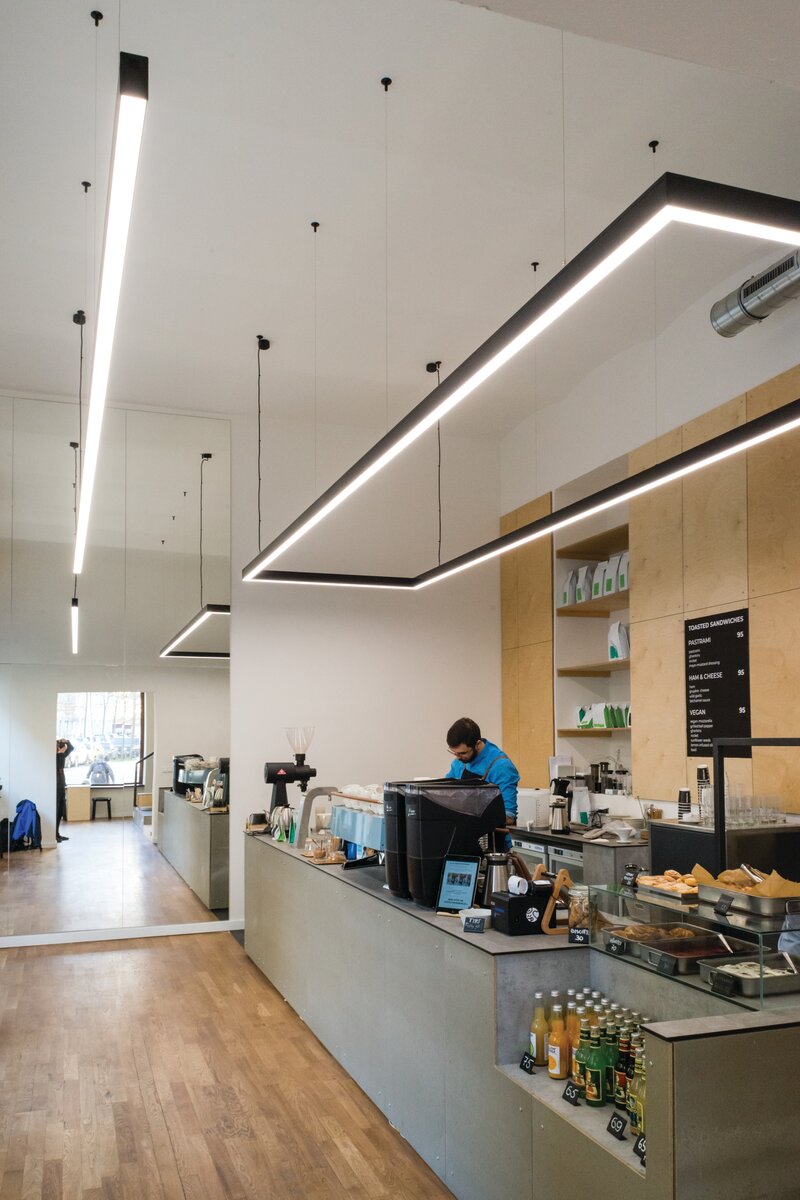

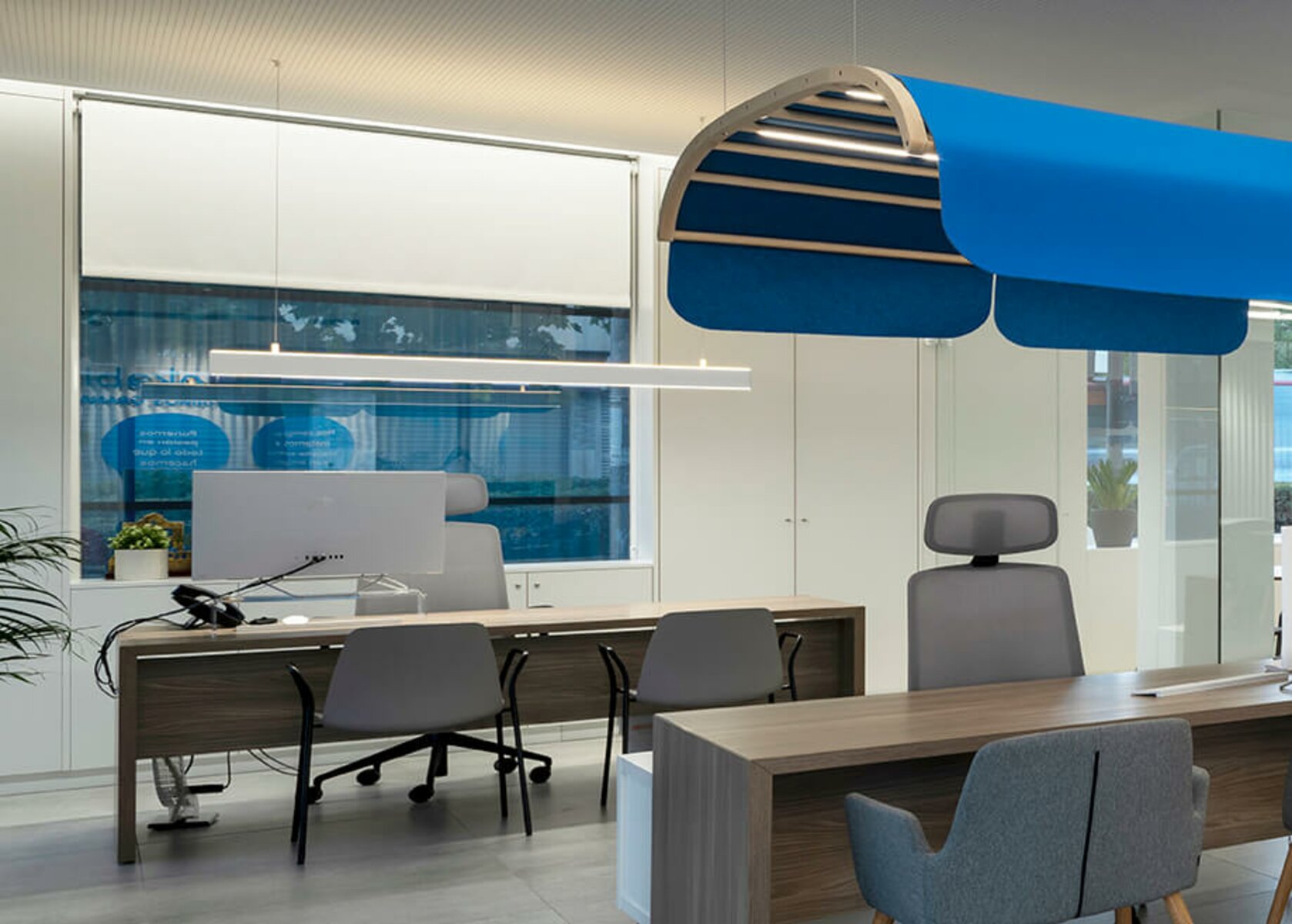

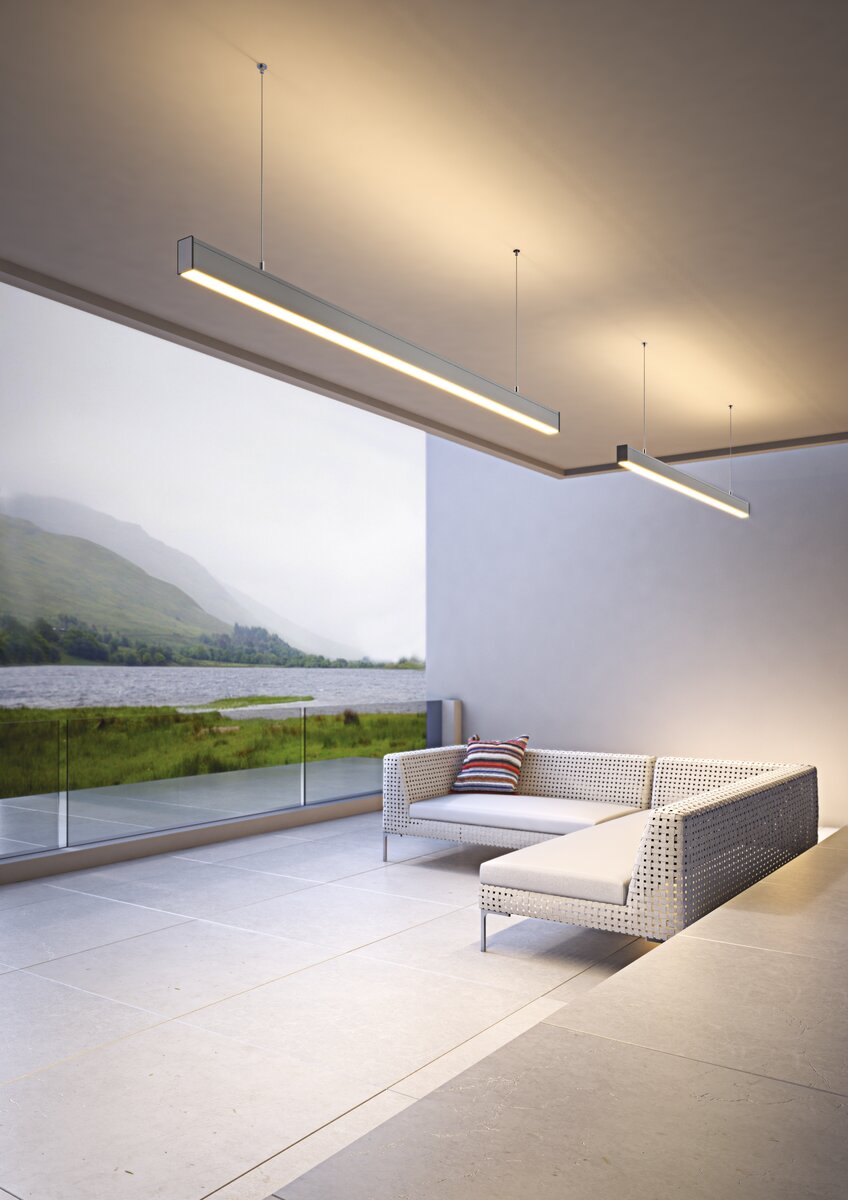

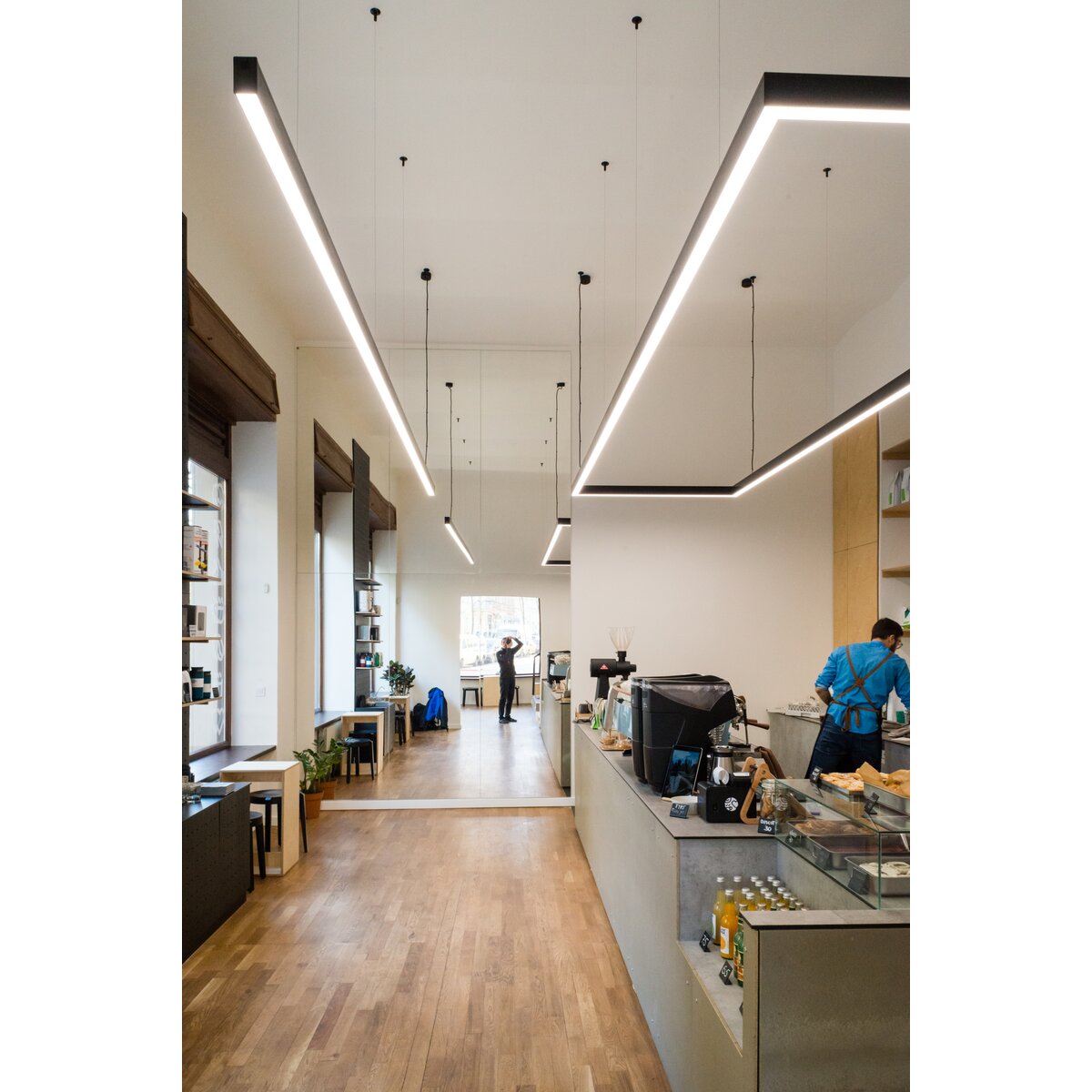

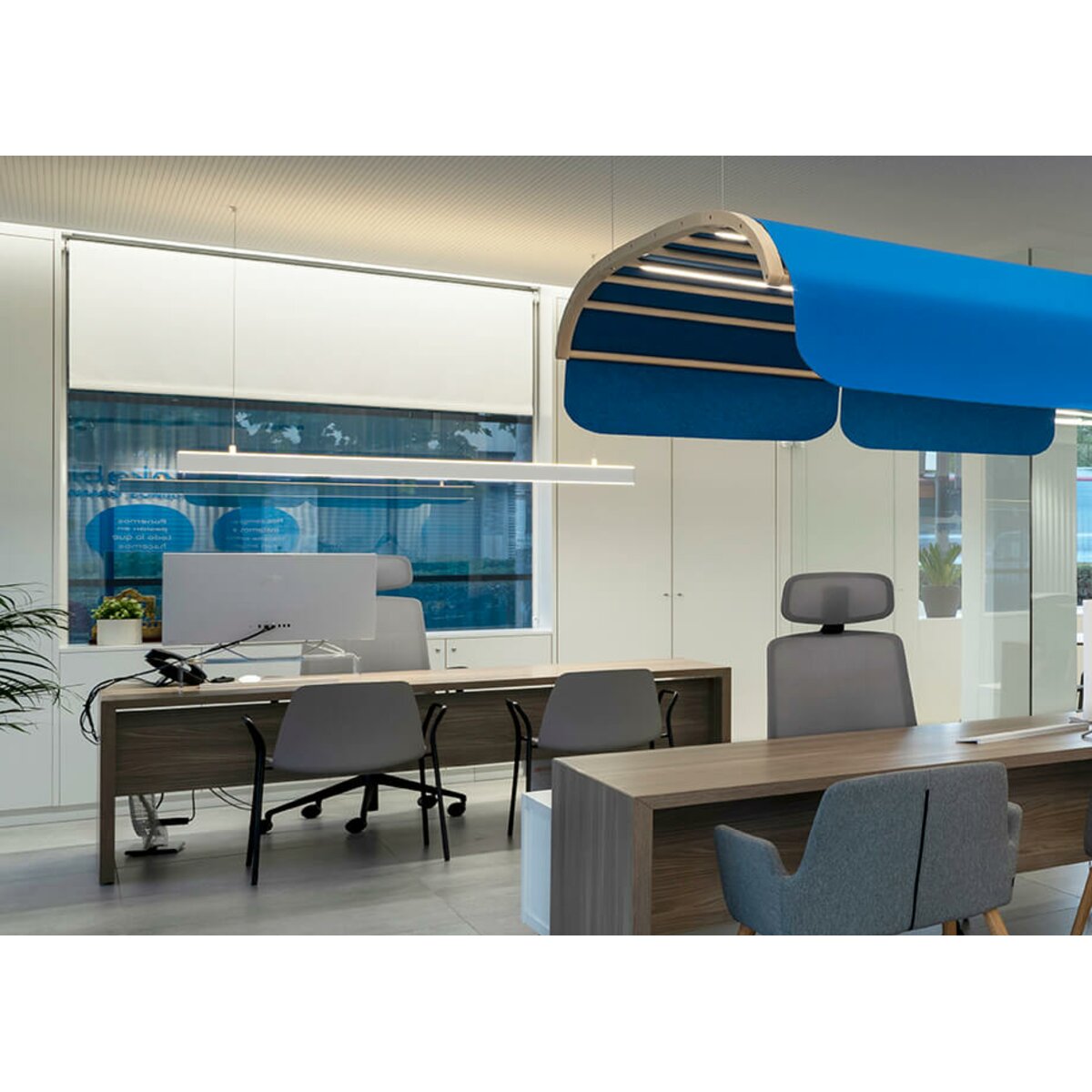

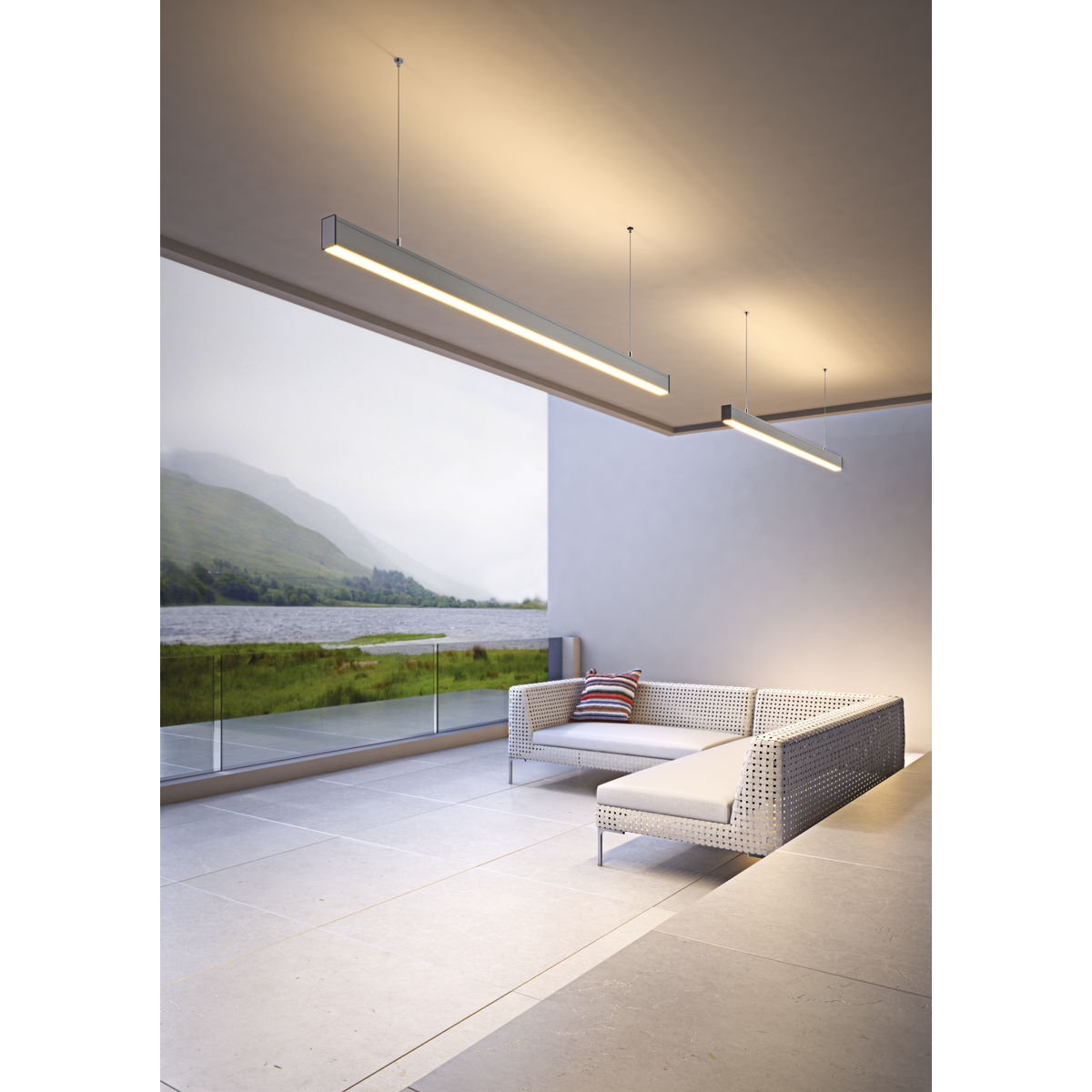

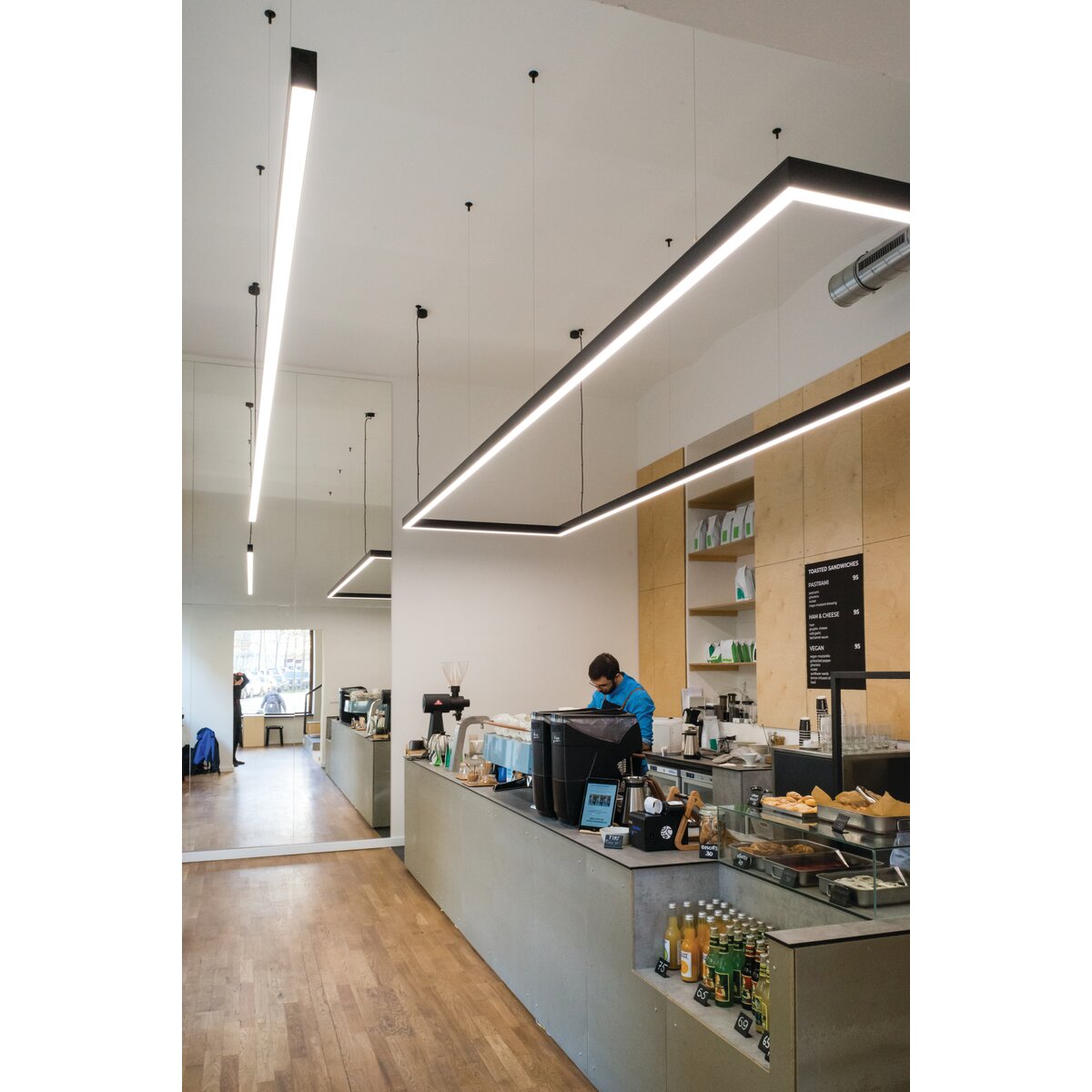

Usage examples
Technical drawing

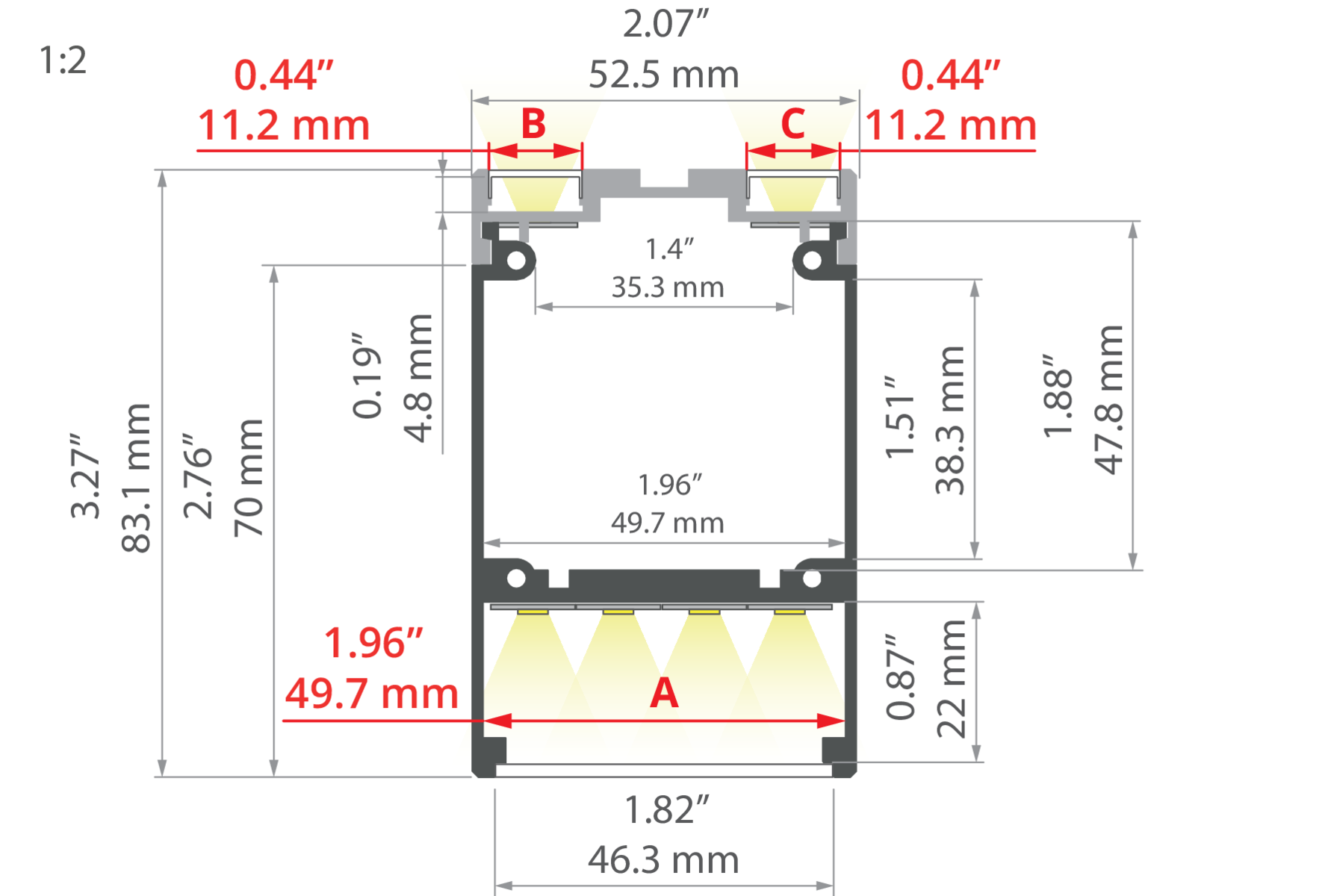

DES Fixture suspended aluminum Technical drawing - FP18030
Technical specification
Material
aluminum
Possible fixture IP
20, 54
Possible fixture shapes
linear, polygonal
Profile cross-section
rectangular
Max power of a single KLUŚ LED strip
7.3 W/ft
Width
2.1" (52.5 mm)
Height
3.3" (83.1 mm)
LED gluing width A
2" (49.7 mm)
LED mounting width B [inch]
0.4" (11.2 mm)
LED mounting width C&nbsp;[inch]
0.4" (11.2 mm)
Max. number of LED strips A (0.31" wide)
6
Max. number of LED strips B (0.31" wide)
1
Max. number of LED strips C (0.31" wide)
1
Can be easily connected into runs
Yes
Wire out back of extrusion
Yes
Dedicated space for power supply
Yes
Building type
Commercial, Retail, Entertainment/ Arts, Hotel / Restaurant
Facility zone
office
Related products
Product name Material Color Ref No
Head BZP
stainless steel
silver
C28113N00
Product name Material Color Ref No
Fastener W-BOX-Z
stainless steel
silver
C28253N00
Product name Material Color Ref No
Head BZP-ZZ
stainless steel
gray
42215
Fastener PUSZ-PRET-ZD
stainless steel
silver
42251
Product name Material Color Ref No
Fastener set M15
stainless steel
silver
42614
RG-1 Fastener set
brass
silver
black
C28230P00
C28230L07
Product name Material Color Ref No
Fi-60mm Canopy
steel
gray
white
black
C24540L01
C24540L10
C24540L07
