Head BZP-ZZ

Ref No: 42215
  • Crosswise suspension on a rod
  • Single pole conductivity possible
  • Fixing screw flush with the extrusion surface
  • Power connector outside the lighting fixture
Conducting electricity
IP20 protection rating
Color
gray
  • Crosswise suspension on a rod
  • Single pole conductivity possible
  • Fixing screw flush with the extrusion surface
  • Power connector outside the lighting fixture
Application
  • - for suspending LED lighting fixtures
Mounting
  • - to the lighting fixture, using a countersunk screw (included)
  • - to the rod with a pressure screw

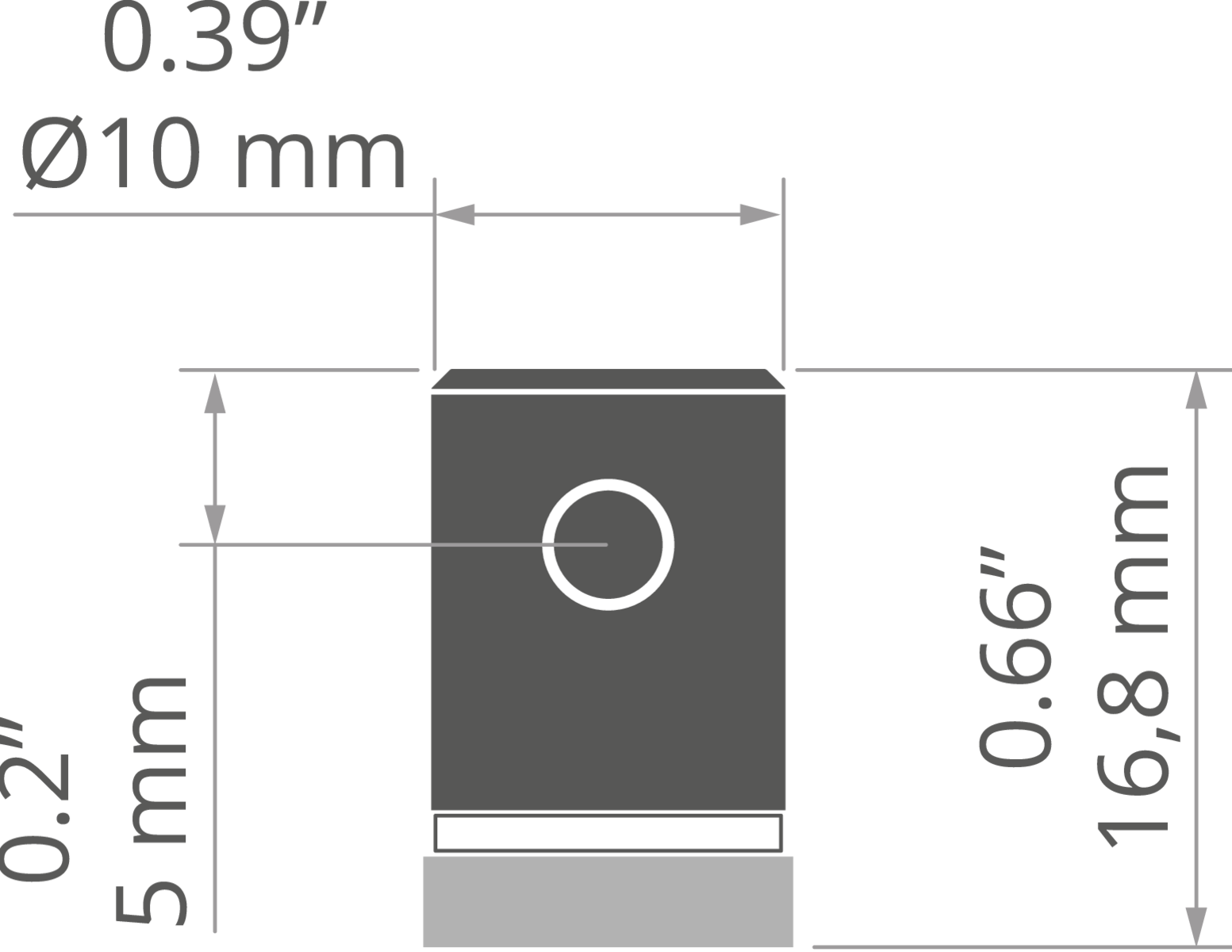

Technical drawing
Head BZP-ZZ stainless steel Technical drawing - 42215
Technical specification
Material
stainless steel
IP protection rating
20
Height
0.7"
Diameter
0.4"
Conducting electricity
Yes
Working temperature
140°F
Lifting capacity
66 lb
Maximum current intensity
9 A
Power loss
0.06 V
