Fastener DP-ZO-PDS-O

Ref No: C28255N00
  • Longitudinal suspension on a rod or wire
  • Single pole conductivity possible
  • Fixing screw flush with the extrusion surface
Conducting electricity
Color
silver
  • Longitudinal suspension on a rod or wire
  • Single pole conductivity possible
  • Fixing screw flush with the extrusion surface
Application
  • - for suspending LED lighting fixtures
Mounting
  • - to the lighting fixture, using a countersunk screw (included)
  • - to a rod or cable, using a set bolt

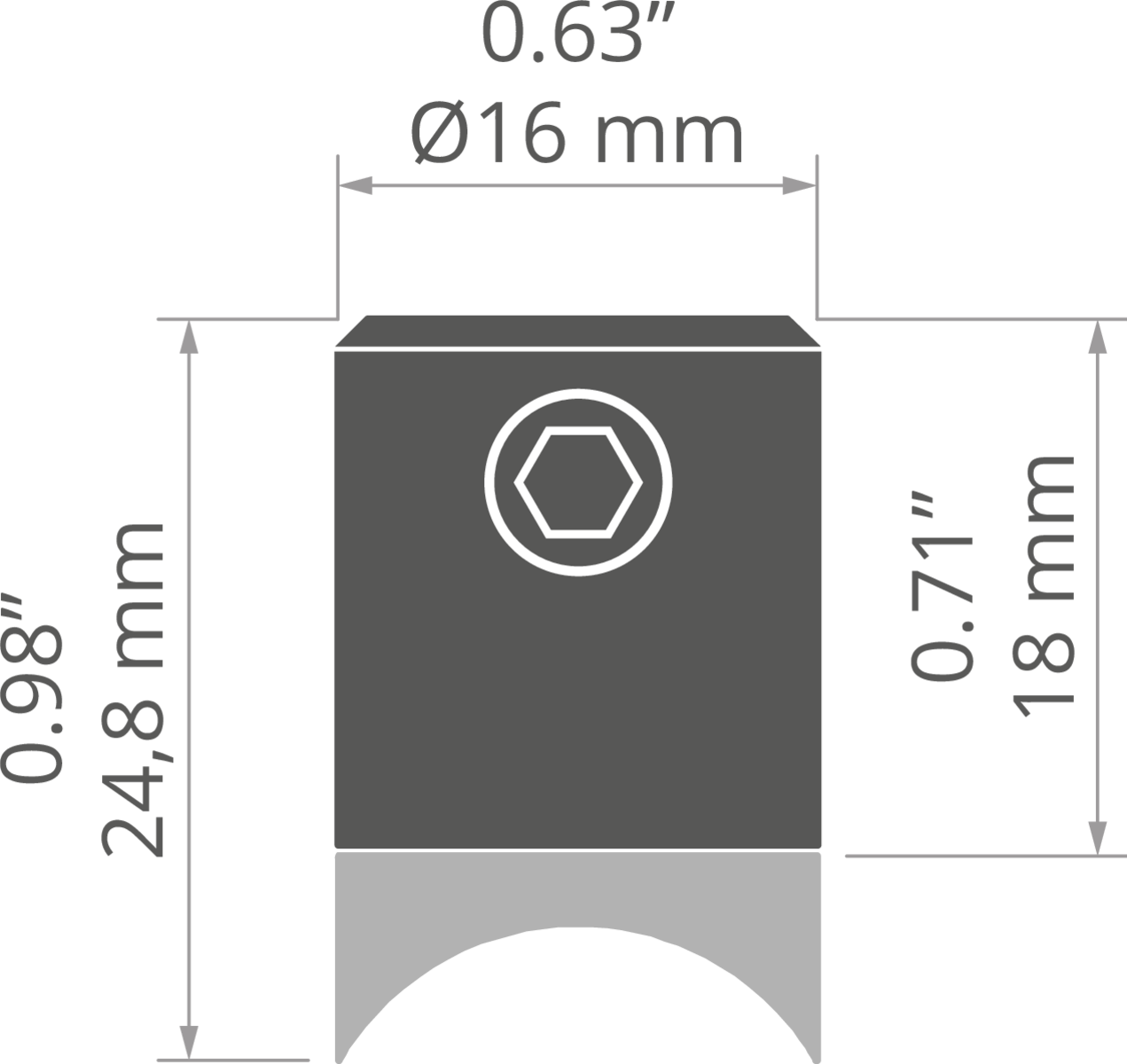

Technical drawing
Fastener DP-ZO-PDS-O nylon Technical drawing - C28255N00
Technical specification
Material
stainless steel, nylon
Diameter
0.6"
Conducting electricity
Yes
Working temperature
140°F
Lifting capacity
48.4 lb
Maximum current intensity
9 A
Power loss
0.18 V
Width x Height
0.6" x 1"
Related extrusions
OLEK
Ref No: A08505
PDS-O
Ref No: B3777
Related products
Product name Material Color Ref No
FI-1 39.4" Stainless steel wire
steel
silver
C24522N00
Wire CU FI 0,95 mm
steel, copper
silver
Z70240
Rod FI-3 1m
brass
silver
42501
Rod FI-3 53 cm
stainless steel
silver
C24528N00
