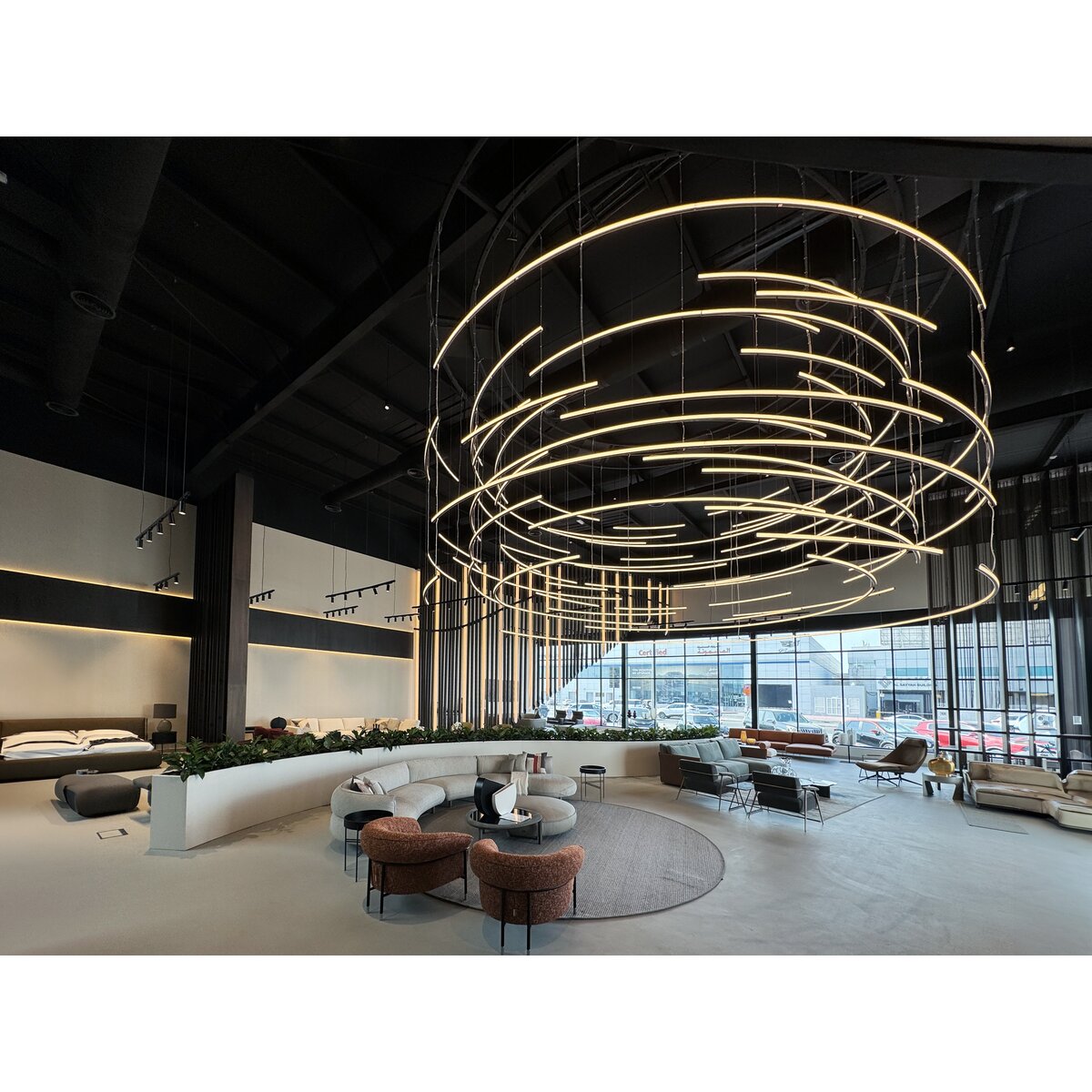

Fixture HELIX L

Ref No: FPHLL00

Pendant light with spatial, spiral shapes inspired by parametric architecture
Side lighting with a frosted cover ensuring even light distribution
High color rendering index CRI 90
Available in three sizes: S (2000mm), M (4000mm), L (6000mm)
Three basic color finishes and two control options
Customizable dimensions and finishes

Pendant light with spatial, spiral shapes inspired by parametric architecture
Side lighting with a frosted cover ensuring even light distribution
High color rendering index CRI 90
Available in three sizes: S (2000mm), M (4000mm), L (6000mm)
Three basic color finishes and two control options
Customizable dimensions and finishes

download

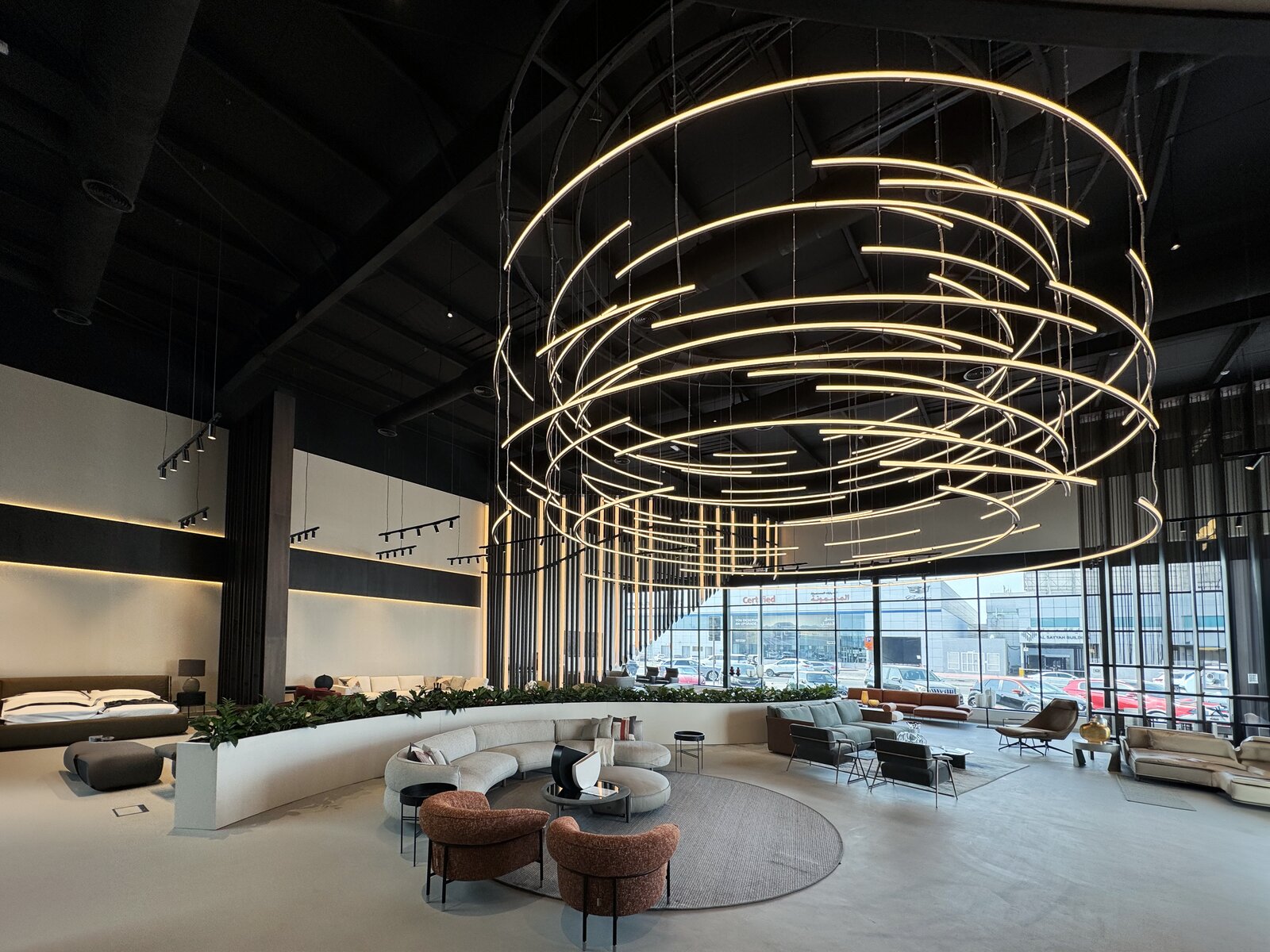

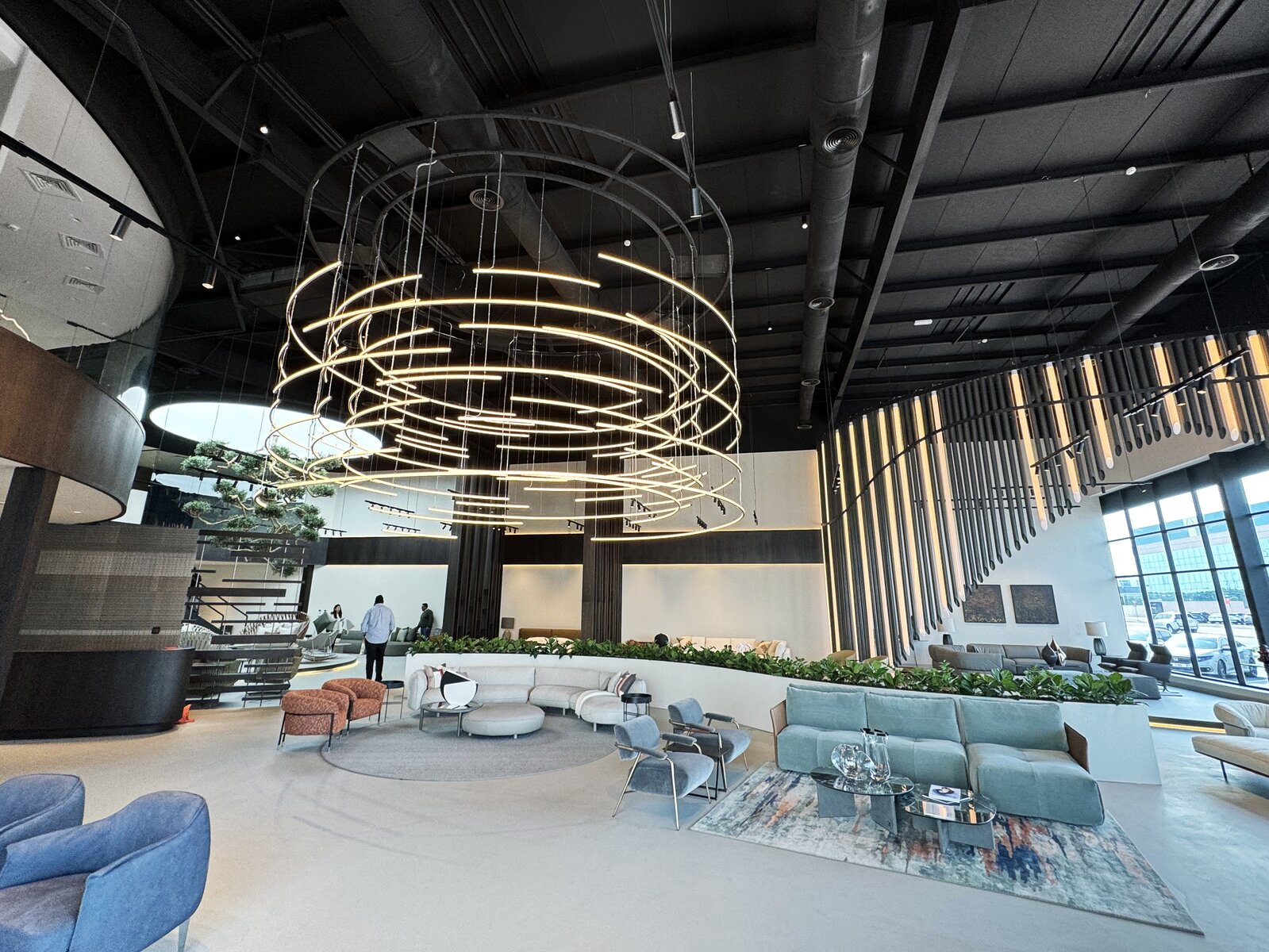

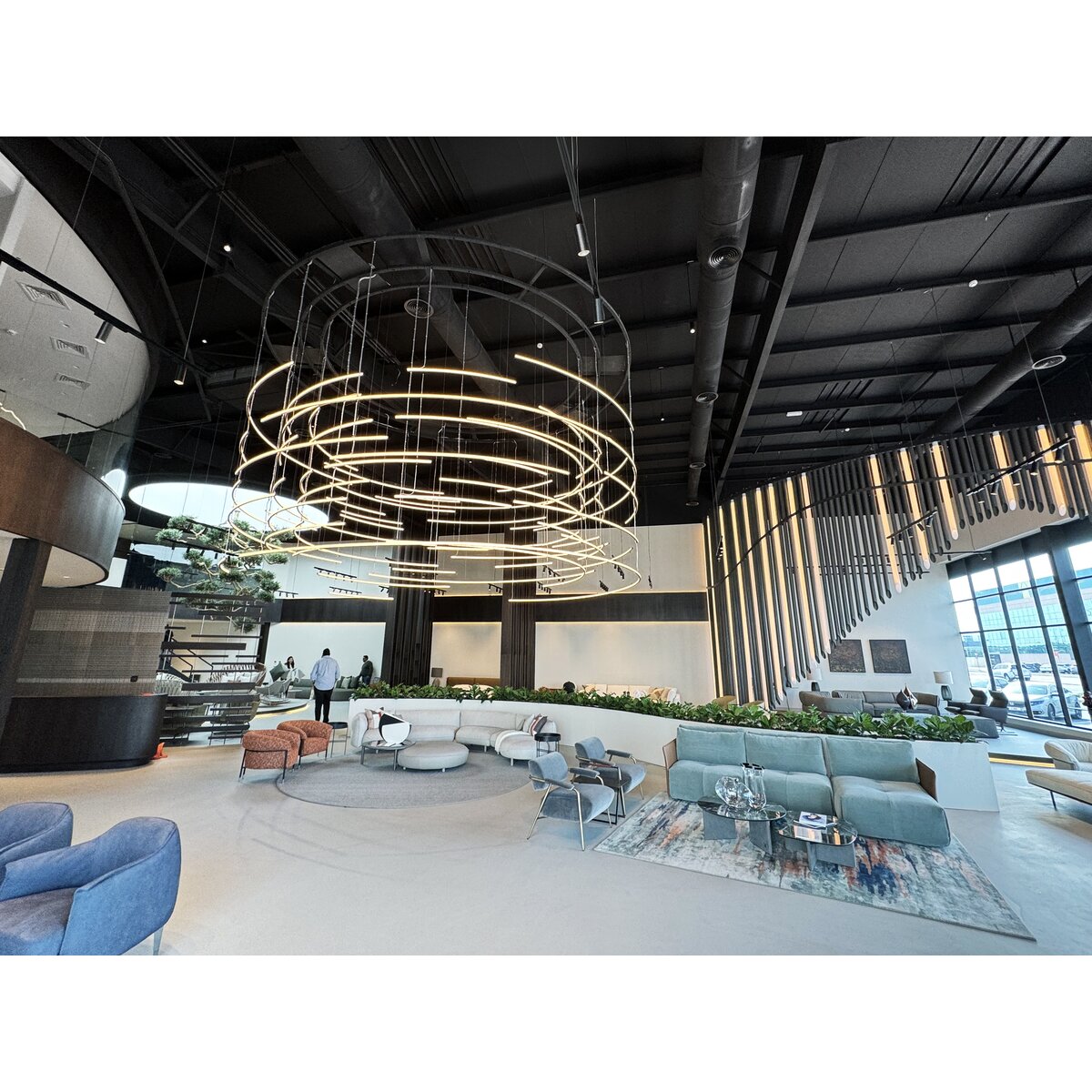

Usage examples

Technical specification

Material

aluminum

Cover

frosted

Mounting type

Suspended

Length [L]

19'08" (6000 mm)

Width [W]

19'08" (6000 mm)

Lighting direction

side emitting

IP protection rating

LxBy

L80B50

Lifetime

60000 h

Color Rendering Index CRI

MacAdam’s ellipse

3 SDCM

Supply voltage

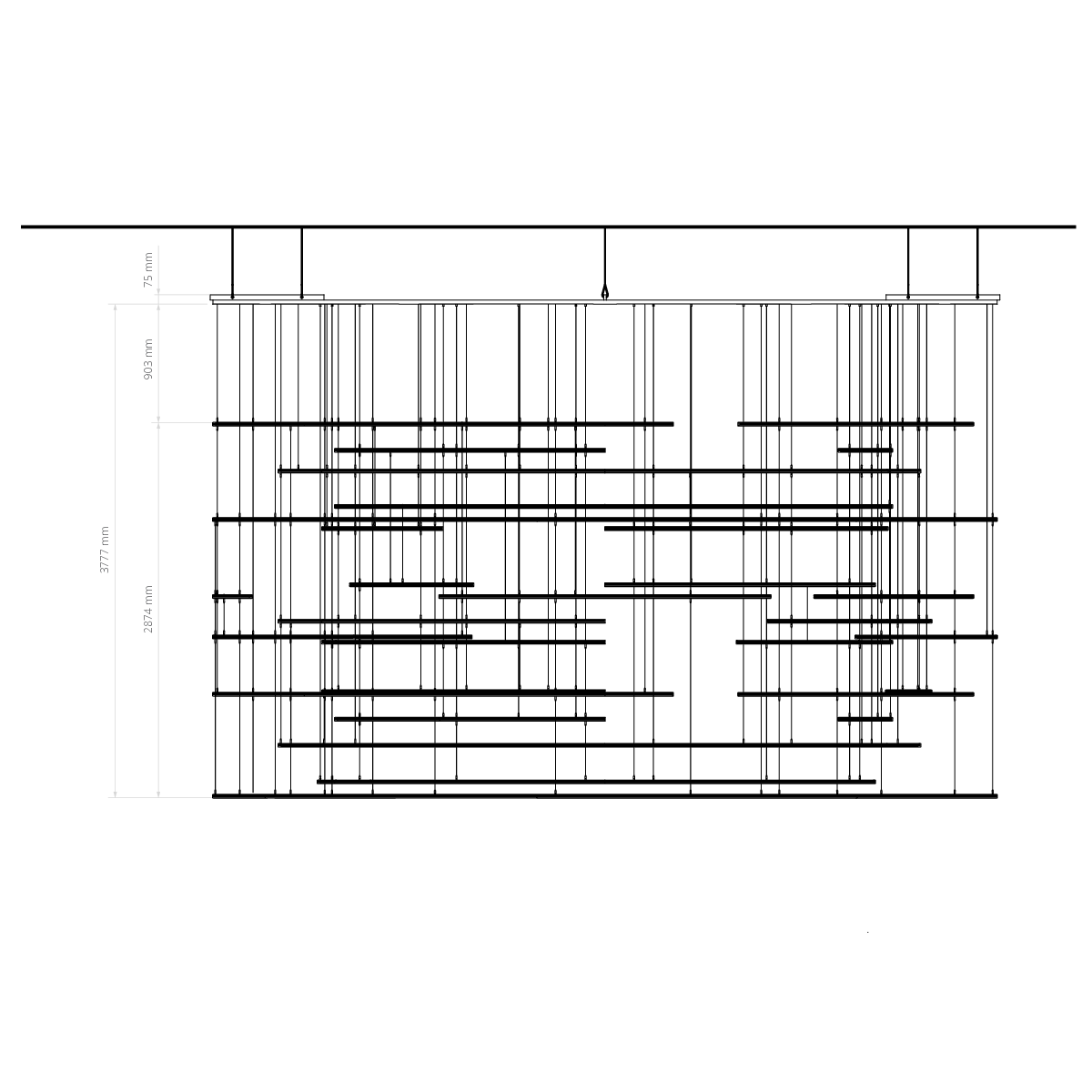

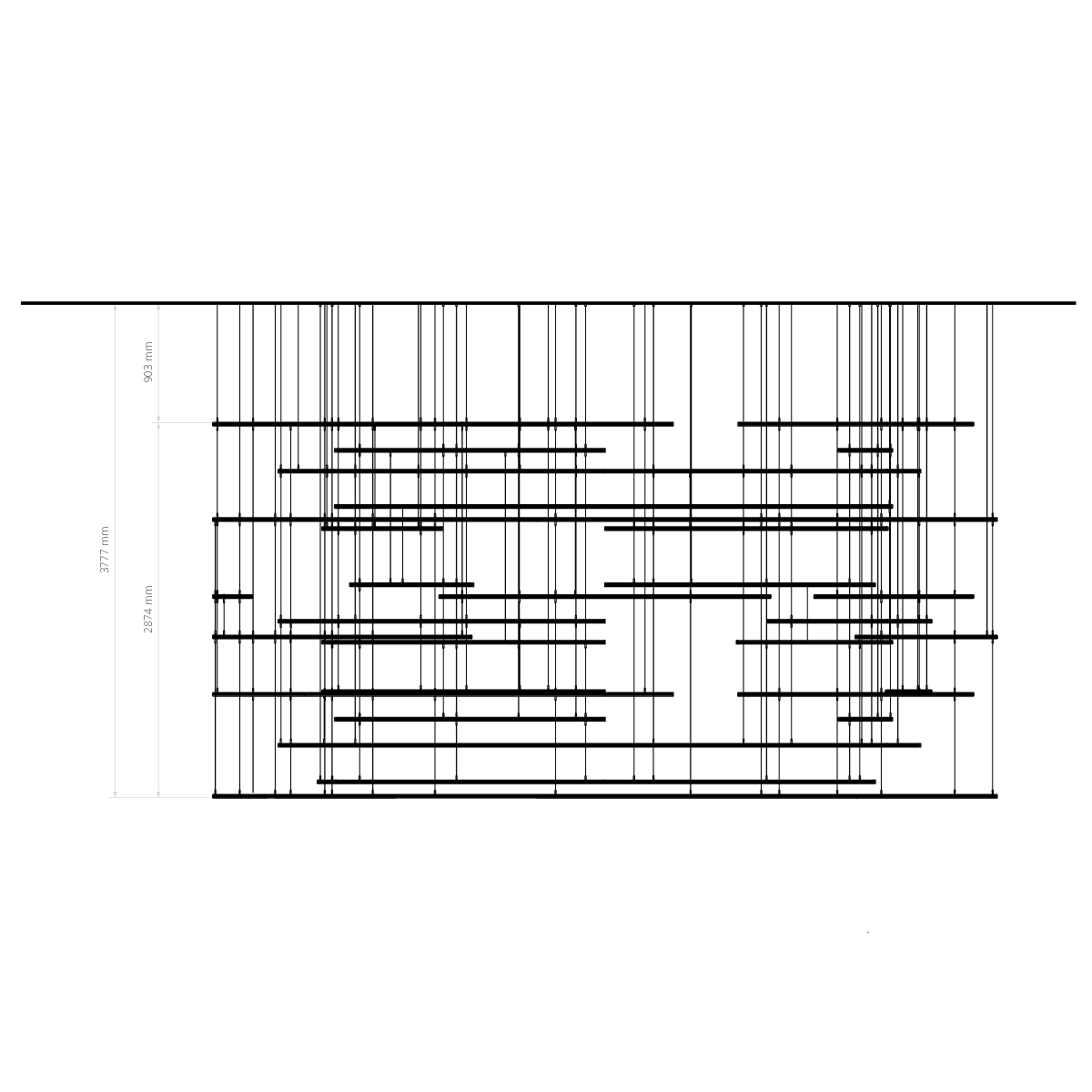

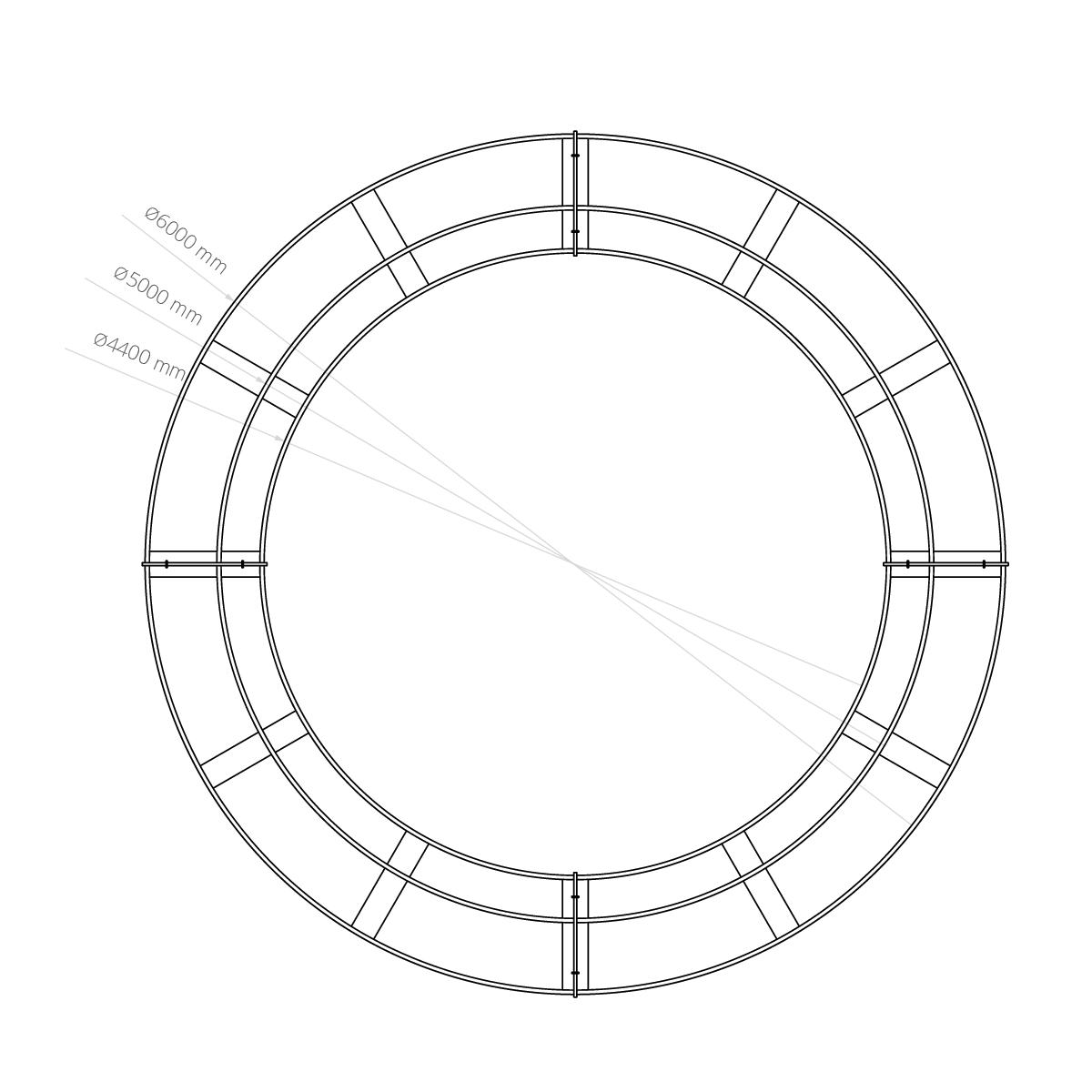

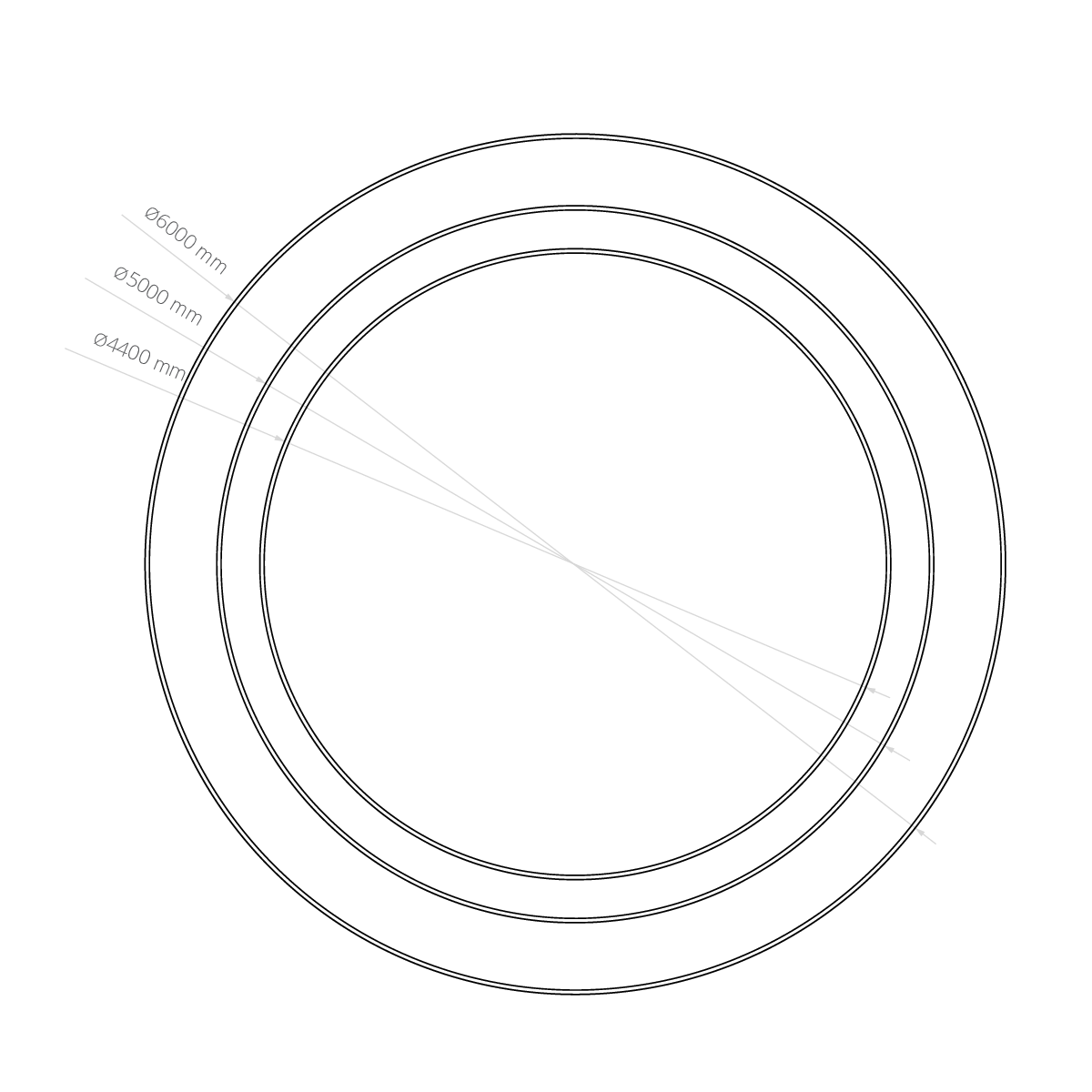

Technical drawing

download

Declaration of Conformity UKCA

Technical drawing

Technical specification

Material

aluminum

Cover

frosted

Mounting type

Suspended

Length [L]

19'08" (6000 mm)

Width [W]

19'08" (6000 mm)

Lighting direction

side emitting

IP protection rating

LxBy

L80B50

Lifetime

60000 h

Color Rendering Index CRI

MacAdam’s ellipse

3 SDCM

Supply voltage

Ref No	Dimensions L x W x H ["]	Mounting type	Cover	LED color [K]	Color	Control	Luminaire luminous flux [lm]	Power consumption [W]	Efficiency [lm/W]
FPHLL003-1040EB	19'08" x 19'08"	Suspended with a pendant base	frosted	4000	white lacquered	ON/OFF	572200	6295	91
FPHLL003-1030EB	19'08" x 19'08"	Suspended with a pendant base	frosted	3000	white lacquered	ON/OFF	518200	6295	82
FPHLL003-0740EB	19'08" x 19'08"	Suspended with a pendant base	frosted	4000	black anodized	ON/OFF	572200	6295	91
FPHLL003-0730EB	19'08" x 19'08"	Suspended with a pendant base	frosted	3000	black anodized	ON/OFF	518200	6295	82
FPHLL003-0140EB	19'08" x 19'08"	Suspended with a pendant base	frosted	4000	silver anodized	ON/OFF	572200	6295	91
FPHLL003-0130EB	19'08" x 19'08"	Suspended with a pendant base	frosted	3000	silver anodized	ON/OFF	518200	6295	82
FPHLL002-1040EB	19'08" x 19'08"	suspended with surface-mounted base	frosted	4000	white lacquered	ON/OFF	572200	6295	91
FPHLL002-1030EB	19'08" x 19'08"	suspended with surface-mounted base	frosted	3000	white lacquered	ON/OFF	518200	6295	82
FPHLL002-0740EB	19'08" x 19'08"	suspended with surface-mounted base	frosted	4000	black anodized	ON/OFF	572200	6295	91
FPHLL002-0730EB	19'08" x 19'08"	suspended with surface-mounted base	frosted	3000	black anodized	ON/OFF	518200	6295	82
FPHLL002-0140EB	19'08" x 19'08"	suspended with surface-mounted base	frosted	4000	silver anodized	ON/OFF	572200	6295	91
FPHLL002-0130EB	19'08" x 19'08"	suspended with surface-mounted base	frosted	3000	silver anodized	ON/OFF	518200	6295	82
FPHLL001-1040EB	19'08" x 19'08"	Suspended	frosted	4000	white lacquered	ON/OFF	572200	6295	91
FPHLL001-1030EB	19'08" x 19'08"	Suspended	frosted	3000	white lacquered	ON/OFF	518200	6295	82
FPHLL001-0740EB	19'08" x 19'08"	Suspended	frosted	4000	black anodized	ON/OFF	572200	6295	91
FPHLL001-0730EB	19'08" x 19'08"	Suspended	frosted	3000	black anodized	ON/OFF	518200	6295	82
FPHLL001-0140EB	19'08" x 19'08"	Suspended	frosted	4000	silver anodized	ON/OFF	572200	6295	91
FPHLL001-0130EB	19'08" x 19'08"	Suspended	frosted	3000	silver anodized	ON/OFF	518200	6295	82
