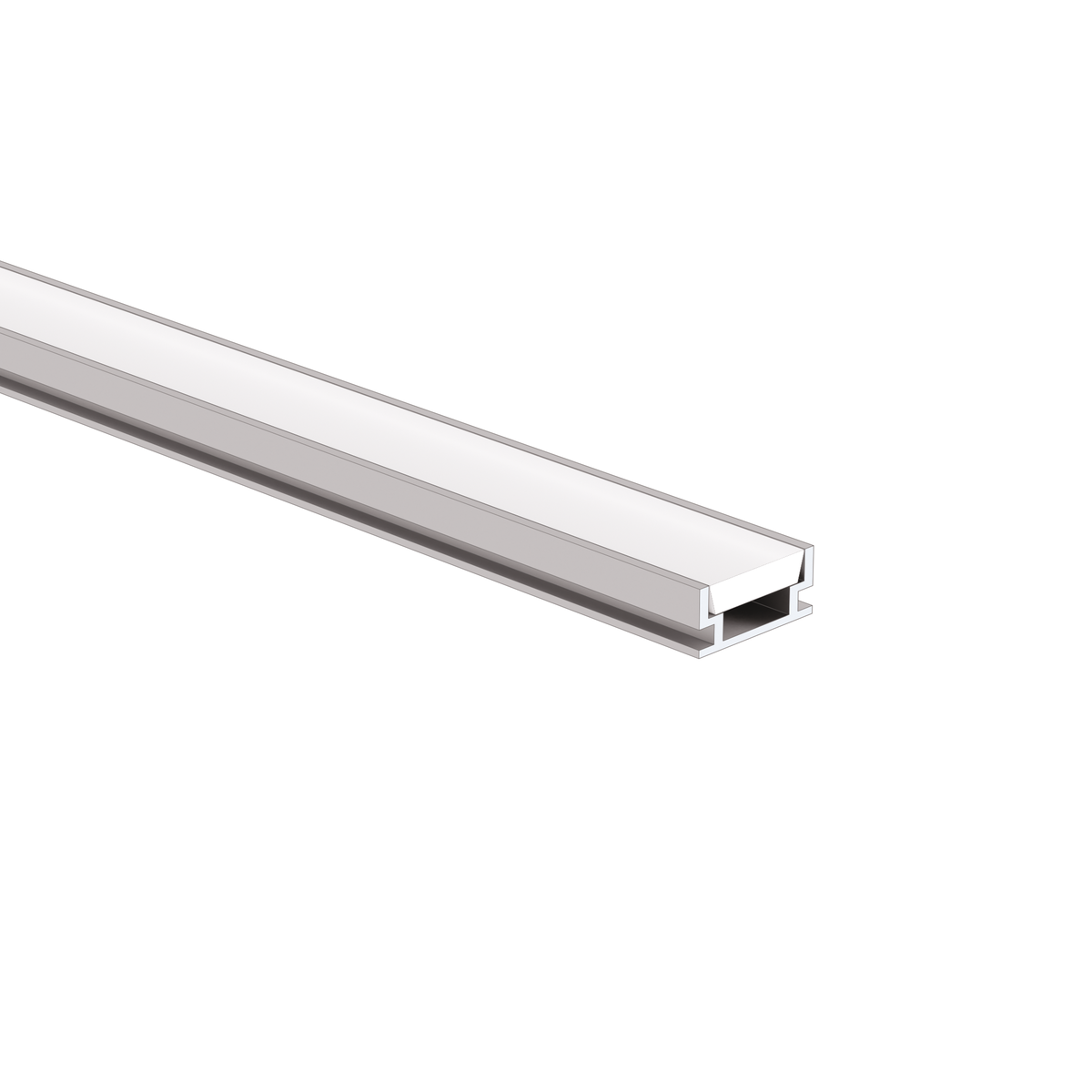

HR-ALU Extrusion (A01889) | KlusDesign.com

Compare

Compared

For installation in wall and floor tiles
Designed for IP67 protection rating
Low height

With the possibility of sealing up to IP67

Configure

Color

Description

For installation in wall and floor tiles
Designed for IP67 protection rating
Low height

Application

- warning and decorative lighting

Mounting

- in the ground, with mounting adhesive

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

download

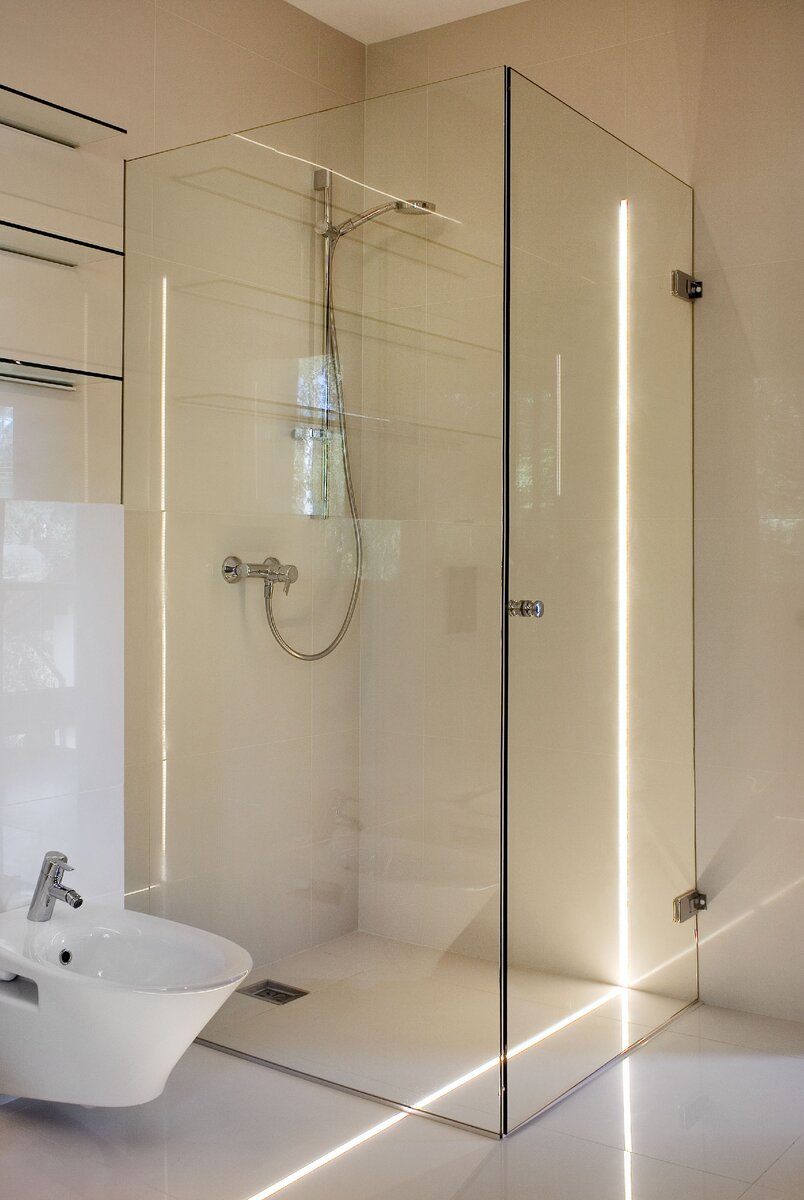

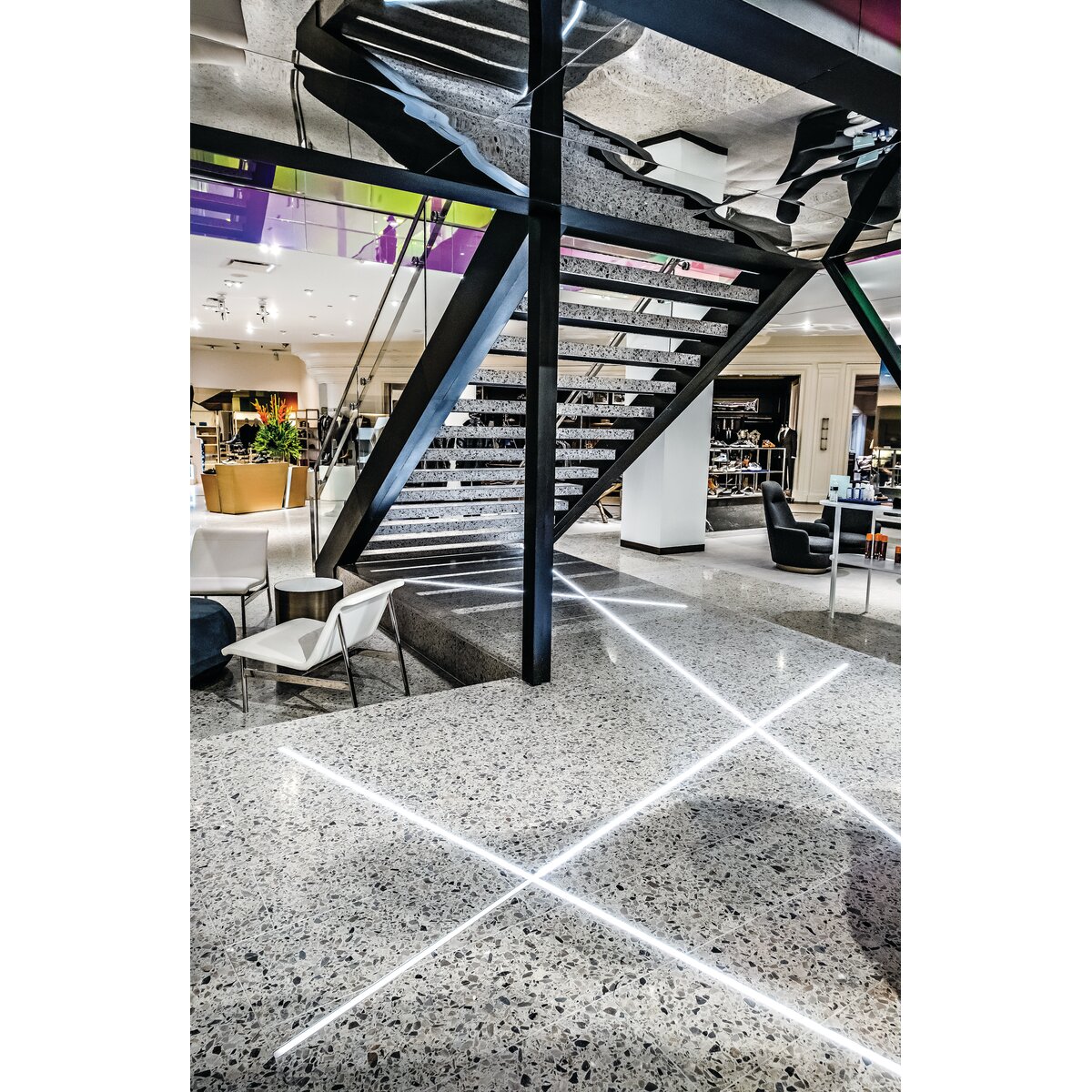

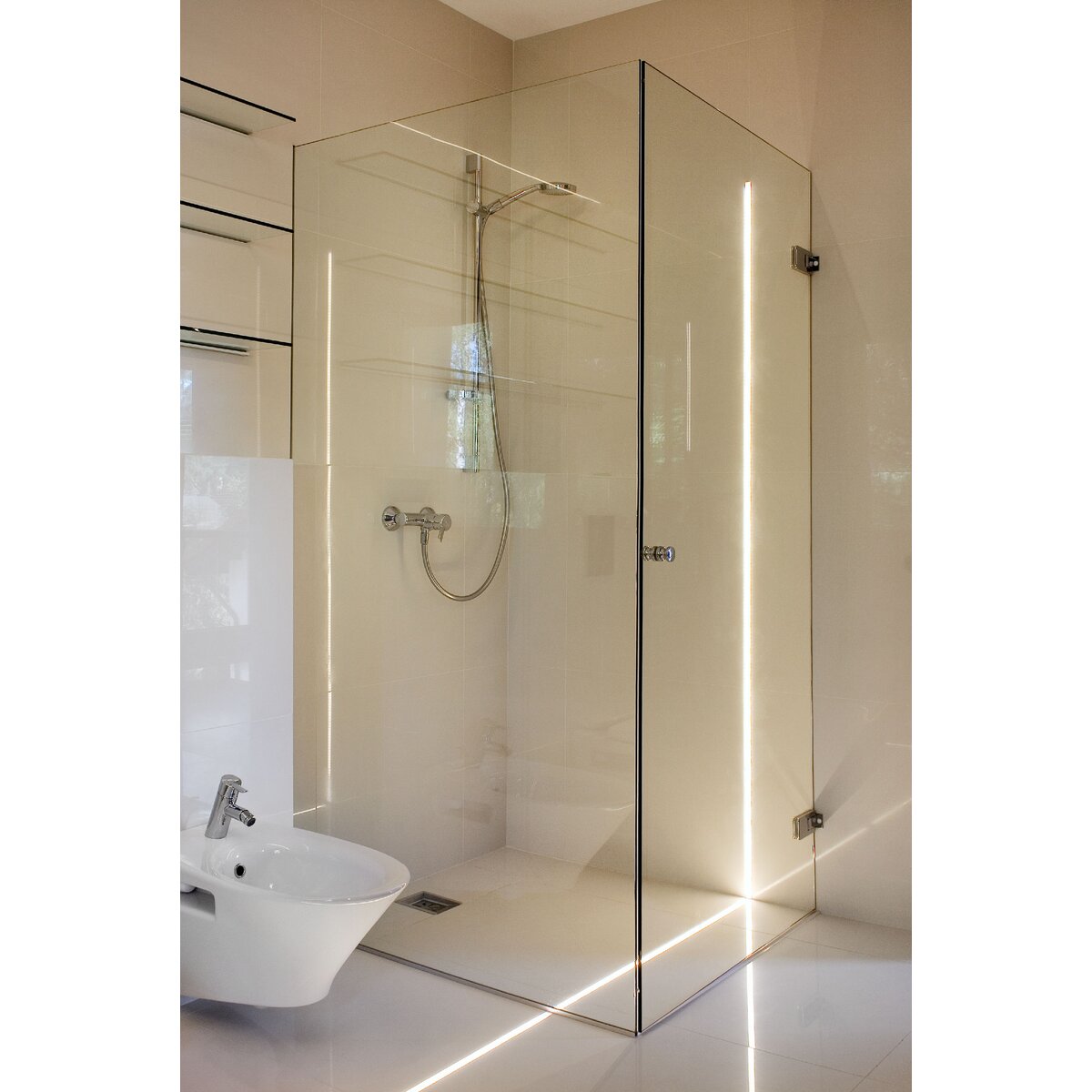

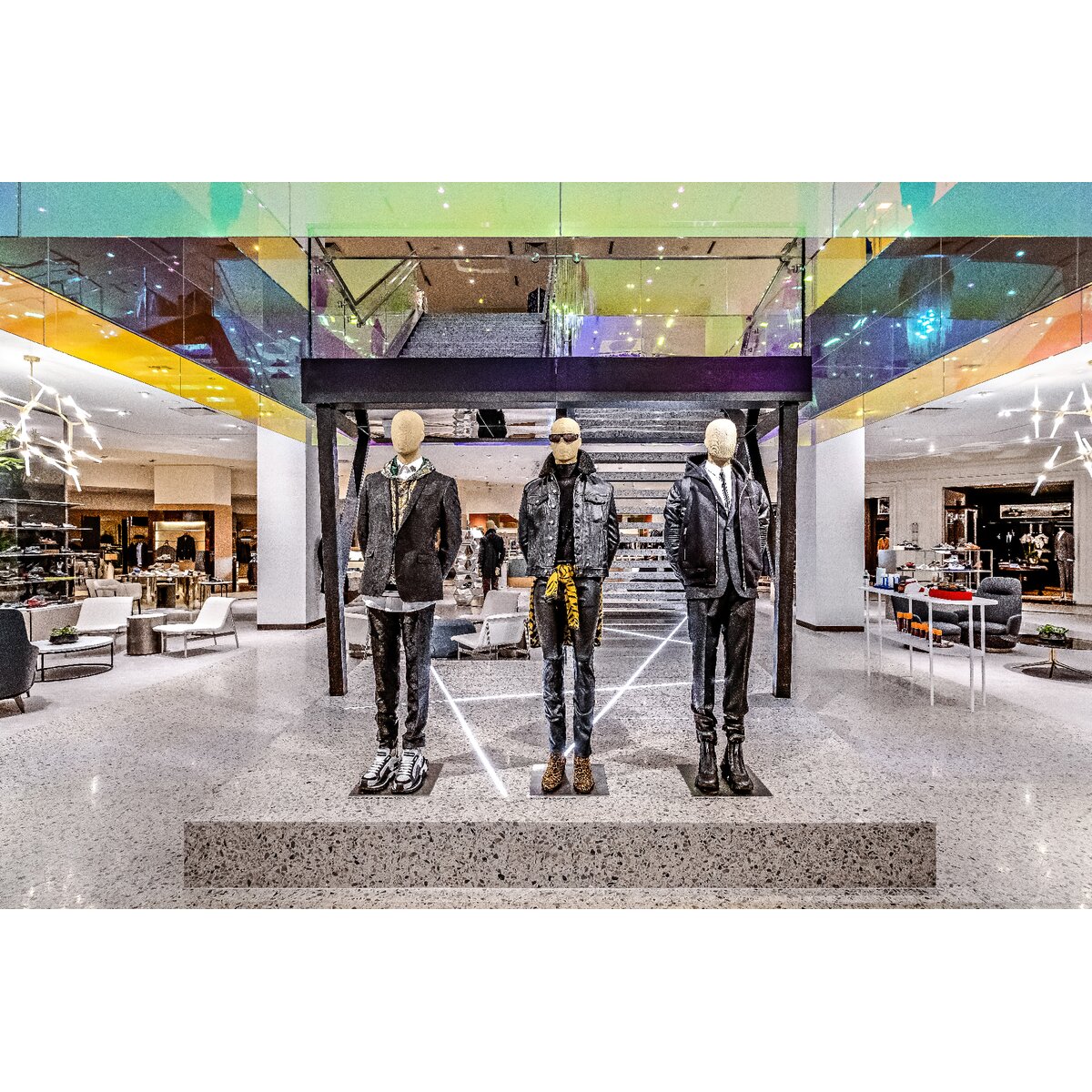

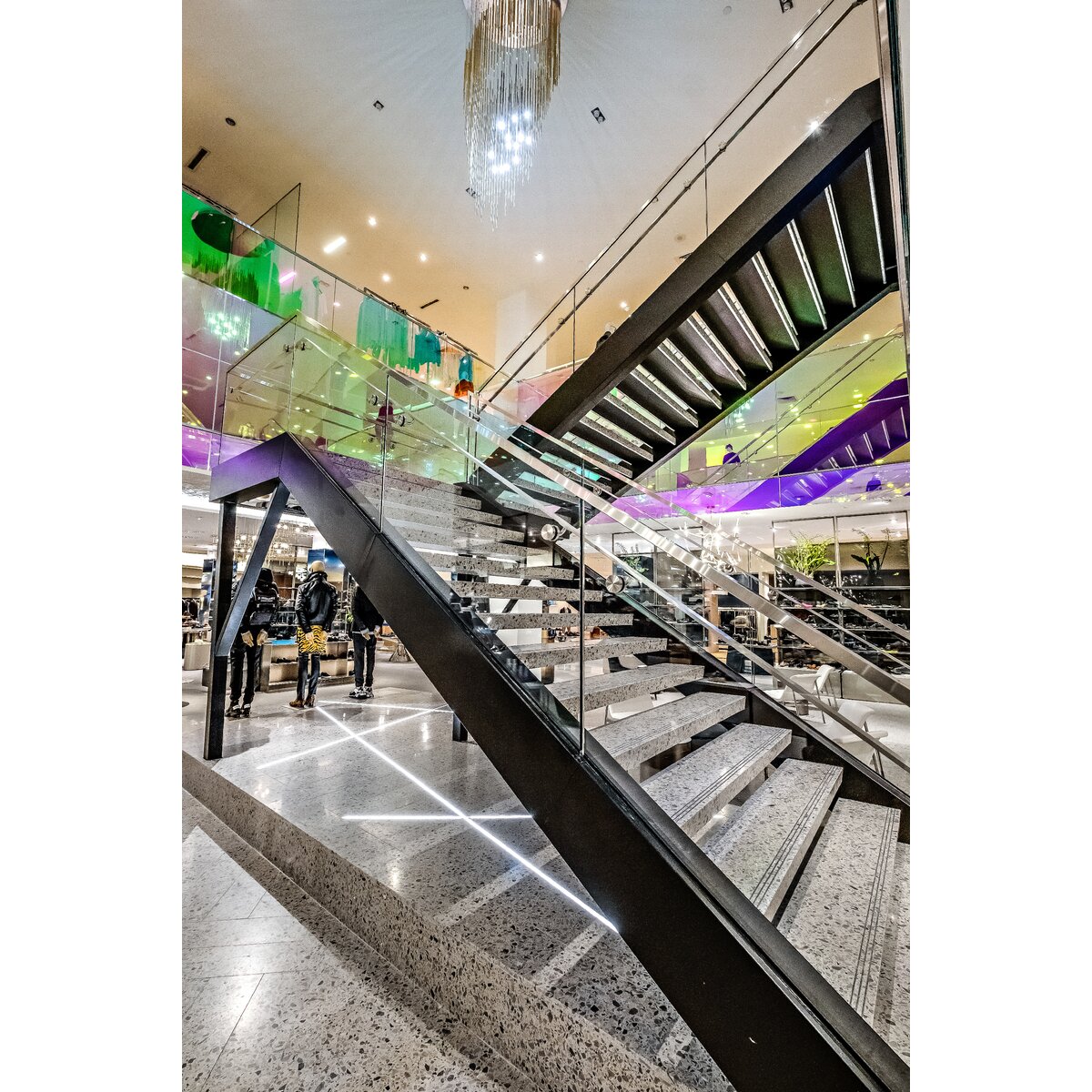

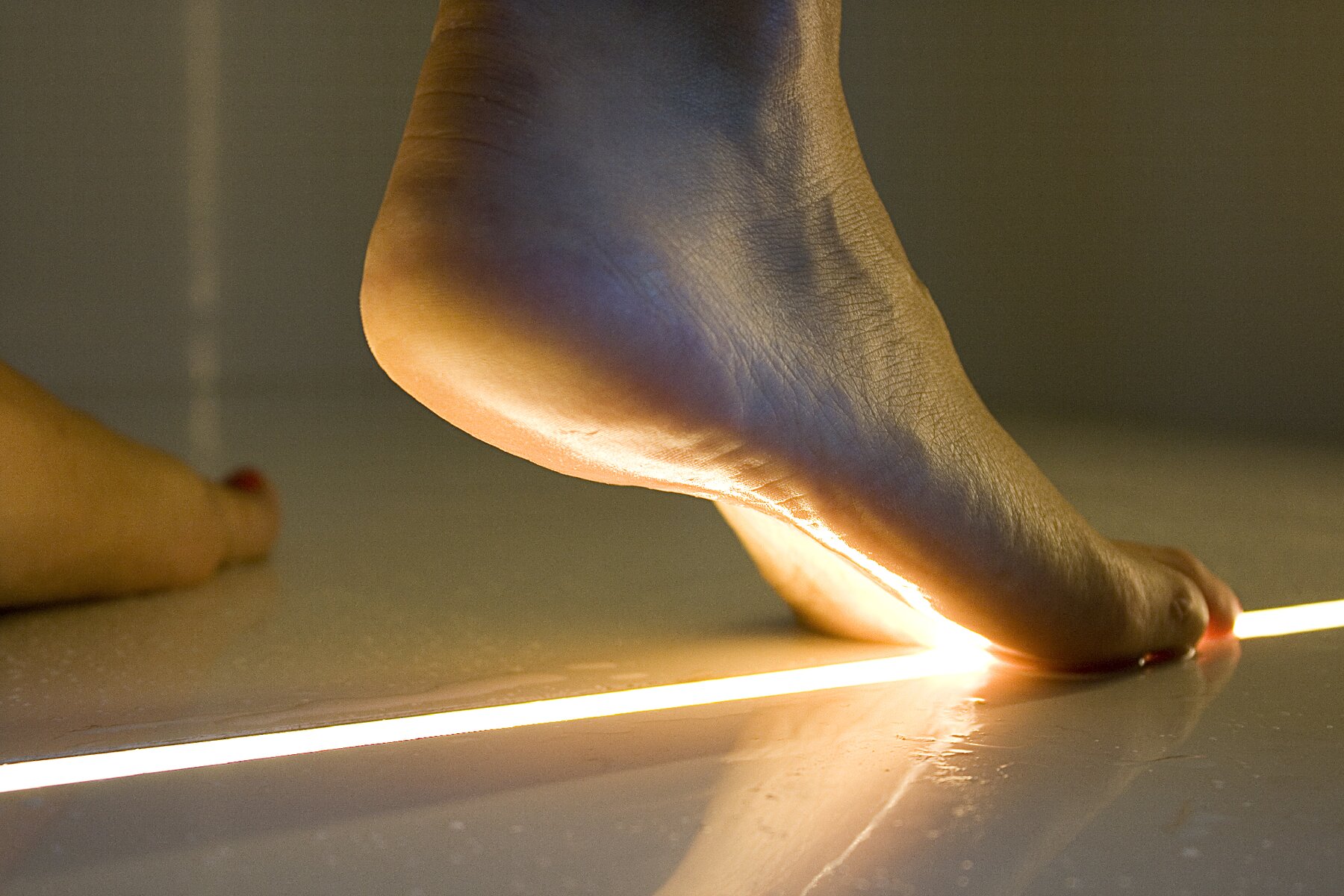

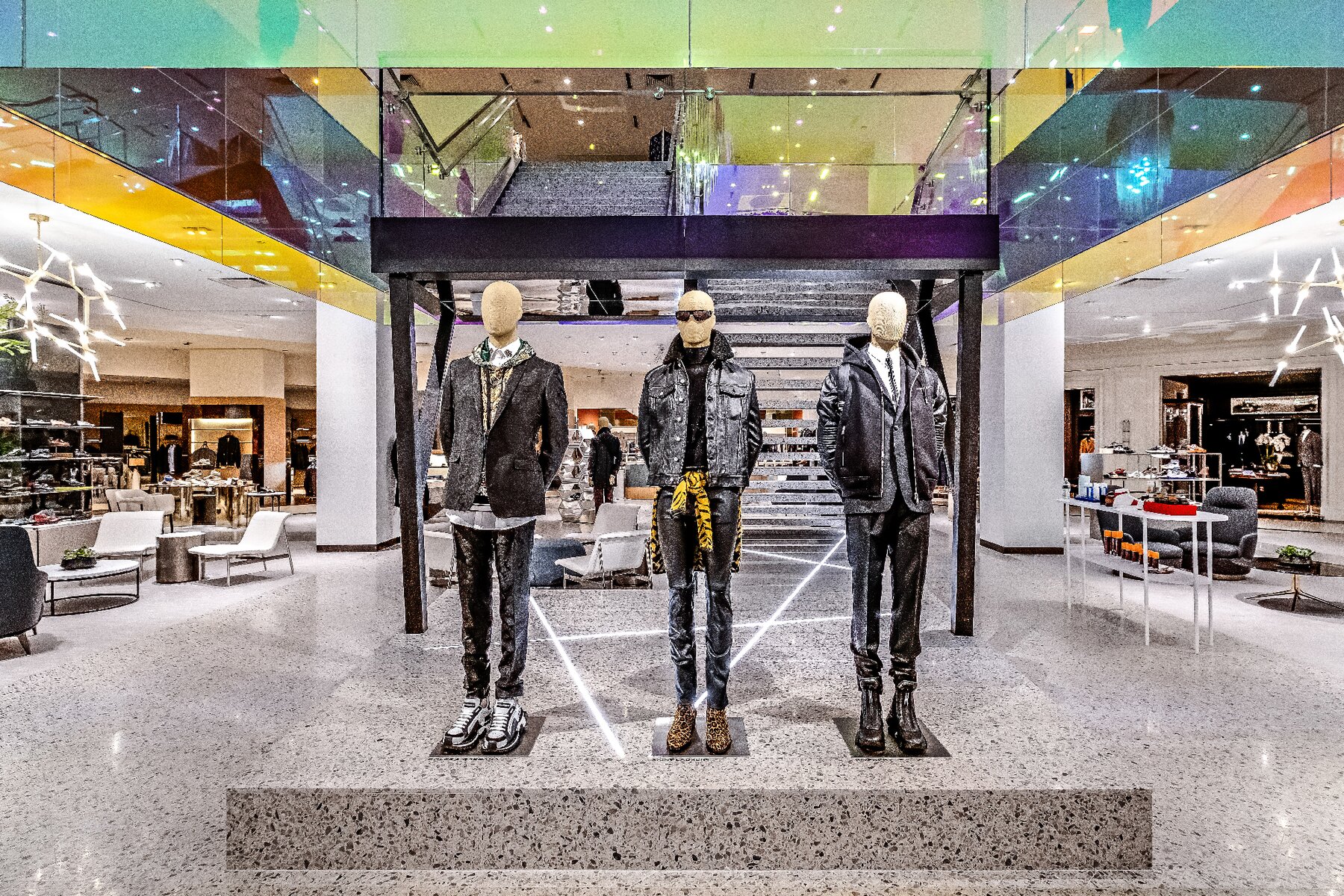

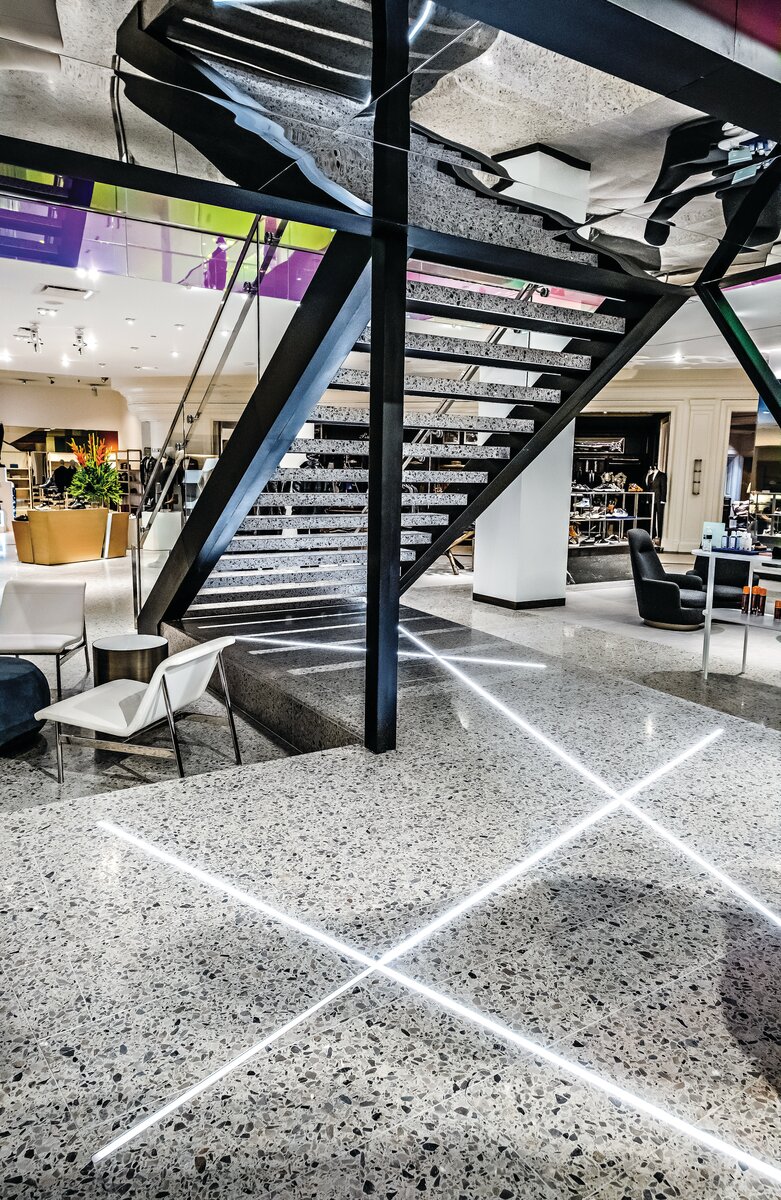

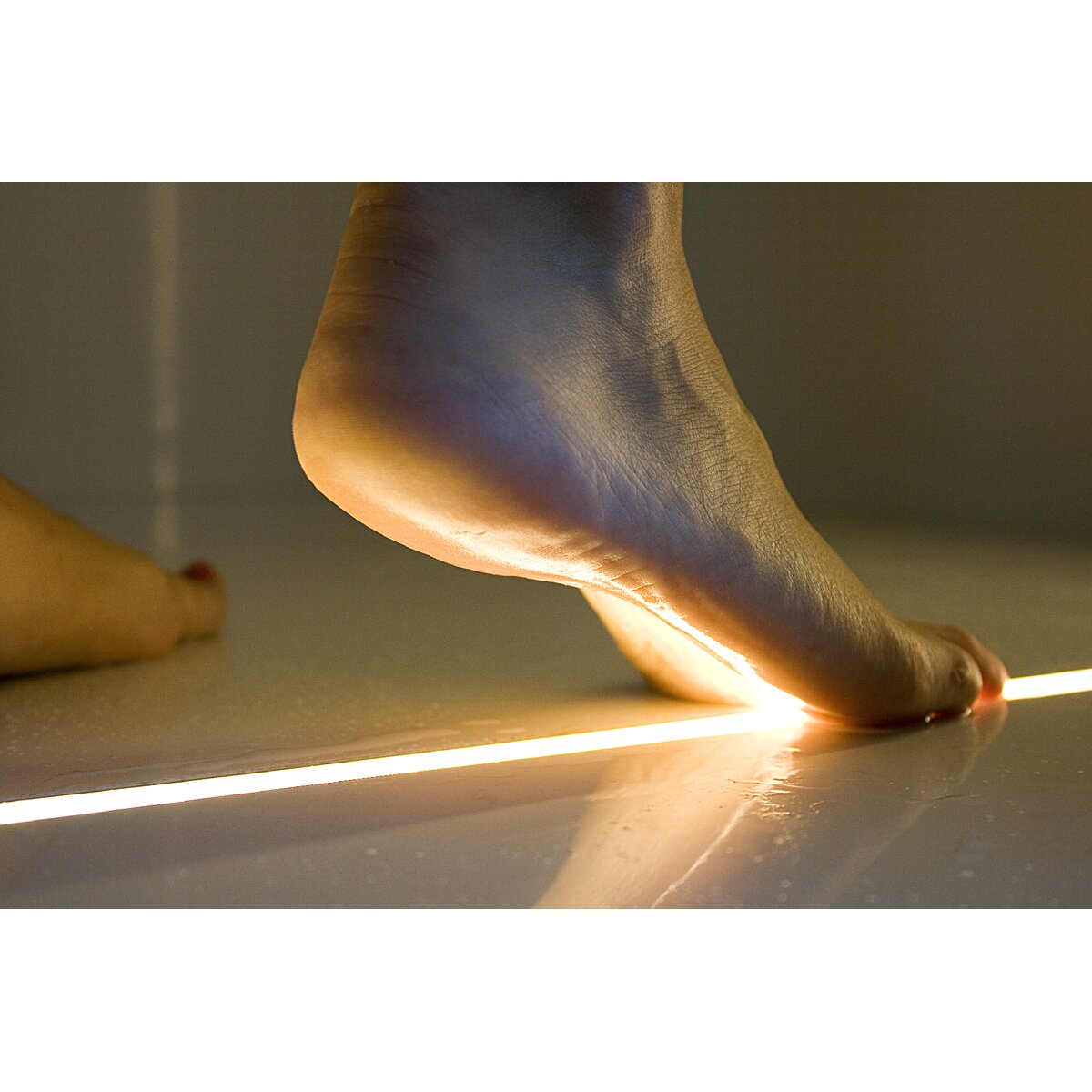

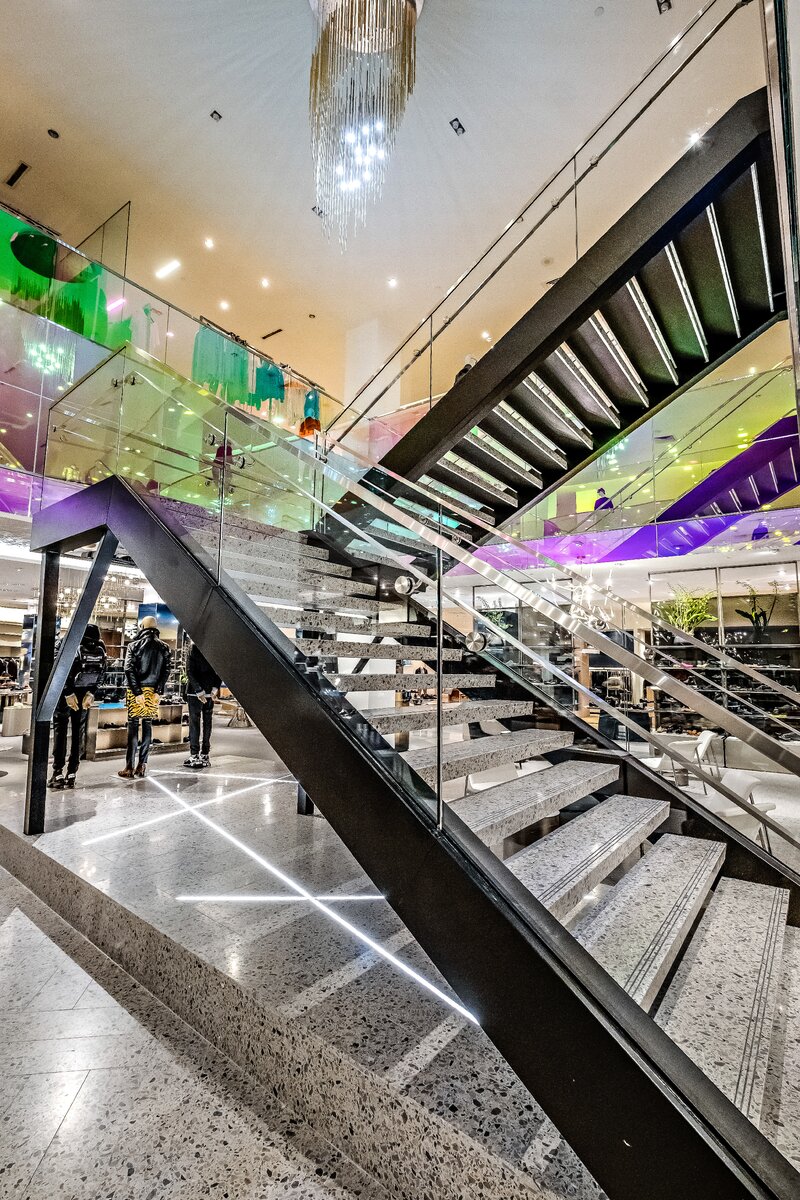

Usage examples

Description
download

Application

- warning and decorative lighting

Mounting

- in the ground, with mounting adhesive

Additional information

- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

Declaration of Conformity UKCA

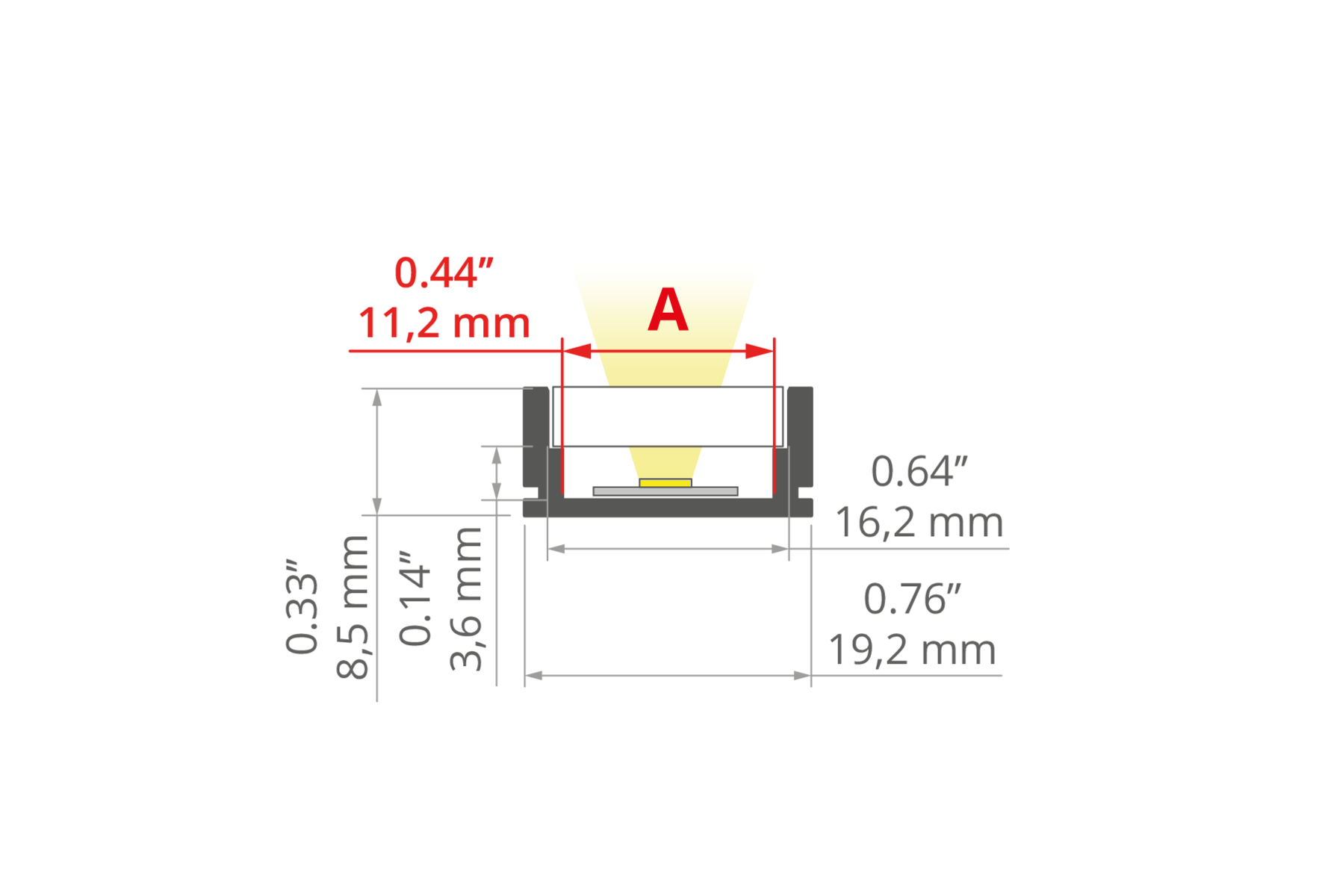

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

Possible fixture shapes

linear

Profile cross-section

rectangular

Max power of a single KLUŚ LED strip

5 W/ft

Width

0.8" (19.2 mm)

Height

0.3" (8.5 mm)

LED gluing width A

0.4" (11.2 mm)

Number of LED strips A (0.31" wide)

The cover is cut to the length of the profile

Yes

Wire out end cap

Yes

Wire out back of extrusion

Yes

Possibility of obtaining a line of light

Yes

Building type

Commercial, Retail, Residential, Hotel / Restaurant

Facility zone

bathroom, kitchen, fitness / spa

Color	Length	Ref No
silver non anodized	39.4" (1000 mm) 78.9" (2005 mm) 118.5" (3010 mm)	A01889N_1 A01889N_2 A01889N_3

Line of Light Table for Pixel Free Illumination

LED Tapes		Covers
Categories	LED tape type	HR-ALU-15 Cover frosted
CRI 90+	KWP-GHD-1910-24
	KWP-GHD-1640-24
	KWP-GHD-0530-24
RGB / RGB-W / RGB-CTT	K-RGBW-1920-160-24

Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes

similar profiles

Related products

Covers

Product name	Material	Key features	Light transmittance [%]	Color	Ref No
HR-ALU-15 Cover	PC	- For indoor and outdoor applications - UV resistant - for adhering	54 %	frosted	B17206F

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No

LED tapes
CRI 90+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
KWP-GHD-1640-24 LED tape, 364-503 lm/ft, IP65,	65	gel cover	5 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- high LED density	KWP-GHD22-1640-24 KWP-GHD25-1640-24 KWP-GHD27-1640-24 KWP-GHD30-1640-24 KWP-GHD35-1640-24 KWP-GHD40-1640-24 KWP-GHD50-1640-24
KWP-GHD-1910-24 LED tape, 227-279 lm/ft, IP65,	65	gel cover	2.8 W/ft	2200K 2700K 3000K 3500K 4000K	- high LED density	KWP-GHD22-1910-24 KWP-GHD27-1910-24 KWP-GHD30-1910-24 KWP-GHD35-1910-24 KWP-GHD40-1910-24
KWP-GHD-0530-24 LED tape, 81-152 lm/ft, IP65,	65	gel cover	1.6 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K		WP-K-22-0530-HD-IP65-24V WP-K-25-0530-HD-IP65-24V WP-K-27-0530-HD-IP65-24V WP-K-30-0530-HD-IP65-24V WP-K-35-0530-HD-IP65-24V WP-K-40-0530-HD-IP65-24V WP-K-50-0530-HD-IP65-24V

LED tapes
RGB / RGB-W / RGB-CTT

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-120-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,	65	silicon sleeve	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	KWP-GRGBW-1920-120-24
