HR-21 Cover

Ref No: B17152
HR-21 Cover
HR-21 Cover
  • For the construction of sealed lighting fixtures
  • Possibility of sealing in dedicated profiles
  • Increased pressure resistance
  • Made of PMMA with increased resistance to weather conditions
High mechanical resistance
UV radiation resistance
Color
frosted
  • For the construction of sealed lighting fixtures
  • Possibility of sealing in dedicated profiles
  • Increased pressure resistance
  • Made of PMMA with increased resistance to weather conditions
Application
  • - LED protection and light diffusion in lighting fixtures
Mounting
  • - Snapped in a dedicated profile
Additional information
  • - ATTENTION! rigid cover, not intended for bending or deformation
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ
Technical drawing

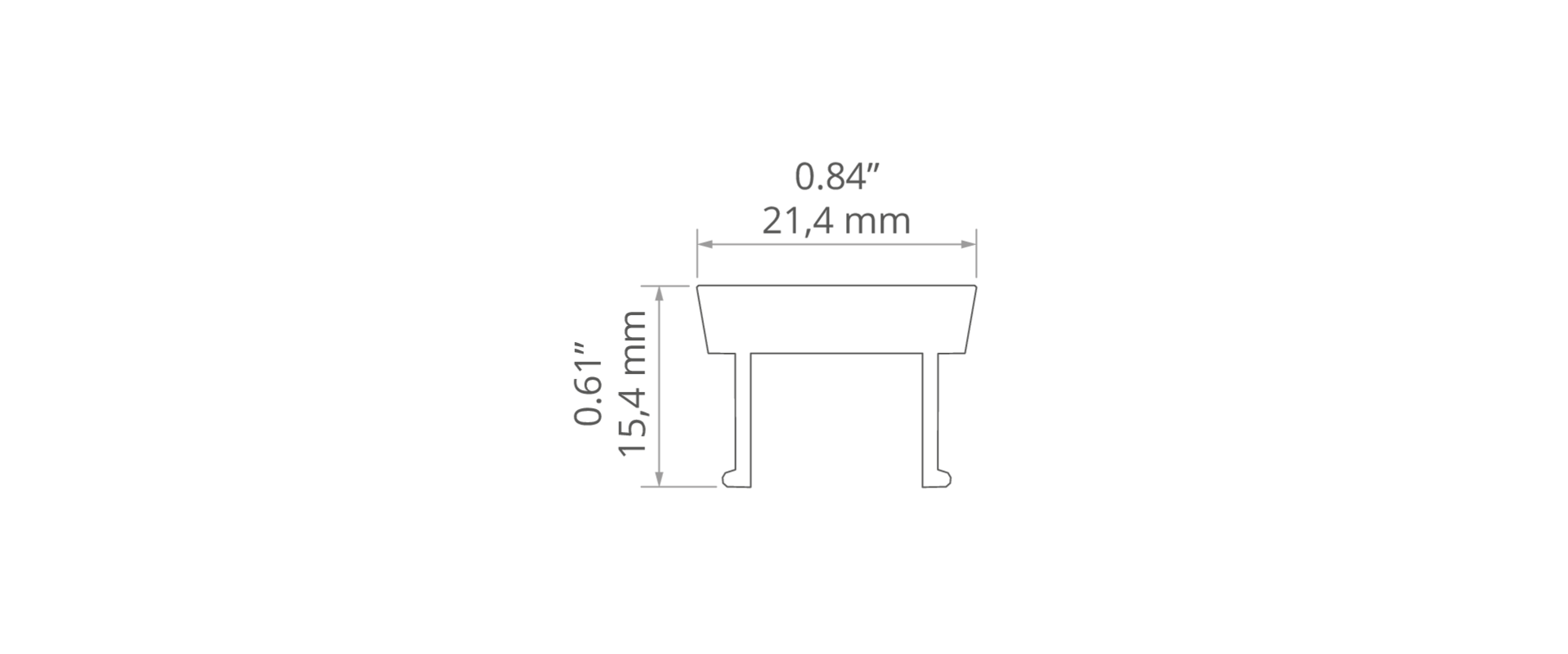

HR-21 Cover PMMA 0.8" Technical drawing - B17152
Technical specification
Material
PMMA
Shape
flat
Maximum length on request
19'08" (6000 mm)
Width
0.8" (21 mm)
High mechanical resistance
Yes
UV resistance
Yes
Color Light transmittance [%] Length Ref No
frosted
55 %
39.4" (1000 mm)
78.9" (2005 mm)
118.5" (3010 mm)
B17152F_1
B17152F_2
B17152F_3
Related extrusions
HR-MAX
Ref No: A01829
HR-OPTI
Ref No: A01844
