HR-21 Focusing cover

Ref No: B17182
  • Concentrates the luminous flux (20° angle)
  • UV resistance
  • For the construction of sealed lighting fixtures
Semi-transparent
Focusing light
UV radiation resistance
Color
semi-transparent
  • Concentrates the luminous flux (20° angle)
  • UV resistance
  • For the construction of sealed lighting fixtures
Application
  • - LED protection and light diffusion in lighting fixtures
Mounting
  • - to the extrusion, by pressing
Additional information
  • - ATTENTION! rigid cover, not intended for bending or deformation
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

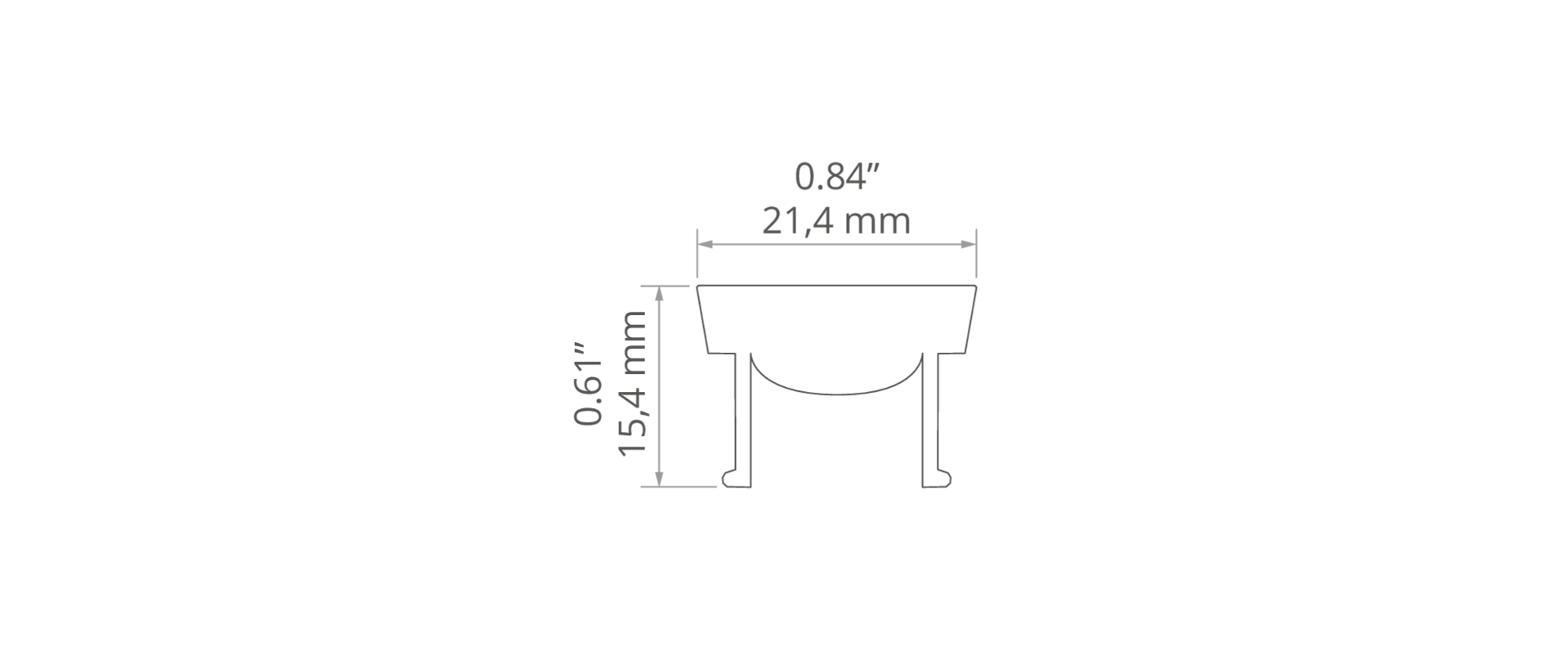

Technical drawing
HR-21 Focusing cover PMMA Technical drawing - B17182
Technical specification
Finish
semi-transparent
Material
PMMA
Shape
flat
Maximum length on request
19'08" (6000 mm)
Lens Angle Min
20°
Focusing light
Yes
UV resistance
Yes
Width x Height
0.8" x 0.6"
Color Light transmittance [%] Length Ref No
semi-transparent
79 %
78.9" (2005 mm)
118.5" (3010 mm)
B17182T_2
B17182T_3
Related extrusions
HR-OPTI
Ref No: A01844
