HSP-47 Cover

Ref No: B17059P
  • High lumen output
  • Possiblity to obtain UGR < 19
Microprismatic
Glare rating reduction UGR<19
UV radiation resistance
Color
microprism
  • High lumen output
  • Possiblity to obtain UGR < 19
Application
  • - LED protection, light diffusion and glare reduction in lighting fixtures
Mounting
  • - to the extrusion, by pressing
Additional information
  • - ATTENTION! rigid cover, not intended for bending or deformation
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

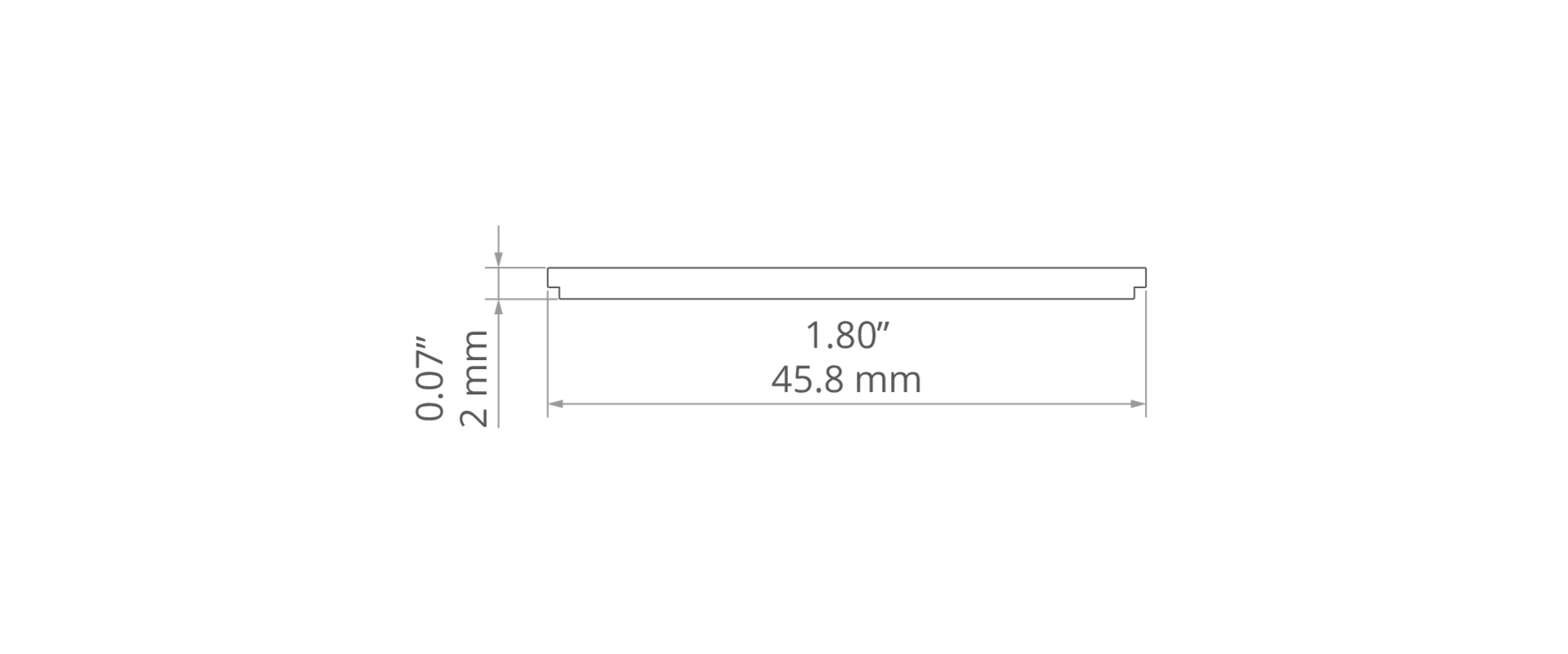

Technical drawing
HSP-47 Cover PMMA 1.8" Technical drawing - B17059P
Technical specification
Finish
microprism
Material
PMMA
Shape
flat
Maximum length on request
118.1" (3000 mm)
Light transmission
82 %
Width
1.8" (45 mm)
Glare rating reduction UGR<19
Yes
UV resistance
Yes
Related extrusions
KIDES
Ref No: A18031
