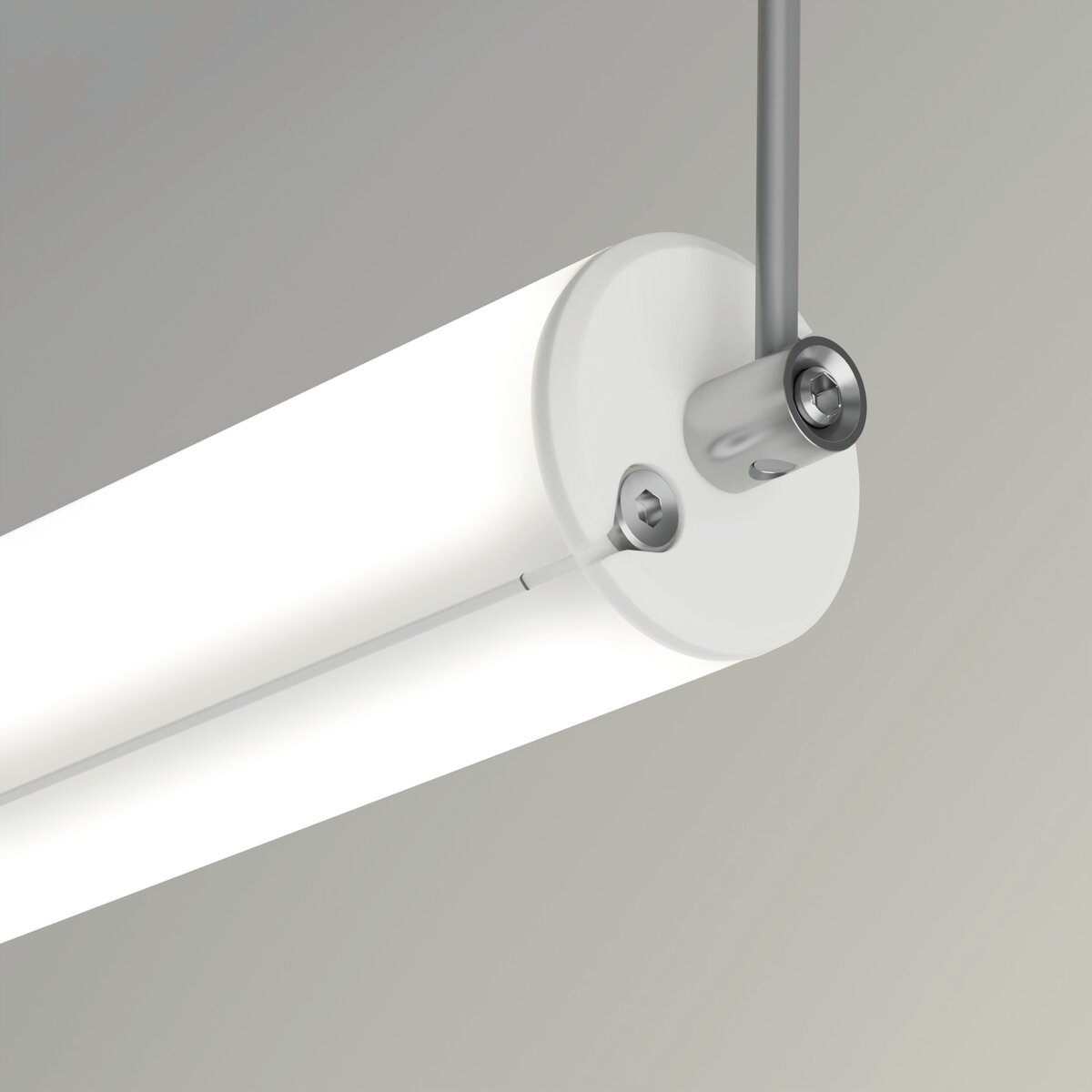

JAZ-DUO-N Electricity conductive end cap

Ref No: C28224
JAZ-DUO-N Electricity conductive end cap
JAZ-DUO-N Electricity conductive end cap
  • Crosswise suspension on a rod
  • Single pole conductivity possible
  • Possibility to rotate the fixture after installation
Suspended
Conducting electricity
Color
gray white
  • Crosswise suspension on a rod
  • Single pole conductivity possible
  • Possibility to rotate the fixture after installation
Application
  • - aesthetic finish and protection of the interior of the lighting fixture
Mounting
  • - to the extrusion, using bolts (included)
  • - to the rod with a pressure screw

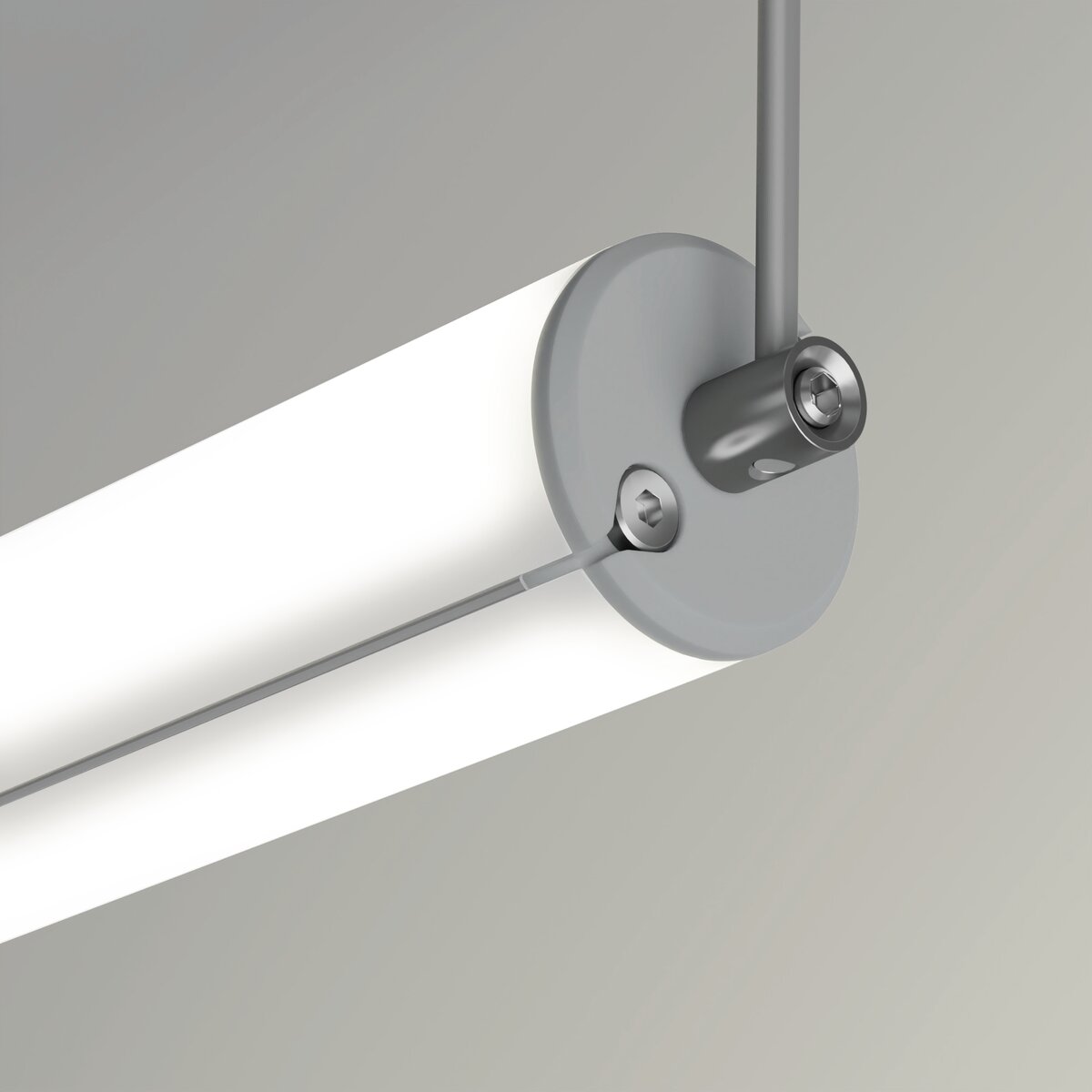

Usage examples

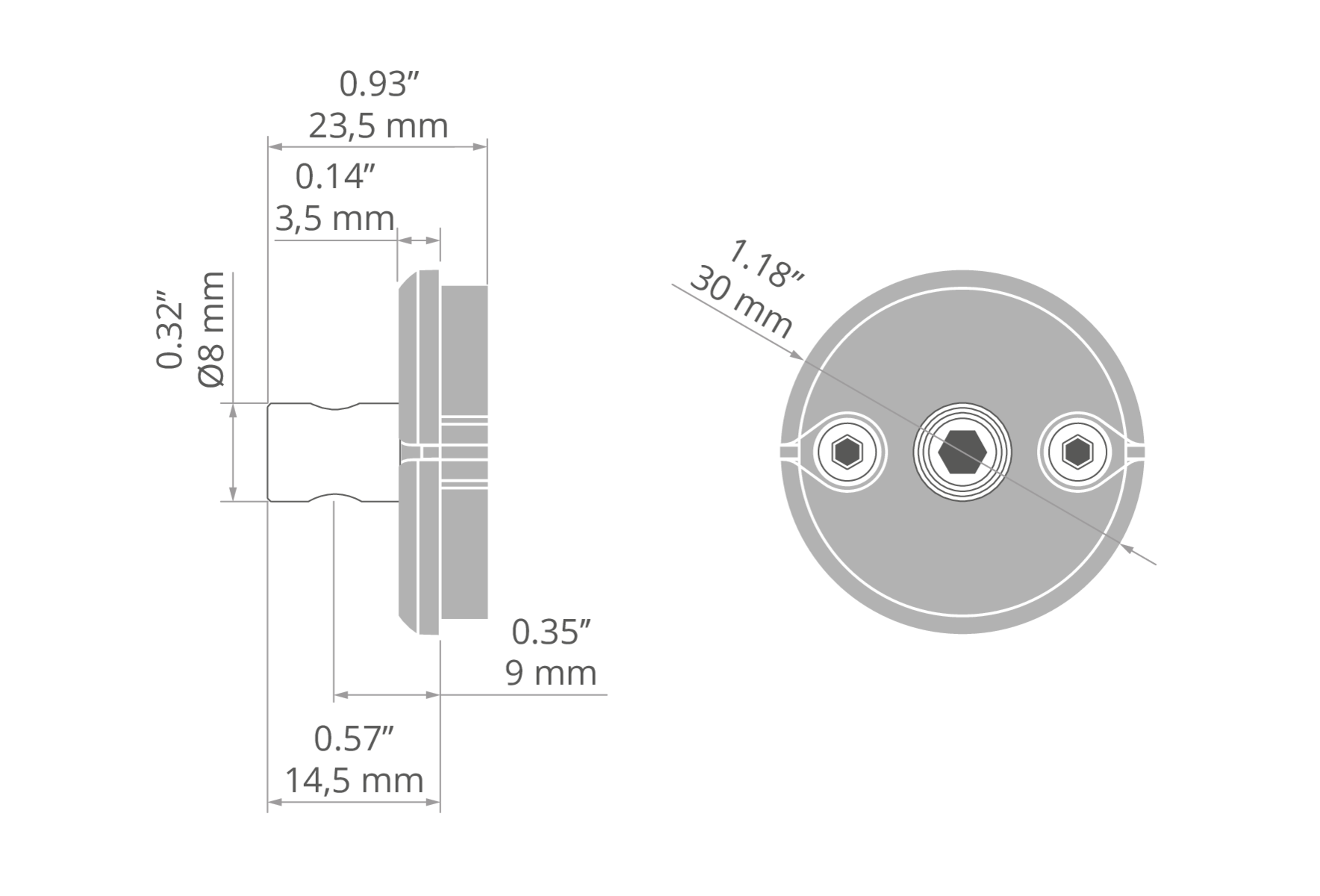

Technical drawing
JAZ-DUO-N Electricity conductive end cap stainless steel Technical drawing - C28224
Technical specification
Finish
colored
Material
ABS, stainless steel
Maximum current intensity
3.5 A
Power loss
0.1 V
Working temperature
131°F
Lifting capacity
22 lb
Conducting electricity
Yes
Length x Width x Height
0.9" x 1.2" x 1.2"
Color Length Ref No

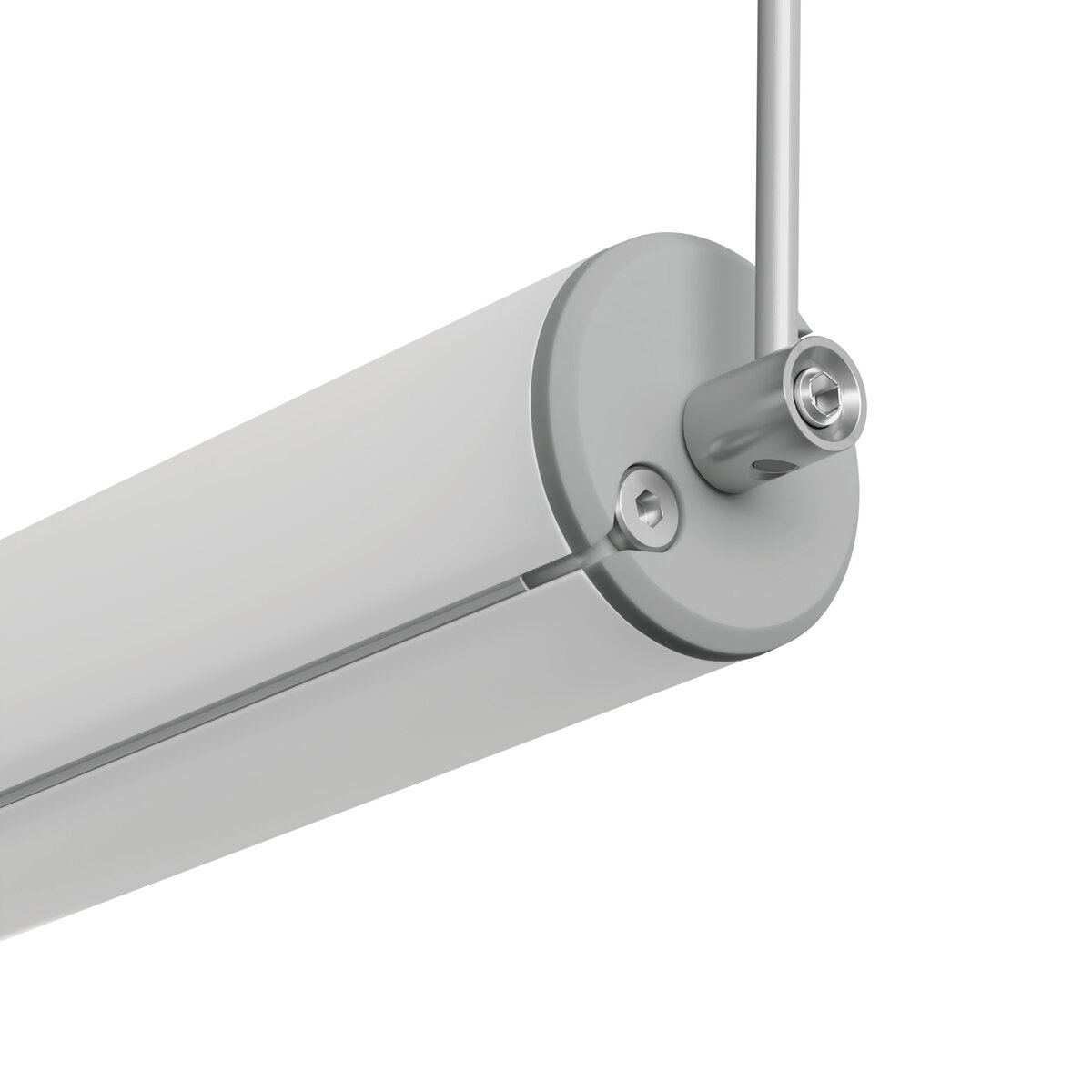

gray
0.9"
C28224C02P

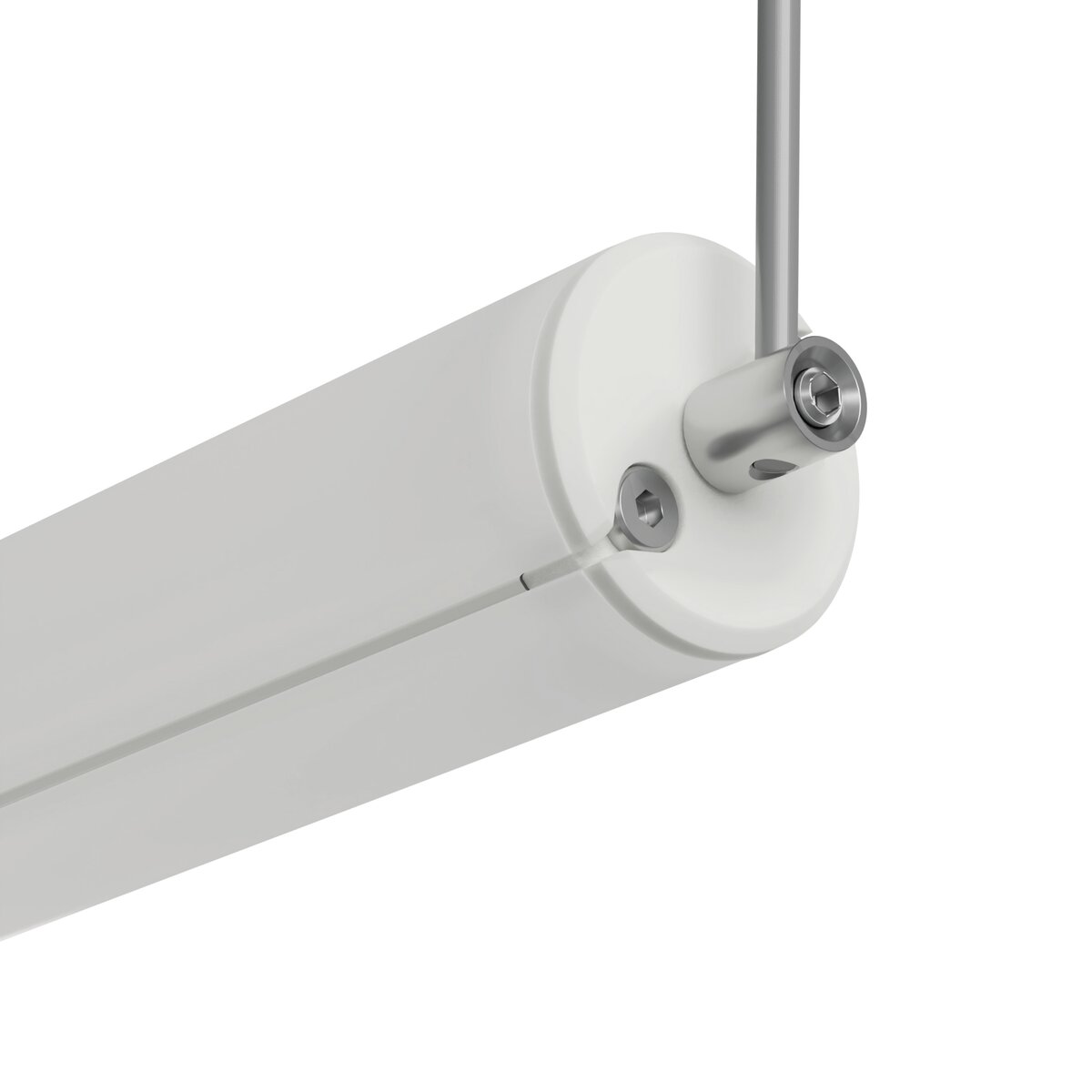

white
0.9"
C28224L10P
Related extrusions
JAZ-DUO
Ref No: A00788
Related products
Product name Material Color Ref No
Wire CU FI 0,95 mm
steel, copper
silver
Z70240
Rod FI-3 1m
brass
silver
42501
