K-NF-0780-24 LED tape, 125- 175 lm/ft, IP67, 2.4 W/ft

Ref No: K-NF-0780-24
K-NF-0780-24 LED tape, 125- 175 lm/ft, IP67,

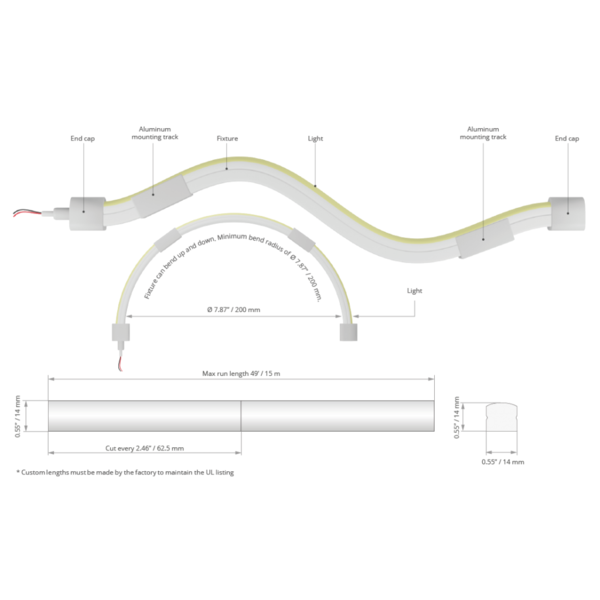

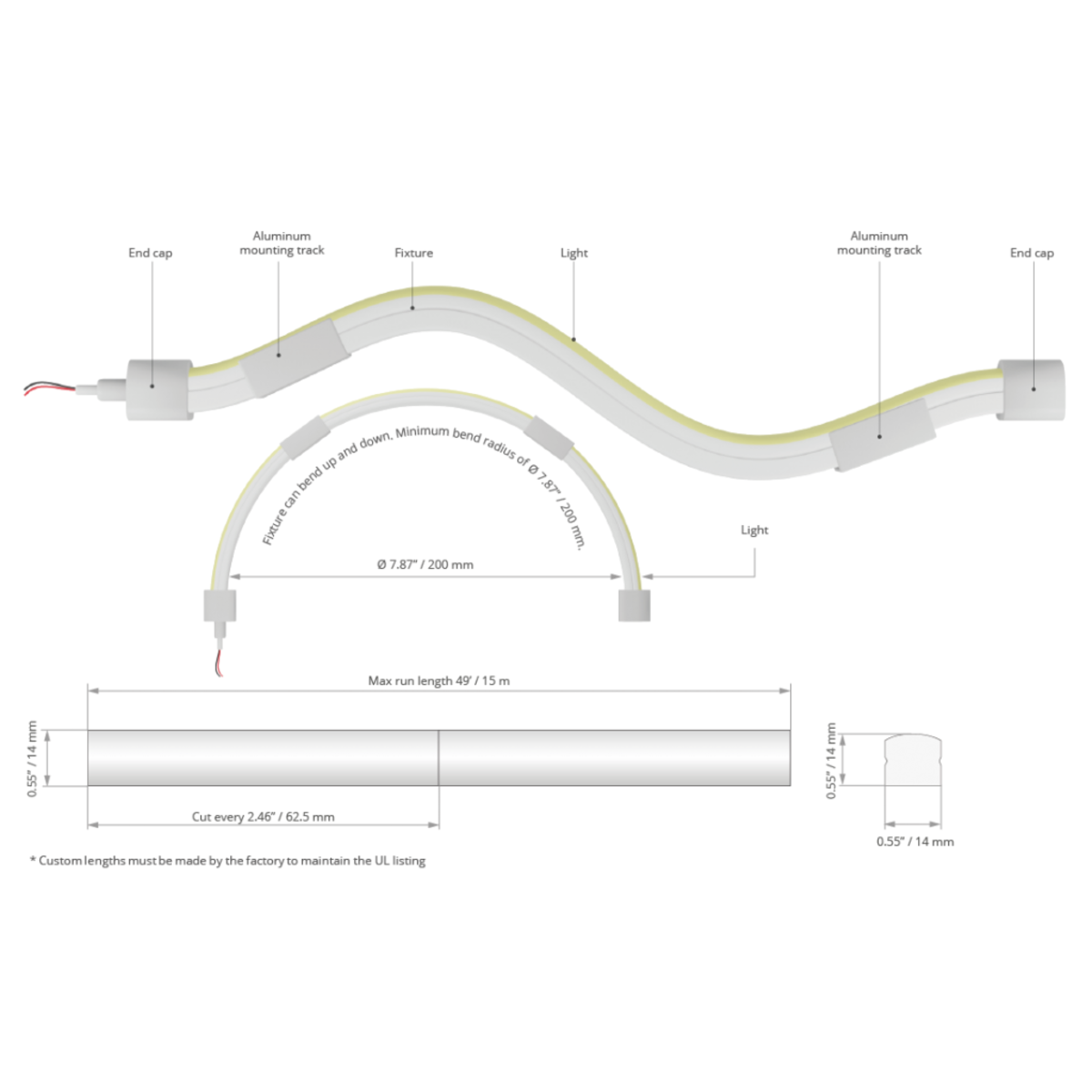

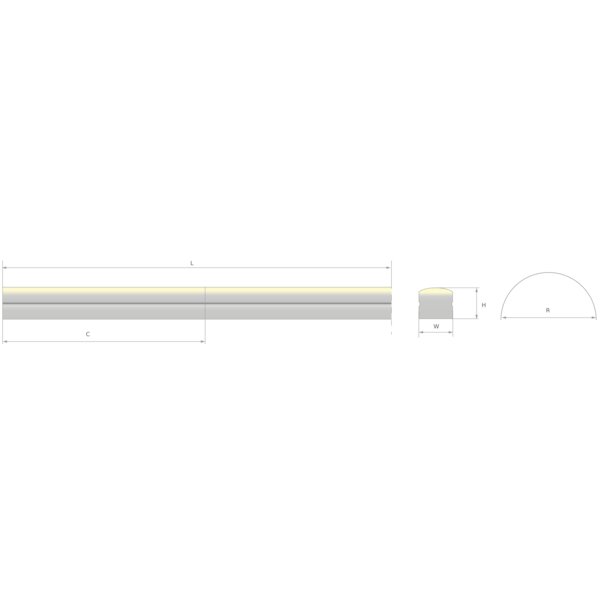

Dimensions:
|
Width [W]: 0.6" (14 mm)
|
Height [H]: 0.6" (14 mm)
|
Cut every [C]: 2.5" (62.5 mm)
|
LED spacing: 0.4" (8.93 mm)
K-NF-0780-24 LED tape, 125- 175 lm/ft, IP67,
Dimensions:
|
Width [W]: 0.6" (14 mm)
|
Height [H]: 0.6" (14 mm)
|
Cut every [C]: 2.5" (62.5 mm)
|
LED spacing: 0.4" (8.93 mm)
K-NF-0780-24 LED tape, 125- 175 lm/ft, IP67,
Dimensions:
|
Width [W]: 0.6" (14 mm)
|
Height [H]: 0.6" (14 mm)
|
Cut every [C]: 2.5" (62.5 mm)
|
LED spacing: 0.4" (8.93 mm)
K-NF-0780-24 LED tape, 125- 175 lm/ft, IP67,
Dimensions:
|
Width [W]: 0.6" (14 mm)
|
Height [H]: 0.6" (14 mm)
|
Cut every [C]: 2.5" (62.5 mm)
|
LED spacing: 0.4" (8.93 mm)
K-NF-0780-24 LED tape, 125- 175 lm/ft, IP67,
Dimensions:
|
Width [W]: 0.6" (14 mm)
|
Height [H]: 0.6" (14 mm)
|
Cut every [C]: 2.5" (62.5 mm)
|
LED spacing: 0.4" (8.93 mm)
K-NF-0780-24 LED tape, 125- 175 lm/ft, IP67,
Dimensions:
|
Width [W]: 0.6" (14 mm)
|
Height [H]: 0.6" (14 mm)
|
Cut every [C]: 2.5" (62.5 mm)
|
LED spacing: 0.4" (8.93 mm)
K-NF-0780-24 LED tape, 125- 175 lm/ft, IP67,
Dimensions:
|
Width [W]: 0.6" (14 mm)
|
Height [H]: 0.6" (14 mm)
|
Cut every [C]: 2.5" (62.5 mm)
|
LED spacing: 0.4" (8.93 mm)
K-NF-0780-24 LED tape, 125- 175 lm/ft, IP67,
Dimensions:
|
Width [W]: 0.6" (14 mm)
|
Height [H]: 0.6" (14 mm)
|
Cut every [C]: 2.5" (62.5 mm)
|
LED spacing: 0.4" (8.93 mm)
K-NF-0780-24 LED tape, 125- 175 lm/ft, IP67,
Dimensions:
|
Width [W]: 0.6" (14 mm)
|
Height [H]: 0.6" (14 mm)
|
Cut every [C]: 2.5" (62.5 mm)
|
LED spacing: 0.4" (8.93 mm)
K-NF-0780-24 LED tape, 125- 175 lm/ft, IP67,
Dimensions:
|
Width [W]: 0.6" (14 mm)
|
Height [H]: 0.6" (14 mm)
|
Cut every [C]: 2.5" (62.5 mm)
|
LED spacing: 0.4" (8.93 mm)
K-NF-0780-24 LED tape, 125- 175 lm/ft, IP67,
K-NF-0780-24 LED tape, 125- 175 lm/ft, IP67,
K-NF-0780-24 LED tape, 125- 175 lm/ft, IP67,
K-NF-0780-24 LED tape, 125- 175 lm/ft, IP67,
K-NF-0780-24 LED tape, 125- 175 lm/ft, IP67,
K-NF-0780-24 LED tape, 125- 175 lm/ft, IP67,
K-NF-0780-24 LED tape, 125- 175 lm/ft, IP67,
K-NF-0780-24 LED tape, 125- 175 lm/ft, IP67,
K-NF-0780-24 LED tape, 125- 175 lm/ft, IP67,
K-NF-0780-24 LED tape, 125- 175 lm/ft, IP67,
  • UL Listed
  • 3-Step MacAdam’s ellipse, single binning (applies only to white color)
  • L70- Over 40,000 hours
  • Reverse voltage protection
  • Minimum 2oz copper PCB
UV radiation resistance
Corrosion resistance at high salinity
CRI 90+
IP67 protection rating
Dimmable
Does not contain mercury and lead
UL Certificate
CE Certificate
RoHS Certificate
Warranty 4 years
JA8
Technical specification
IP protection rating
67
CRI
90
Input voltage
24 V DC
Power consumption
2.4 W/ft
Beam angle
113°
MacAdam’s ellipse
3 SDCM
Height [H]
0.6" (14 mm)
Width [W]
0.6" (14 mm)
Cut every [C]
2.5" (62.5 mm)
LED spacing
0.4" (8.93 mm)
Minimum bending radius R
7.9"
Number of LEDs per 1 ft
34
Number of LEDs per cut section
7 pcs
Dimmable
Yes
UV radiation resistance
Yes
Corrosion resistance at high salinity
Yes
LED color LED output Efficiency Ref No
3000K
125 lm/ft
125 lm/ft
125 lm/ft
52 lm/W
52 lm/W
52 lm/W
K-NF-30-0780-24-5M
K-NF-30-0780-24-10M
K-NF-30-0780-24-15M
3500K
175 lm/ft
175 lm/ft
175 lm/ft
74 lm/W
74 lm/W
74 lm/W
K-NF-35-0780-24-5M
K-NF-35-0780-24-10M
K-NF-35-0780-24-15M
4000K
126 lm/ft
126 lm/ft
126 lm/ft
53 lm/W
53 lm/W
53 lm/W
K-NF-40-0780-24-5M
K-NF-40-0780-24-10M
K-NF-40-0780-24-15M
5000K
124 lm/ft
124 lm/ft
124 lm/ft
52 lm/W
52 lm/W
52 lm/W
K-NF-50-0780-24-5M
K-NF-50-0780-24-10M
K-NF-50-0780-24-15M
Related products
Product name IP rating Key features Ref No(Ref. arch.)
K-NF-0780-24V series End cap with hole
E69015
K-NF-0780-24V series End cap
E69014
No results found for the selected filters.
Product name IP rating Key features Ref No(Ref. arch.)
K-NF-0780-24V series Aluminum bracket
E69016
K-NF-0780-24 series 39.4" Aluminum Mounting Track
E690161
No results found for the selected filters.
