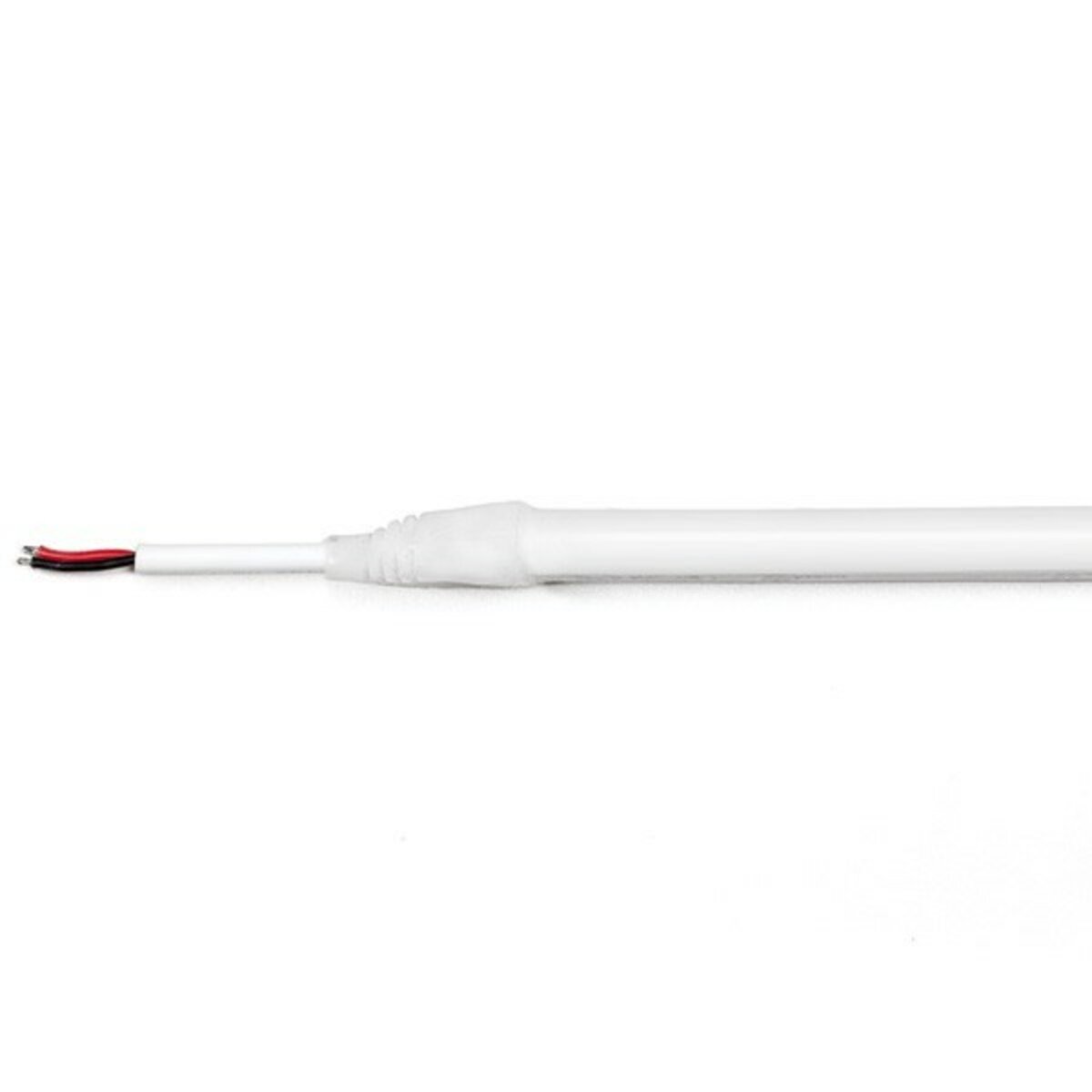

K-NF-1220-24-SA LED tape, 180-191 lm/ft, IP67, 2.9 W/ft

Ref No: K-NF-1220-24-SA
K-NF-1220-24-SA LED tape, 180-191 lm/ft, IP67,

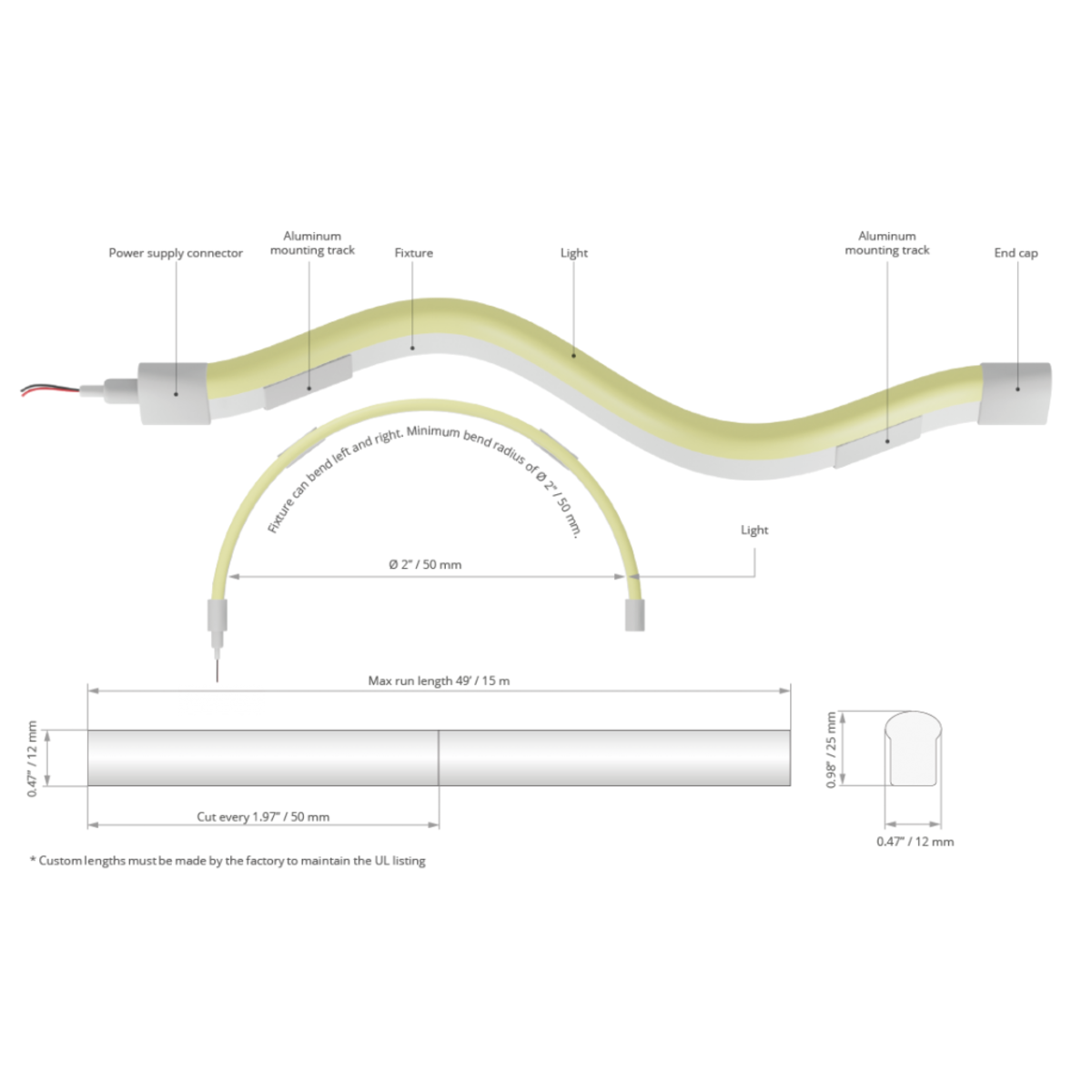

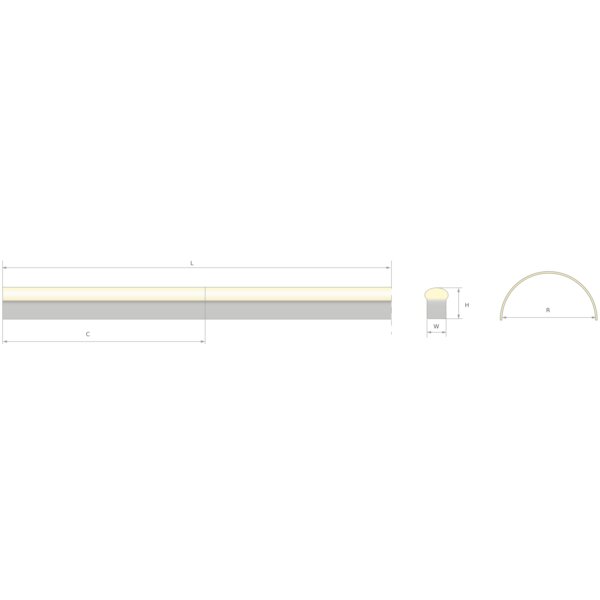

Dimensions:
|
Width [W]: 0.5" (12 mm)
|
Height [H]: 1" (25 mm)
|
Cut every [C]: 2" (50 mm)
|
LED spacing: 0.3" (8.33 mm)
K-NF-1220-24-SA LED tape, 180-191 lm/ft, IP67,
Dimensions:
|
Width [W]: 0.5" (12 mm)
|
Height [H]: 1" (25 mm)
|
Cut every [C]: 2" (50 mm)
|
LED spacing: 0.3" (8.33 mm)
K-NF-1220-24-SA LED tape, 180-191 lm/ft, IP67,
Dimensions:
|
Width [W]: 0.5" (12 mm)
|
Height [H]: 1" (25 mm)
|
Cut every [C]: 2" (50 mm)
|
LED spacing: 0.3" (8.33 mm)
K-NF-1220-24-SA LED tape, 180-191 lm/ft, IP67,
Dimensions:
|
Width [W]: 0.5" (12 mm)
|
Height [H]: 1" (25 mm)
|
Cut every [C]: 2" (50 mm)
|
LED spacing: 0.3" (8.33 mm)
K-NF-1220-24-SA LED tape, 180-191 lm/ft, IP67,
Dimensions:
|
Width [W]: 0.5" (12 mm)
|
Height [H]: 1" (25 mm)
|
Cut every [C]: 2" (50 mm)
|
LED spacing: 0.3" (8.33 mm)
K-NF-1220-24-SA LED tape, 180-191 lm/ft, IP67,
Dimensions:
|
Width [W]: 0.5" (12 mm)
|
Height [H]: 1" (25 mm)
|
Cut every [C]: 2" (50 mm)
|
LED spacing: 0.3" (8.33 mm)
K-NF-1220-24-SA LED tape, 180-191 lm/ft, IP67,
K-NF-1220-24-SA LED tape, 180-191 lm/ft, IP67,
K-NF-1220-24-SA LED tape, 180-191 lm/ft, IP67,
K-NF-1220-24-SA LED tape, 180-191 lm/ft, IP67,
K-NF-1220-24-SA LED tape, 180-191 lm/ft, IP67,
K-NF-1220-24-SA LED tape, 180-191 lm/ft, IP67,

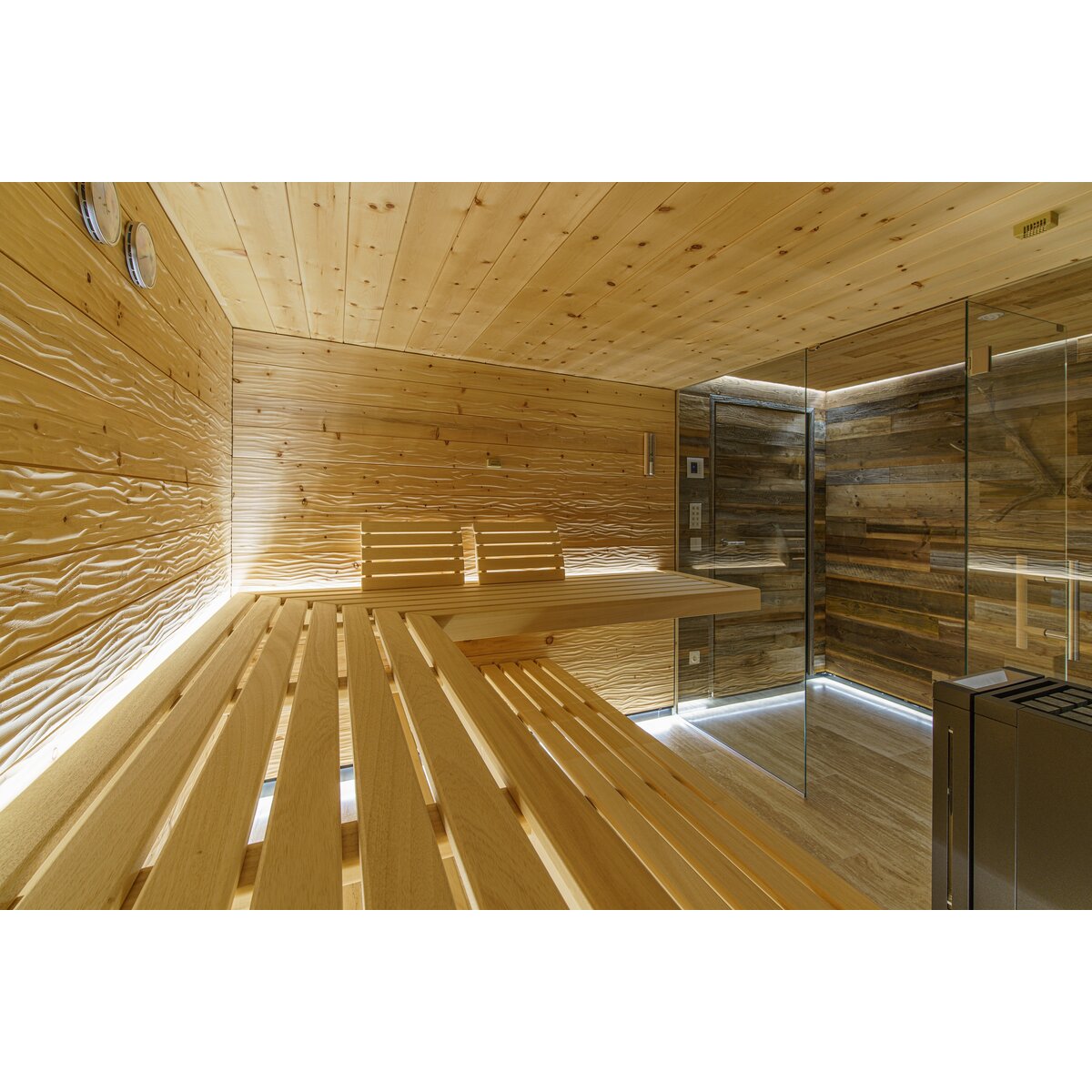

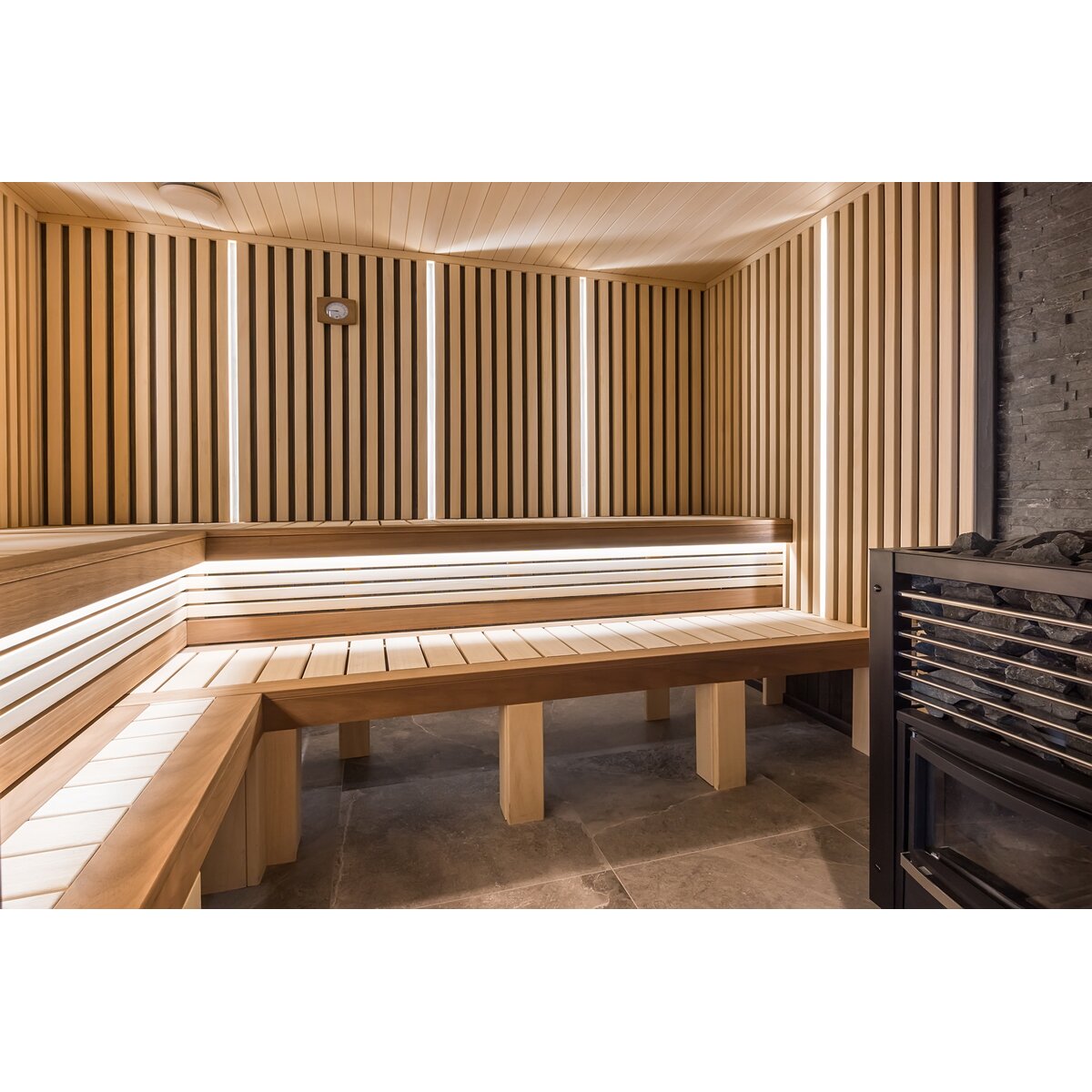

  • High temperature resistance / Sauna Rated
  • Reverse voltage protection
  • UL Listed
Outdoor
UV radiation resistance
Corrosion resistance at high salinity
CRI 90+
IP67 protection rating
Dimmable
Does not contain mercury and lead
UL Certificate
CE Certificate
RoHS Certificate
Technical specification
IP protection rating
67
CRI
90
Input voltage
24 V DC
Power consumption
2.9 W/ft
Beam angle
180°
MacAdam’s ellipse
2 SDCM
Height [H]
1" (25 mm)
Width [W]
0.5" (12 mm)
Cut every [C]
2" (50 mm)
LED spacing
0.3" (8.33 mm)
Minimum bending radius R
2"
Number of LEDs per 1 ft
36
Number of LEDs per cut section
6 pcs
Dimmable
Yes
UV radiation resistance
Yes
Corrosion resistance at high salinity
Yes
Working temperature
-20°F - 194°F
LED color LED output Efficiency Ref No
2700K
180 lm/ft
180 lm/ft
180 lm/ft
61 lm/W
61 lm/W
61 lm/W
K-NF-27-1220-24-5M-SA
K-NF-27-1220-24-10M-SA
K-NF-27-1220-24-15M-SA
3000K
184 lm/ft
184 lm/ft
184 lm/ft
63 lm/W
63 lm/W
63 lm/W
K-NF-30-1220-24-5M-SA
K-NF-30-1220-24-10M-SA
K-NF-30-1220-24-15M-SA
3500K
189 lm/ft
189 lm/ft
189 lm/ft
65 lm/W
65 lm/W
65 lm/W
K-NF-35-1220-24-5M-SA
K-NF-35-1220-24-10M-SA
K-NF-35-1220-24-15M-SA
4000K
191 lm/ft
191 lm/ft
191 lm/ft
65 lm/W
65 lm/W
65 lm/W
K-NF-40-1220-24-5M-SA
K-NF-40-1220-24-10M-SA
K-NF-40-1220-24-15M-SA
