K-NFM12-RGB-1560-24-5M LED tape, 81 lm/ft, 4.7 W/ft, IP67 4.7 W/ft

Ref No: K-NFM12-RGB-1560-24-5M
K-NFM12-RGB-1560-24-5M LED tape, 81 lm/ft, 4.7 W/ft, IP67
Dimensions:
|
Width [W]: 0.5" (12 mm)
|
Height [H]: 0.2" (6 mm)
|
Max run length [L]: 16'04" (5 m)
|
Cut every [C]: 2" (50 mm)
  • RGB Color
  • Only 0.2” tall
  • High temperature resistance / Sauna Rated
Outdoor
UV radiation resistance
Corrosion resistance at high salinity
IP67 protection rating
Dimmable
Does not contain mercury and lead
UL Certificate
CE Certificate
RoHS Certificate

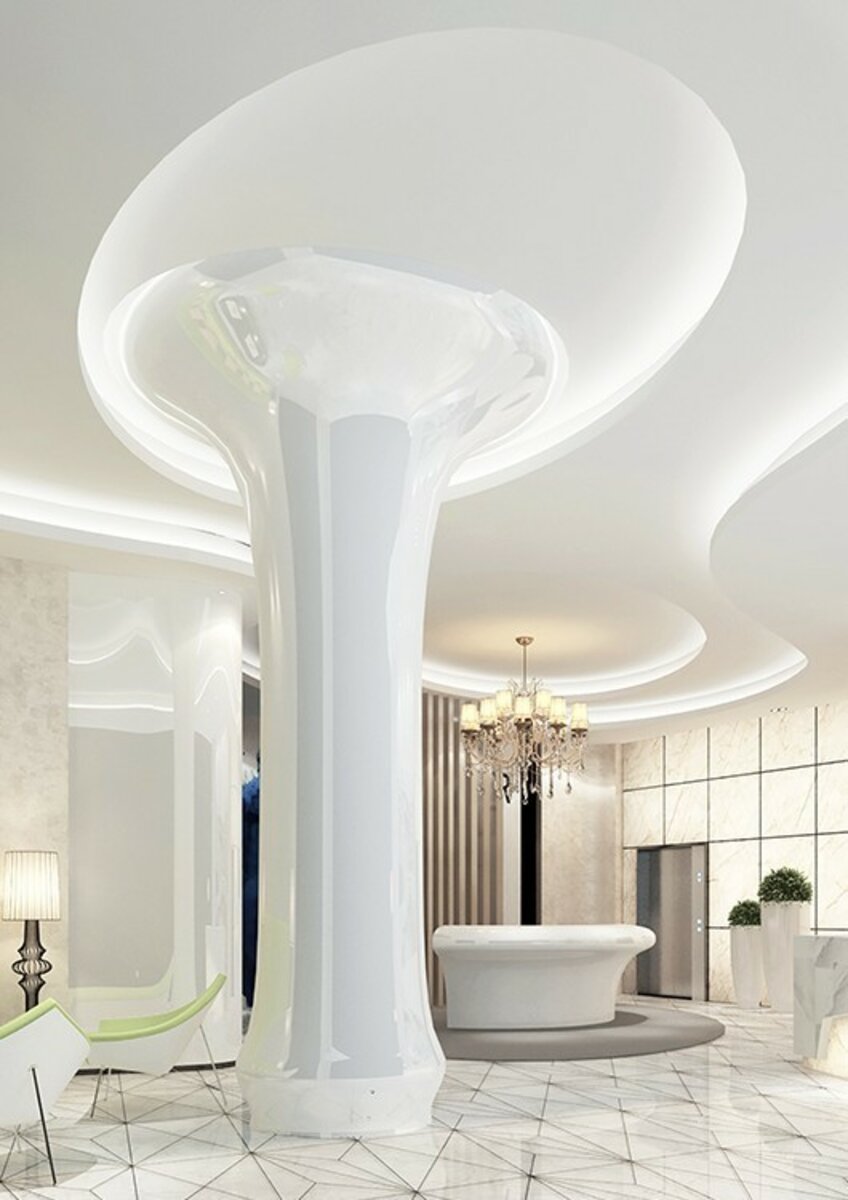

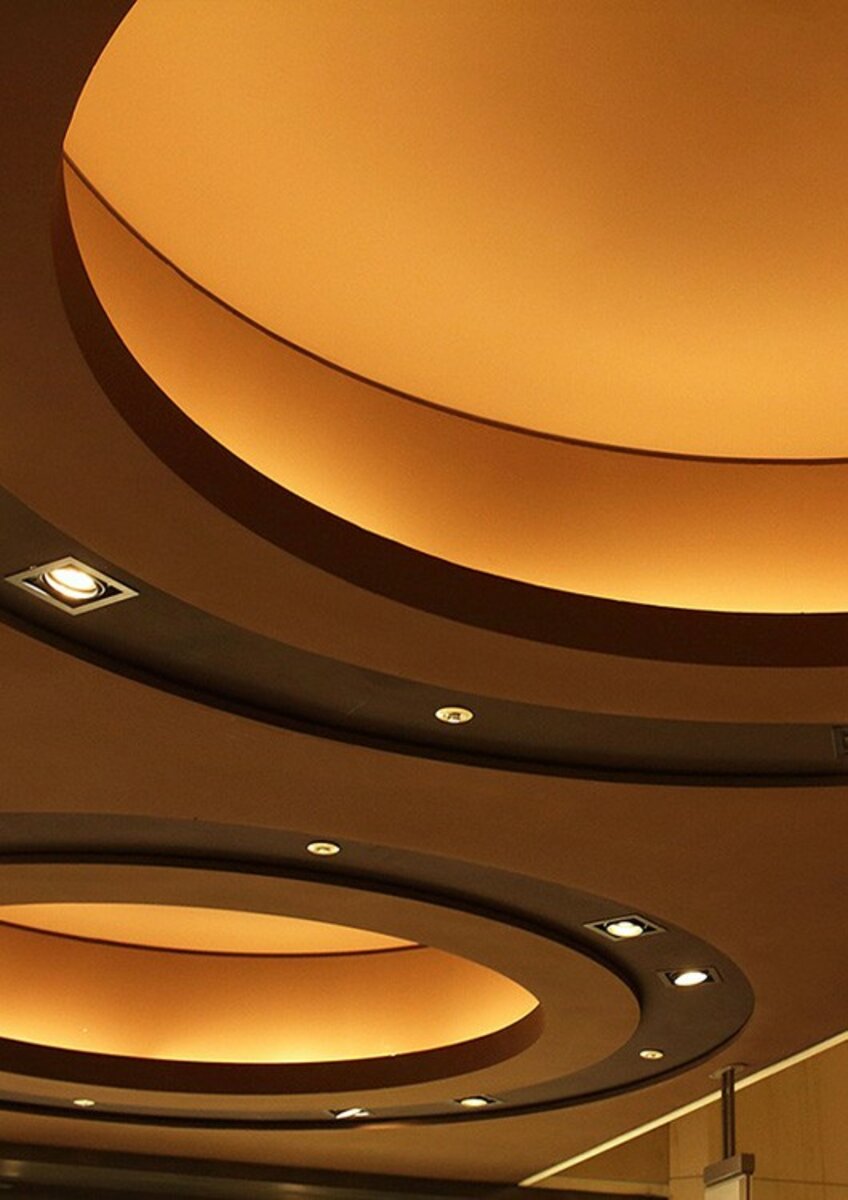

Usage examples
Technical specification
IP protection rating
67
Sealing type
neon flex
LED color
RGB
Lumen output
81 lm/ft
Luminous efficiency
17 lm/W
LxBy
L80B50
Input voltage
24 V DC
Power consumption
4.7 W/ft
Beam angle
110°
Height [H]
0.2" (6 mm)
Width [W]
0.5" (12 mm)
Length
16'04" (5000 mm)
Cut every [C]
2" (50 mm)
Minimum bending radius R
2.4"
Number of LEDs per 1 ft
256
Number of LEDs per cut section
42 pcs
Max run length [L]
16'04" (5 m)
Dimmable
Yes
UV radiation resistance
Yes
Corrosion resistance at high salinity
Yes
Working temperature
-20°F - 194°F
