KOZEL-10-BD Extrusion

Ref No: A18079
KOZEL-10-BD Extrusion
KOZEL-10-BD Extrusion
KOZEL-10-BD Extrusion
KOZEL-10-BD Extrusion
  • Profile designed for bending in the lighting plane
  • Bending requires the use of specialized equipment – KLUŚ offers a professional bending service using dedicated machines
  • Mounting to drywall
  • Possibility of installing sealed 5K series LED strips
  • Minimum height
  • No collision with the ceiling structure
  • Line of light flush with the surface
  • Non visible aluminum elements
Trimless
Possibility of bending
With the possibility of sealing up to IP20
CE Certificate
UKCA Certificate
Color
silver
  • Profile designed for bending in the lighting plane
  • Bending requires the use of specialized equipment – KLUŚ offers a professional bending service using dedicated machines
  • Mounting to drywall
  • Possibility of installing sealed 5K series LED strips
  • Minimum height
  • No collision with the ceiling structure
  • Line of light flush with the surface
  • Non visible aluminum elements
Application
  • - the profile is used for creating curves
  • - decorative lighting
Mounting
  • - in drywall, with mounting adhesive
Additional information
  • - in order to protect the lighting fixture during installation, a TECH-10 protective insert should be used
  • - smooth transition from a recessed into a suspended fixture
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

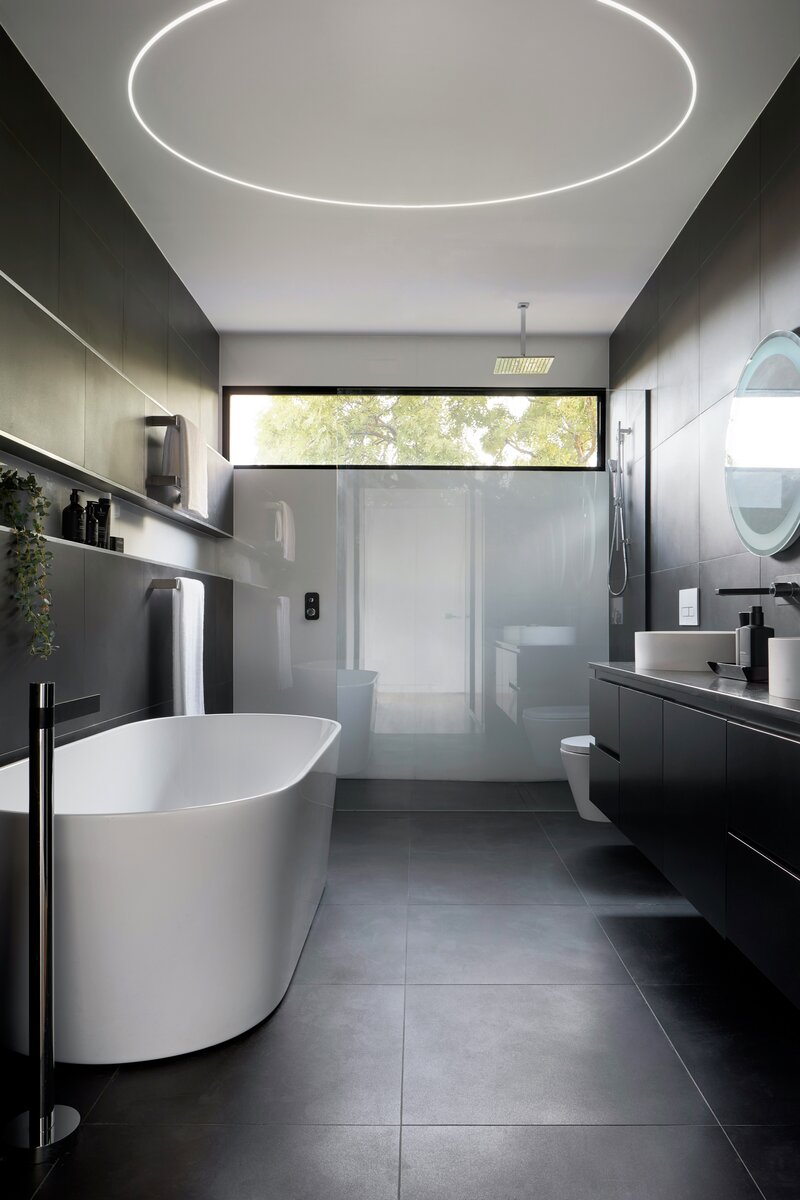

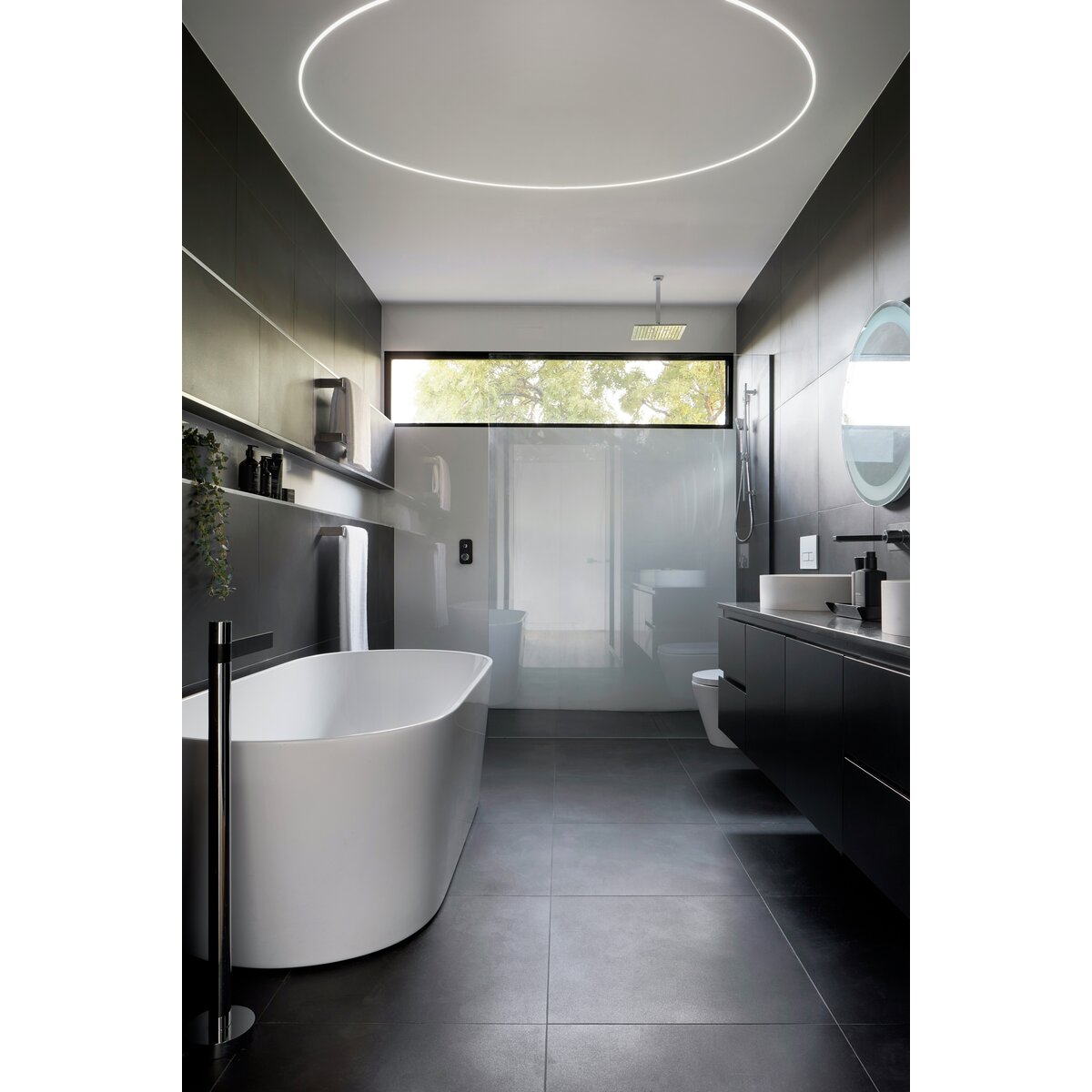

Usage examples

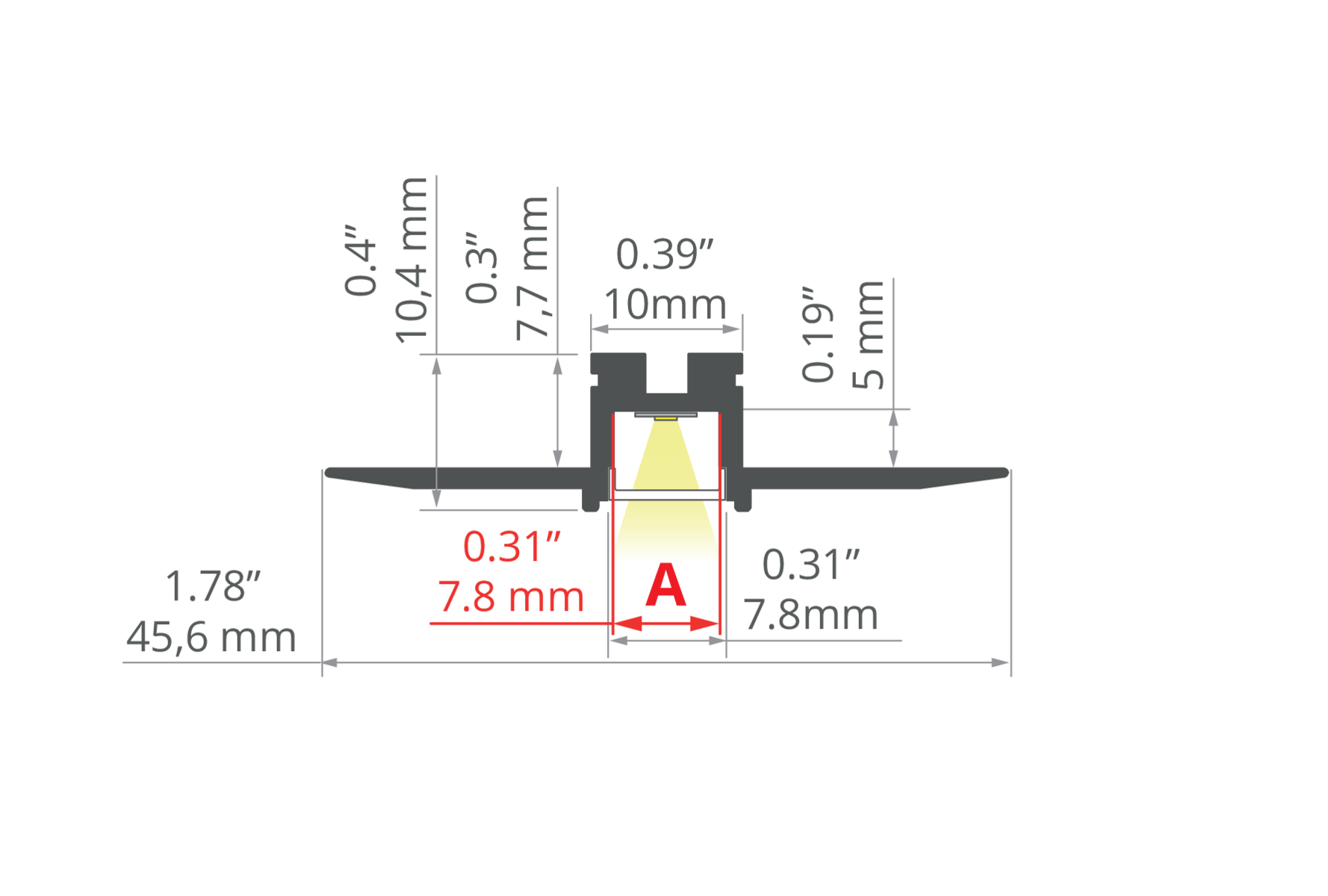

Technical drawing
KOZEL-10-BD Extrusion aluminum Technical drawing - A18079
Technical specification
Finish
non anodized
Material
aluminum
Possible fixture IP
20
Possible fixture shapes
linear, polygonal
Profile cross-section
rectangular
Max power of a single KLUŚ LED strip
2.9 W/ft
Width
1.8" (45.6 mm)
Height
0.4" (10.4 mm)
LED gluing width A
0.3" (7.8 mm)
The cover is cut to the length of the profile
Yes
Can be easily connected into runs
Yes
Mounting to drywall
Yes
To cover with plaster
Yes
Wire out back of extrusion
Yes
Possibility of bending in the light plane
Yes
Possibility of obtaining a line of light
Yes
Possibility of bending
Yes
Minimum radius of the light arc
Radius of the light arc
No
Downward
500 mm
Building type
Commercial, Residential, Retail, Hotel / Restaurant, Entertainment/ Arts
Facility zone
communication routes and corridors, lobby / foyer, bathroom, office, decorative, media rooms / av
Color Length Ref No
silver non anodized
118.1" (3000 mm)
A18079N_3
Line of Light Table for Pixel Free Illumination
LED Tapes Covers
Categories LED tape type BENCO-7 Cover frosted
CRI 90+ K-SHD-0960-24 Line of Light for a number (X) of rows (1)
Line of Light for a number (X) of rows
Line of Light for a number (X) of rows - Pixel free imaging
Centered Line of Light
Centered Line of Light - Concentrated in middle
None
None - Visible dotting from diodes
Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes
Reference shapes
Related extrusions
KOZEL-10
Ref No: A01575
Related products
Product name Material Key features Light transmittance [%] Color Ref No
BENCO-7 Cover
silicon - indoor use
- perfect for bent extrusions
53 %
frosted
B17069F
No results found for the selected filters.
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-SHD-0960-24 LED tape, 193-268 lm/ft, IP20,
20 - 2.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- ideal for use with black covers
- high LED density
K-SHD22-0960-24
K-SHD25-0960-24
K-SHD27-0960-24
K-SHD30-0960-24
K-SHD35-0960-24
K-SHD40-0960-24
K-SHD50-0960-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-RGB-1560-24 LED tape, 194 lm/ft, IP20,
20 - 4.8 W/ft
RGB
- RGB
K-RGB-1560-24_
No results found for the selected filters.
Product name Material Color Ref No
PIKO-ZM-OTW
ABS
gray
white
black
C24307C02TW
C24307C10TW
C24307C07TW
Product name Material Color Ref No
PIKO-ZM End cap
ABS
gray
white
black
C24307C02
C24307C10
C24307C07
No results found for the selected filters.
Product name IP rating Key features Ref No(Ref. arch.)
UNI Proximity switch
20 - touchless switch
- width only 7mm
E61579
No results found for the selected filters.
Product name Material Color Ref No
ZM-G Connector
stainless steel
silver
42308
42304
42328
42330
42332
42334
42336
42338
42310
42324
42326
ZM-NA Connector
stainless steel
silver
42339
ZM-NA-PION Connector
stainless steel
silver
42321
42315
42317
ZM Connector
stainless steel
silver
black
colorless
C28075N00
C28072N00
42720
42728
C24797C07
C28072C07
C28075C07
C28070C07
C28071C07
C28073C07
C28074C07
C24797N00
ZM-PION Connector
stainless steel
silver
black
42718
42719
42320
C28086N00
C28084N00
42314
C28086C07
C28084C07
C28088C07
C28087C07
C28085C07
Product name Material Color Ref No
TECH-10 Protective insert
PVC
gray
C24533C02
Product name Material Color Ref No
Gland 6x1,2
C24517C07
No results found for the selected filters.
