KOZUS Fixture trimless

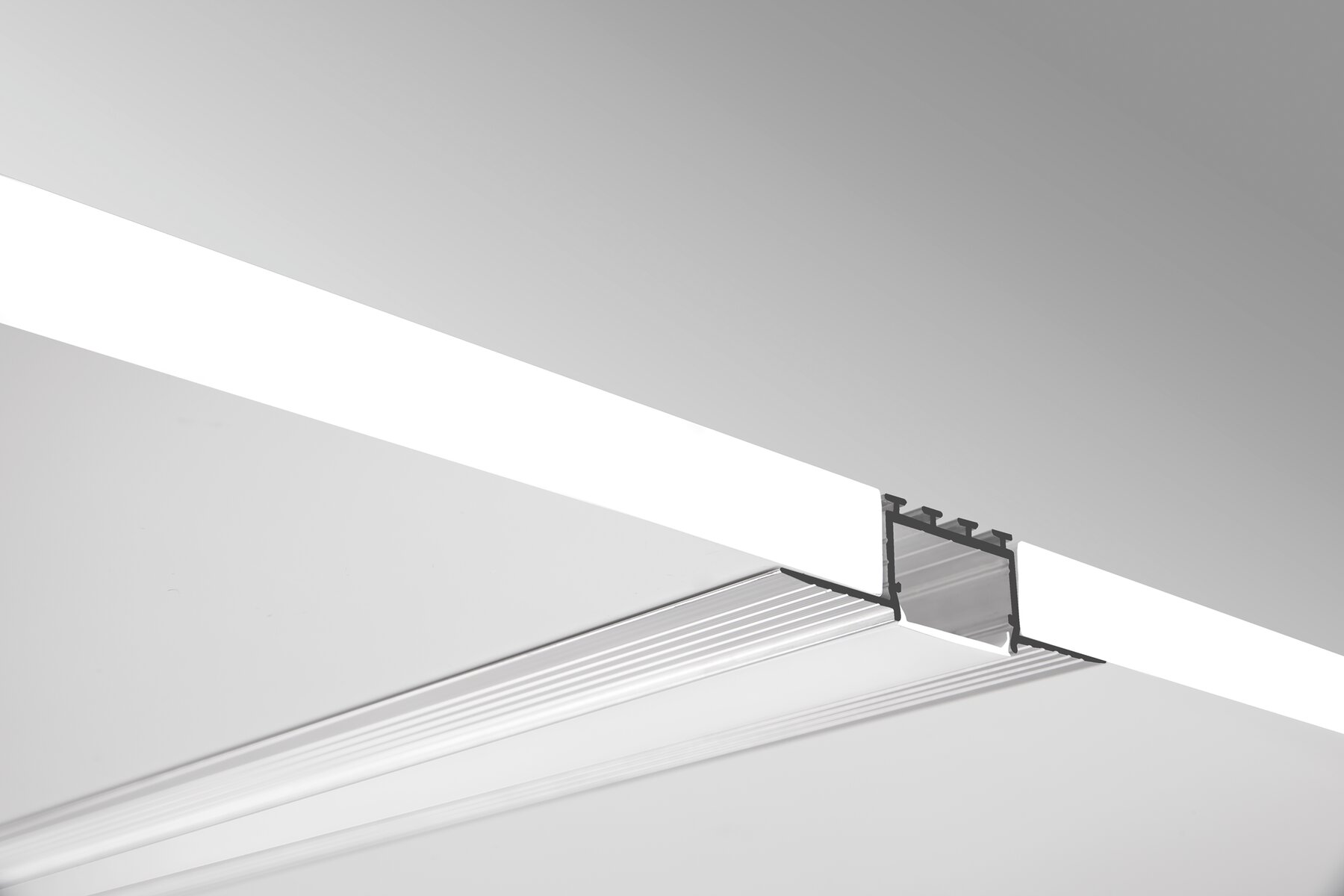

The KOZUS luminaire is an elegant, trimless solution for installation in gypsum boards for ceiling and walls. It offers a dot free line of light, when paired with the LIGER cover, flush with the surface without visible aluminum components at a minimal fixture depth.
  • Mounting to 16 mm | 0.63" drywall
  • No collision with the ceiling structure
  • Line of light flush with the surface
  • Non visible aluminum elements
Trimless
With the possibility of sealing up to IP20
With the possibility of sealing up to IP65
CE Certificate
UKCA Certificate
RoHS Certificate
ETL
Closet Rated
Configure
  • Mounting to 16 mm | 0.63" drywall
  • No collision with the ceiling structure
  • Line of light flush with the surface
  • Non visible aluminum elements
Application
  • - main and decorative lighting
Mounting
  • - in drywall, with mounting adhesive
Additional information
  • - in order to protect the lighting fixture during installation, a TECH-22 protective insert should be used
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ
Usage examples
Technical drawing
KOZUS Fixture trimless aluminum Technical drawing - FW07823
Technical specification
Material
aluminum
Possible fixture IP
20, 65
Possible fixture shapes
linear, polygonal
Profile cross-section
rectangular
Max power of a single KLUŚ LED strip
7.3 W/ft
Width
2.6" (66.8 mm)
Height
0.7" (17.5 mm)
LED gluing width A
0.9" (24 mm)
Max. number of LED strips A (0.31" wide)
3
Can be easily connected into runs
Yes
Mounting to drywall
Yes
To cover with plaster
Yes
Wire out back of extrusion
Yes
Building type
Commercial, Hotel / Restaurant, Retail
Facility zone
bathroom, lobby / foyer, office, media rooms / av, decorative
