L3D0-96W24V-U Power supply

Ref No: L3D0-96W24V-U
  • Hi‑Lume 0.1% EcoSystem 3‑Wire Driver
  • Dimming down to 0.1%
  • Soft‑on, Fade‑to‑Black operation for EcoSystem
  • Universal input voltage - 120 to 277 VAC
  • UL Listed
  • 5-year warranty
IP20 protection rating
UL Certificate
RoHS Certificate
Warranty: 5 years
Color
gray

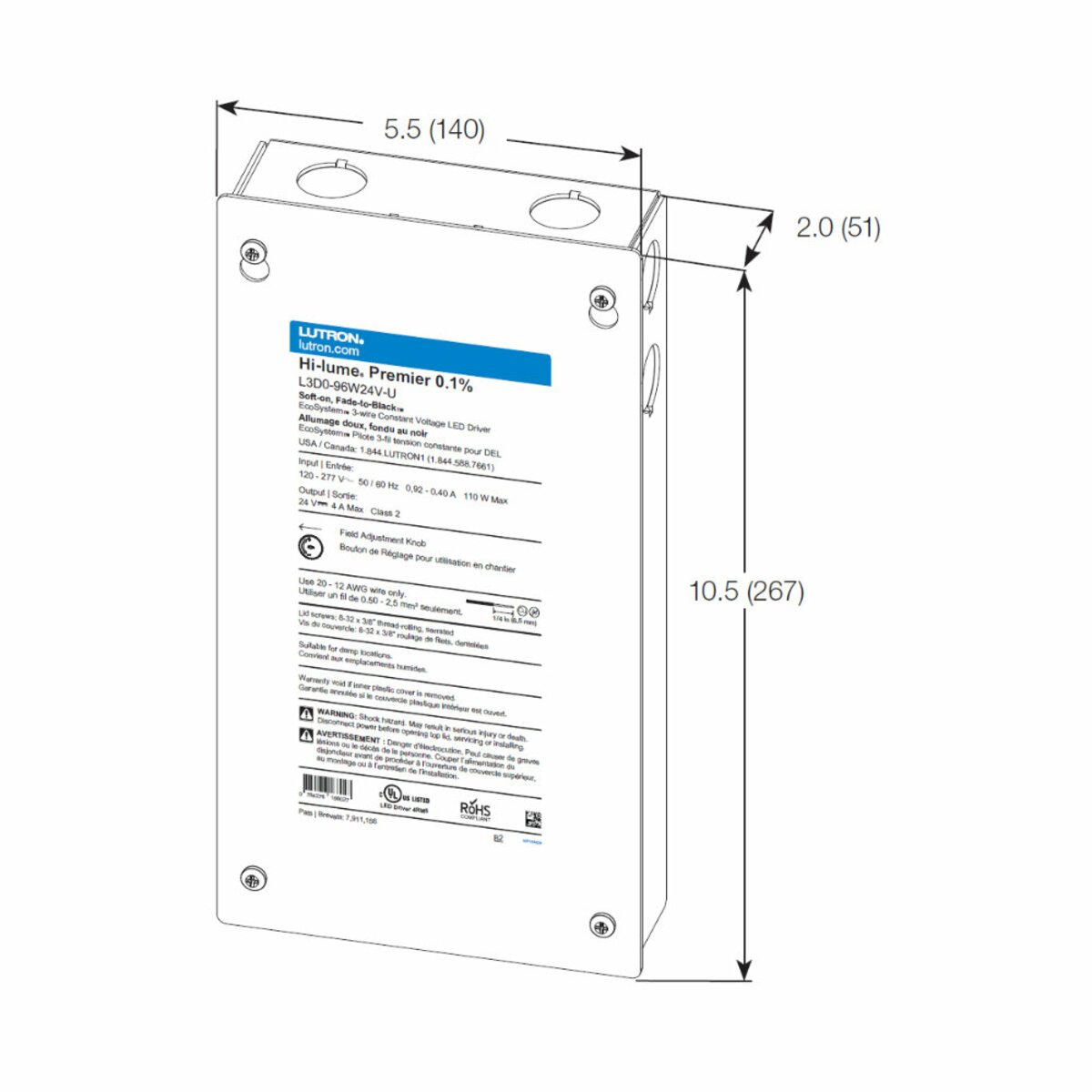

Technical drawing
L3D0-96W24V-U Power supply Technical drawing - L3D0-96W24V-U
Technical specification
Material
plastic
IP protection rating
20
Dimming range
0,1-100%
Control / Communication
wired
Rated input voltage
110-127V / 220-277V
Minimum output power [W]
2 W
Maximum output power
96 W
Dimensions
Width
5.5"
Height
2"
Length
10.5"
Weight
2.9 lb
Working temperature
Minimum working temperature
0
Maximum working temperature
104°F
Output voltage
24 V DC
Corriente de salida mínima
83.3 mA
Max. output current [mA]
4000 mA
Frequency
60 Hz
Efficiency at full load
92 %
Minimum output current
4 A
Protection
overload, thermal, short circuit, overvoltage, circuit breaker
Output voltage adjustment
Yes
Protection of connection terminals
Yes
Power supply type
constant voltage
THD
20 %
Switch-on time
0.5 s
Maximum cable length at the output
45.7 m
