L3DA4U1UKL-CV240 Power supply

Ref No: L3DA4U1UKL-CV240
  • Hi‑Lume 0.1% EcoSystem 3‑Wire Driver
  • Dimming down to 0.1%
  • Continuous, flicker-free dimming from 100% to 1%
  • Universal input voltage - 120 to 277 VAC
  • UL Listed
  • 5-year warranty
IP20 protection rating
UL Certificate
RoHS Certificate
Warranty: 5 years
Color
gray

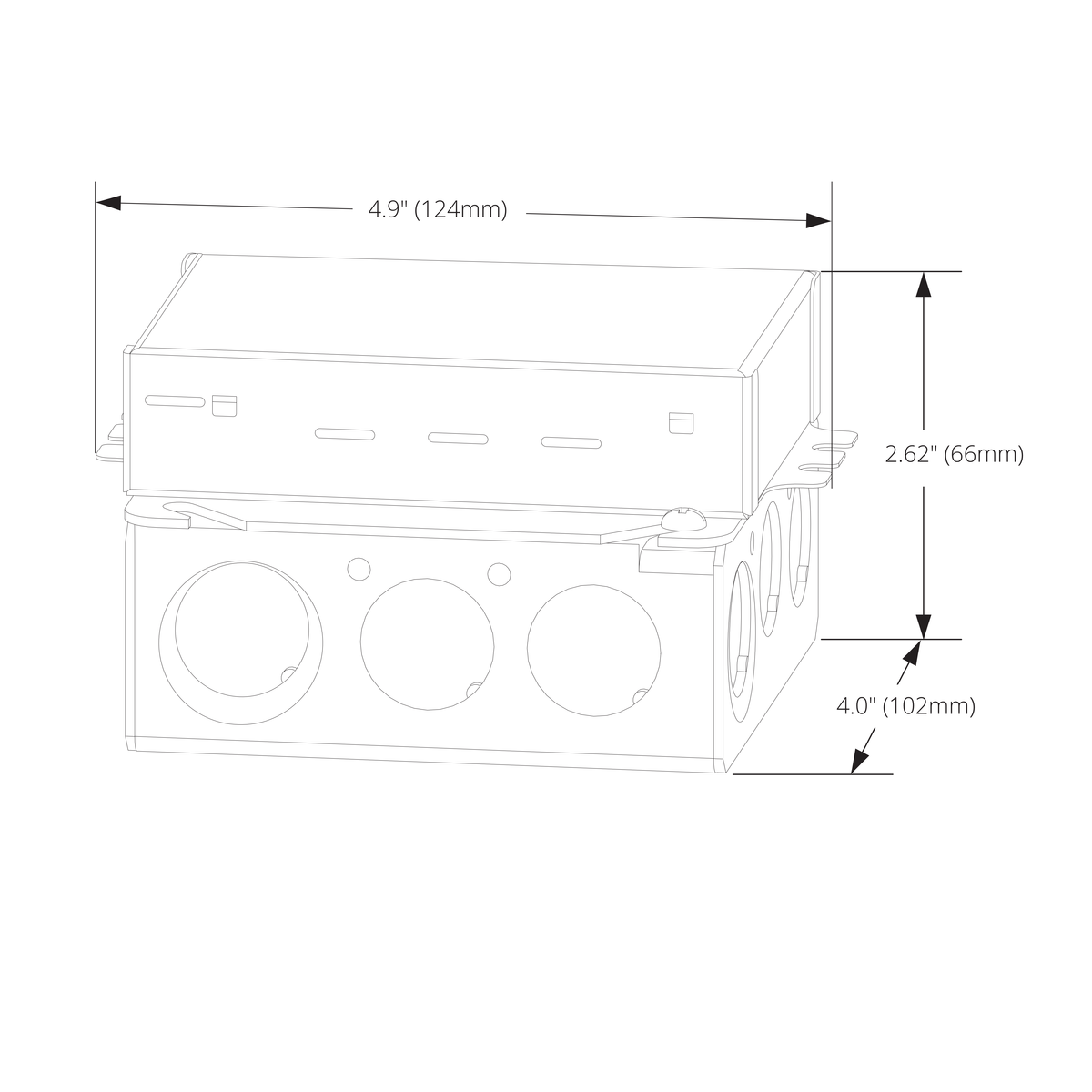

Technical drawing
L3DA4U1UKL-CV240 Power supply Technical drawing - L3DA4U1UKL-CV240
Technical specification
Material
plastic
IP protection rating
20
Dimming range
1-100%
Rated input voltage
110-127V / 220-277V
Minimum output power [W]
2 W
Maximum output power
40 W
Minimum input voltage
120 V AC
Maximum input voltage
277 V AC
Dimensions
Width
4.9"
Height
2.6"
Length
4"
Weight
2.9 lb
Working temperature
Minimum working temperature
0
Maximum working temperature
149°F
Output voltage
24 V DC
Corriente de salida mínima
0.39 mA
Max. output current [mA]
4000 mA
Frequency
60 Hz
Efficiency at full load
88 %
Protection
circuit breaker, short circuit, thermal
Output voltage adjustment
Yes
Protection of connection terminals
Yes
Power supply type
constant voltage
THD
20 %
Standby power [W]
1 W
Switch-on time
0.5 s
Maximum cable length at the output
45.7 m
PWM frequency [Hz]
550 Hz
