LIGER-25 Cover

Ref No: B17141S
  • Excellent light dispersion
  • Recommended for bent extrusions
  • Made of PC with increased resistance to weather conditions
Satin
Possibility of twisting
Possibility of bending
Color
satin
  • Excellent light dispersion
  • Recommended for bent extrusions
  • Made of PC with increased resistance to weather conditions
Application
  • - LED protection and light diffusion in lighting fixtures
Mounting
  • - Snapped in a dedicated profile
Additional information
  • - the best visual effect can be achieved by using extrusion that are black inside
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

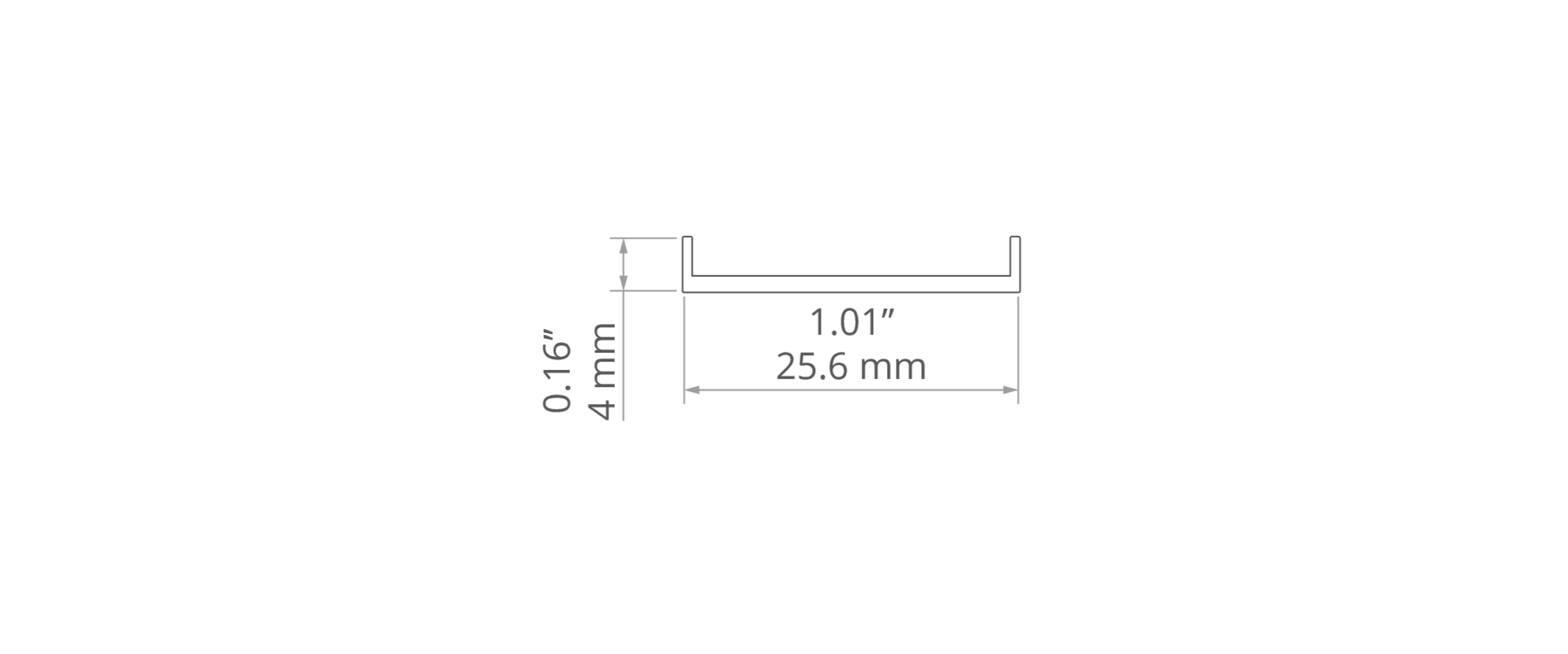

Technical drawing
LIGER-25 Cover PC 1" Technical drawing - B17141S
Technical specification
Finish
satin
Material
PC
Shape
flat
Maximum length on request
32'09" (10000 mm)
Width
1" (25.6 mm)
Possibility of obtaining a line of light
Yes
Possibility of twisting
Yes
Possibility of bending
Yes
Color Light transmittance [%] Length Ref No
satin
62 %
39.4" (1000 mm)
78.9" (2005 mm)
B17141S_1
B17141S_2
