Power supply MAX5-MLT-3-96-24V 288W

Ref No: MAX5-MLT-3-96-24V
  • 5-way universal dimming
  • Smooth flicker-free dimming, down to 1%
  • Universal input voltage - 120 to 277 VAC
  • Constant power overload protection
  • Wire connectors pre-installed
  • 3 channel output, each channel 96W
  • UL Listed
  • 5-year warranty
UL Certificate
RoHS Certificate
JA8
Warranty: 5 years
Color
black

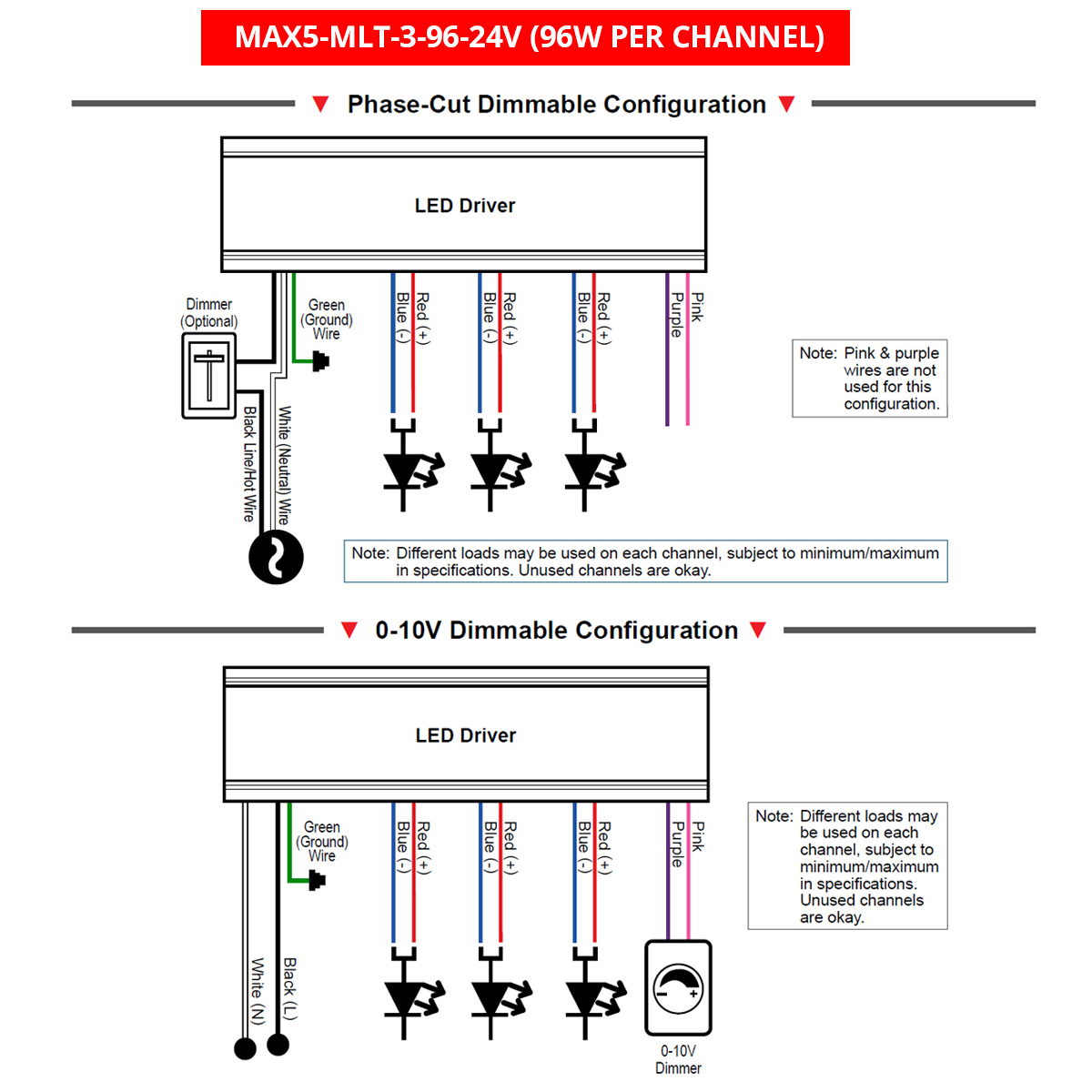

Usage examples

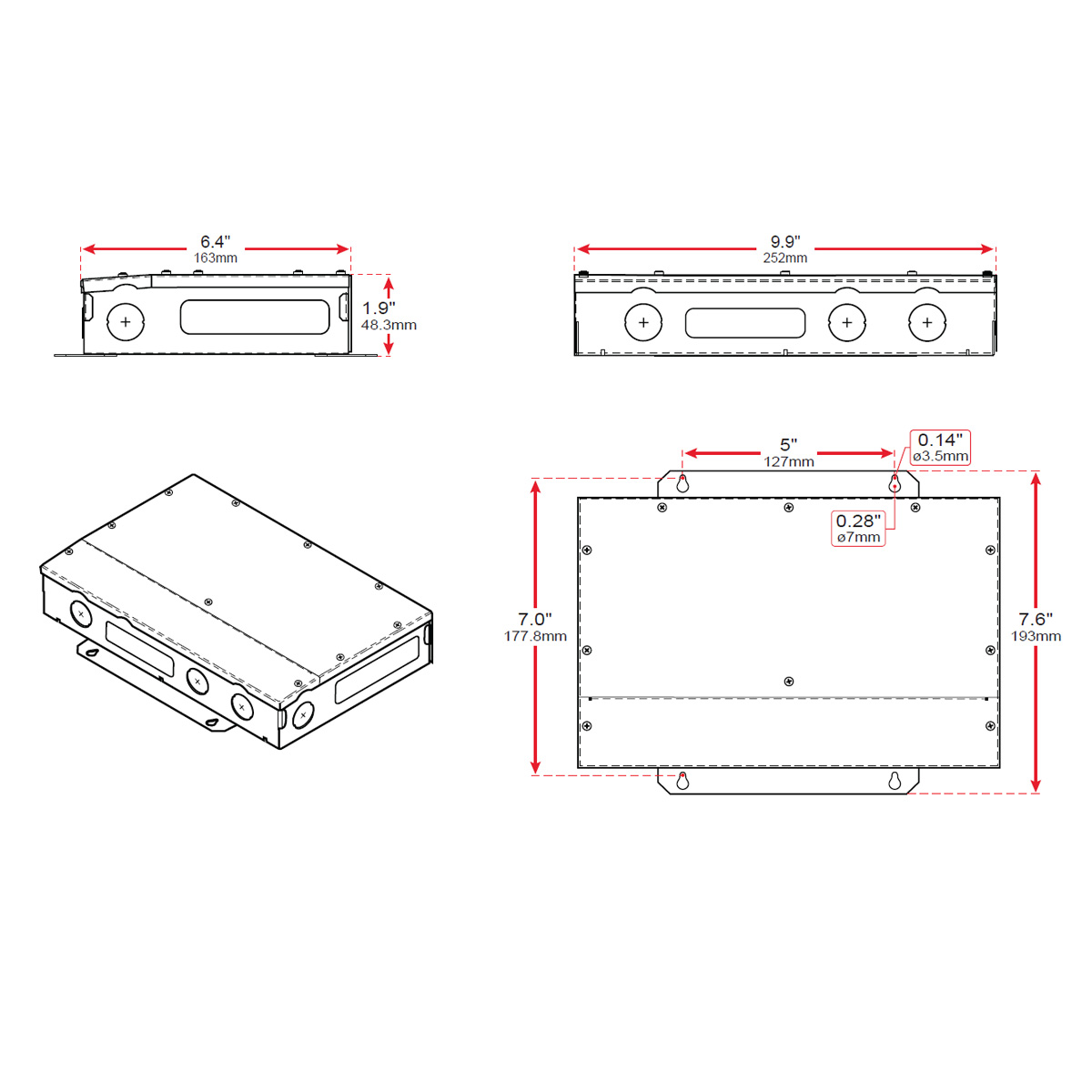

Technical drawing
Power supply MAX5-MLT-3-96-24V 288W Technical drawing - MAX5-MLT-3-96-24V
Technical specification
Seria US
MAX5 Series
Dimming range
1-100%
Control / Communication
0-10V
Maximum output power
288 W
Minimum input voltage
120 V AC
Maximum input voltage
277 V AC
Dimensions
Width
9.9"
Height
7.6"
Depth
1.9"
Working temperature
Minimum working temperature
-40°F
Maximum working temperature
122°F
Output voltage
24 V DC
Frequency
50 Hz
THD
20 %
Starting current
90 A
Switch-on time
0.5 s
Rated current per channel
4.1 A
Maximum output power per channel
96 W
Number of output channels
3
