MAX5-96-24V 96W Power supply

Ref No: MAX5-96-24V

MAX5-96-24V 96W Power supply

MAX5-96-24V 96W Power supply Projects - MAX5-96-24V

5-way universal dimming
Smooth flicker-free dimming, down to 1%
Universal input voltage - 120 to 277 VAC
Constant power overload protection
Wire connectors pre-installed
UL Listed
5-year warranty

UL Certificate

RoHS Certificate

JA8

Warranty: 5 years

Color

black

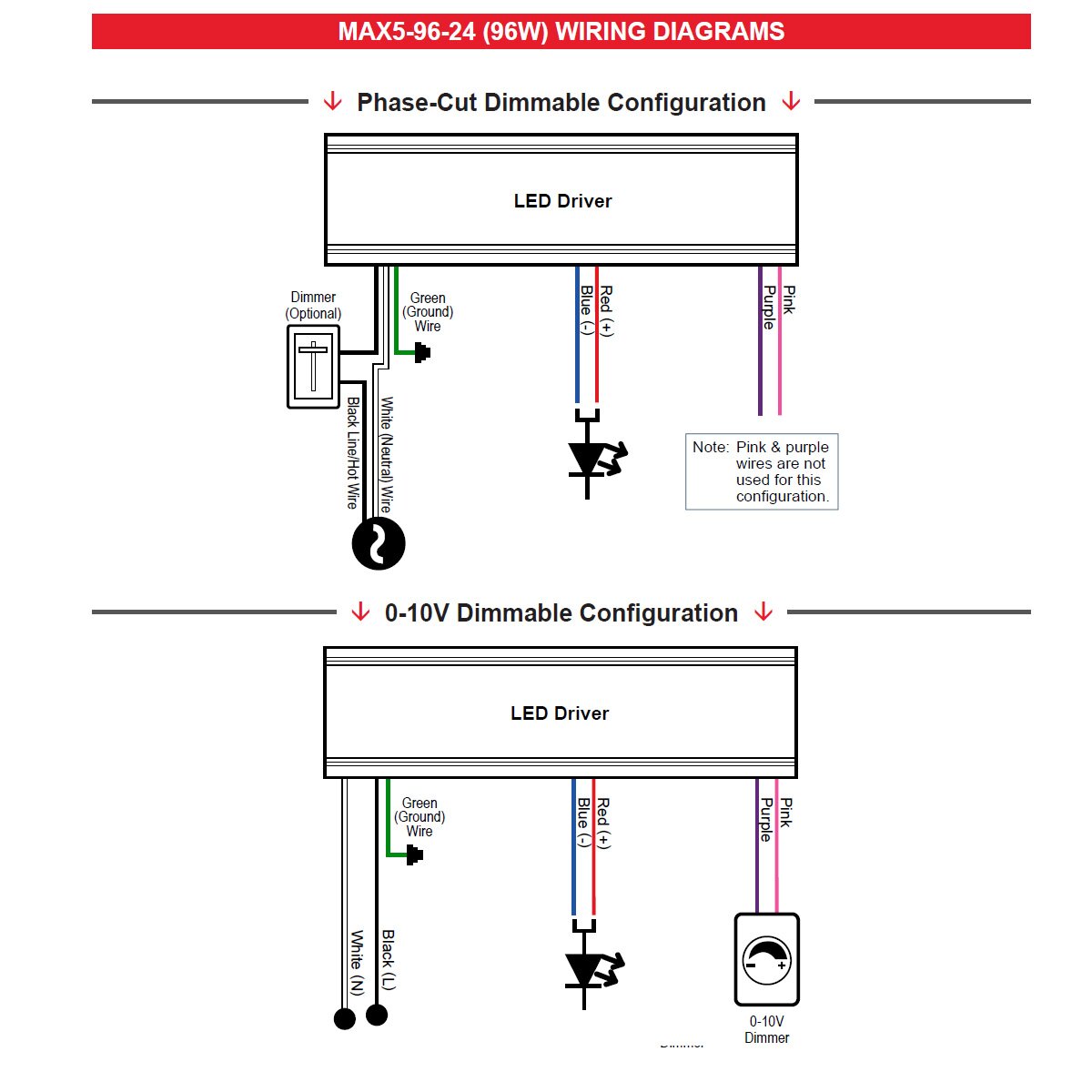

Specification sheet

Usage examples

MAX5-96-24V 96W Power supply

download

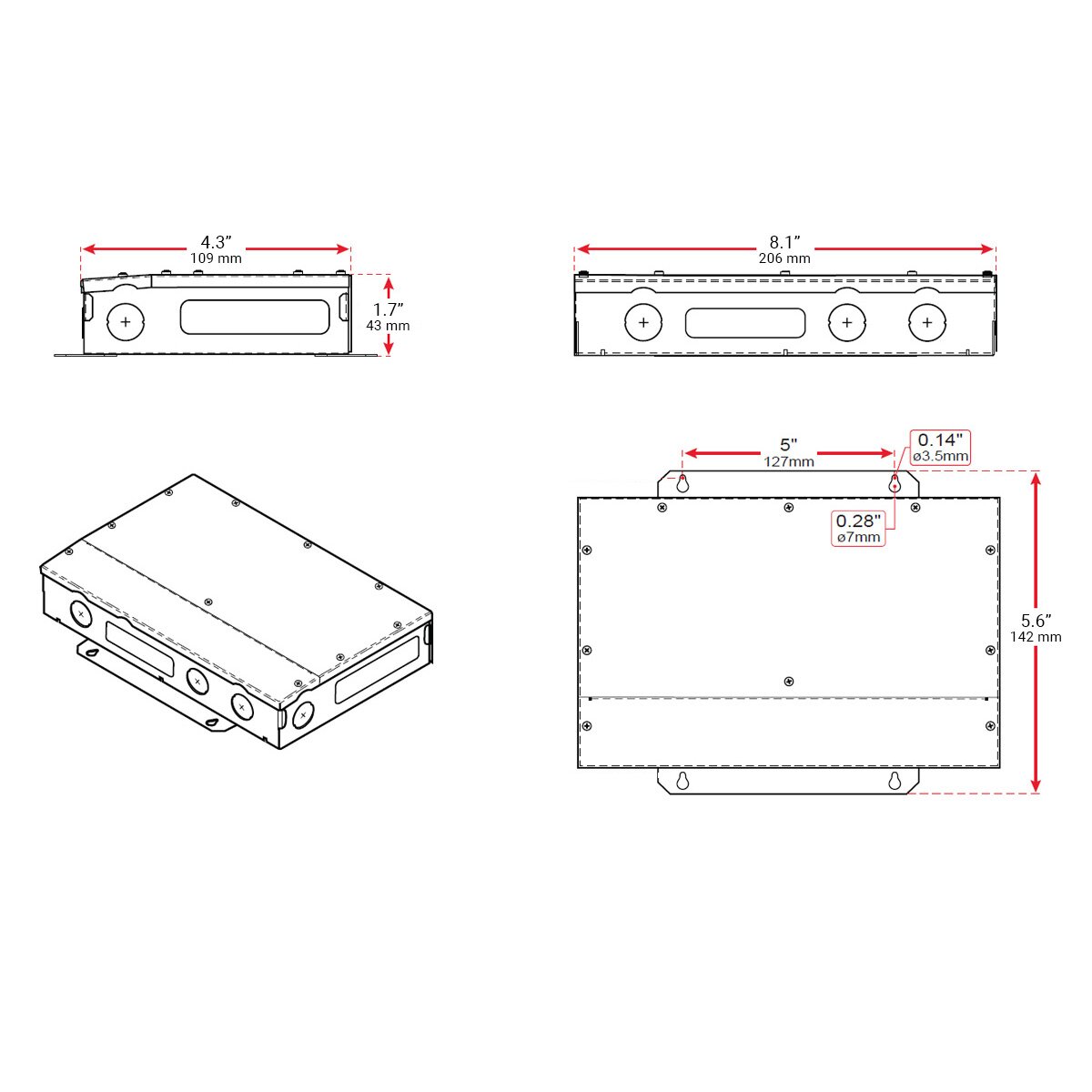

Technical drawing

MAX5-96-24V 96W Power supply Technical drawing - MAX5-96-24V

Technical specification

Seria US

MAX5 Series

Dimming range

1-100%

Control / Communication

1-10V

Maximum output power

96 W

Dimensions

Width

8.1"

Height

5.6"

Depth

1.7"

Working temperature

Minimum working temperature

-40°F

Maximum working temperature

125°F

Output voltage

24 V DC

Frequency

50 Hz

THD

20 %

Starting current

90 A

Switch-on time

0.5 s
