MAXLV-96-24V Power supply

Ref No: MAXLV-96-24V

MAXLV-96-24V Power supply

download

Integrated Lutron Vive wireless Module
Lutron wireless Clear Connect RF Technology
Smooth, flicker-free PWM dimming down to 1%
Dim to Off Universal input voltage - 120 to 277 VAC
Constant power overload protection
Lutron Wireless controls available in multiple styles & colors (Sold by others)

UL Certificate

RoHS Certificate

JA8

Warranty: 5 years

Color

black

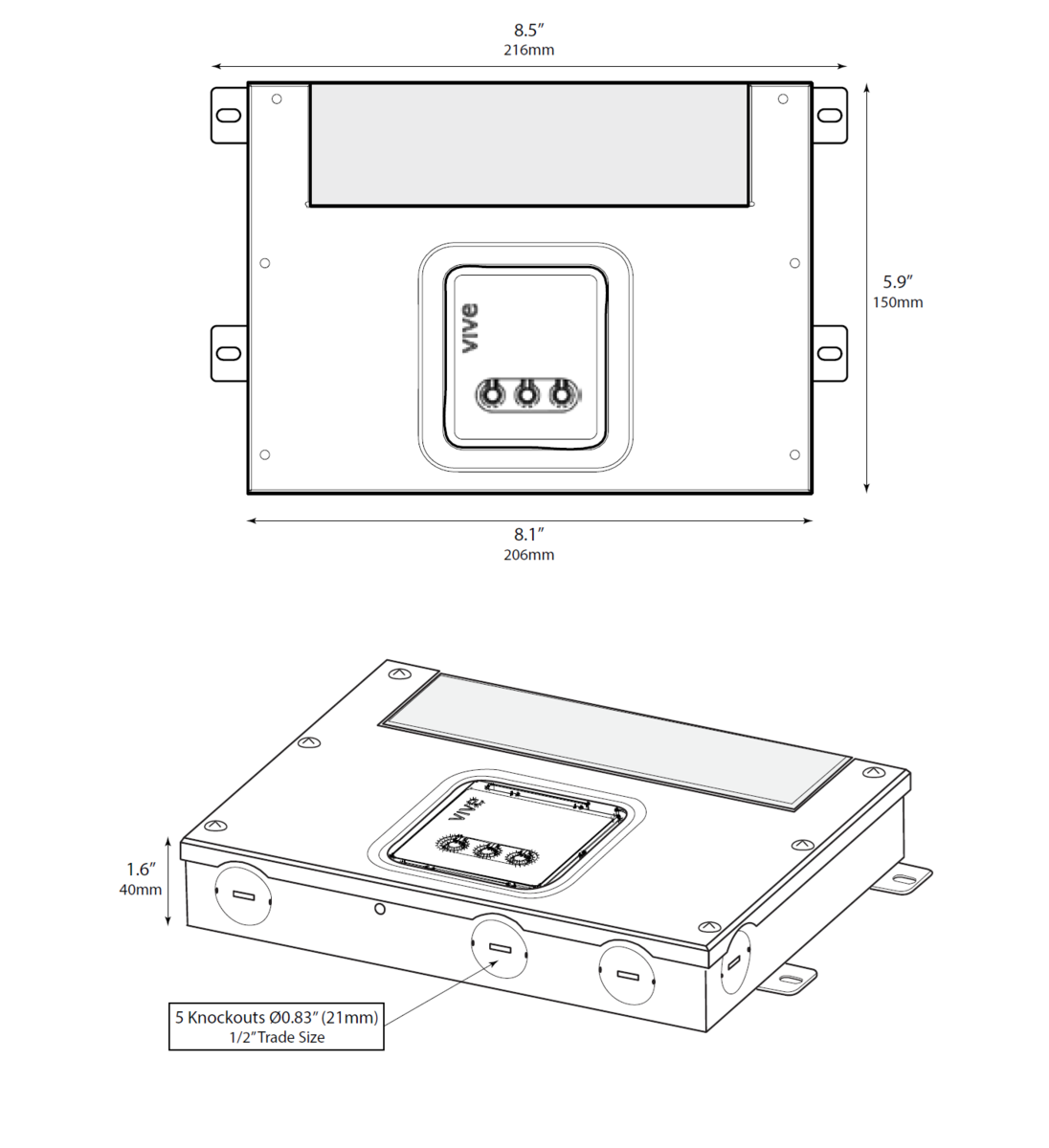

Technical drawing

MAXLV-96-24V Power supply Technical drawing - MAXLV-96-24V

MAXLV-96-24V Power supply Technical drawing - MAXLV-96-24V

Technical specification

Seria US

LUTRON

Dimming range

1-100%

Control / Communication

PWM

Maximum output power

96 W

Minimum input voltage

120 V AC

Maximum input voltage

277 V AC

Dimensions

Width

8.5"

Height

5.9"

Depth

1.6"

Working temperature

Minimum working temperature

-40°F

Maximum working temperature

140°F

Output voltage

24 V DC

Frequency

50 Hz

THD

20 %

Starting current

80 A

Switch-on time

0.5 s
