Fixture MI-WAVE-04

Ref No: FPMI014

Module for building shapes MI-WAVE in the MIFOR-70 system
Also applicable as a standalone lighting fixture
Includes a light source and a wire suspension system
Easy suspension height adjustment
ETL Sanitation Listed
Available 2D CAD and 3D BIM files in various formats enabling lighting design in architectural programs
Luminaire without LED power supply included

Module for building shapes MI-WAVE in the MIFOR-70 system
Also applicable as a standalone lighting fixture
Includes a light source and a wire suspension system
Easy suspension height adjustment
ETL Sanitation Listed
Available 2D CAD and 3D BIM files in various formats enabling lighting design in architectural programs
Luminaire without LED power supply included

download

Usage examples

Technical specification

Material

aluminum

Cover

frosted

Mounting type

Suspended

Weight

7.3 lb

Lighting direction

down

IP protection rating

Luminare power

45 W

Color Rendering Index CRI

MacAdam’s ellipse

3 SDCM

Supply voltage

24 V

Protection class

III

Working temperature from

50°F

Working temperature up to

95°F

Length [L] x Width [W] x Height [H]

78.7" x 4" x 3.4"

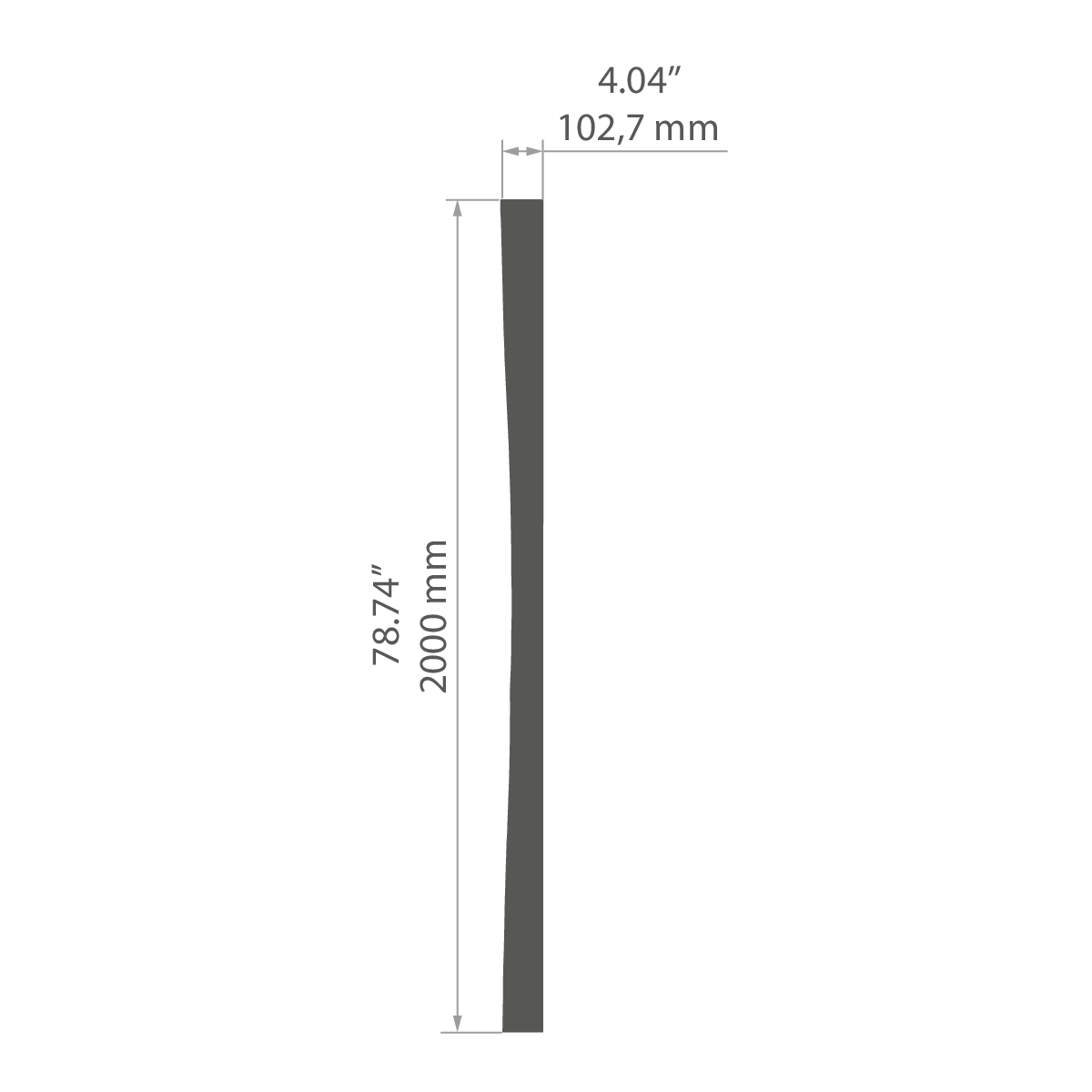

Technical drawing

download

Declaration of Conformity UKCA
