MICRO

Ref No: 1443
  • Single pole conductivity possible
  • Crosswise suspension on a rod
  • Possibility to rotate the fixture after installation
Suspended
Conducting electricity
Color
gray
  • Single pole conductivity possible
  • Crosswise suspension on a rod
  • Possibility to rotate the fixture after installation
Application
  • - aesthetic finish and protection of the interior of the lighting fixture
Mounting
  • - to the extrusion, by pressing
  • - to the rod, by pressing

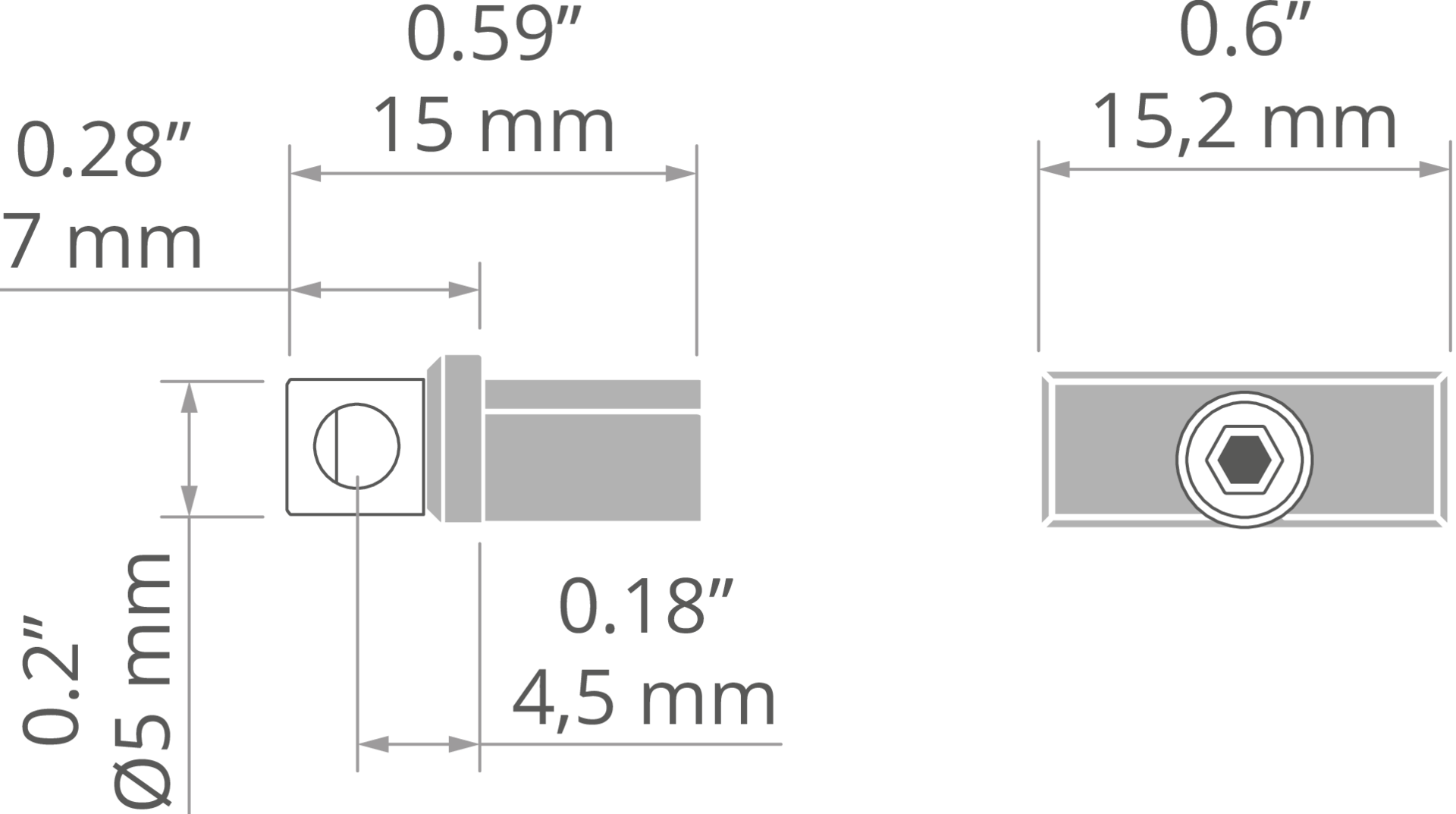

Technical drawing
MICRO ABS Technical drawing - 1443
Technical specification
Finish
colored
Material
ABS
Shape
rectangular
Maximum current intensity
1.5 A
Power loss
0.08 V
Working temperature
140°F
Lifting capacity
6.6 lb
Angle of illumination adjustment to
360°
Conducting electricity
Yes
Width x Height
0.6" x 0.2"
Related extrusions
MICRO-ALU
Ref No: A01888
Related products
Product name Material Color Ref No
FI-1 39.4" Stainless steel wire
steel
silver
C24522N00
Wire CU FI 0,95 mm
steel, copper
silver
Z70240
Rod FI-3 1m
brass
silver
42501
Rod FI-3 53 cm
stainless steel
silver
C24528N00
