MICRO-PLUS

Ref No: C28202
MICRO-PLUS
MICRO-PLUS
MICRO-PLUS
  • Single pole conductivity possible
  • Transverse suspension on a rod or cable
  • Possibility to rotate the fixture after installation
Suspended
Conducting electricity
Color
gray white black
  • Single pole conductivity possible
  • Transverse suspension on a rod or cable
  • Possibility to rotate the fixture after installation
Application
  • - aesthetic finish and protection of the interior of the lighting fixture
Mounting
  • - to the extrusion, by pressing
  • - to a rod or cable, using a set bolt

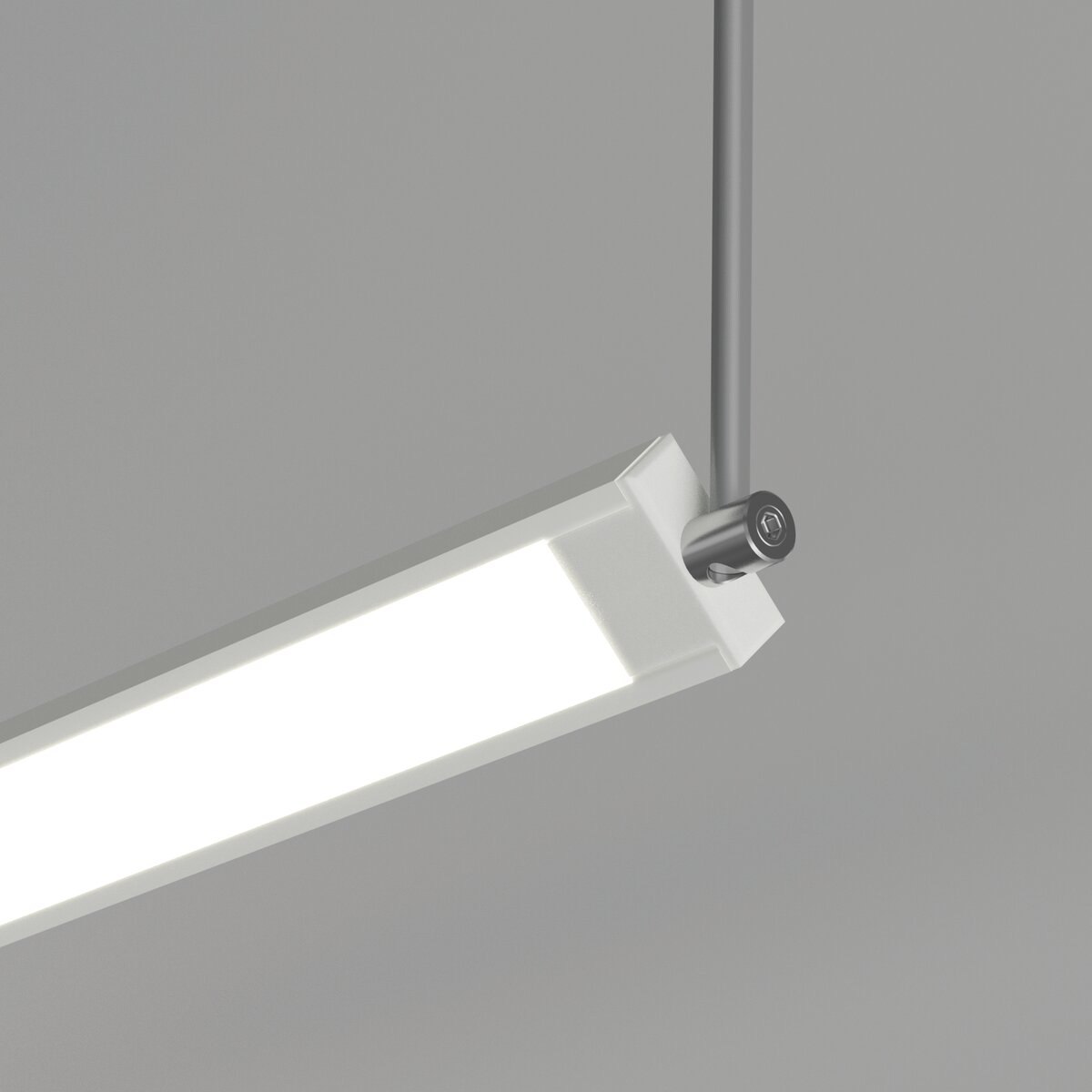

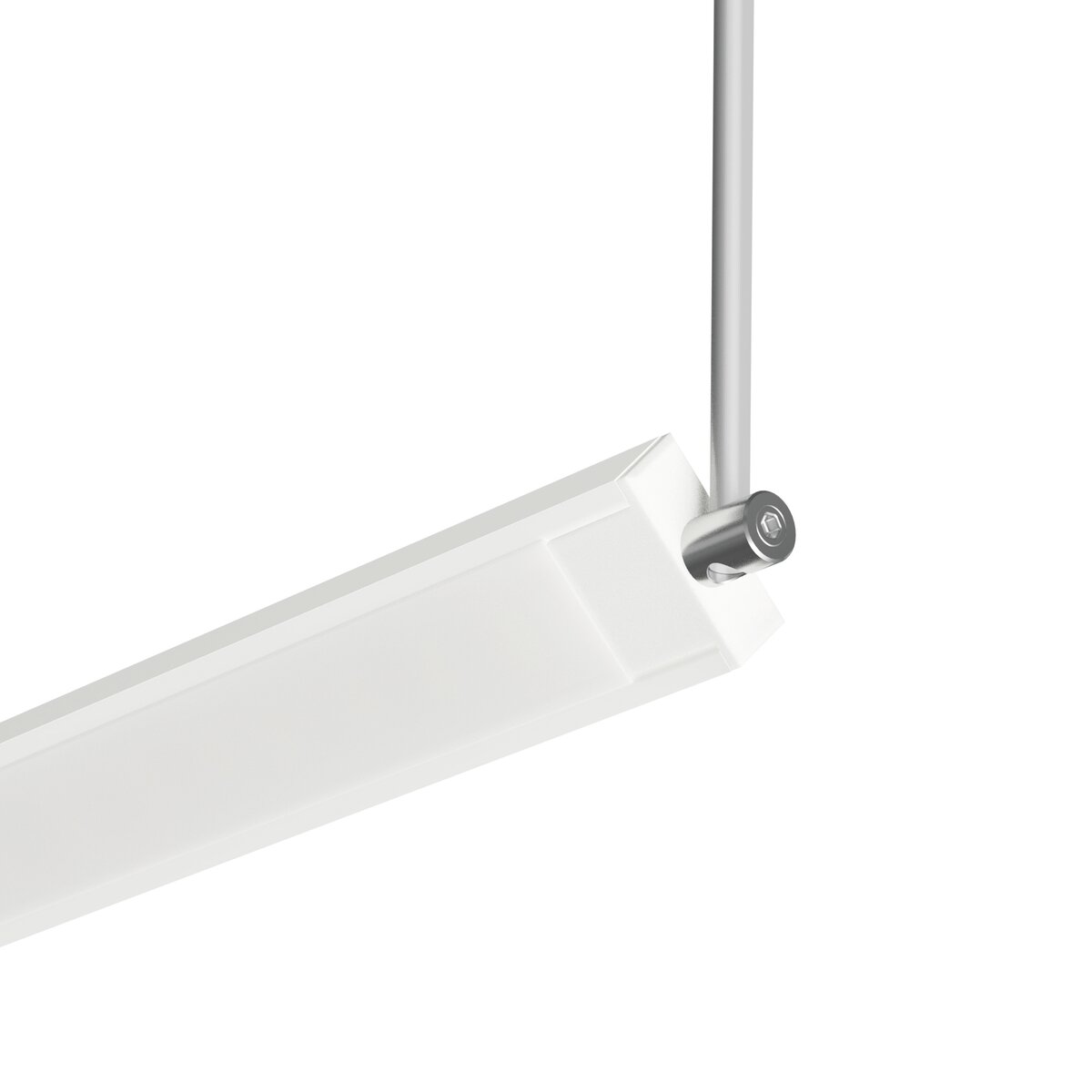

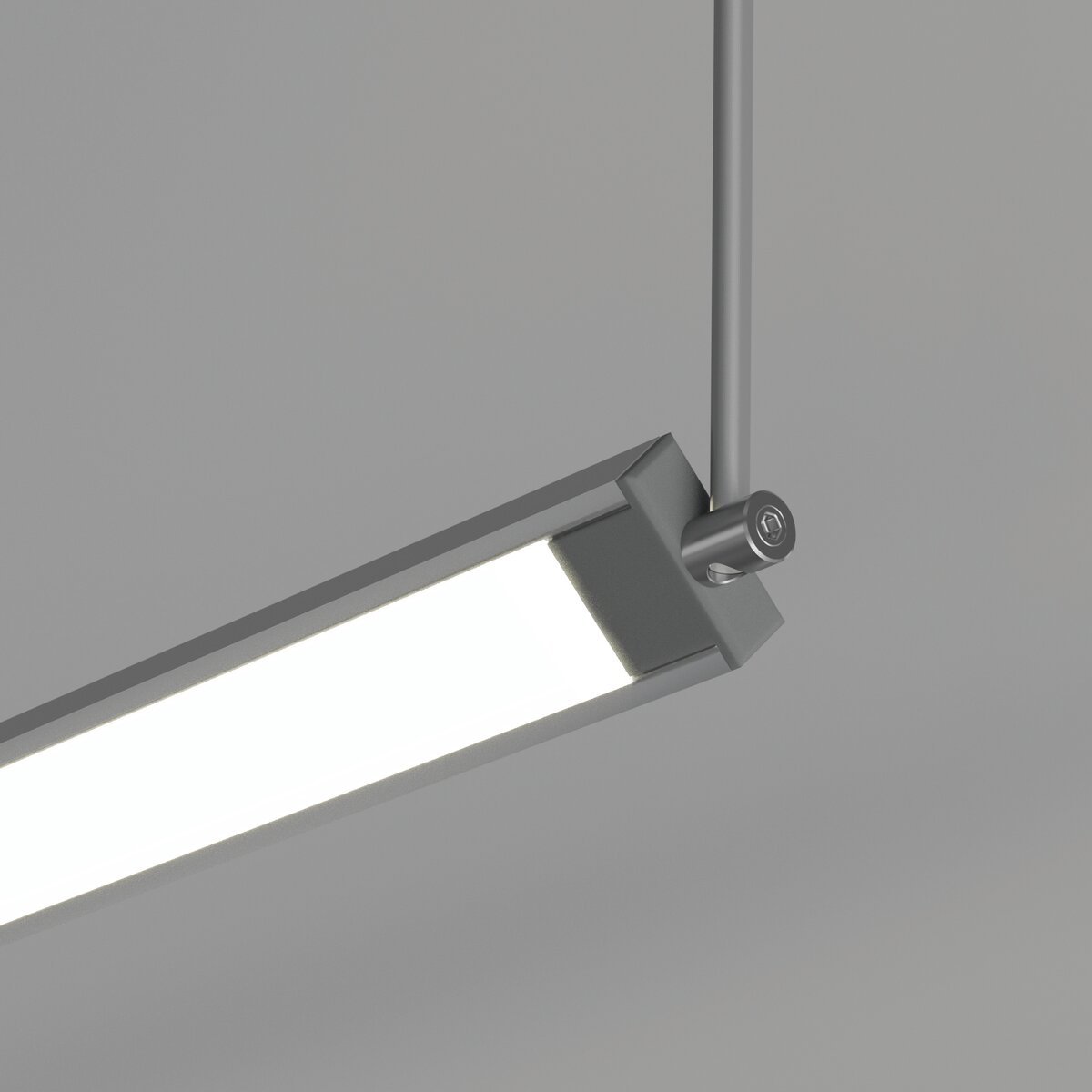

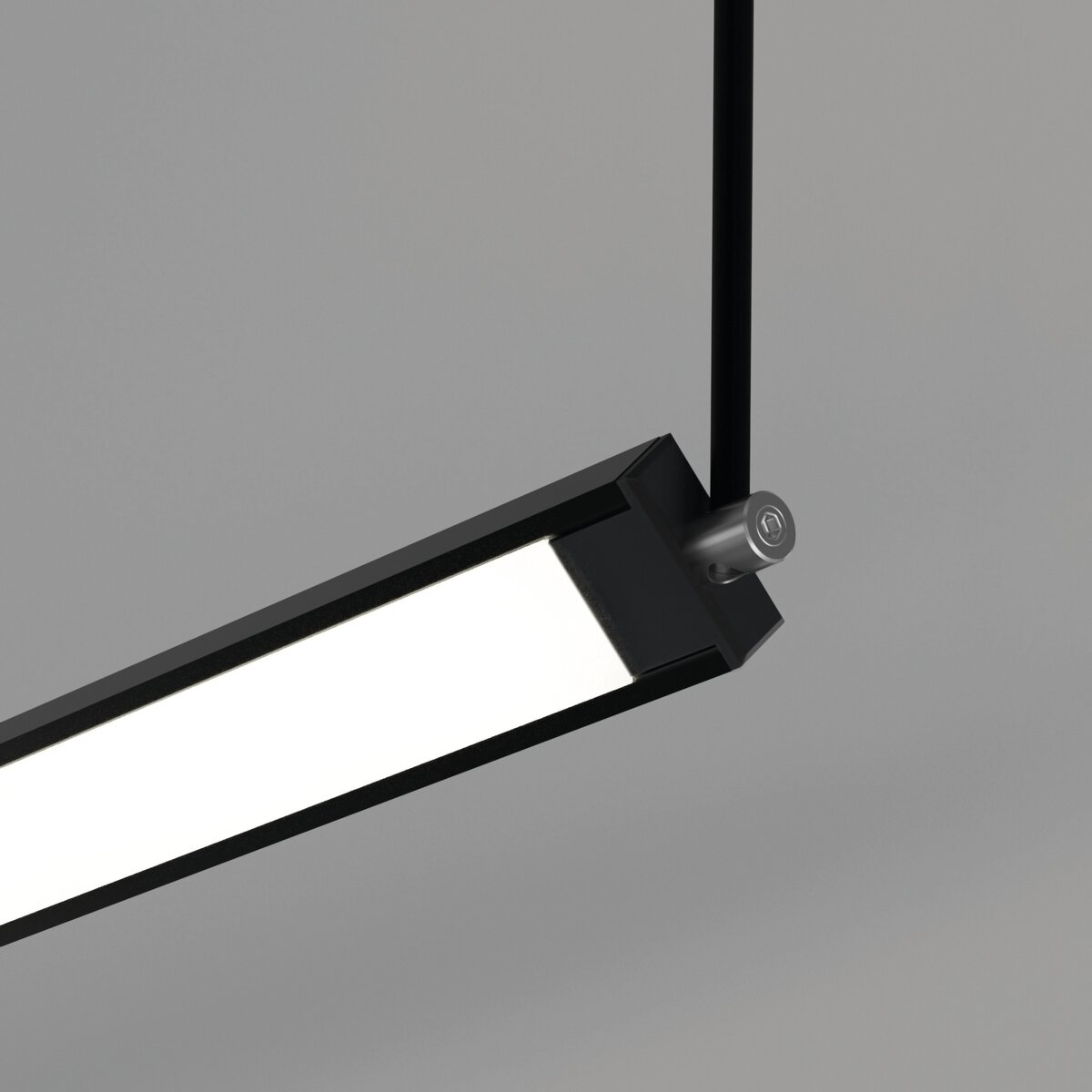

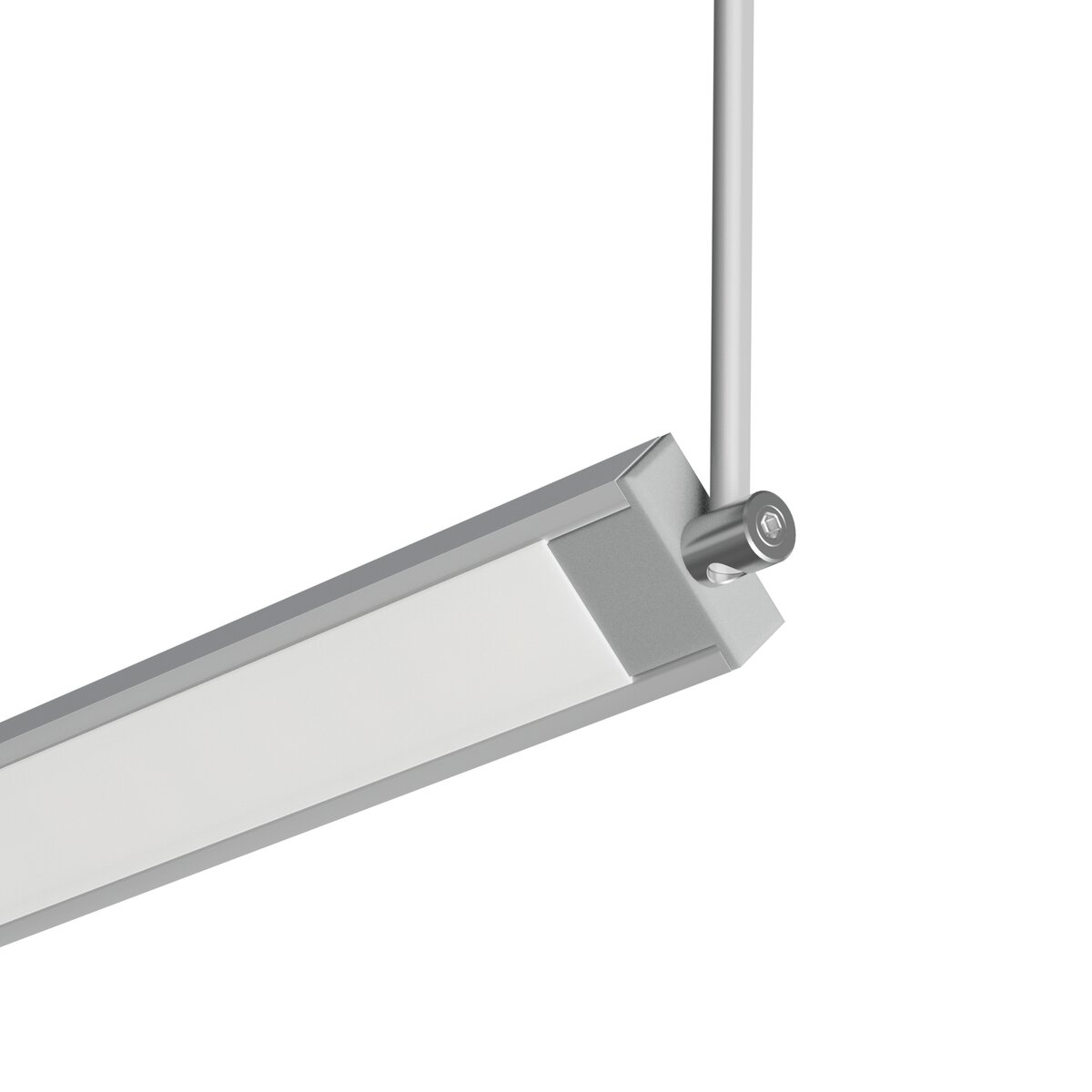

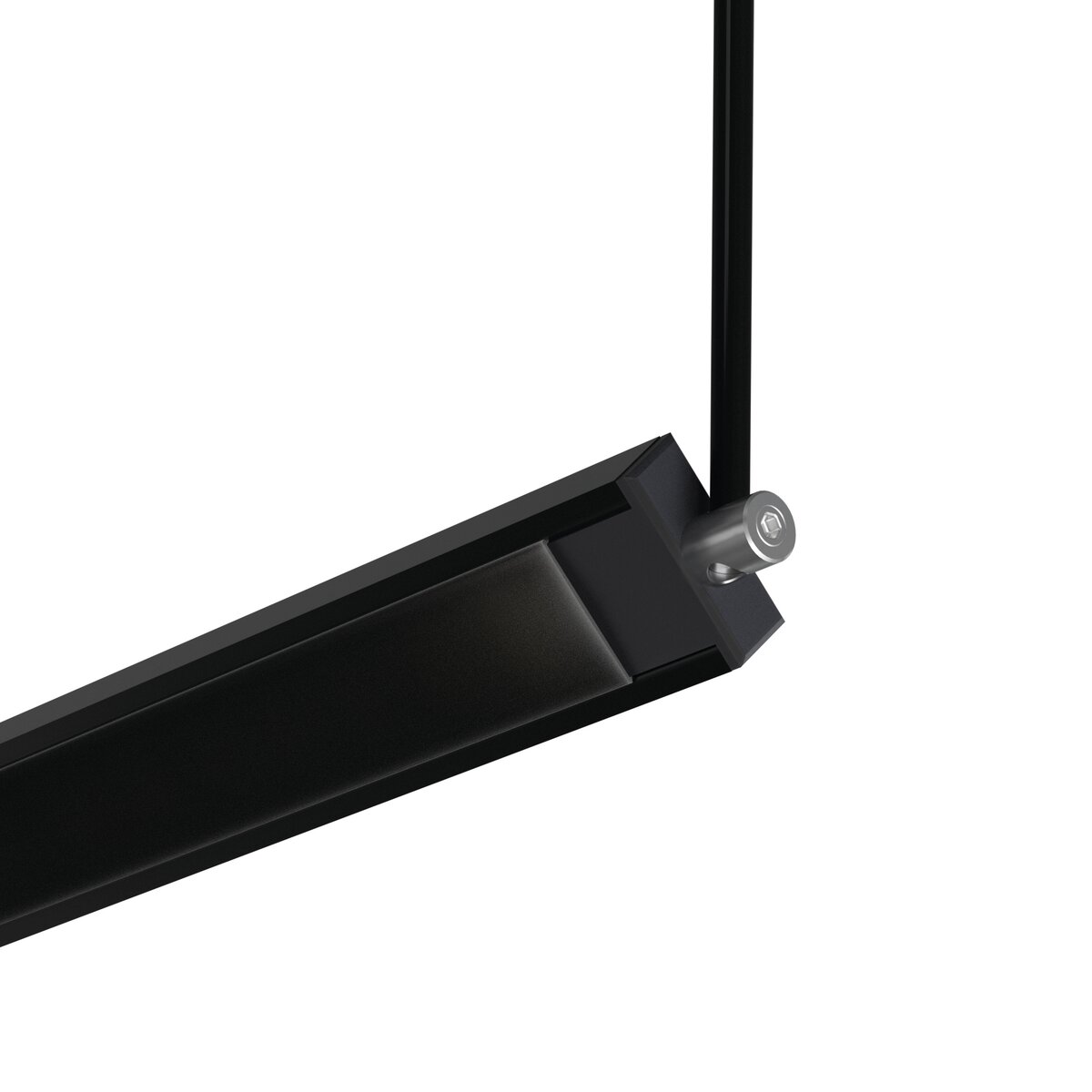

Usage examples

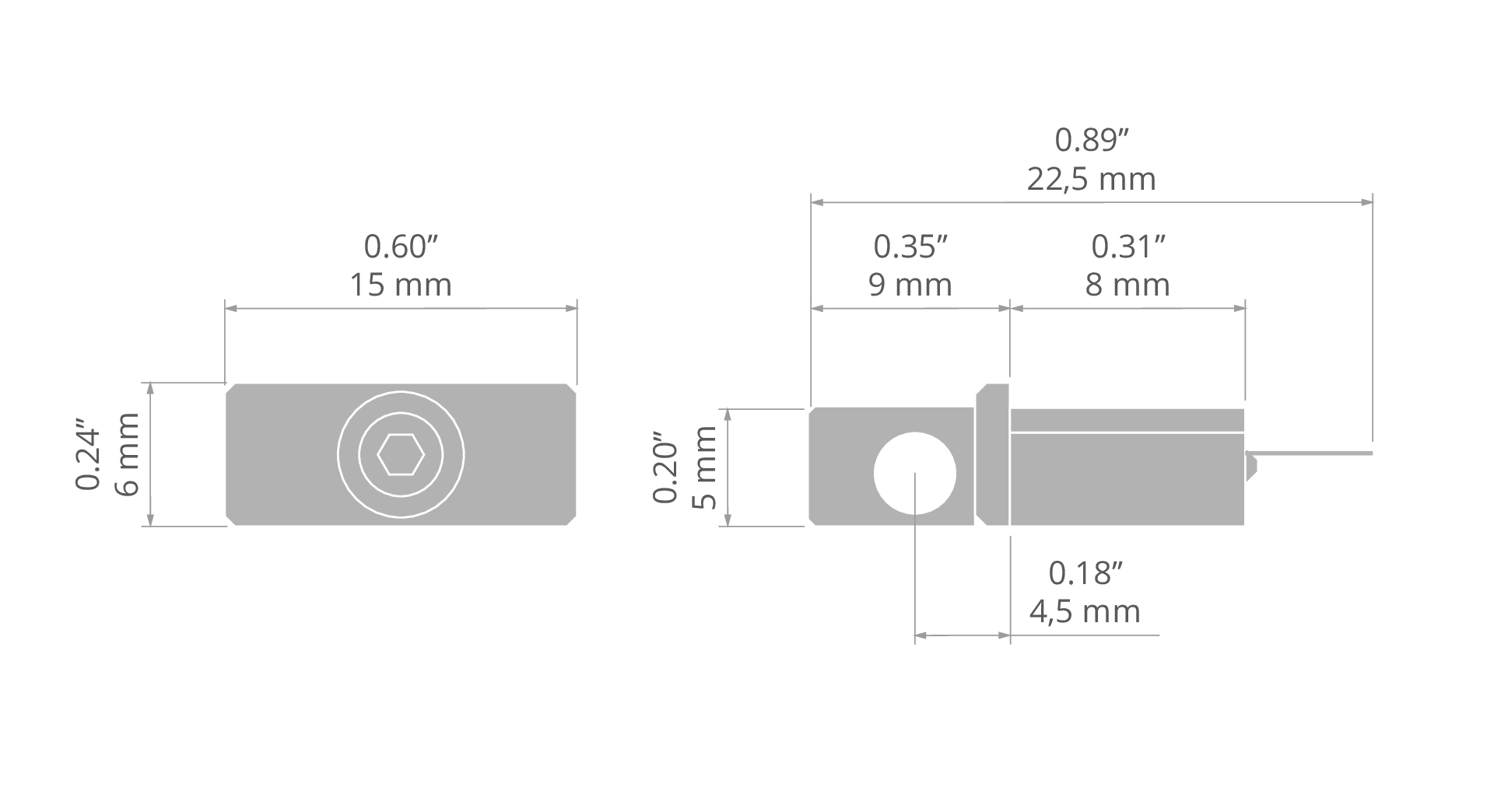

Technical drawing
MICRO-PLUS ABS Technical drawing - C28202
Technical specification
Finish
colored
Material
ABS
Shape
rectangular
Maximum current intensity
1.5 A
Power loss
0.08 V
Working temperature
140°F
Lifting capacity
26.4 lb
Angle of illumination adjustment to
360°
Conducting electricity
Yes
Length x Width x Height
0.9" x 0.6" x 0.2"
Color Length Shape Ref No
gray
0.9"
rectangular
C28202C02P
white
0.9"
rectangular
C28202C10P
black
0.9"
rectangular
C28202C07P
Related extrusions
MICRO-PLUS
Ref No: A02966
