Electricity conductive end cap OLEK

Ref No: C28212C02
  • Single pole conductivity possible
  • Transverse suspension on a rod or cable
  • Possibility to rotate the fixture after installation
Conducting electricity
Color
gray
  • Single pole conductivity possible
  • Transverse suspension on a rod or cable
  • Possibility to rotate the fixture after installation
Application
  • - aesthetic finish and protection of the interior of the lighting fixture
Mounting
  • - to the extrusion, by pressing
  • - to a rod or cable, using a set bolt

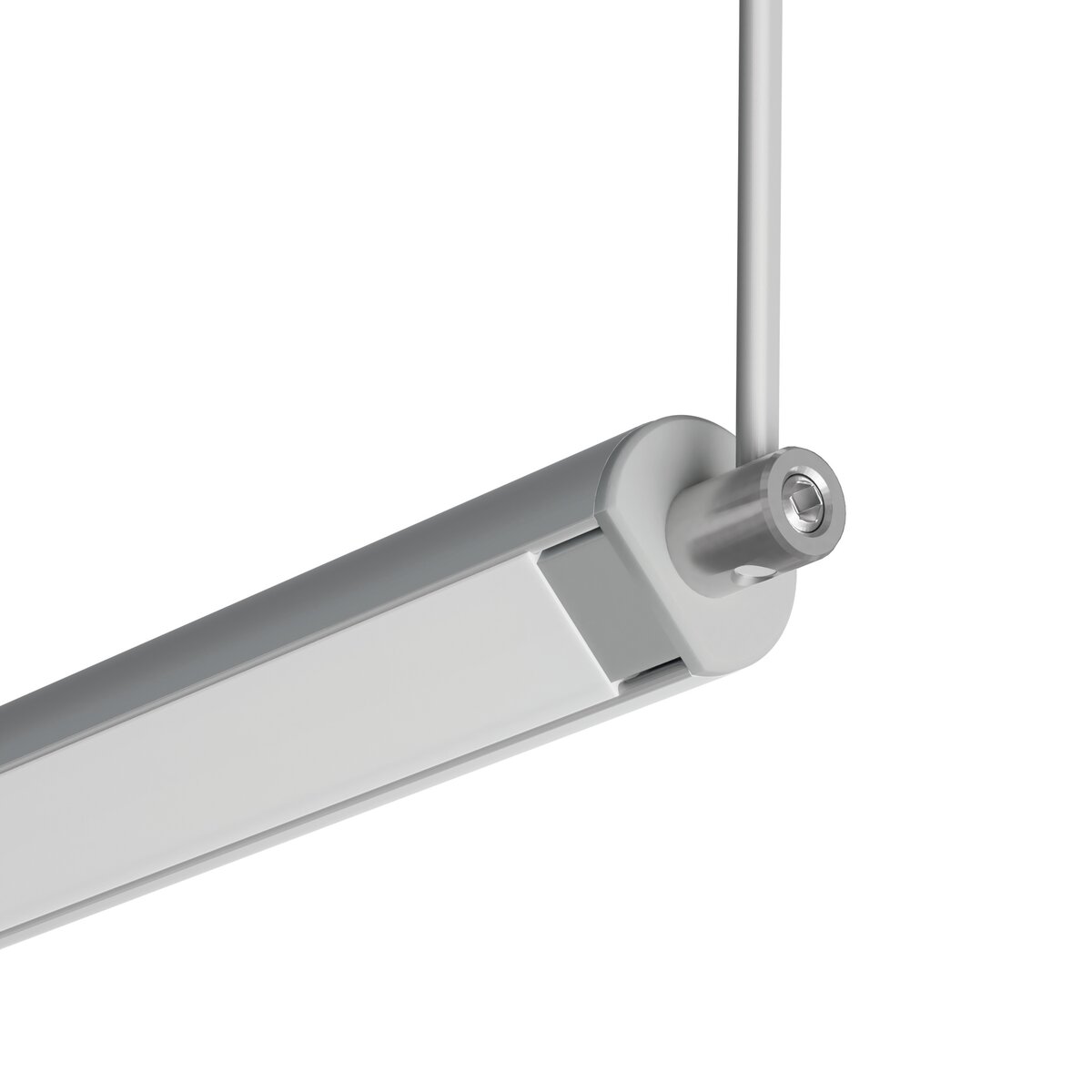

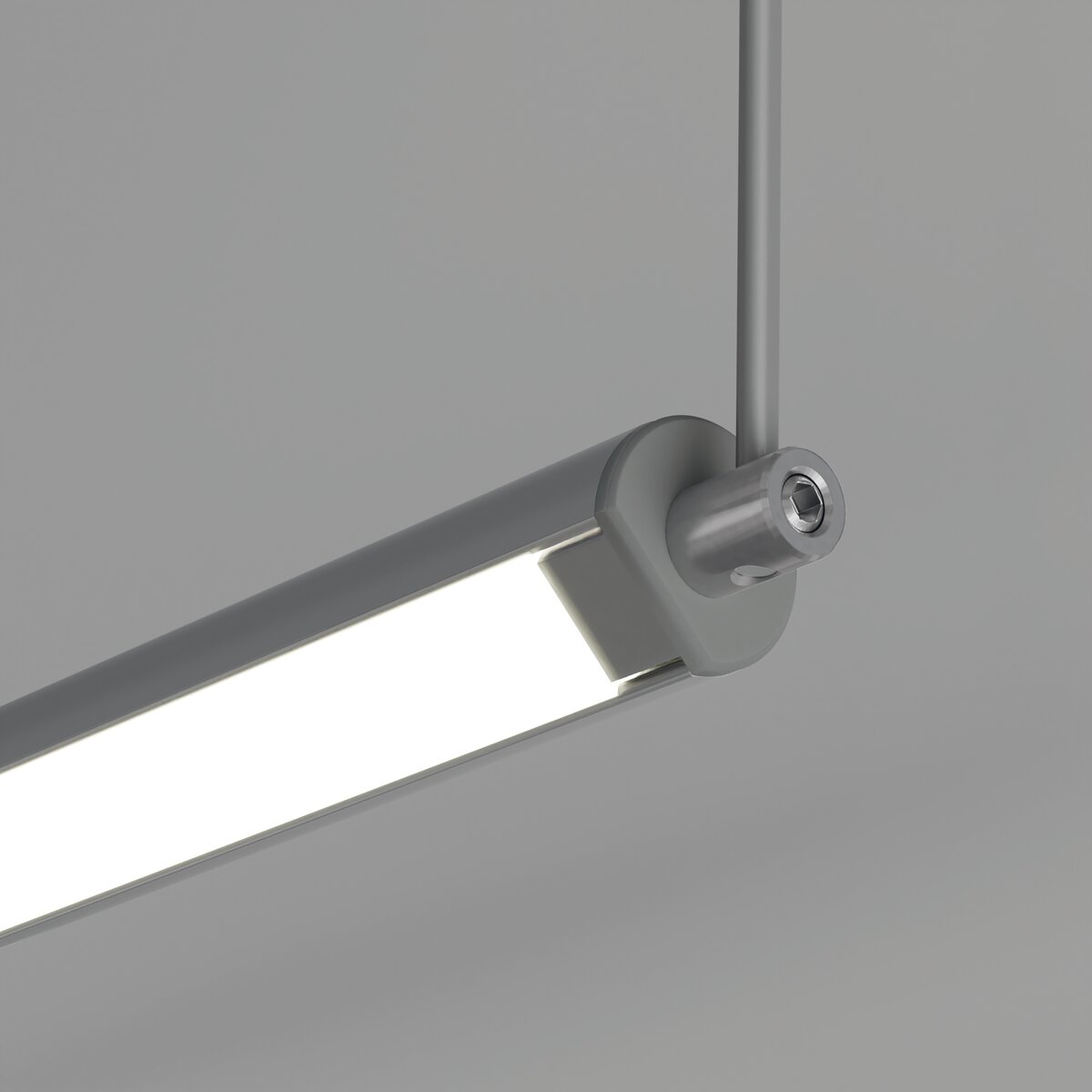

Usage examples

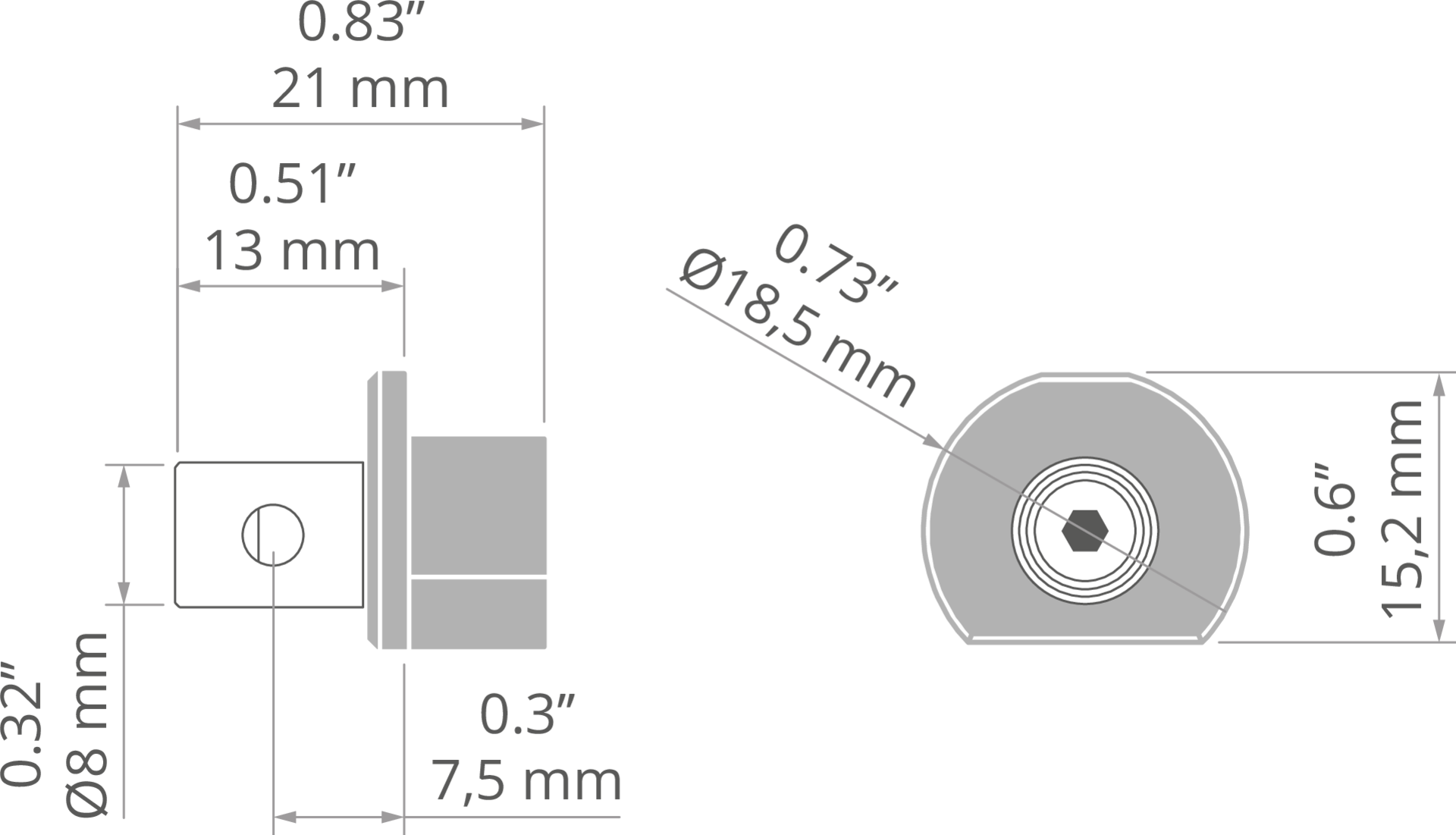

Technical drawing
Electricity conductive end cap OLEK ABS Technical drawing - C28212C02
Technical specification
Finish
colored
Material
ABS
Shape
semicircular
Maximum current intensity
3.5 A
Power loss
0.1 V
Working temperature
131°F
Lifting capacity
12.1 lb
Angle of illumination adjustment to
360°
Conducting electricity
Yes
Width x Height
0.8" x 0.6"
Related extrusions
OLEK
Ref No: A08505
Related products
Product name Material Color Ref No
FI-1 39.4" Stainless steel wire
steel
silver
C24522N00
Wire CU FI 0,95 mm
steel, copper
silver
Z70240
Rod FI-3 1m
brass
silver
42501
Rod FI-3 53 cm
stainless steel
silver
C24528N00
