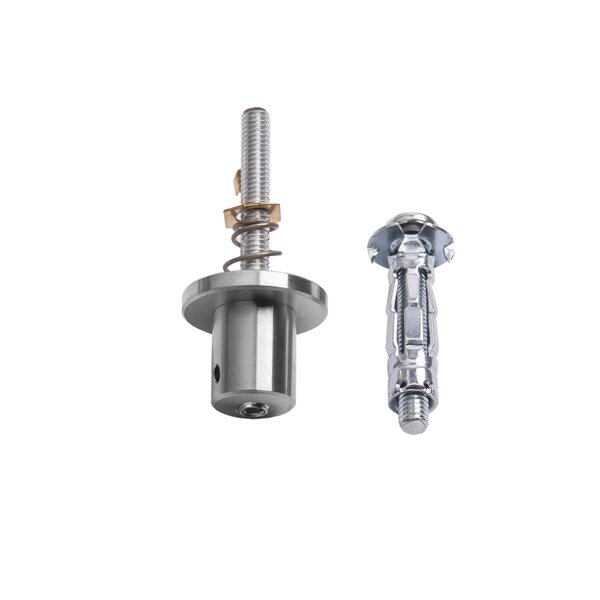

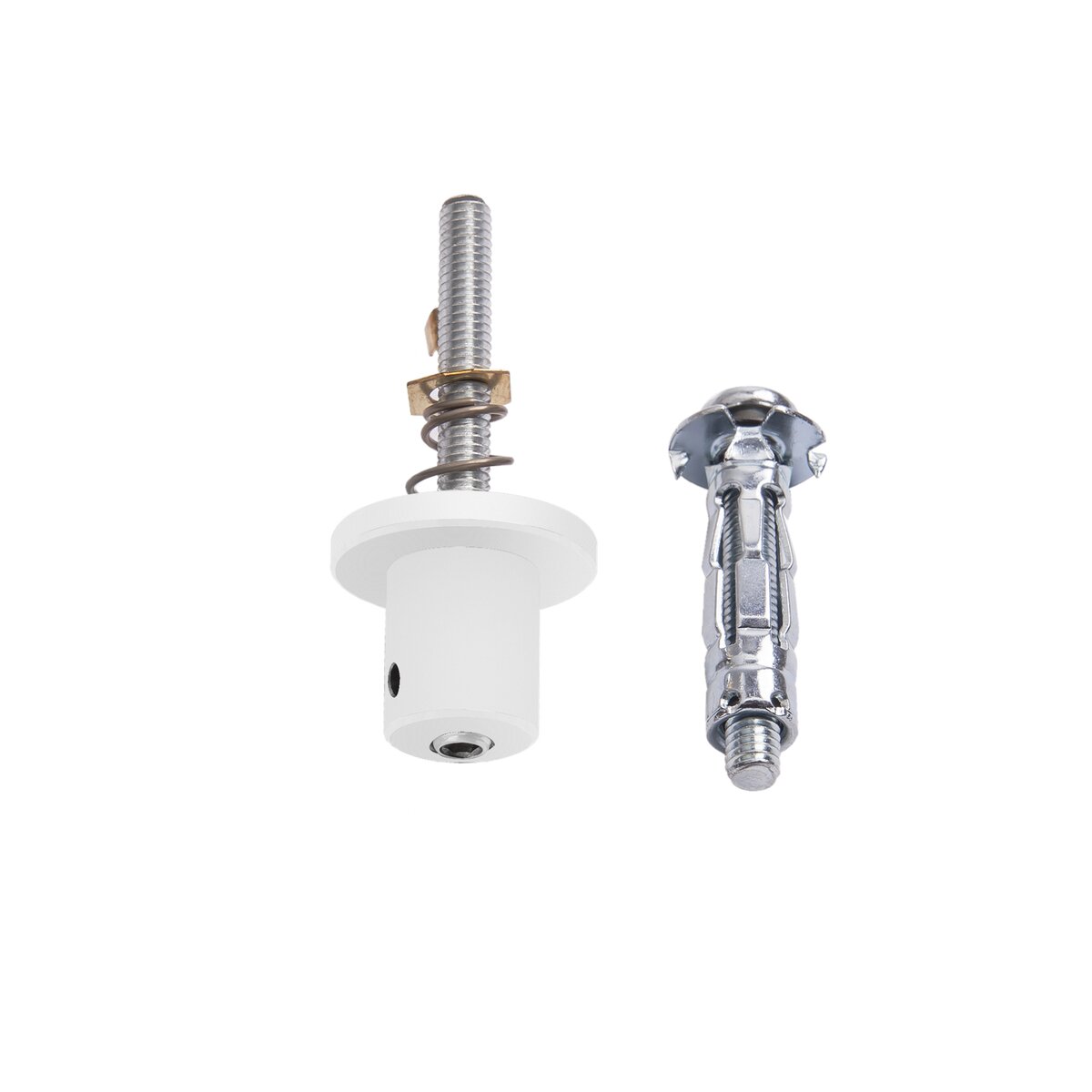

P-KG-Z Fastener

Ref No: C28199

P-KG-Z Fastener

P-KG-Z Fastener

P-KG-Z Fastener

P-KG-Z Fastener

P-KG-Z Fastener

P-KG-Z Fastener

Description
download

Application

- attachment to the surface for LED lighting fixture suspension systems

Mounting

- to the surface, using the included accessory kit
- to a rod or cable, using a set bolt

Mounting to drywall
Transverse suspension for rods and wires
Single pole conductivity possible
Power connection without access to the bottom of the hob
Masking cover to hide damage on the mounting surface

Conducting electricity

Color

silver

white

black

Mounting to drywall
Transverse suspension for rods and wires
Single pole conductivity possible
Power connection without access to the bottom of the hob
Masking cover to hide damage on the mounting surface

Application

- attachment to the surface for LED lighting fixture suspension systems

Mounting

- to the surface, using the included accessory kit
- to a rod or cable, using a set bolt

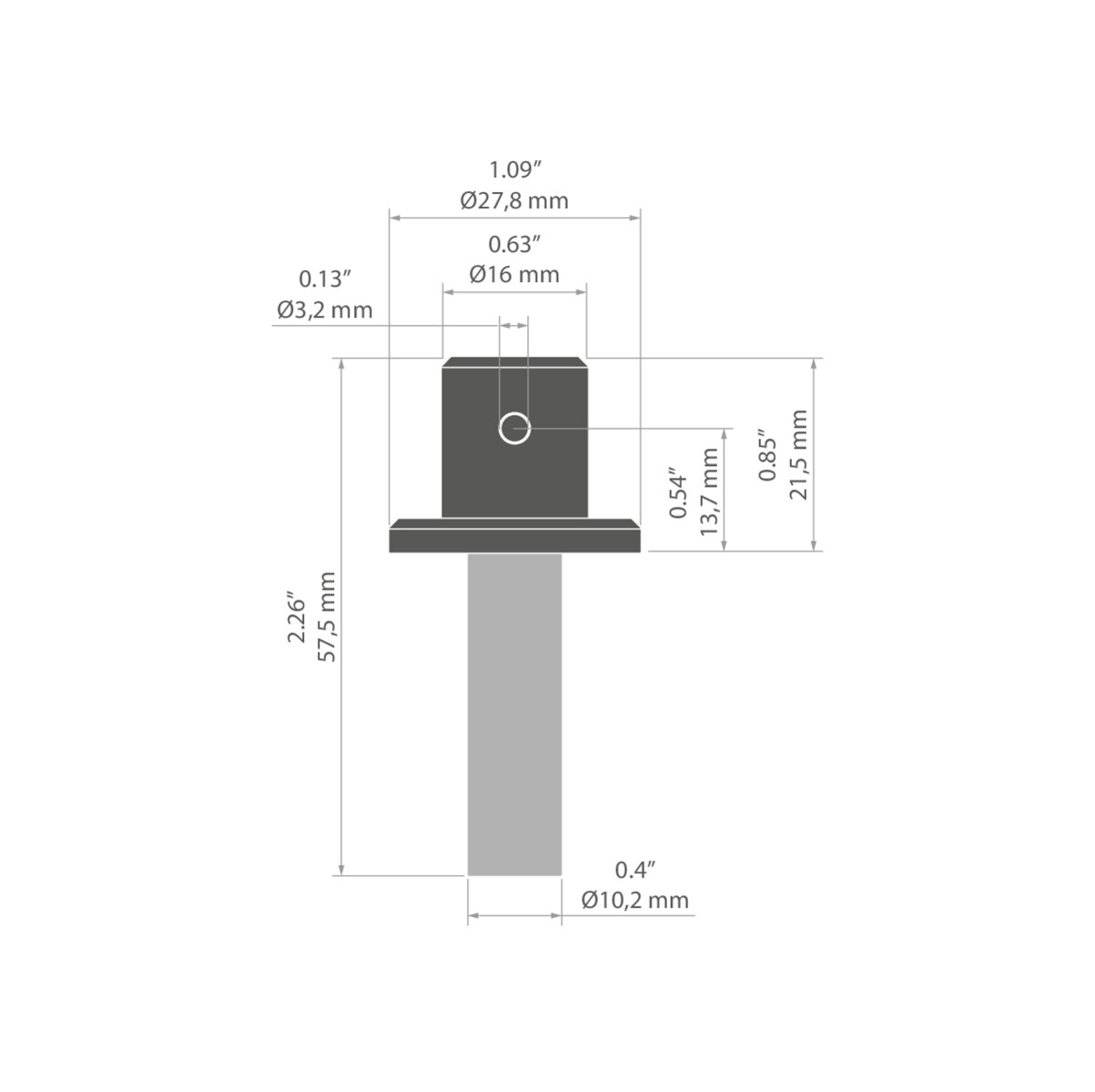

Technical drawing

P-KG-Z Fastener stainless steel Technical drawing - C28199

Technical specification

Material

stainless steel

Diameter

0.6"

Conducting electricity

Yes

Working temperature

140°F

Lifting capacity

44 lb

Maximum current intensity

8 A

Power loss

0.12 V

Width x Height

1.1" x 2.3"

Color	Ref No
silver	C28199N00
white	C28199L10
black	C28199L07
