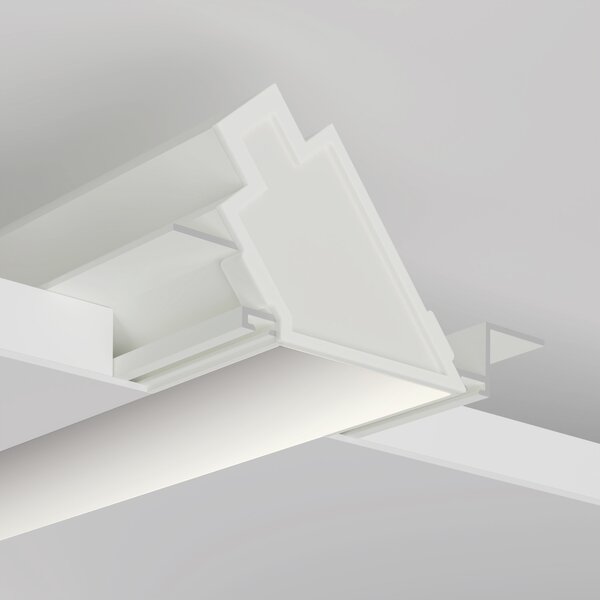

POKET Fixture trimless

POKET Fixture trimless
POKET Fixture trimless
  • Linear gallery, stage or exhibition lighting
  • The lighting fixture integrates with the mounting surface
  • Hidden light source
  • Lighting angle: 50 Degrees
  • Mounting to 12,5 mm - 0.50" drywall
  • Stable mounting to a suspended ceiling
Trimless
With the possibility of sealing up to IP20
CE Certificate
UKCA Certificate
RoHS Certificate
ETL
Configure
  • Linear gallery, stage or exhibition lighting
  • The lighting fixture integrates with the mounting surface
  • Hidden light source
  • Lighting angle: 50 Degrees
  • Mounting to 12,5 mm - 0.50" drywall
  • Stable mounting to a suspended ceiling
Application
  • - decorative lighting and functional
Mounting
  • - in drywall, with screws
Additional information
  • - in order to protect the lighting fixture during installation, a TECH-KA protective insert should be used
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ
Usage examples
Technical drawing
POKET Fixture trimless aluminum Technical drawing - FW01179
Technical specification
Finish
lacquered
Material
aluminum
Possible fixture IP
20
Possible fixture shapes
linear, polygonal
Max power of a single KLUŚ LED strip
7.3 W/ft
Width
3.6" (92 mm)
Height
1.7" (44.2 mm)
LED gluing width A
0.5" (12 mm)
Max. number of LED strips A (0.31" wide)
1
Lighting at an angle
50
The cover is cut to the length of the profile
Yes
Can be easily connected into runs
Yes
Mounting to drywall
Yes
To cover with plaster
Yes
Wire out back of extrusion
Yes
Building type
Entertainment/ Arts, Retail, Hotel / Restaurant
Facility zone
exhibition / tradeshow / display
Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes
