Fixture ROLL

Ref No: FNJD051
  • Countless arrangement possibilities thanks to the multiplication option.
  • Adjustment of the angle between arms - minimum angle 60°.
  • Aesthetic appearance thanks to a design that conceals the wires.
  • Possibility of customizing dimensions and colors on special order - perfectly matched to individual needs.
  • Both surface and suspended mounting, ensuring installation versatility.
  • LED sources available in two color temperature options: warm (3000K) and neutral (4000K).
Surface mounted
CRI 90+
IP20 protection rating
CE Certificate
CE Certificate
RoHS Certificate
START CONFIGURATION
  • Countless arrangement possibilities thanks to the multiplication option.
  • Adjustment of the angle between arms - minimum angle 60°.
  • Aesthetic appearance thanks to a design that conceals the wires.
  • Possibility of customizing dimensions and colors on special order - perfectly matched to individual needs.
  • Both surface and suspended mounting, ensuring installation versatility.
  • LED sources available in two color temperature options: warm (3000K) and neutral (4000K).
  • Countless arrangement possibilities thanks to the multiplication option.
  • Adjustment of the angle between arms - minimum angle 60°.
  • Aesthetic appearance thanks to a design that conceals the wires.
  • Possibility of customizing dimensions and colors on special order - perfectly matched to individual needs.
  • Both surface and suspended mounting, ensuring installation versatility.
  • LED sources available in two color temperature options: warm (3000K) and neutral (4000K).
Additional information
  • - NOTE! the set does not include a power supply
Usage examples
Technical specification
Finish
lacquered mat
Material
aluminum, PA12, PC
Cover
satin
Mounting type
Surface mounted
Weight
5.7 lb
Shape
linear
Lighting direction
down, up
IP protection rating
20
Luminare power
56 W
Color Rendering Index CRI
90
MacAdam’s ellipse
3 SDCM
Supply voltage
24 V
Protection class
III
Decorative lighting
Yes
Length [L] x Width [W] x Height [H]
21'05" x 2.9" x 1.6"

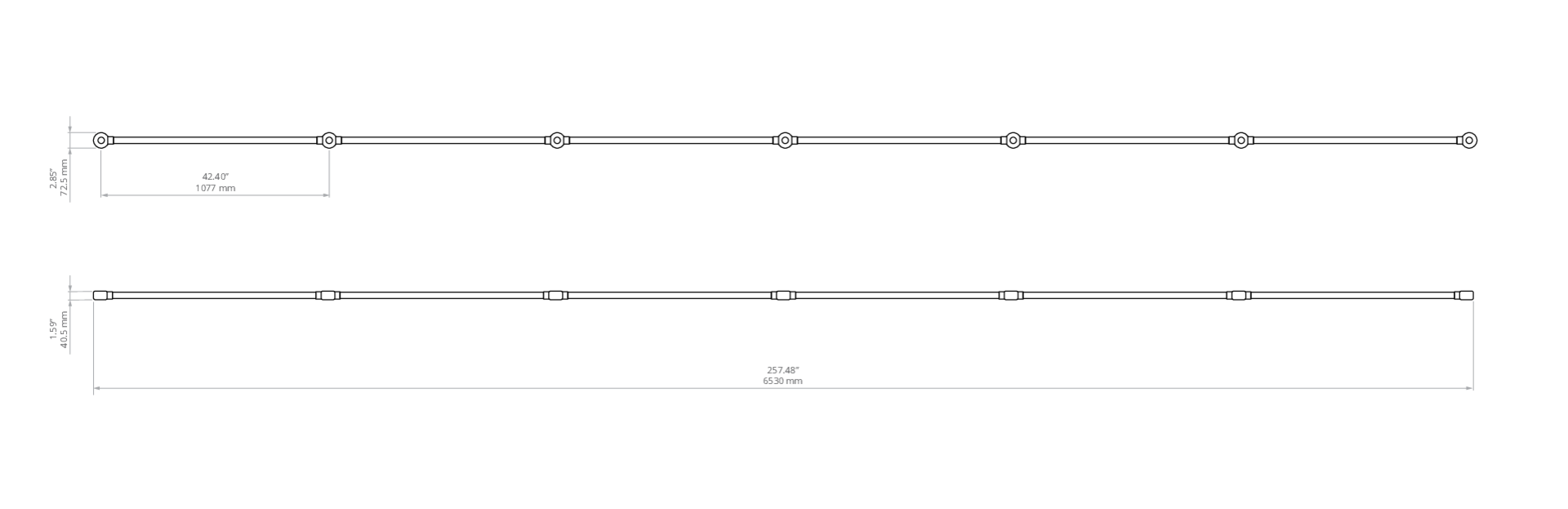

Technical drawing
Fixture ROLL PC Technical drawing - FNJD051
Technical drawing
Fixture ROLL PC Technical drawing - FNJD051
Technical specification
Finish
lacquered mat
Material
aluminum, PA12, PC
Cover
satin
Mounting type
Surface mounted
Weight
5.7 lb
Shape
linear
Lighting direction
down, up
IP protection rating
20
Luminare power
56 W
Color Rendering Index CRI
90
MacAdam’s ellipse
3 SDCM
Supply voltage
24 V
Protection class
III
Decorative lighting
Yes
Length [L] x Width [W] x Height [H]
21'05" x 2.9" x 1.6"
Ref No Dimensions L x W x H ["] Cover LED color [K] Color Luminaire
luminous flux
[lm] 		Power consumption
[W]		 Efficiency [lm/W] download
FNJD051-19300B
21'05" x 2.9" x 1.6"
satin
3000
lime lacquered mat
4600
56
82
FNJD051-19400B
21'05" x 2.9" x 1.6"
satin
4000
lime lacquered mat
5000
56
89
FNJD051-07300B
21'05" x 2.9" x 1.6"
satin
3000
black lacquered mat
4600
56
82
FNJD051-07400B
21'05" x 2.9" x 1.6"
satin
4000
black lacquered mat
5000
56
89
FNJD051-10300B
21'05" x 2.9" x 1.6"
satin
3000
white lacquered mat
4600
56
82
FNJD051-10400B
21'05" x 2.9" x 1.6"
satin
4000
white lacquered mat
5000
56
89
