SERPENT R ZW Fixture

SERPENT R ZW Fixture
SERPENT R ZW Fixture
SERPENT R ZW Fixture
SERPENT R ZW Fixture
SERPENT R ZW Fixture
SERPENT R ZW Fixture
SERPENT R ZW Fixture
SERPENT R ZW Fixture
SERPENT R ZW Fixture
SERPENT R ZW Fixture
SERPENT R ZW Fixture
SERPENT R ZW Fixture
  • Module for building lighting forms in the SERPENT system
  • Quick and easy assembly into lighting systems
  • Up/down lighting
  • High lighting efficacy
  • Includes a light source
  • Environmentally friendly, low carbon footprint material important for sustainable buildings
  • ETL Sanitation Listed
  • Available 2D CAD and 3D BIM files in various formats enabling lighting design in architectural programs
  • Possiblity to obtain UGR < 19
Suspended
CRI 90+
IP20 protection rating
CE Certificate
CE Certificate
RoHS Certificate
ETL
Low carbon footprint
START CONFIGURATION
  • Module for building lighting forms in the SERPENT system
  • Quick and easy assembly into lighting systems
  • Up/down lighting
  • High lighting efficacy
  • Includes a light source
  • Environmentally friendly, low carbon footprint material important for sustainable buildings
  • ETL Sanitation Listed
  • Available 2D CAD and 3D BIM files in various formats enabling lighting design in architectural programs
  • Possiblity to obtain UGR < 19

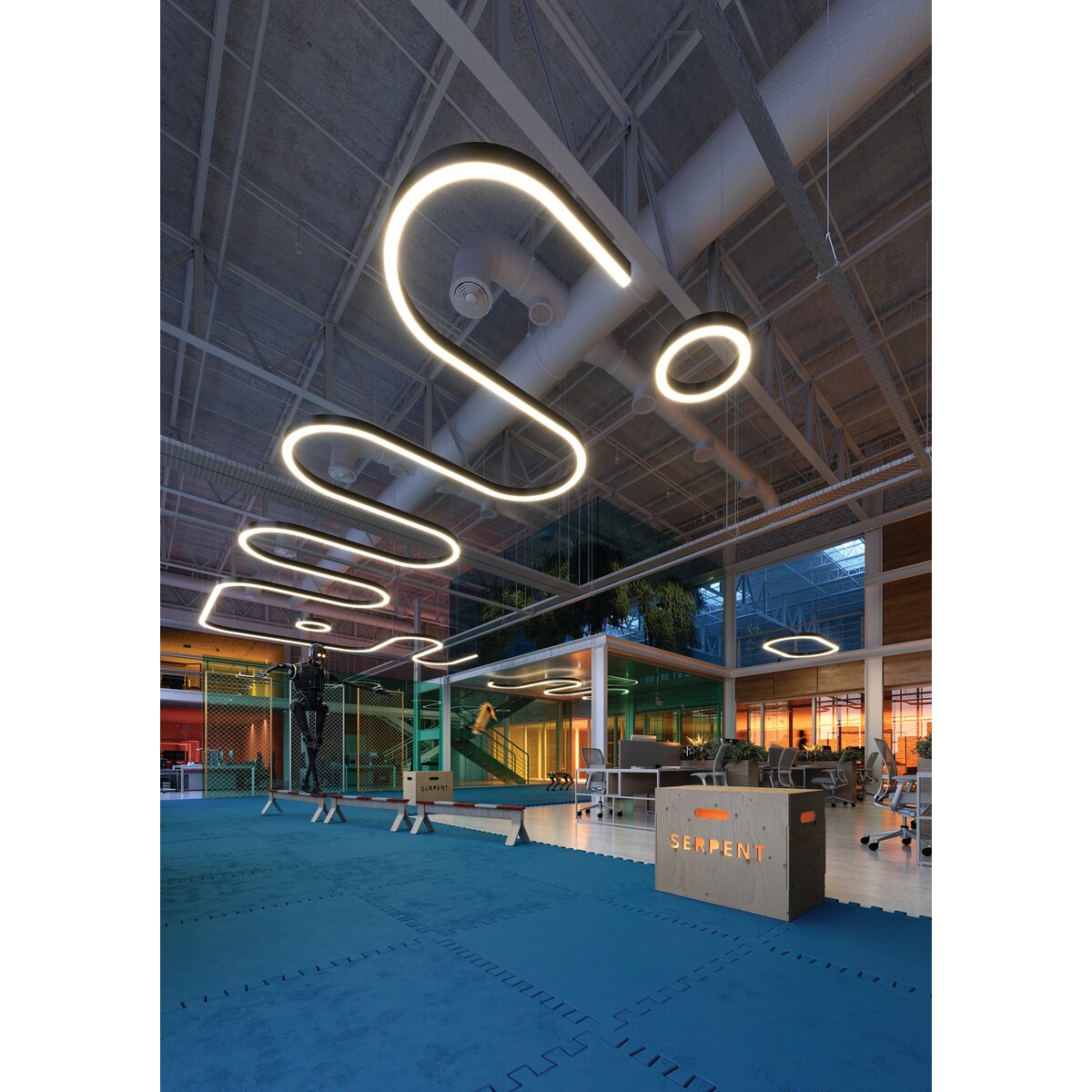

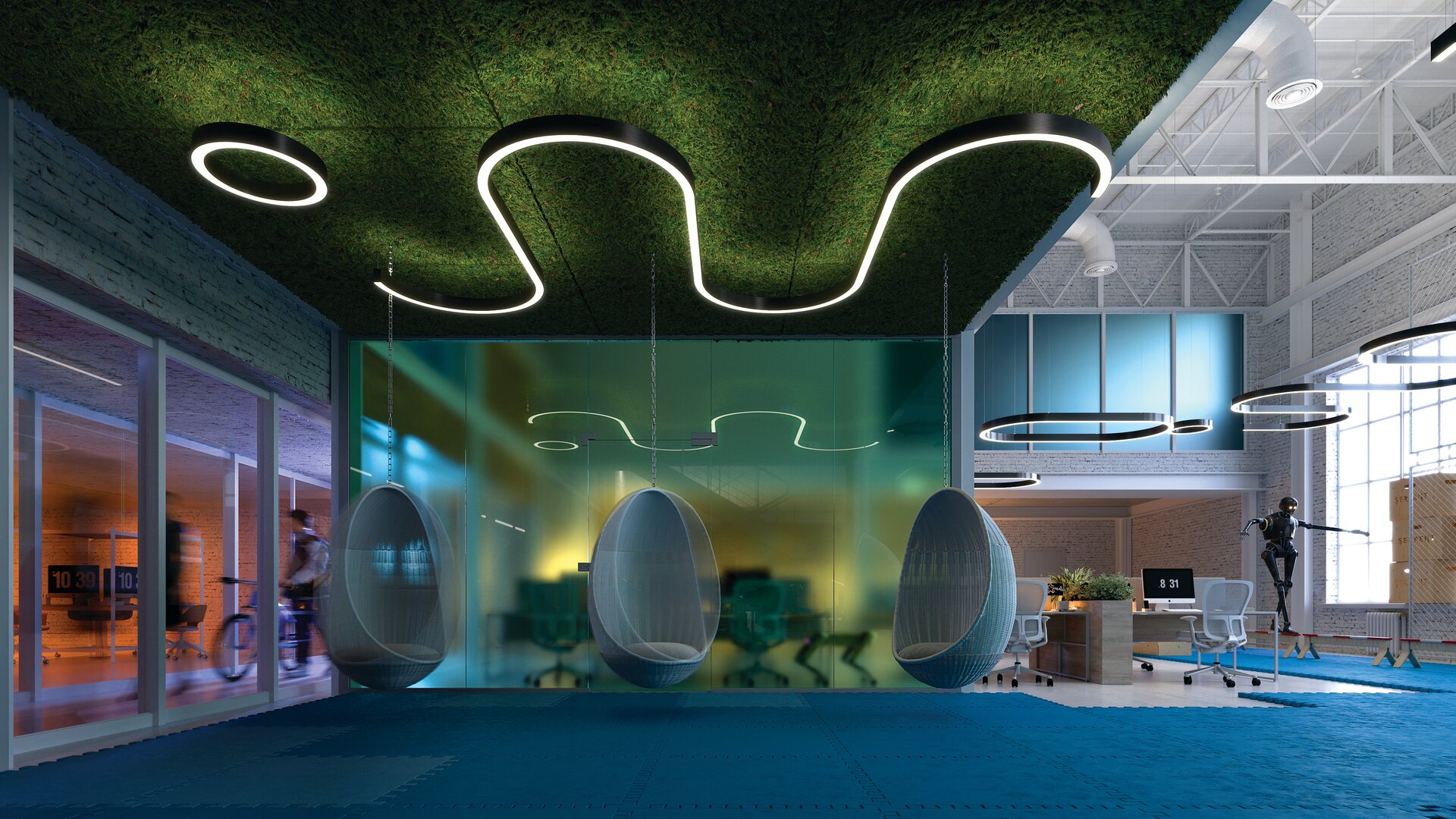

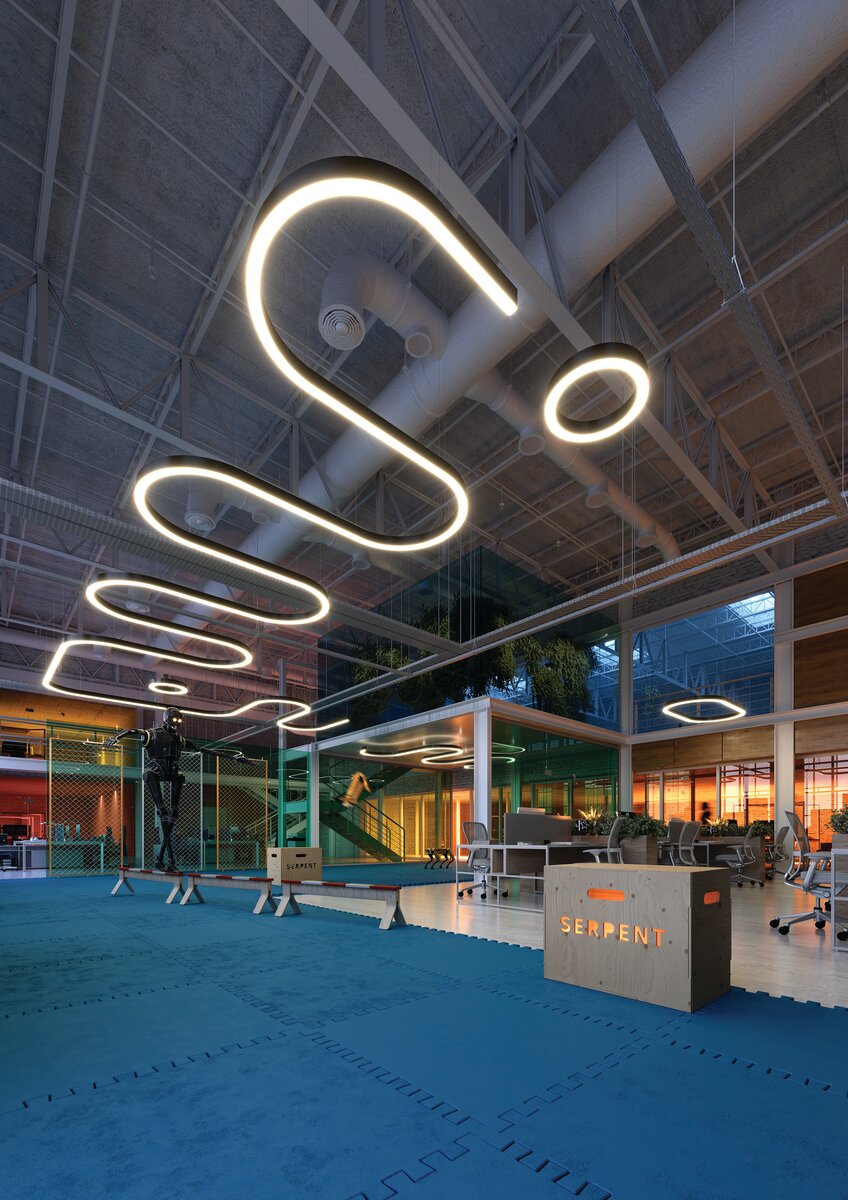

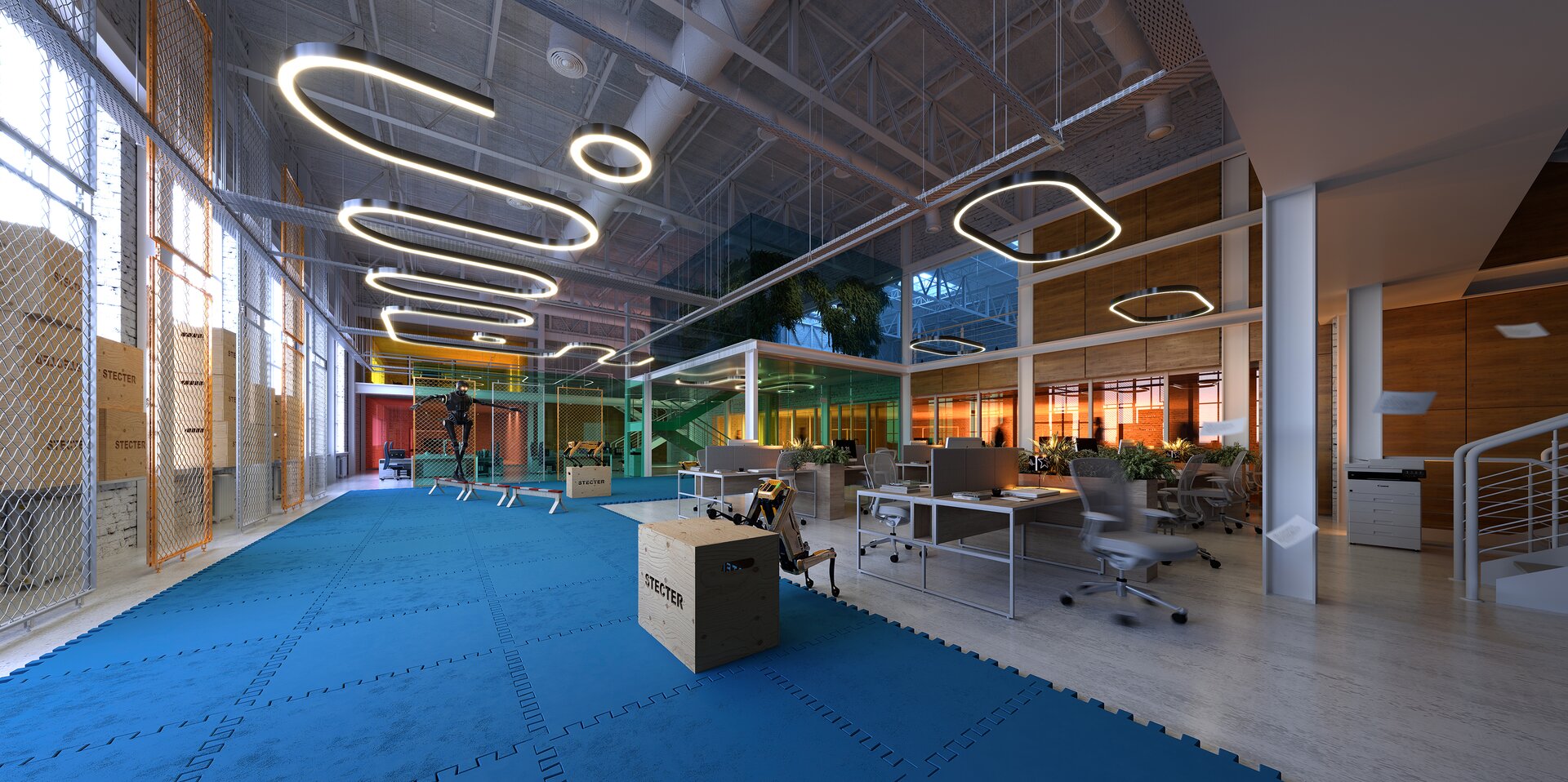

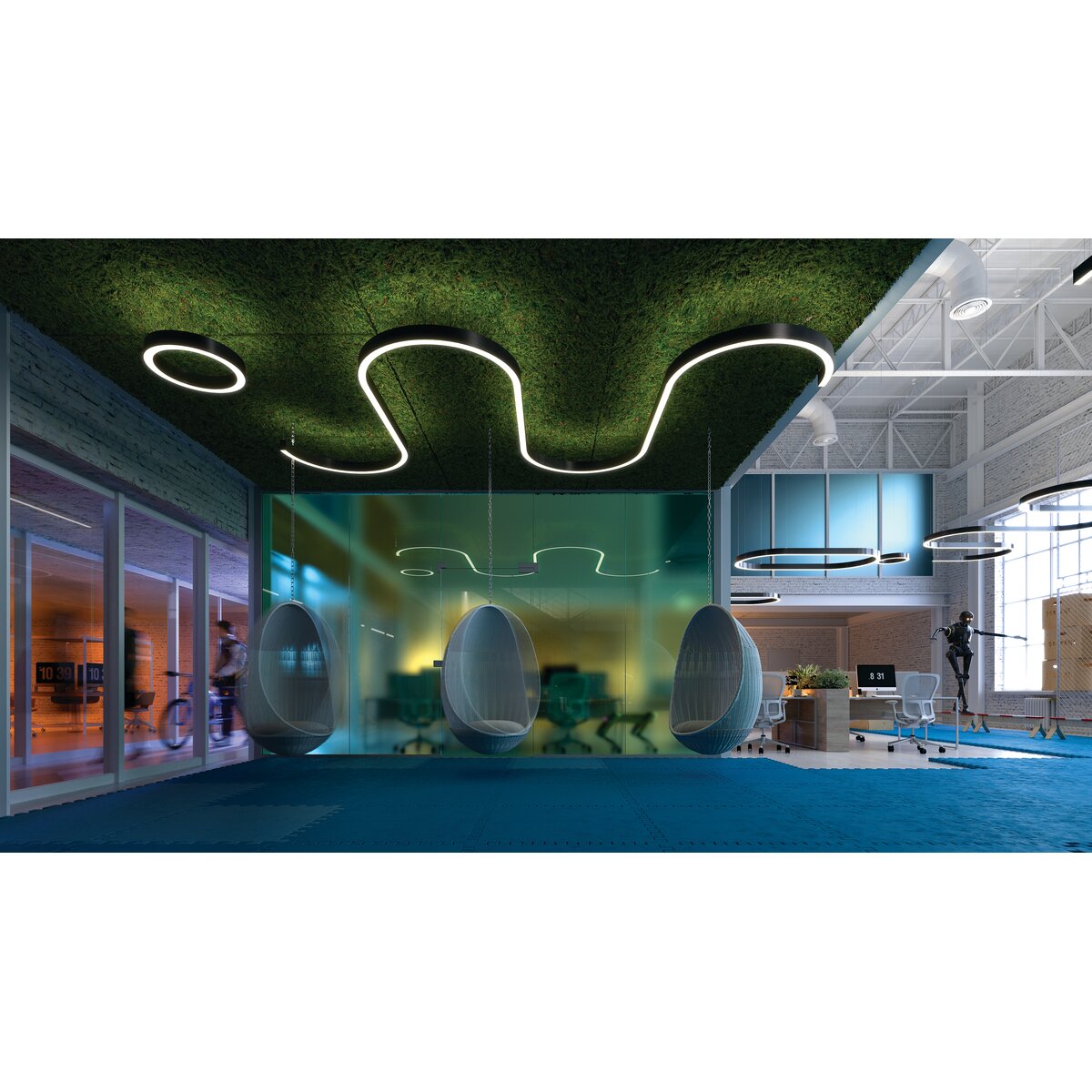

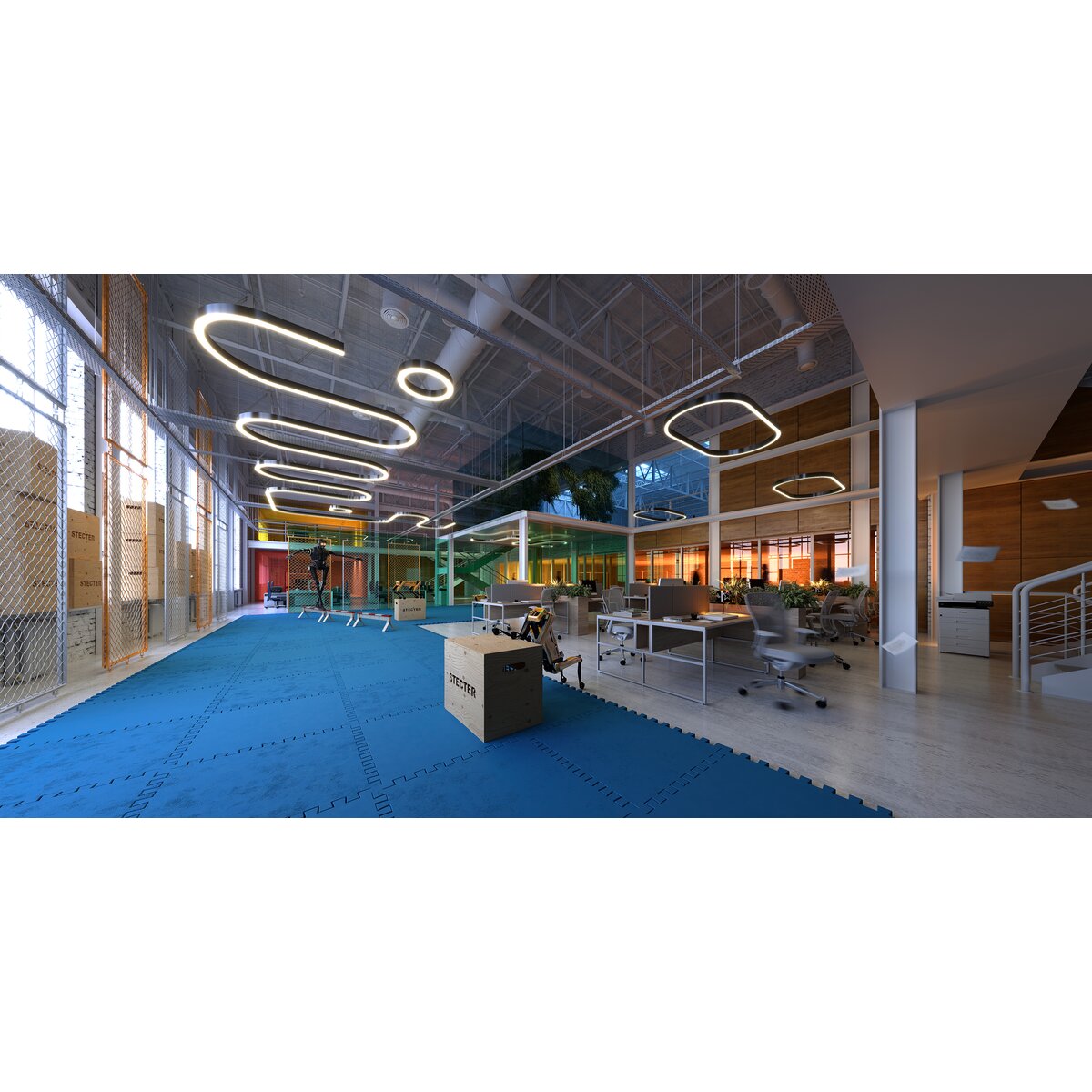

Usage examples
Technical specification
Material
aluminum
Mounting type
Suspended
Shape
semicircular
IP protection rating
20
Color Rendering Index CRI
90
MacAdam’s ellipse
3 SDCM
Supply voltage
-
Protection class
I
Width [W] x Height [H]
1.9" x 3.5"
Technical drawing
SERPENT R ZW Fixture aluminum Technical drawing
SERPENT R ZW Fixture aluminum Technical drawing
SERPENT R ZW Fixture aluminum Technical drawing
SERPENT R ZW Fixture aluminum Technical drawing
SERPENT R ZW Fixture aluminum Technical drawing
Technical drawing
SERPENT R ZW Fixture aluminum Technical drawing
SERPENT R ZW Fixture aluminum Technical drawing
SERPENT R ZW Fixture aluminum Technical drawing
SERPENT R ZW Fixture aluminum Technical drawing
SERPENT R ZW Fixture aluminum Technical drawing
Technical specification
Material
aluminum
Mounting type
Suspended
Shape
semicircular
IP protection rating
20
Color Rendering Index CRI
90
MacAdam’s ellipse
3 SDCM
Supply voltage
-
Protection class
I
Width [W] x Height [H]
1.9" x 3.5"
Ref No Lighting direction Dimensions L x W x H ["] Arc segment Radius Cover LED color [K] Color Control Luminaire
luminous flux
[lm] 		Power consumption
[W]		 Efficiency [lm/W] download
FPSE052-0140EB
down
41.3" x 20.6" x 3.5"
1/2 r
500
frosted
4000
silver anodized
ON/OFF
2560
27
95
FPSE052-0130EB
down
41.3" x 20.6" x 3.5"
1/2 r
500
frosted
3000
silver anodized
ON/OFF
2470
27
91
FPSE053-0130EB
up, down
41.3" x 20.6" x 3.5"
1/2 r
500
frosted
3000
silver anodized
ON/OFF
4320
39
111
FPSE055-0130EB
down
20.6" x 20.6" x 3.5"
1/4 r
500
frosted
3000
silver anodized
ON/OFF
1230
16
77
FPSE056-0130EB
up, down
20.6" x 20.6" x 3.5"
1/4 r
500
frosted
3000
silver anodized
ON/OFF
2160
22
98
FPSE058-0130EB
down
7.4" x 14.6" x 3.5"
1/8 r
500
frosted
3000
silver anodized
ON/OFF
620
10
62
FPSE061-0130EB
down
21.6" x 10.8" x 3.5"
1/2 r
250
frosted
3000
silver anodized
ON/OFF
1230
16
77
FPSE062-0130EB
up, down
21.6" x 10.8" x 3.5"
1/2 r
250
frosted
3000
silver anodized
ON/OFF
2160
22
98
FPSE055-0140EB
down
20.6" x 20.6" x 3.5"
1/4 r
500
frosted
4000
silver anodized
ON/OFF
1280
16
80
FPSE056-0140EB
up, down
20.6" x 20.6" x 3.5"
1/4 r
500
frosted
4000
silver anodized
ON/OFF
2240
22
102
FPSE061-0140EB
down
21.6" x 10.8" x 3.5"
1/2 r
250
frosted
4000
silver anodized
ON/OFF
1280
16
80
FPSE062-0140EB
up, down
21.6" x 10.8" x 3.5"
1/2 r
250
frosted
4000
silver anodized
ON/OFF
2240
22
102
FPSE053-0140EB
up, down
41.3" x 20.6" x 3.5"
1/2 r
500
frosted
4000
silver anodized
ON/OFF
4480
39
115
