TU BEAM COASTAL Fixture

Ref No: TU BEAM COASTAL
TU BEAM COASTAL Fixture
TU BEAM COASTAL Fixture
  • Easy and intuitive adjustment, thanks to specially designed belts - the design provides full freedom of rotation, in every direction, by 360 degrees
  • Two types of optics - focusing optics with blend, lamellas
  • Possiblity to obtain UGR < 10
  • Three unique stylistic variants - Coastal, Industrial and Natural
  • Modern soft shape of the profile
  • Equipped with a light source, electronics and mounting accessories
Suspended
IP20 protection rating
CRI 95+
reddot
CE Certificate
CE Certificate
RoHS Certificate
ETL
START CONFIGURATION
  • Easy and intuitive adjustment, thanks to specially designed belts - the design provides full freedom of rotation, in every direction, by 360 degrees
  • Two types of optics - focusing optics with blend, lamellas
  • Possiblity to obtain UGR < 10
  • Three unique stylistic variants - Coastal, Industrial and Natural
  • Modern soft shape of the profile
  • Equipped with a light source, electronics and mounting accessories

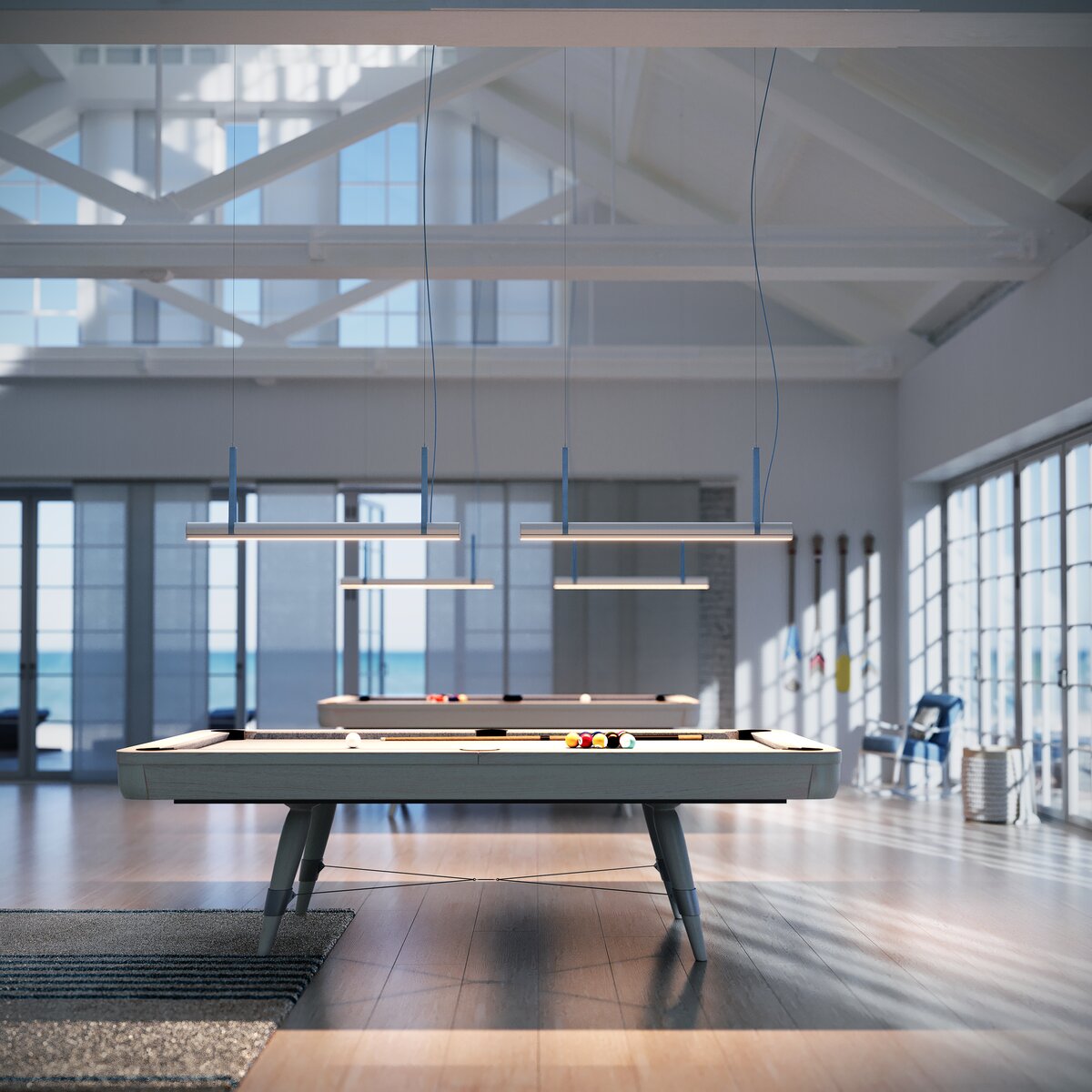

Usage examples
Technical specification
Material
aluminum
Mounting type
Suspended
Shape
linear
Lighting direction
down
IP protection rating
20
Lifetime
70000 h
Color Rendering Index CRI
95
MacAdam’s ellipse
3 SDCM
Supply voltage
24 V
Protection class
I
Building type
Commercial, Residential, Hotel / Restaurant, Entertainment/ Arts
Facility zone
conference room, lobby / foyer
Width [W] x Height [H]
2.4" x 3"

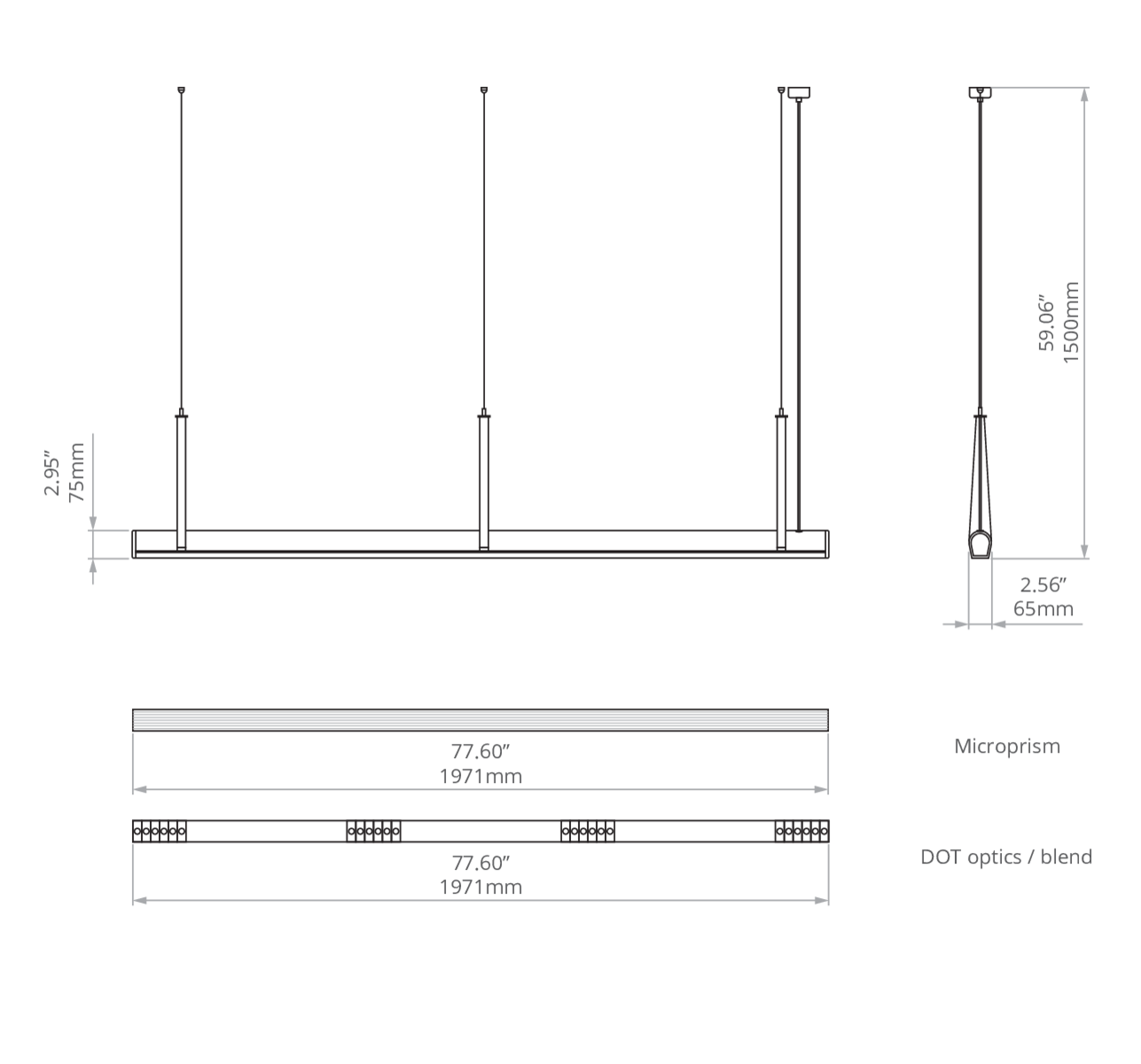

Technical drawing
TU BEAM COASTAL Fixture aluminum Technical drawing - TU BEAM COASTAL
TU BEAM COASTAL Fixture aluminum Technical drawing - TU BEAM COASTAL
TU BEAM COASTAL Fixture aluminum Technical drawing - TU BEAM COASTAL
Technical drawing
TU BEAM COASTAL Fixture aluminum Technical drawing - TU BEAM COASTAL
TU BEAM COASTAL Fixture aluminum Technical drawing - TU BEAM COASTAL
TU BEAM COASTAL Fixture aluminum Technical drawing - TU BEAM COASTAL
Technical specification
Material
aluminum
Mounting type
Suspended
Shape
linear
Lighting direction
down
IP protection rating
20
Lifetime
70000 h
Color Rendering Index CRI
95
MacAdam’s ellipse
3 SDCM
Supply voltage
24 V
Protection class
I
Building type
Commercial, Residential, Hotel / Restaurant, Entertainment/ Arts
Facility zone
conference room, lobby / foyer
Width [W] x Height [H]
2.4" x 3"
Ref No Dimensions L x W x H ["] Cover LED color [K] Color Luminaire
luminous flux
[lm] 		Power consumption
[W]		 Efficiency [lm/W] download
FPTY016-1730V0B
110.7" x 2.4" x 3"
DOT optics / blend
3000
coastal lacquered
2950
45
66
FPTY016-1740V0B
110.7" x 2.4" x 3"
DOT optics / blend
4000
coastal lacquered
2950
45
66
FPTY015-1730V0B
77.6" x 2.4" x 3"
DOT optics / blend
3000
coastal lacquered
2350
36
65
FPTY015-1740V0B
77.6" x 2.4" x 3"
DOT optics / blend
4000
coastal lacquered
2350
36
65
FPTY006-1730V0B
110.7" x 2.4" x 3"
microprism
3000
coastal lacquered
5100
80
64
FPTY006-1740V0B
110.7" x 2.4" x 3"
microprism
4000
coastal lacquered
5100
80
64
FPTY014-1730V0B
44.5" x 2.4" x 3"
DOT optics / blend
3000
coastal lacquered
1750
27
65
FPTY014-1740V0B
44.5" x 2.4" x 3"
DOT optics / blend
4000
coastal lacquered
1750
27
65
FPTY005-1730V0B
77.6" x 2.4" x 3"
microprism
3000
coastal lacquered
3550
56
63
FPTY005-1740V0B
77.6" x 2.4" x 3"
microprism
4000
coastal lacquered
3550
56
63
FPTY004-1730V0B
44.5" x 2.4" x 3"
microprism
3000
coastal lacquered
2000
31
65
FPTY004-1740V0B
44.5" x 2.4" x 3"
microprism
4000
coastal lacquered
2000
31
65
