Contactless switching on of furniture lighting thanks to the use of a magnetic sensor
Minimal dimensions and no mechanical elements

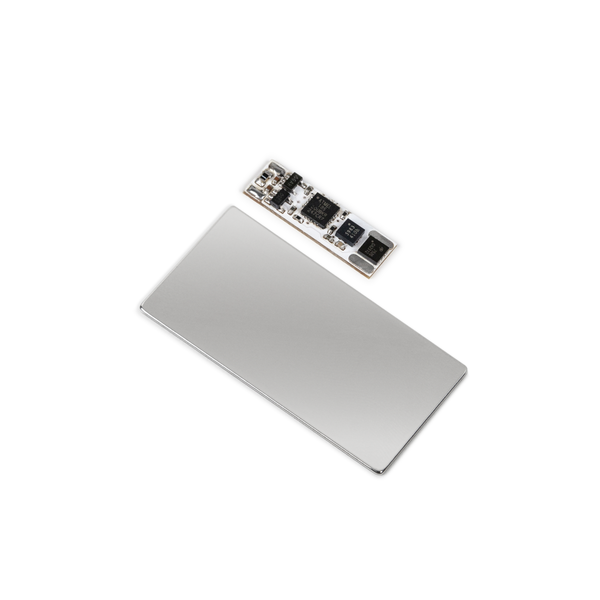

Easy installation (magnet included)
Easy and quick calibration, confirmed by a light signal

WATCH INSTRUCTIONAL VIDEO

Color

Description

Contactless switching on of furniture lighting thanks to the use of a magnetic sensor
Minimal dimensions and no mechanical elements
Easy installation (magnet included)
Easy and quick calibration, confirmed by a light signal

Application

- switching LED lighting fixtures on and off

Mounting

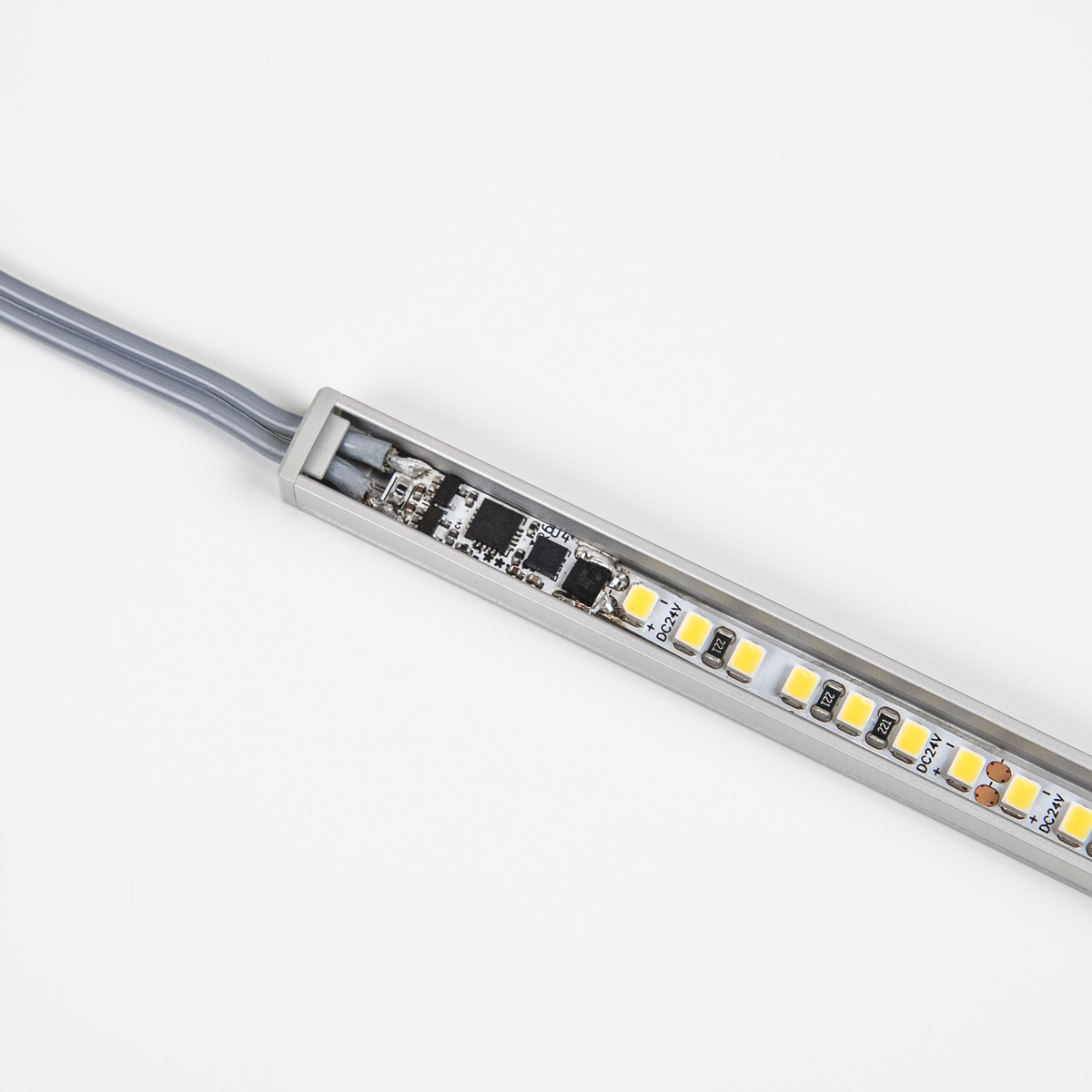

- to the extrusion, using double-sided adhesive tape

download

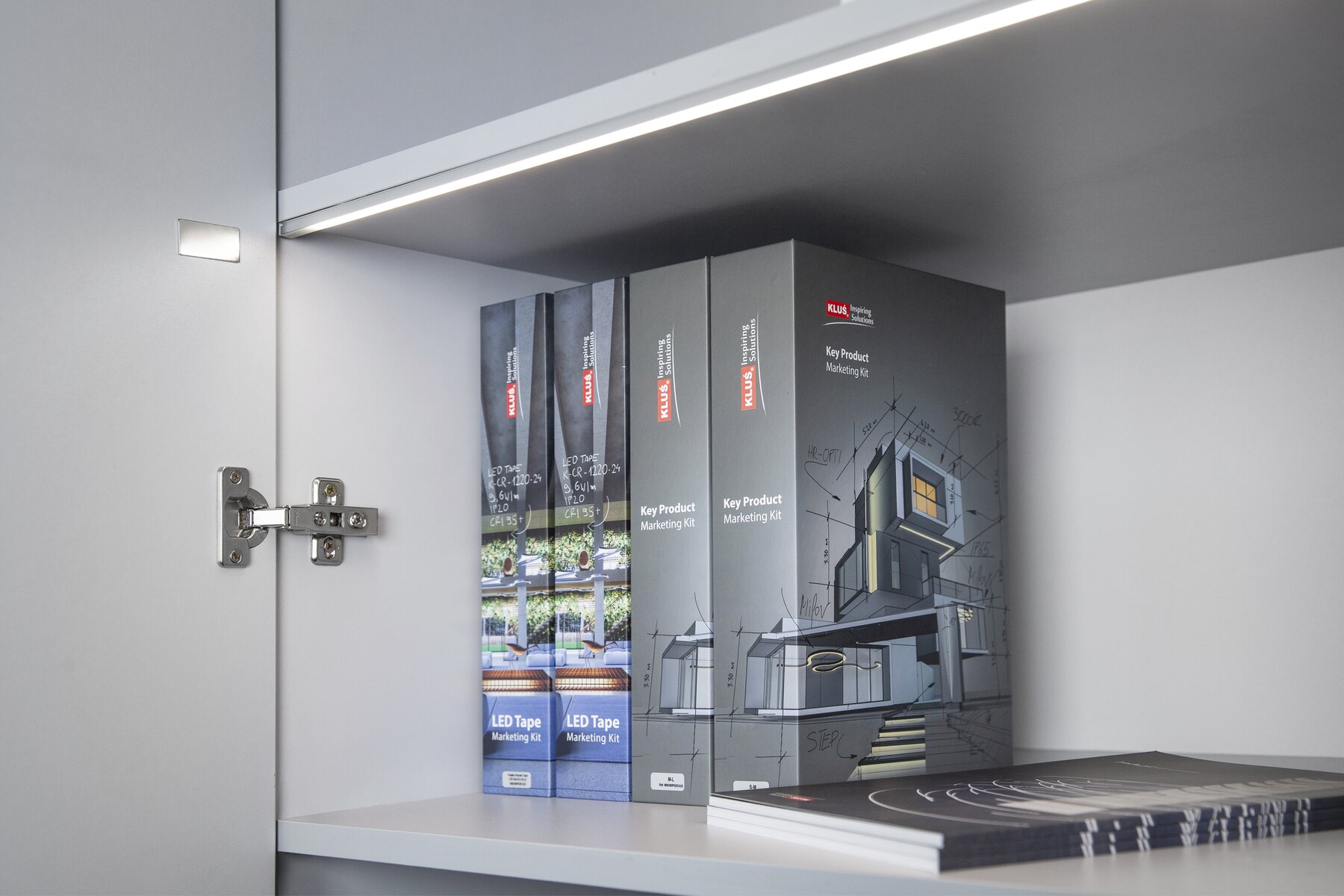

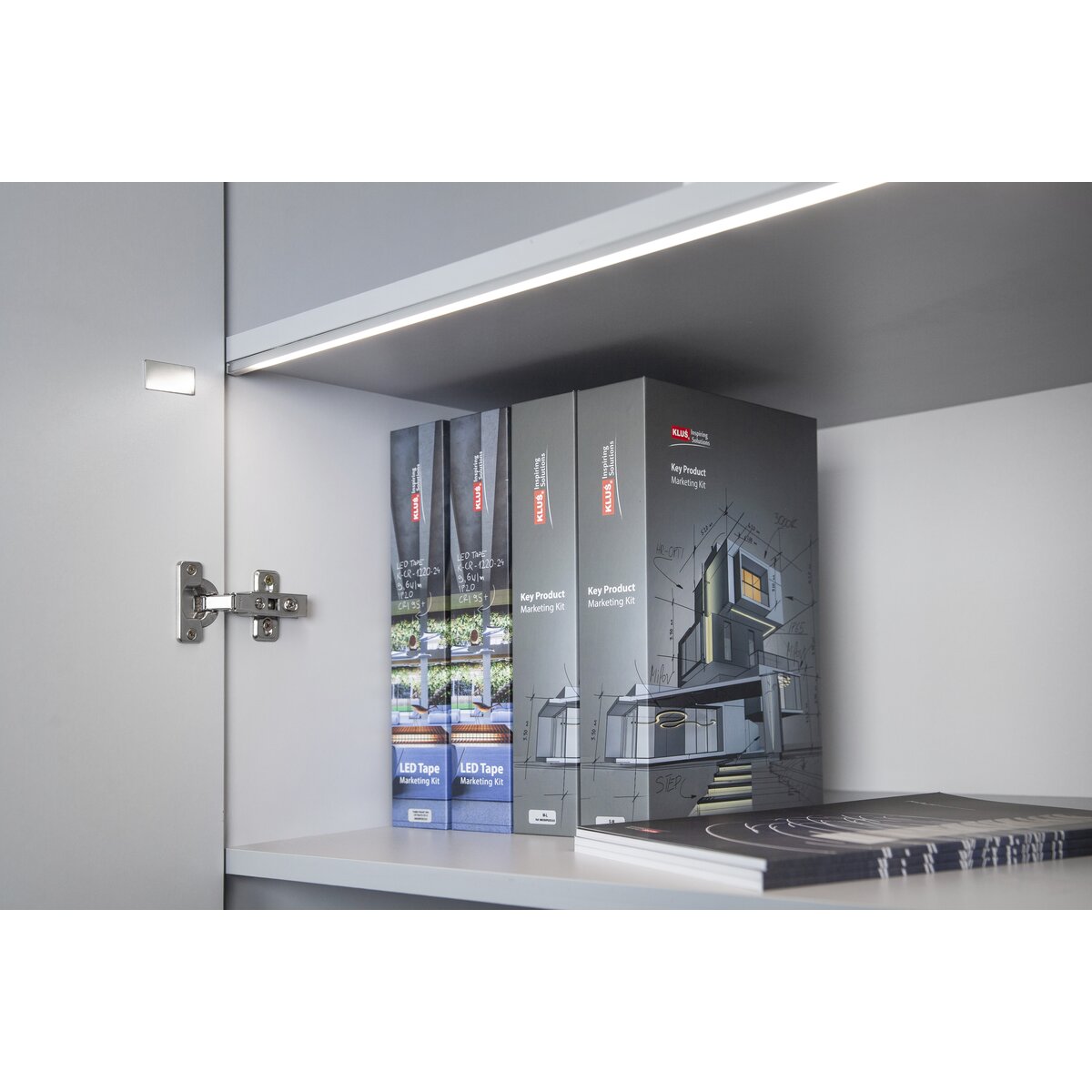

Usage examples

Description
download

Application

- switching LED lighting fixtures on and off

Mounting

- to the extrusion, using double-sided adhesive tape

Technical specification

IP protection rating

Rated current

4 A

Maximum output power

96 W

Minimum input voltage

10 V DC

Maximum input voltage

24 V DC

Dimensions

Width

0.3"

Height

0.1"

Length

0.9"

Weight

0.1 oz

Working temperature

Minimum working temperature

-4°F

Maximum working temperature

131°F

Mounting type

Mounting strip

Driver type

Mono, Dim To Warm

Number of channels

Rated current per channel

4 A

Maximum output power per channel

96 W

Number of output channels

PWM frequency [Hz]

1000 Hz
