W-KG-Z Fastener

Ref No: C28198

W-KG-Z Fastener

W-KG-Z Fastener

W-KG-Z Fastener

W-KG-Z Fastener

W-KG-Z Fastener

W-KG-Z Fastener

Description
download

Application

- attachment to the surface for LED lighting fixture suspension systems

Mounting

- to the surface, using the included accessory kit
- to a rod or cable, using a set bolt

Mounting to drywall
Longitudinal suspension for rods and wires
Single pole conductivity possible
Power connection without access to the bottom of the hob
Masking cover to hide damage on the mounting surface

Conducting electricity

Conducting electricity

Color

silver

Mounting to drywall
Longitudinal suspension for rods and wires
Single pole conductivity possible
Power connection without access to the bottom of the hob
Masking cover to hide damage on the mounting surface

Application

- attachment to the surface for LED lighting fixture suspension systems

Mounting

- to the surface, using the included accessory kit
- to a rod or cable, using a set bolt

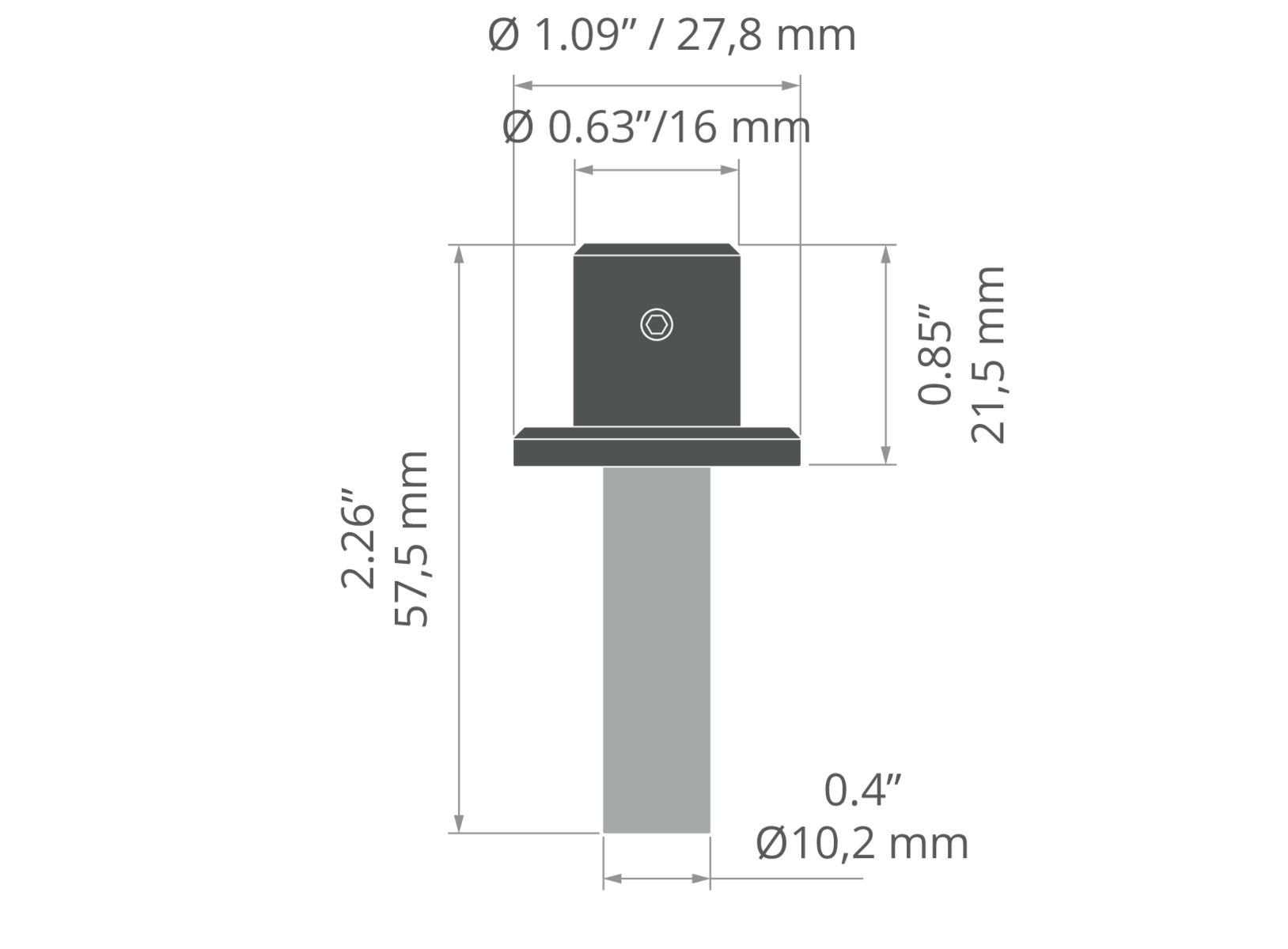

Technical drawing

W-KG-Z Fastener stainless steel Technical drawing - C28198

Technical specification

Conducting electricity

Yes

Material

stainless steel

Diameter

0.6"

Conducting electricity

Yes

Working temperature

129.2°F

Lifting capacity

44 lb

Maximum current intensity

10 A

Power loss

0.1 V

Width x Height

1.1" x 2.3"

Color	Ref No
silver	C28198N00
