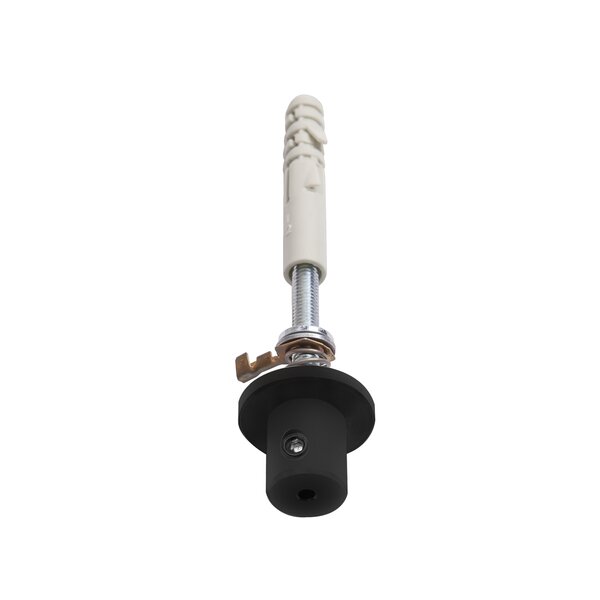

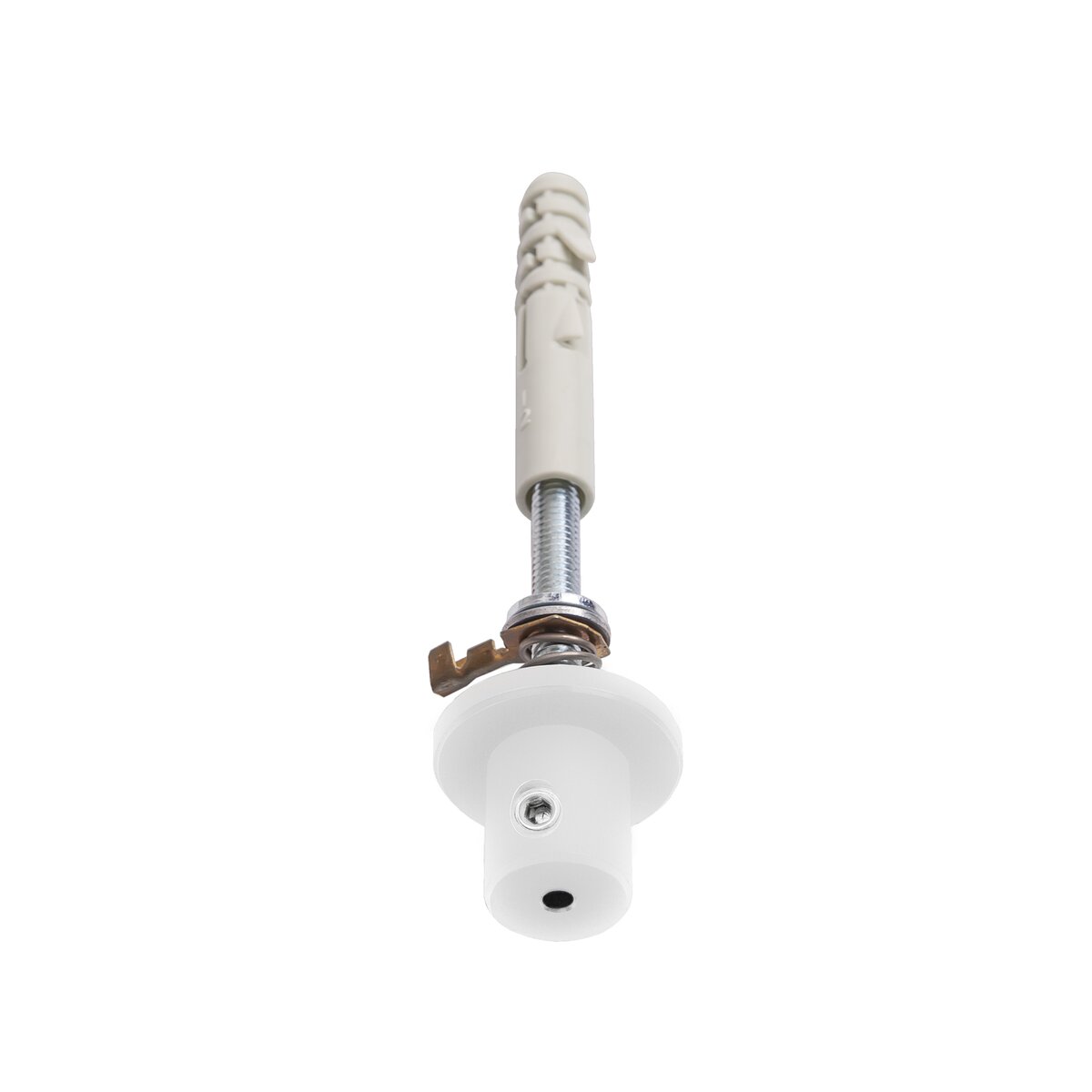

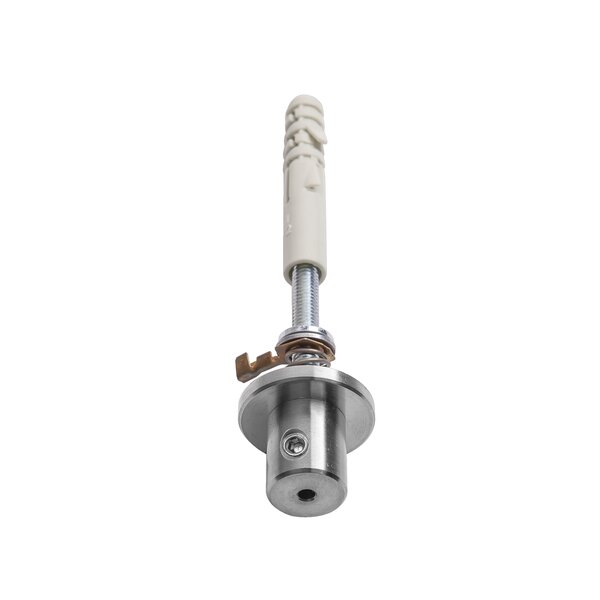

W-M-Z Fastener

Ref No: C28249

Description
download

Application

- attachment to the surface for LED lighting fixture suspension systems

Mounting

- to the surface, using the included accessory kit
- to a rod or cable, using a set bolt

Installation in solid masonry surfaces
Longitudinal suspension for rods and wires
Single pole conductivity possible
Masking cover to hide damage on the mounting surface

Conducting electricity

Color

silver

white

black

Installation in solid masonry surfaces
Longitudinal suspension for rods and wires
Single pole conductivity possible
Masking cover to hide damage on the mounting surface

Application

- attachment to the surface for LED lighting fixture suspension systems

Mounting

- to the surface, using the included accessory kit
- to a rod or cable, using a set bolt

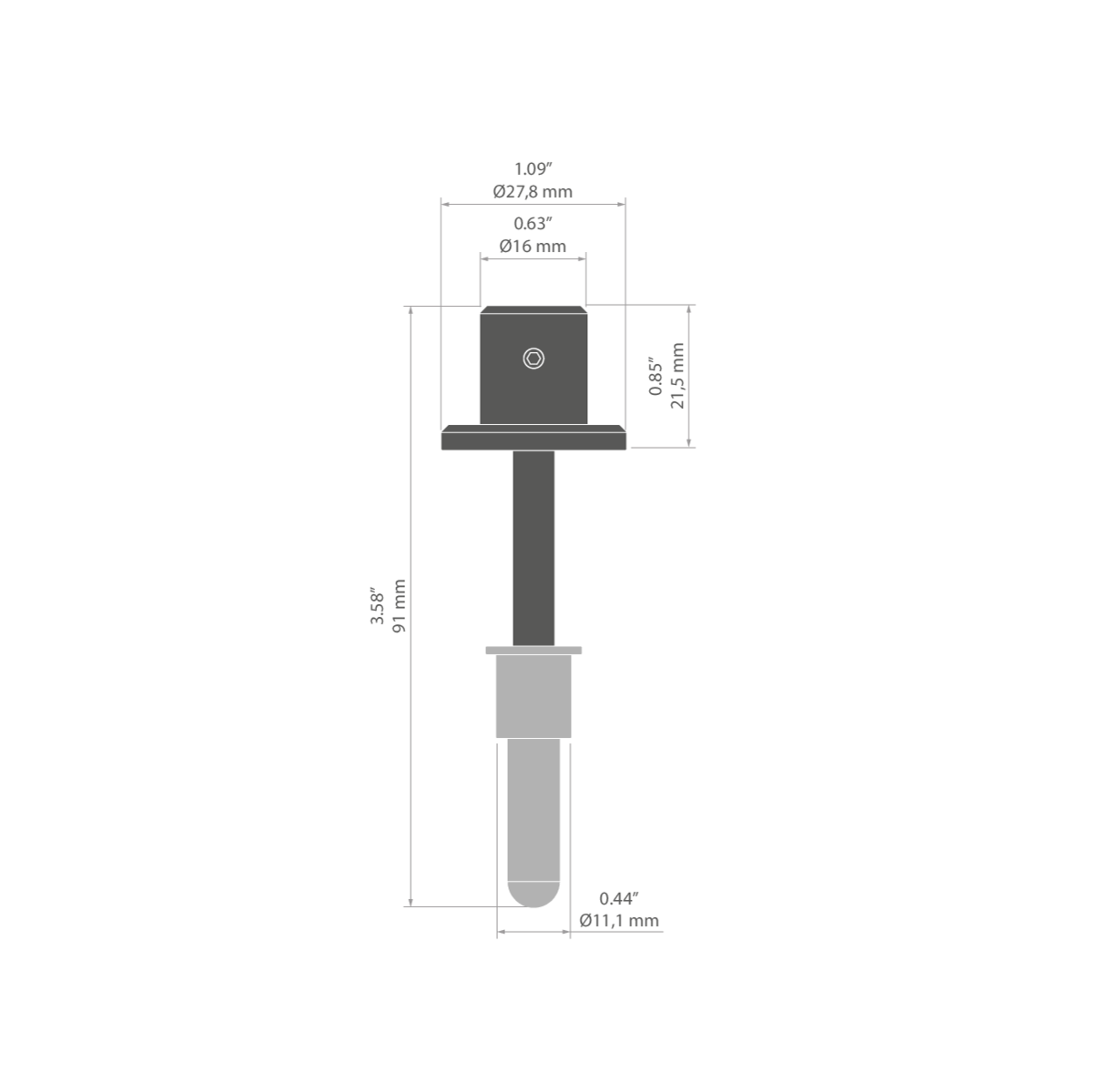

Technical drawing

W-M-Z Fastener Technical drawing - C28249

Technical specification

Diameter

0.6"

Conducting electricity

Yes

Working temperature

140°F

Lifting capacity

22 lb

Maximum current intensity

8 A

Power loss

0.12 V

Width x Height

1.1" x 3.6"

Color	Ref No
silver	C28249N00
white	C28249C10
black	C28249C07
