Note: Archival product

HR-LINE Extrusion

Ref No: A03579

We offer the following substitutes:

HR-MAX Extrusion
HR-LINE Extrusion
HR-LINE Extrusion
HR-LINE Extrusion
  • For indoor|outdoor ground installation
  • Designed for IP67 and IK10 protection ratings
For ground
Impact protection IK10
With the possibility of sealing up to IP65
With the possibility of sealing up to IP67
CE Certificate
UKCA Certificate
RoHS Certificate
ETL
Configure
  • For indoor|outdoor ground installation
  • Designed for IP67 and IK10 protection ratings
Application
  • - warning and decorative lighting
Mounting
  • - in the ground, with mounting adhesive
Additional information
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

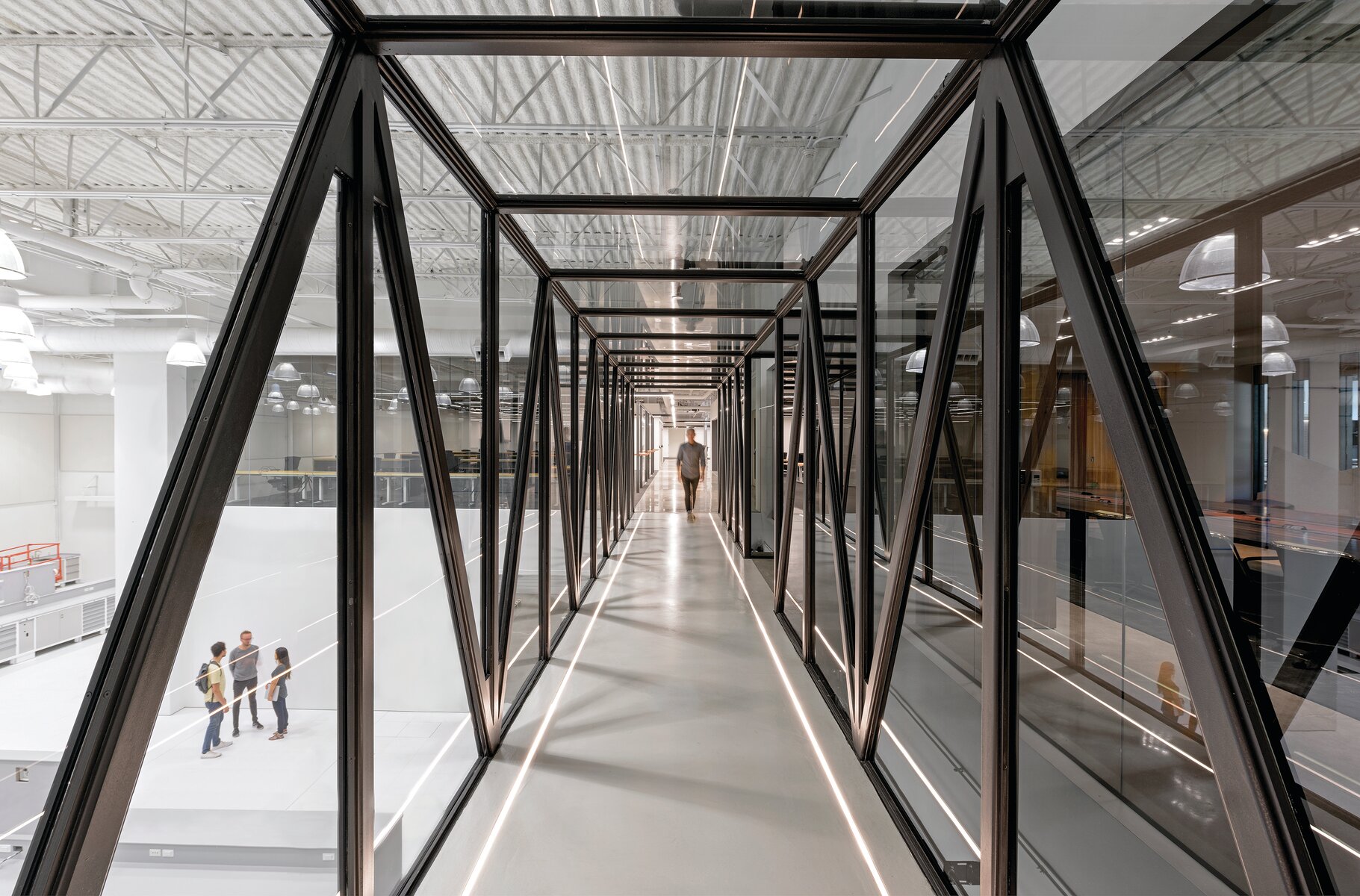

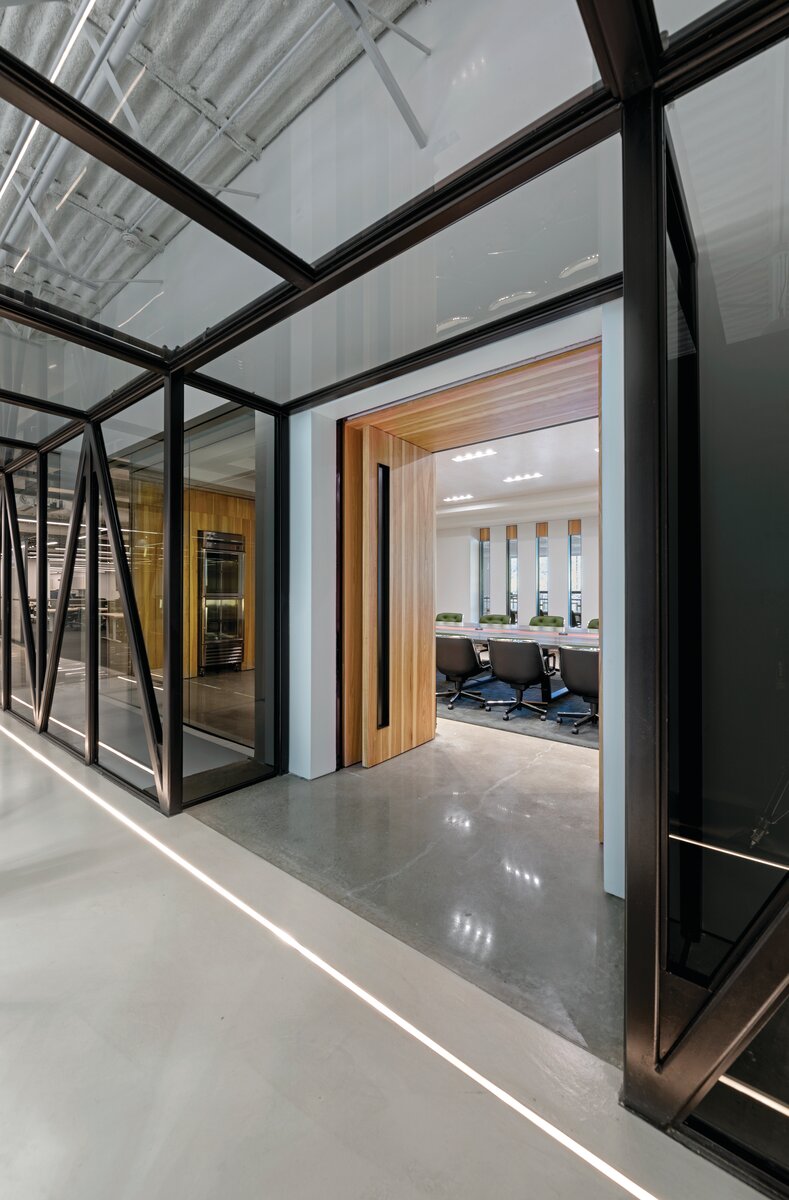

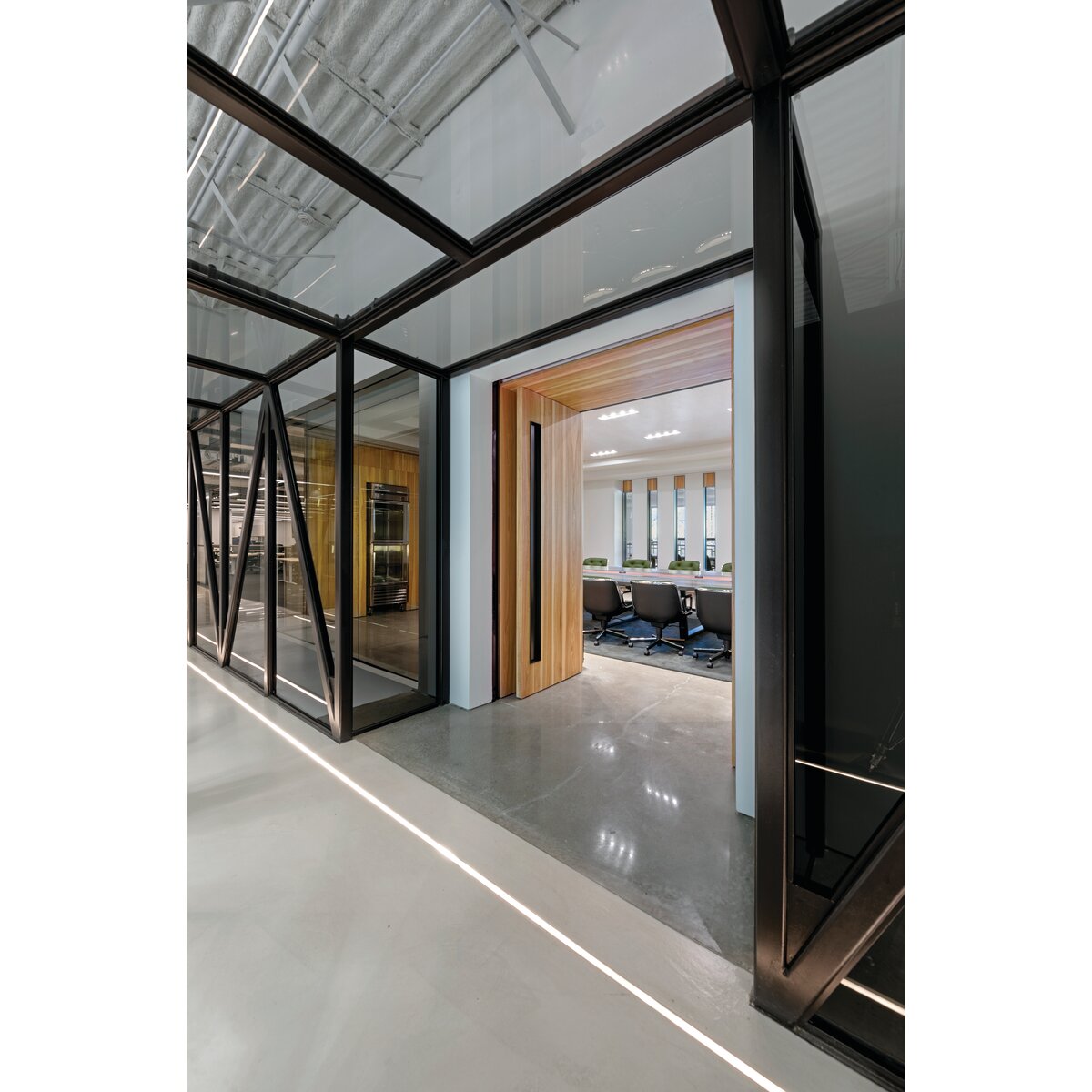

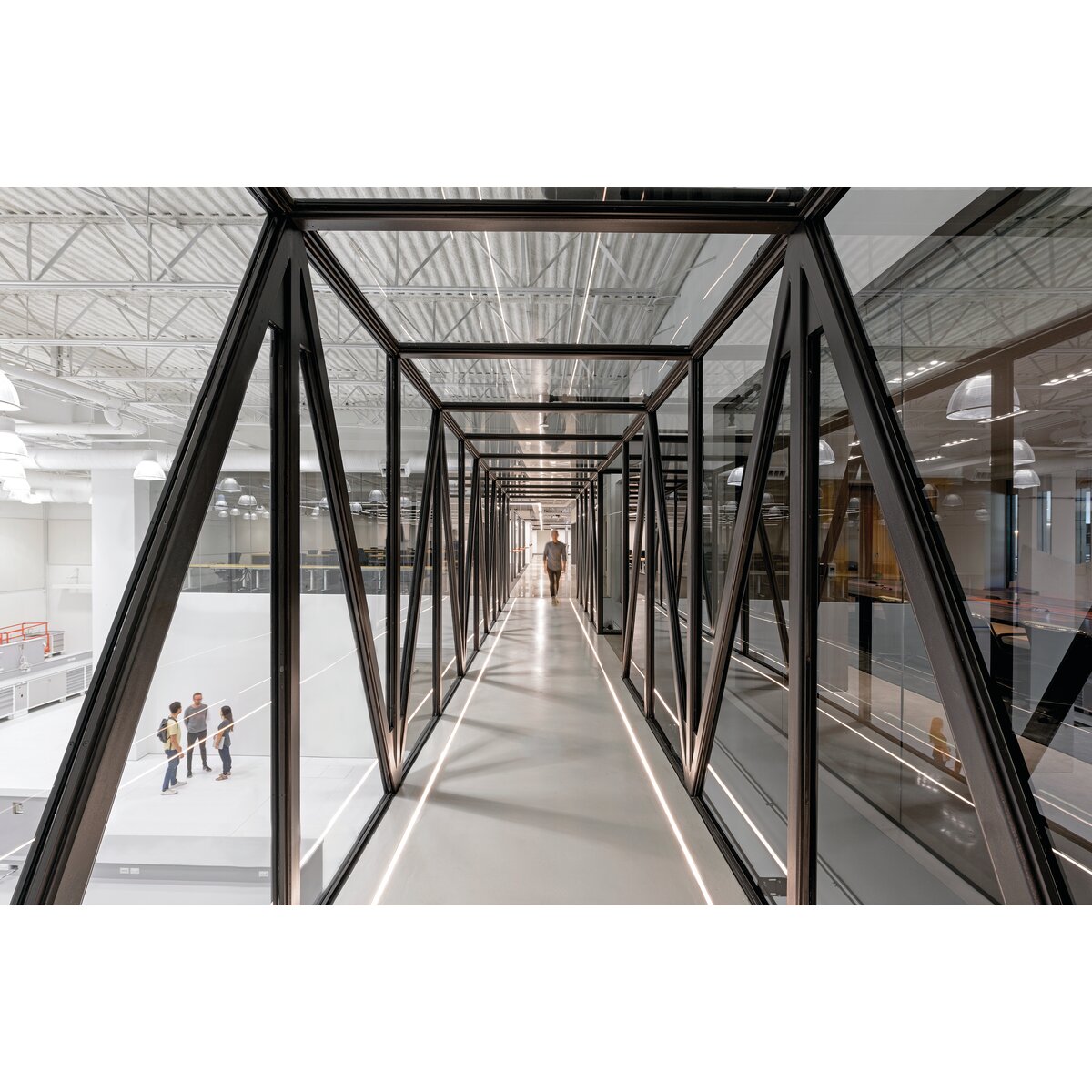

Usage examples

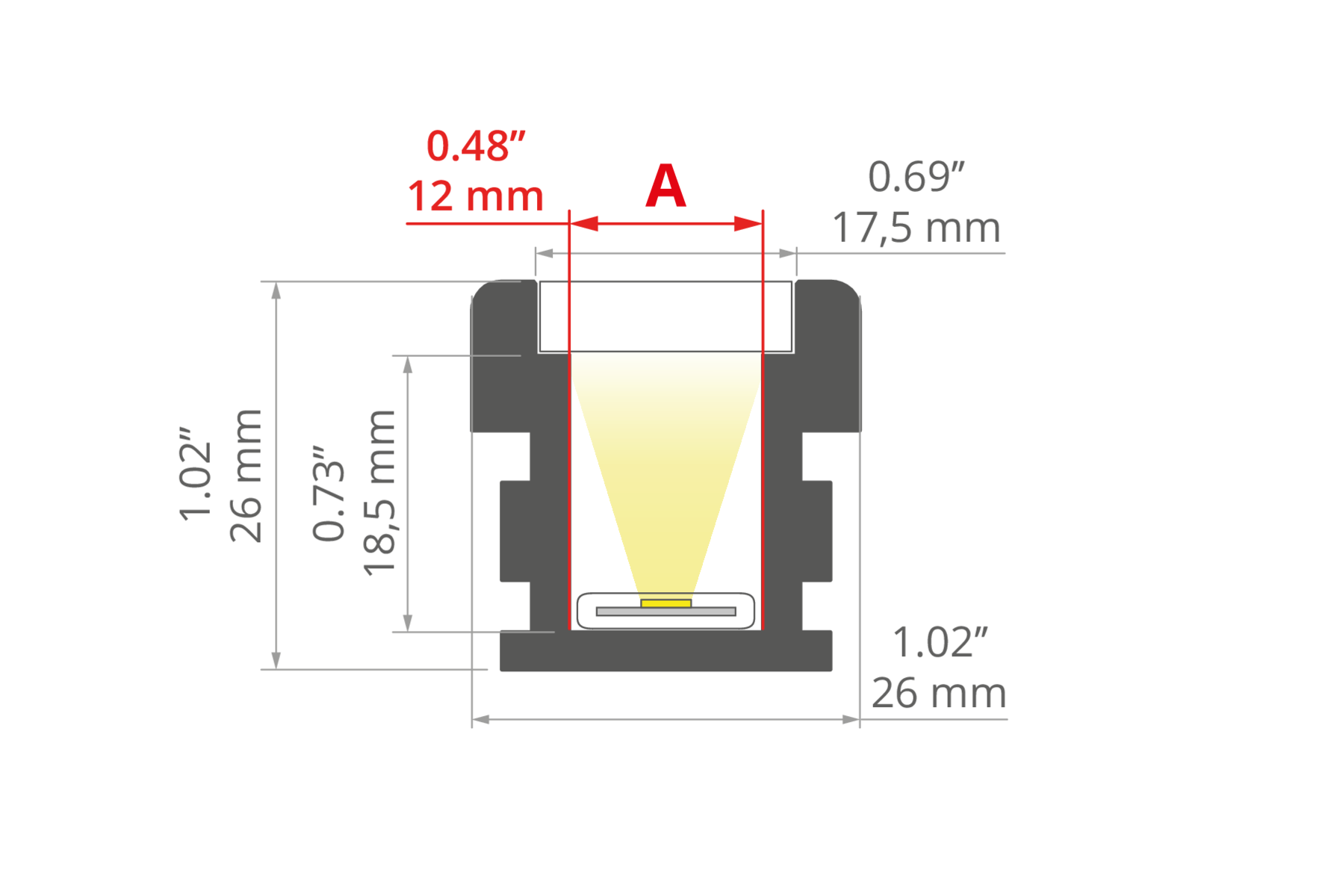

Technical drawing
HR-LINE Extrusion aluminum Technical drawing - A03579
Technical specification
Material
aluminum
Possible fixture IP
65, 67
Possible fixture shapes
linear
Profile cross-section
rectangular
Max power of a single KLUŚ LED strip
2.9 W/ft
Width
1" (26 mm)
Height
1" (26 mm)
LED gluing width A
0.5" (12 mm)
Number of LED strips A (0.31" wide)
1
The cover is cut to the length of the profile
Yes
Wire out end cap
Yes
Wire out back of extrusion
Yes
Impact protection IK10
Yes
Possibility of obtaining a line of light
Yes
Building type
Outdoor, Commercial, Retail, Hotel / Restaurant
Facility zone
parking / garage / driveway
Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes
