HR-MAX-T Extrusion

Ref No: A01827
HR-MAX-T Extrusion
HR-MAX-T Extrusion
  • Mounting track
  • Easy servicing of the HR-MAX Extrusion
  • For indoor|outdoor ground installation
  • Compatibility with the HR-MAX-TW mounting track
  • High mechanical resistance
For ground
Corrosion resistance at high salinity
Color
silver
  • Mounting track
  • Easy servicing of the HR-MAX Extrusion
  • For indoor|outdoor ground installation
  • Compatibility with the HR-MAX-TW mounting track
  • High mechanical resistance
Application
  • - makes mounting and service of the HR-MAX extrusion easy
Mounting
  • - in the ground, with mounting adhesive
  • - possibility to connect to the HR-MAX-TW extrusion to make a mounting track with sections for cables and accessories at intervals
Additional information
  • - in order to protect the lighting fixture during installation, a TECH-35 protective insert should be used
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

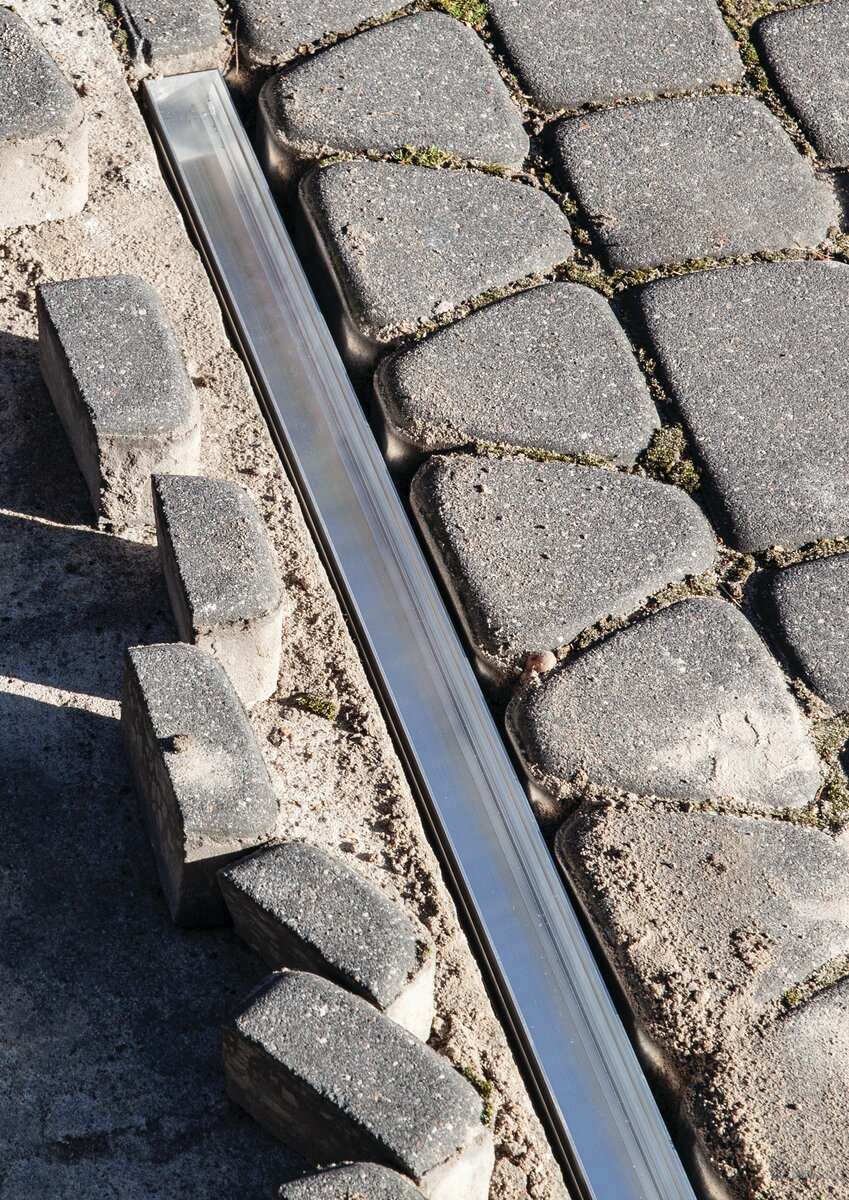

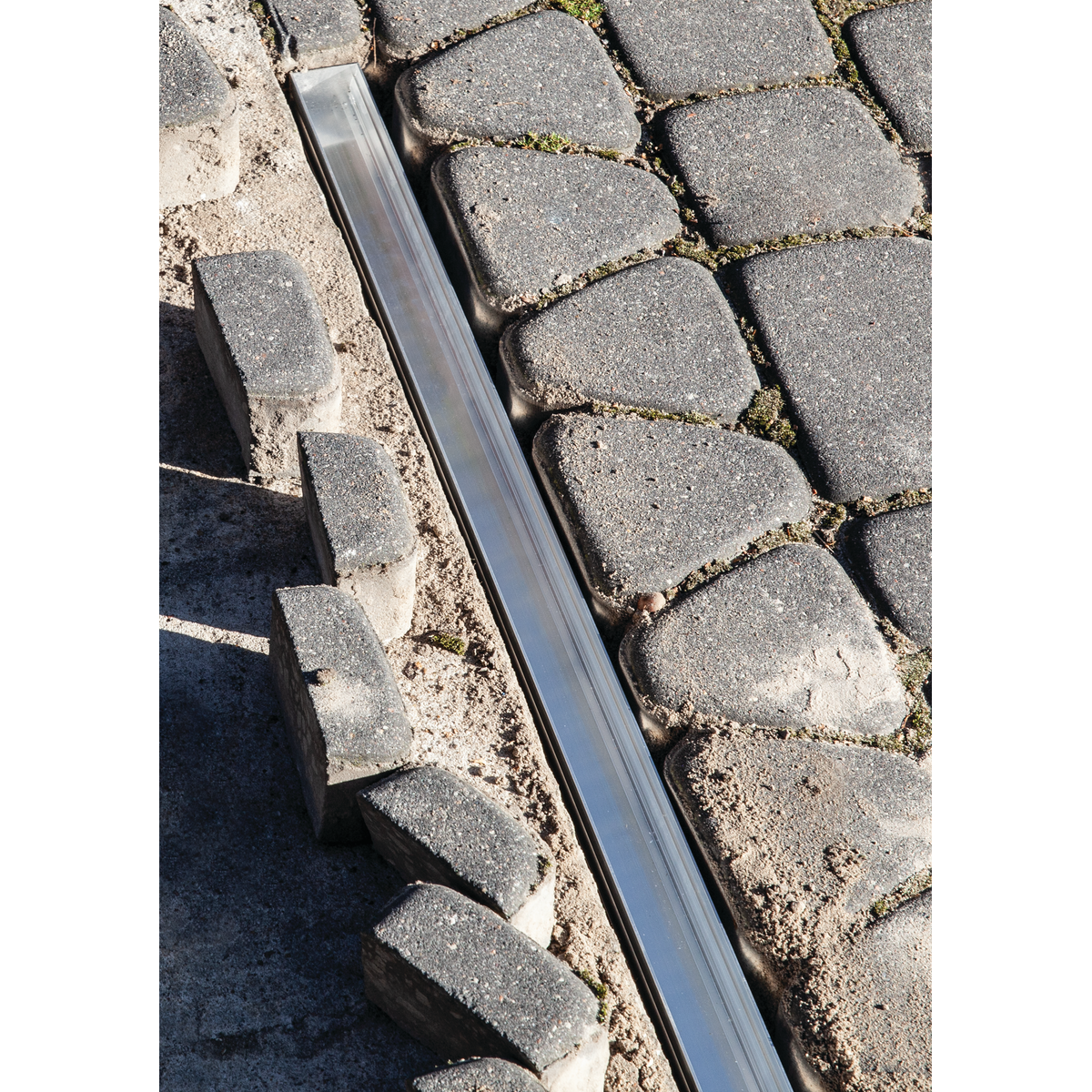

Usage examples

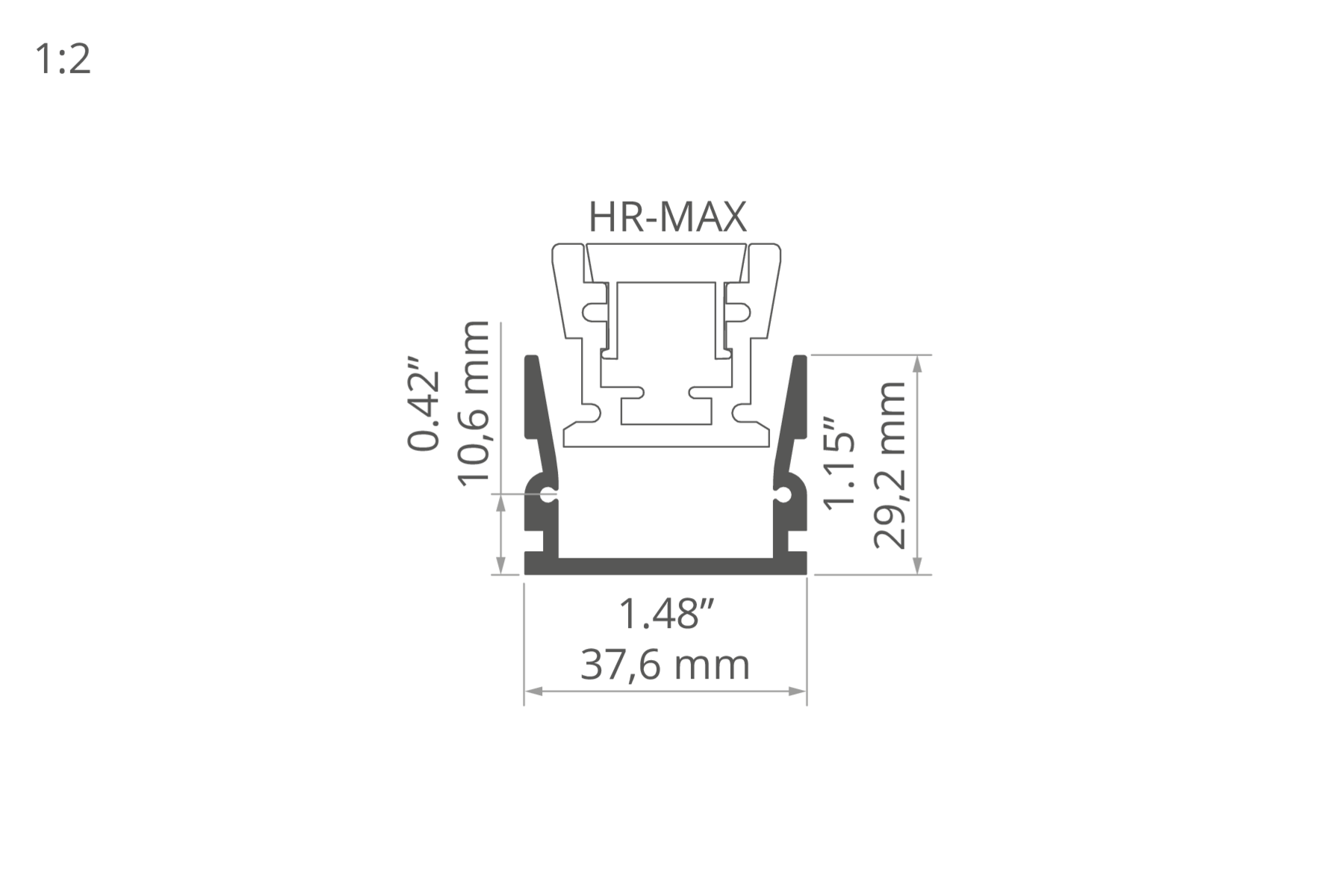

Technical drawing
HR-MAX-T Extrusion aluminum Technical drawing - A01827
Technical specification
Material
aluminum
Possible fixture shapes
linear
Profile cross-section
rectangular
Width
1.5" (37.6 mm)
Height
1.1" (29.2 mm)
Can be easily connected into runs
Yes
Corrosion resistance at high salinity
Yes
Building type
Outdoor, Commercial, Retail, Hotel / Restaurant
Facility zone
outdoor spaces, fascade lighting
Color Length Ref No
silver non anodized
39.4" (1000 mm)
78.9" (2005 mm)
118.5" (3010 mm)
A01827N_1
A01827N_2
A01827N_3
Related extrusions
HR-MAX
Ref No: A01829
similar profiles
For ground
HR-MAX-TW
Ref No: A01828
Related products
Product name Material Color Ref No

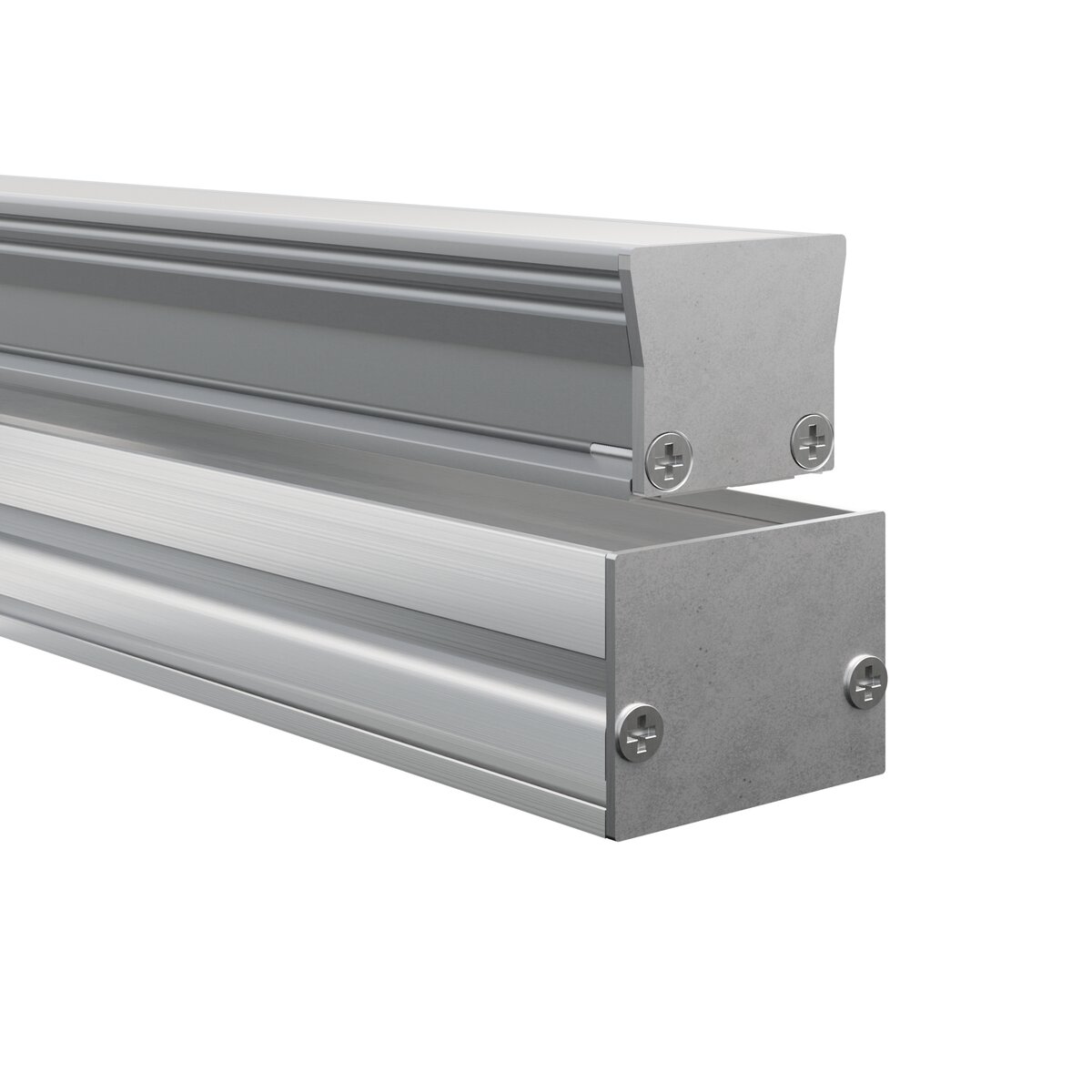

End cap HR-MAX-T-STN
stainless steel
silver
C28021N00
No results found for the selected filters.
Product name Material Color Ref No
ZM-NA Connector
stainless steel
silver
42339
ZM Connector
stainless steel
silver
black
colorless
C28075N00
C28072N00
42720
42728
C24797C07
C28072C07
C28075C07
C28070C07
C28071C07
C28073C07
C28074C07
C24797N00
ZM-PION Connector
stainless steel
silver
black
42718
42719
42320
C28086N00
C28084N00
42314
C28086C07
C28084C07
C28088C07
C28087C07
C28085C07
Product name Material Color Ref No
TECH-35 Protective insert
PVC
gray
C24534C02
Product name Material Color Ref No
Clip HR-MAX
PLA
red
C28059C00
No results found for the selected filters.
