HR-MAX-TW Extrusion

Ref No: A01828
HR-MAX-TW Extrusion
HR-MAX-TW Extrusion
  • Mounting track
  • Easy servicing of the HR-MAX Extrusion
  • For indoor|outdoor ground installation
  • Space for cable management
  • Compatibility with the HR-MAX-T mounting track
  • High mechanical resistance
For ground
Corrosion resistance at high salinity
Color
silver
  • Mounting track
  • Easy servicing of the HR-MAX Extrusion
  • For indoor|outdoor ground installation
  • Space for cable management
  • Compatibility with the HR-MAX-T mounting track
  • High mechanical resistance
Application
  • - makes mounting and service of the HR-MAX extrusion easy
Mounting
  • - in the ground, with mounting adhesive
  • - possibility to connect to the HR-MAX-TW extrusion to make a mounting track with sections for cables and accessories at intervals
Additional information
  • - in order to protect the lighting fixture during installation, a TECH-35 protective insert should be used
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

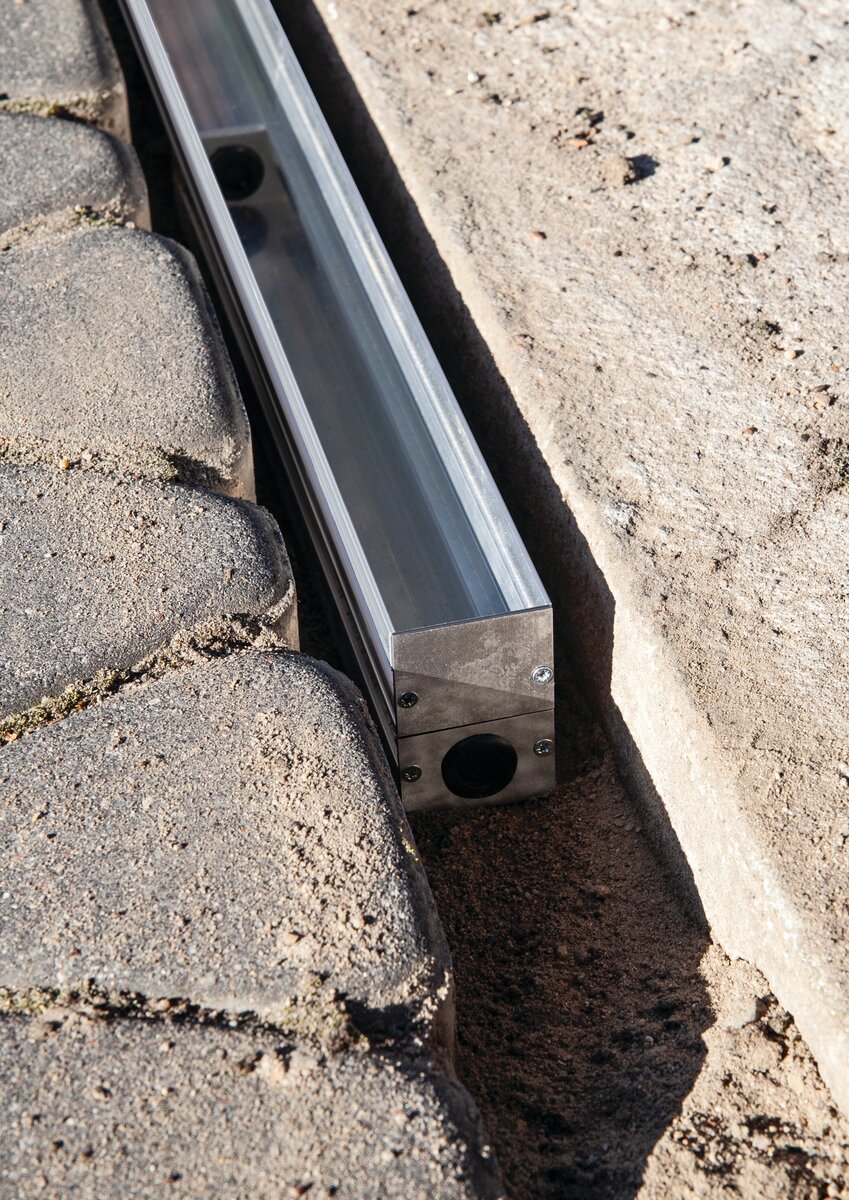

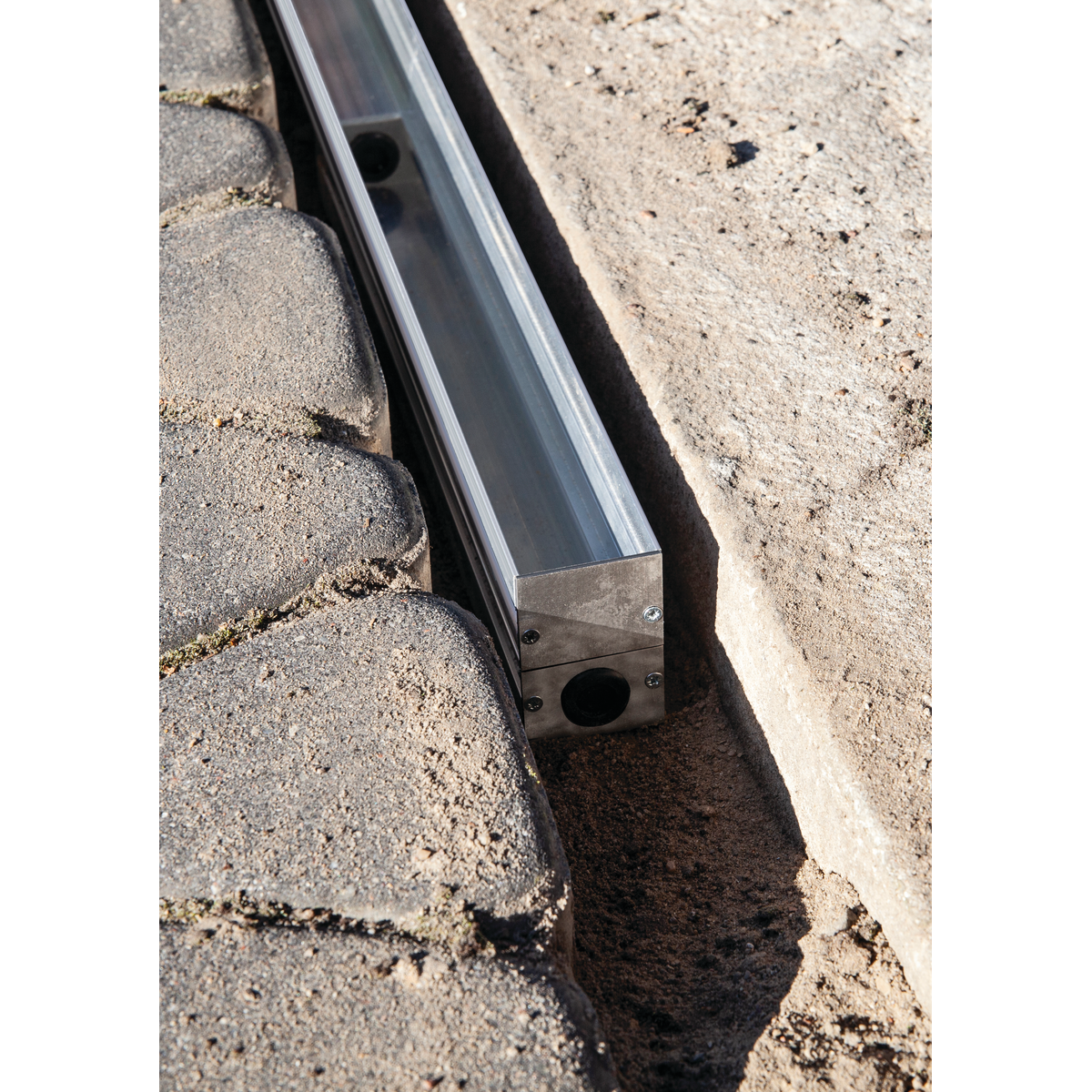

Usage examples

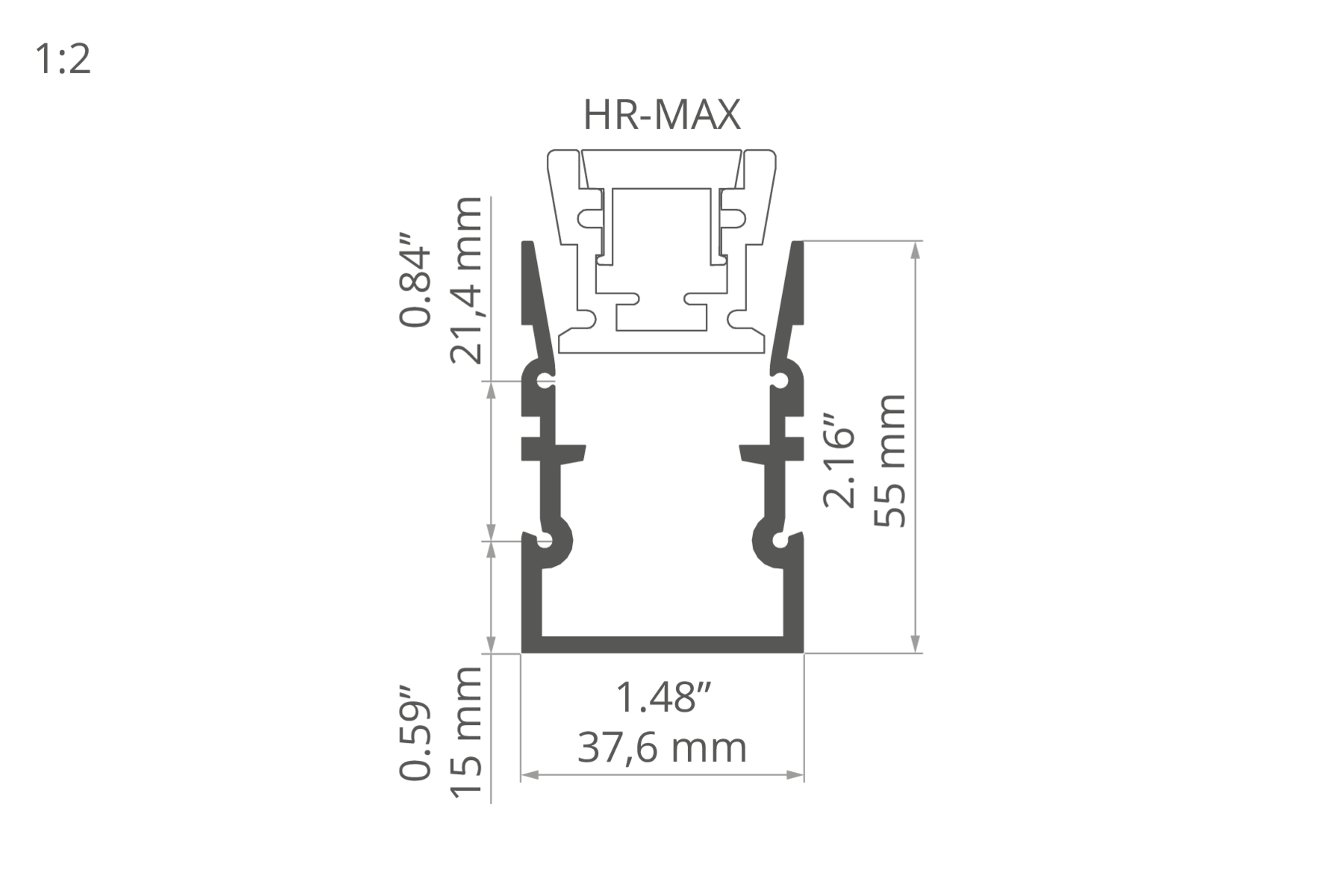

Technical drawing
HR-MAX-TW Extrusion aluminum Technical drawing - A01828
Technical specification
Material
aluminum
Possible fixture shapes
linear
Profile cross-section
rectangular
Width
1.5" (37.6 mm)
Height
2.2" (55 mm)
Can be easily connected into runs
Yes
Wire out end cap
Yes
Corrosion resistance at high salinity
Yes
Building type
Outdoor, Commercial, Retail, Hotel / Restaurant
Facility zone
outdoor spaces, fascade lighting
Color Length Ref No
silver non anodized
39.4" (1000 mm)
78.9" (2005 mm)
118.5" (3010 mm)
A01828N_1
A01828N_2
A01828N_3
