HR-SLIM-KOZ Extrusion (A00037)

Compare

Compared

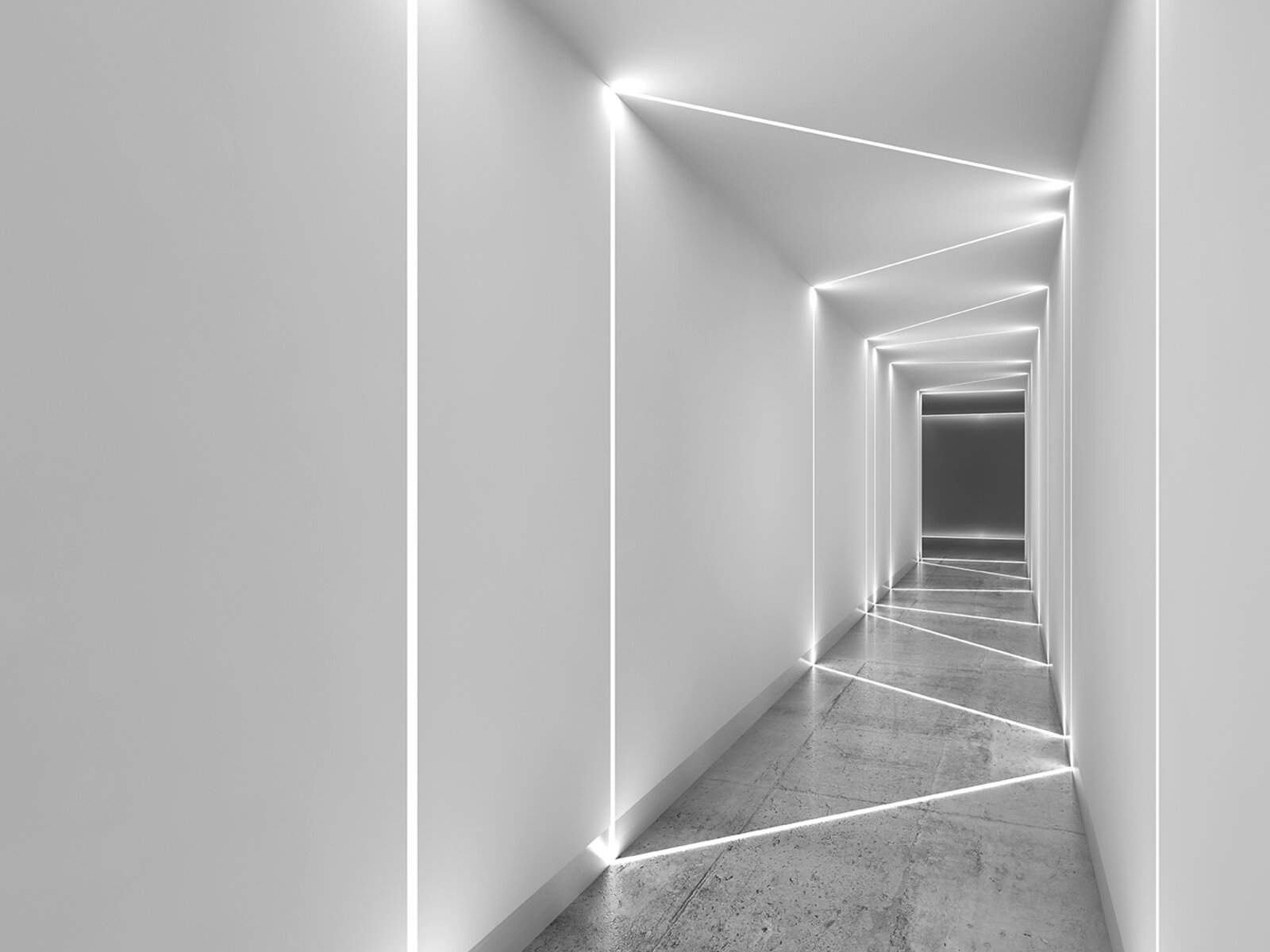

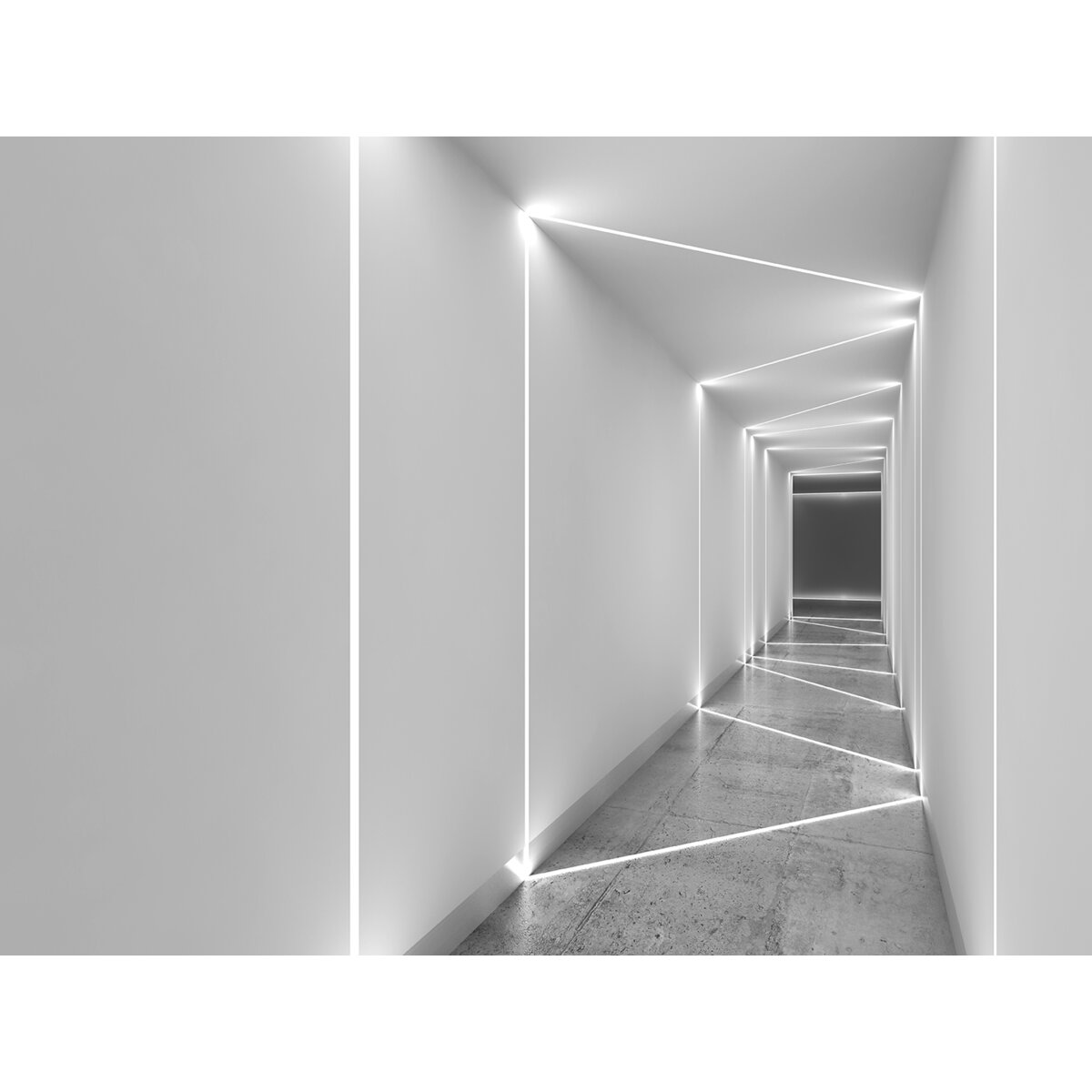

LED profile that enables the transition of a light line from the floor to the wall and then to the ceiling, creating uniform illumination without visible diodes
It is ideal for residential spaces, including dining rooms, bedrooms, living rooms, and bathrooms, allowing users to enhance interiors with the glow of light
Mounting to drywall
Sealing to IP65 is possible with a dedicated cover that is very easy to install – click-in system
No dimming effect of the light line towards corners or at profile connections
IP67 sealing can be achieved using silicone sealing

With the possibility of sealing up to IP20

With the possibility of sealing up to IP65

With the possibility of sealing up to IP67

Color

Description

LED profile that enables the transition of a light line from the floor to the wall and then to the ceiling, creating uniform illumination without visible diodes
It is ideal for residential spaces, including dining rooms, bedrooms, living rooms, and bathrooms, allowing users to enhance interiors with the glow of light
Mounting to drywall
Sealing to IP65 is possible with a dedicated cover that is very easy to install – click-in system
No dimming effect of the light line towards corners or at profile connections
IP67 sealing can be achieved using silicone sealing

Application

- decorative and signal lighting

Mounting

- in drywall, with mounting adhesive

download

Usage examples

Description
download

Application

- decorative and signal lighting

Mounting

- in drywall, with mounting adhesive

Declaration of Conformity UKCA

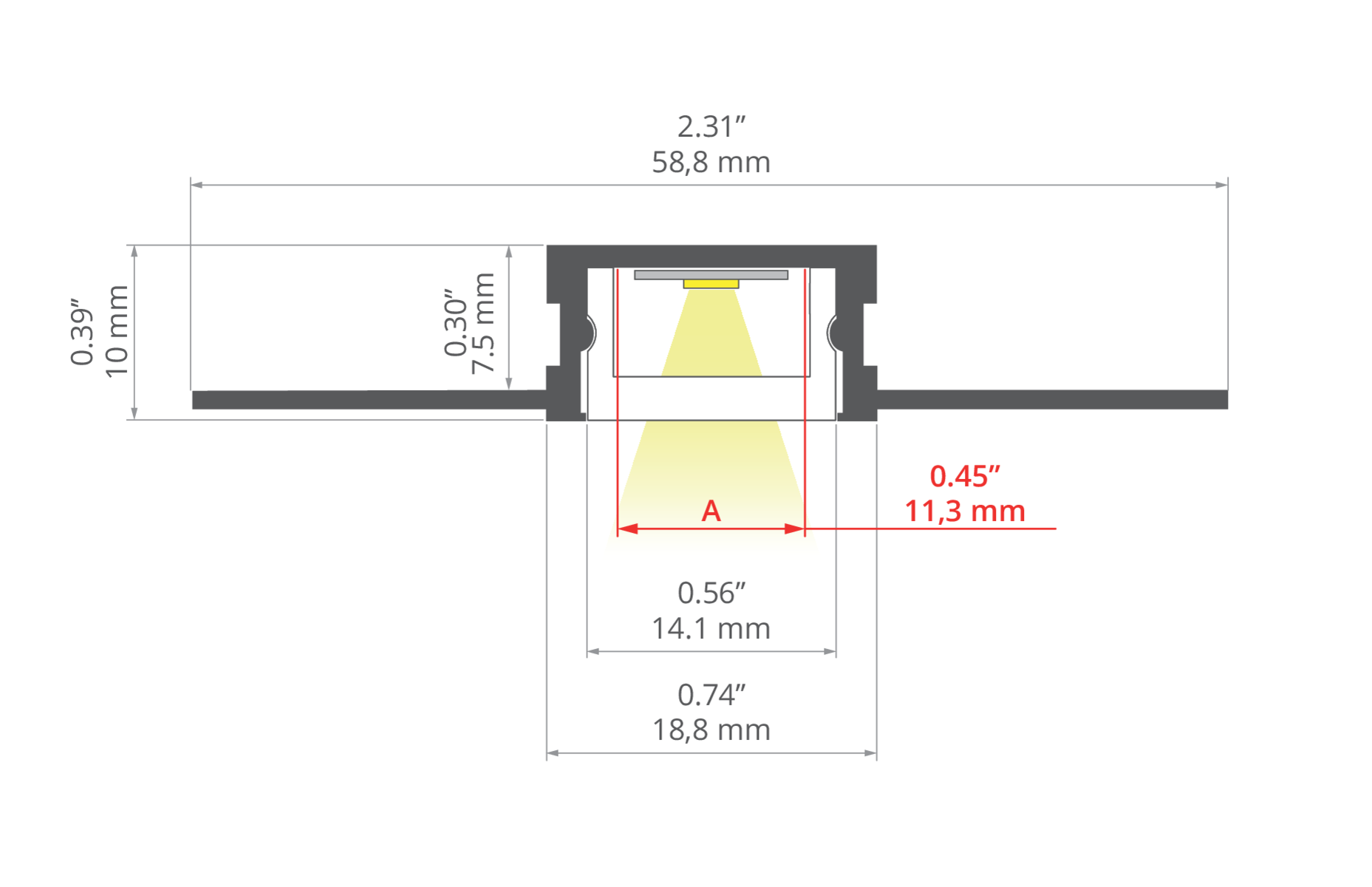

Technical drawing

Technical specification

Finish

non anodized

Material

aluminum

Possible fixture IP

20, 65, 67

Possible fixture shapes

linear, round, rectangular, polygonal

Profile cross-section

rectangular

Max power of a single KLUŚ LED strip

5.9 W/ft

Width

2.3" (58.8 mm)

Height

0.4" (10 mm)

LED gluing width A

0.4" (11 mm)

Mounting to drywall

Yes

To cover with plaster

Yes

Wire out back of extrusion

Yes

Impact protection IK08

Yes

Possibility of bending

Yes

Minimum radius of the light arc

Radius of the light arc

Yes

Inside

600 mm

Outward

1000 mm

Building type

Commercial, Residential, Hotel / Restaurant, Retail, Entertainment/ Arts

Facility zone

fitness / spa, kitchen, bathroom, wall lighting, under-cabinet / furniture, media rooms / av, conference room

Color	Length	Ref No
silver non anodized	78.9" (2005 mm) 118.5" (3010 mm)	A00037N_2 A00037N_3

similar profiles

Related products

Covers

Product name	Material	Key features	Light transmittance [%]	Color	Ref No
HR-IP-15 Cover	PC	- UV resistant - Sealing up to IP65 - High mechanical resistance (IK08, pressure up to 500 kg) - Suitable for use in bent luminaires	41 %	frosted	B17154F

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No

LED tapes
High Efficacy

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-HEHD-0480-24 LED tape, 141-198 lm/ft, IP20,	20	-	1.5 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0480-24 K-HEHD25-0480-24 K-HEHD27-0480-24 K-HEHD30-0480-24 K-HEHD35-0480-24 K-HEHD40-0480-24 K-HEHD50-0480-24
K-HEHD-0960-24 LED tape, 282-397 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-0960-24 K-HEHD25-0960-24 K-HEHD27-0960-24 K-HEHD30-0960-24 K-HEHD35-0960-24 K-HEHD40-0960-24 K-HEHD50-0960-24
K-HEHD-1440-24 LED tape, 423-595 lm/ft, IP20,	20	-	4.4 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-1440-24 K-HEHD25-1440-24 K-HEHD27-1440-24 K-HEHD30-1440-24 K-HEHD35-1440-24 K-HEHD40-1440-24 K-HEHD50-1440-24
K-HEHD-1920-24 LED tape, 560-784 lm/ft, IP20,	20	-	5.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95 - High Efficacy	K-HEHD22-1920-24 K-HEHD25-1920-24 K-HEHD27-1920-24 K-HEHD30-1920-24 K-HEHD35-1920-24 K-HEHD40-1920-24 K-HEHD50-1920-24
K-HEHD-0320-24 LED tape, 107-111 lm/ft, 114 lm/W, IP20,	20	-	1 W/ft	2700K 3000K 3500K 4000K	- CRI over 95 - High Efficacy	K-HEHD27-0320-24 K-HEHD30-0320-24 K-HEHD35-0320-24 K-HEHD40-0320-24

LED tapes
CRI 95+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-CR-1220-24 LED tape, 151-240 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- CRI over 95	K-CR22-1220-24 K-CR25-1220-24 K-CR27-1220-24 K-CR30-1220-24 K-CR35-1220-24 K-CR40-1220-24 K-CR50-1220-24

LED tapes
RGB / RGB-W / RGB-CTT

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-RGBW-1920-120-24 LED tape, 3000K, 296 lm/ft, IP20	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-120-24
KWP-GRGBW-1530-24 LED tape, 3000K, 193 lm/ft, 4.7 W/ft, IP65	65	gel cover	4.7 W/ft	RGB+W 3000K	- RGBW (3000K)	KWP-GRGBW-1530-24
K-RGBW-1920-160-24 LED tape, 3000K, 404 lm/ft, 5.9 W/ft, IP20,	20	-	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	K-RGBW-1920-160-24
KWP-GRGBW-1920-120-24 LED tape, 3000K, 279 lm/ft, 5.9 W/ft, IP65,	65	silicon sleeve	5.9 W/ft	RGB+W 3000K	- RGBW (3000K)	KWP-GRGBW-1920-120-24

LED tapes
Adjustable White / Dim to Warm

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-SDCR-22T50-1530-24 LED tape, 2200K, 497 lm/ft, 4.7 W/ft, IP20	20	-	4.7 W/ft	2200K	- Tuneable white 2200K-5000K	K-SDCR-22T50-1530-24
KWP-SDCR-22T50-1530-24 LED tape, 2200K, 435 lm/ft, 4.7 W/ft, IP65	65	silicon sleeve	4.7 W/ft	2200K	- Tuneable white 2200K-5000K	KWP-SDCR-22T50-1530-24

LED tapes
Single diode cuttable

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-SD-1440-24 LED tape, 669-701 lm/ft, IP20,	20	-	4.4 W/ft	2700K 3000K 3500K 4000K		K-SD27-1440-24 K-SD30-1440-24 K-SD35-1440-24 K-SD40-1440-24

Accessories
End caps
Standard end caps

Product name	Material	Color	Ref No
HR-SLIM End cap	stainless steel	silver	C28302C01
