K-HEHD-1440-24 LED tape, 423-595 lm/ft, IP20, (K-HEHD-1440-24)

Compare

Compared

Dimensions:

Width [W]: 0.4" (10 mm)

Height [H]: 0.1" (1.6 mm)

Max run length [L]: 24'00" (7.3152 m)

Cut every [C]: 2" (50 mm)

LED spacing: 0.2" (5.5 mm)

CRI up to 97/ R9 values up to 99
Efficiency up to 128 lm|W
Lumen output up to 595 lm/ft
3-Step MacAdam’s ellipse, single binning
Superior color consistency and dimming performance
Suitable for Installation in the Storage Area of a Clothes Closet

download

download

Technical specification

IP protection rating

CRI

LxBy

L80B50

Lifetime

60000 h

Input voltage

24 V DC

Power consumption

4.4 W/ft

Beam angle

120°

MacAdam’s ellipse

3 SDCM

Height [H]

0.1" (1.6 mm)

Width [W]

0.4" (10 mm)

Cut every [C]

2" (50 mm)

LED spacing

0.2" (5.5 mm)

Number of LEDs per 1 ft

Number of LEDs per cut section

8 pcs

Max run length [L]

24'00" (7.3152 m)

Closet Rated

Yes

JA8 / TITLE24 Compliant

Yes

Dimmable

Yes

Working temperature

-22°F - 140°F

LED color	LED output	Efficiency	Ref No
2200K	423 lm/ft	96 lm/W	K-HEHD22-1440-24
2500K	464 lm/ft	106 lm/W	K-HEHD25-1440-24
2700K	516 lm/ft	117 lm/W	K-HEHD27-1440-24
3000K	516 lm/ft	117 lm/W	K-HEHD30-1440-24
3500K	541 lm/ft	123 lm/W	K-HEHD35-1440-24
4000K	560 lm/ft	128 lm/W	K-HEHD40-1440-24
5000K	595 lm/ft	136 lm/W	K-HEHD50-1440-24

TM-30+ Data

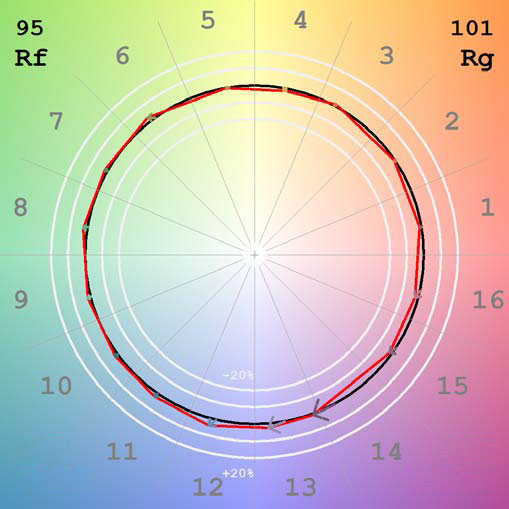

22K CCT

Hue Bin	Rf	Chroma	Hue
1	96	-1	0.01
2	96	0	0.01
3	97	1	-0.01
4	96	-1	-0.02
5	96	0	0.01
6	94	3	0.04
7	97	2	0.00
8	95	2	0.01
9	96	2	0.00
10	97	2	0.00
11	96	2	-0.01
12	92	4	-0.04
13	88	2	-0.10
14	87	-2	-0.14
15	93	-2	-0.05
16	92	-2	-0.04

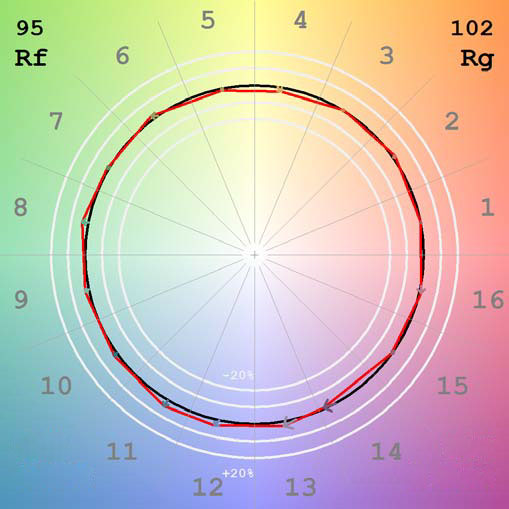

25K CCT

Hue Bin	Rf	Chroma	Hue
1	97	0	0.01
2	96	1	0.00
3	96	1	-0.01
4	95	-2	-0.03
5	97	-1	0.01
6	95	2	0.03
7	95	1	0.02
8	95	4	0.00
9	95	2	0.01
10	96	2	0.00
11	94	4	0.00
12	93	3	-0.02
13	93	3	-0.08
14	87	-2	-0.07
15	94	-1	-0.02
16	93	1	-0.04

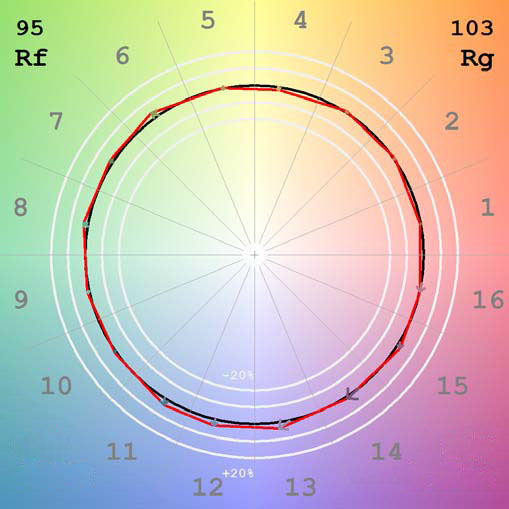

27K CCT

Hue Bin	Rf	Chroma	Hue
1	97	-1	0.00
2	97	0	0.00
3	95	1	0.01
4	96	-2	-0.01
5	96	1	0.02
6	93	4	0.03
7	95	2	0.00
8	95	3	-0.02
9	97	1	0.00
10	98	1	0.01
11	94	3	0.02
12	93	4	0.00
13	93	3	-0.07
14	87	1	-0.08
15	94	2	-0.03
16	92	0	-0.05

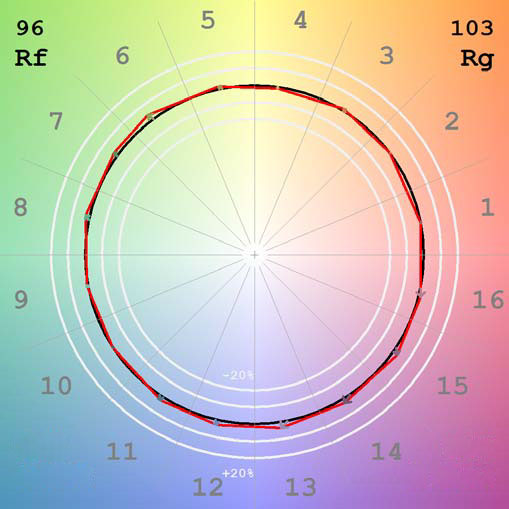

30K CCT

Hue Bin	Rf	Chroma	Hue
1	97	0	-0.01
2	98	0	0.00
3	96	1	0.02
4	96	-1	0.00
5	96	2	0.02
6	94	4	0.01
7	95	3	-0.01
8	95	2	-0.02
9	97	1	-0.01
10	98	0	0.00
11	95	2	0.02
12	94	3	0.01
13	95	3	-0.04
14	91	2	-0.06
15	94	3	-0.03
16	93	1	-0.05

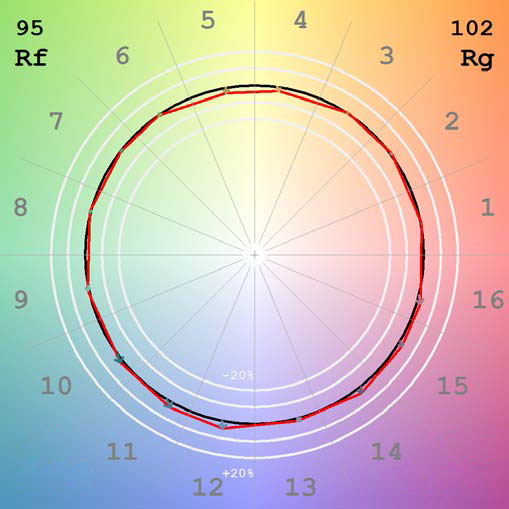

35K CCT

Hue Bin	Rf	Chroma	Hue
1	97	0	0.00
2	97	1	-0.01
3	97	0	0.00
4	95	-2	-0.02
5	95	-3	0.00
6	96	0	0.02
7	96	0	0.02
8	98	1	0.00
9	96	1	0.03
10	93	1	0.04
11	92	3	0.05
12	93	4	0.01
13	96	1	-0.02
14	94	3	-0.02
15	91	2	-0.02
16	93	2	-0.04

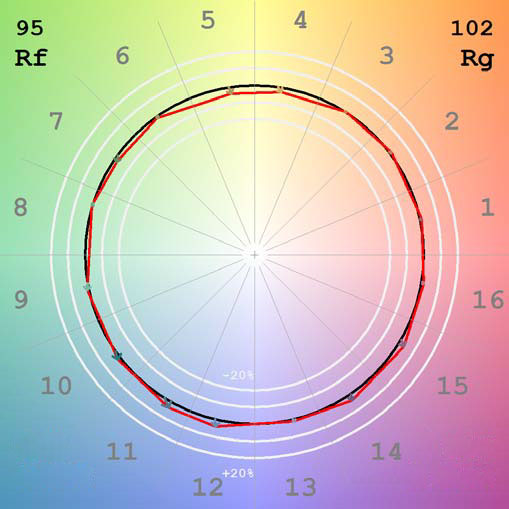

40K CCT

Hue Bin	Rf	Chroma	Hue
1	96	1	0.00
2	97	1	-0.01
3	96	1	-0.01
4	94	-2	-0.02
5	94	-4	-0.01
6	97	0	0.01
7	93	-2	0.03
8	97	1	0.01
9	94	1	0.04
10	93	1	0.04
11	92	3	0.05
12	93	4	0.01
13	97	1	-0.02
14	95	3	-0.02
15	91	4	-0.03
16	95	1	-0.01

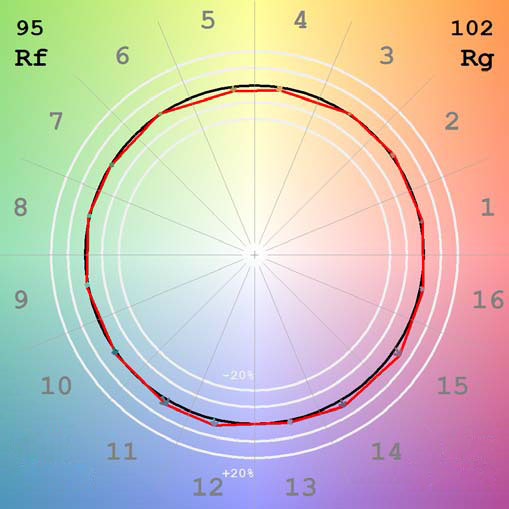

50K CCT

Hue Bin	Rf	Chroma	Hue
1	96	1	0.00
2	96	1	-0.01
3	96	1	-0.01
4	96	-2	-0.02
5	95	-2	0.00
6	97	1	0.01
7	95	0	0.02
8	97	1	0.01
9	96	1	0.02
10	95	1	0.03
11	93	3	0.05
12	94	3	0.01
13	96	1	-0.02
14	95	4	-0.01
15	91	4	-0.02
16	95	2	-0.01
