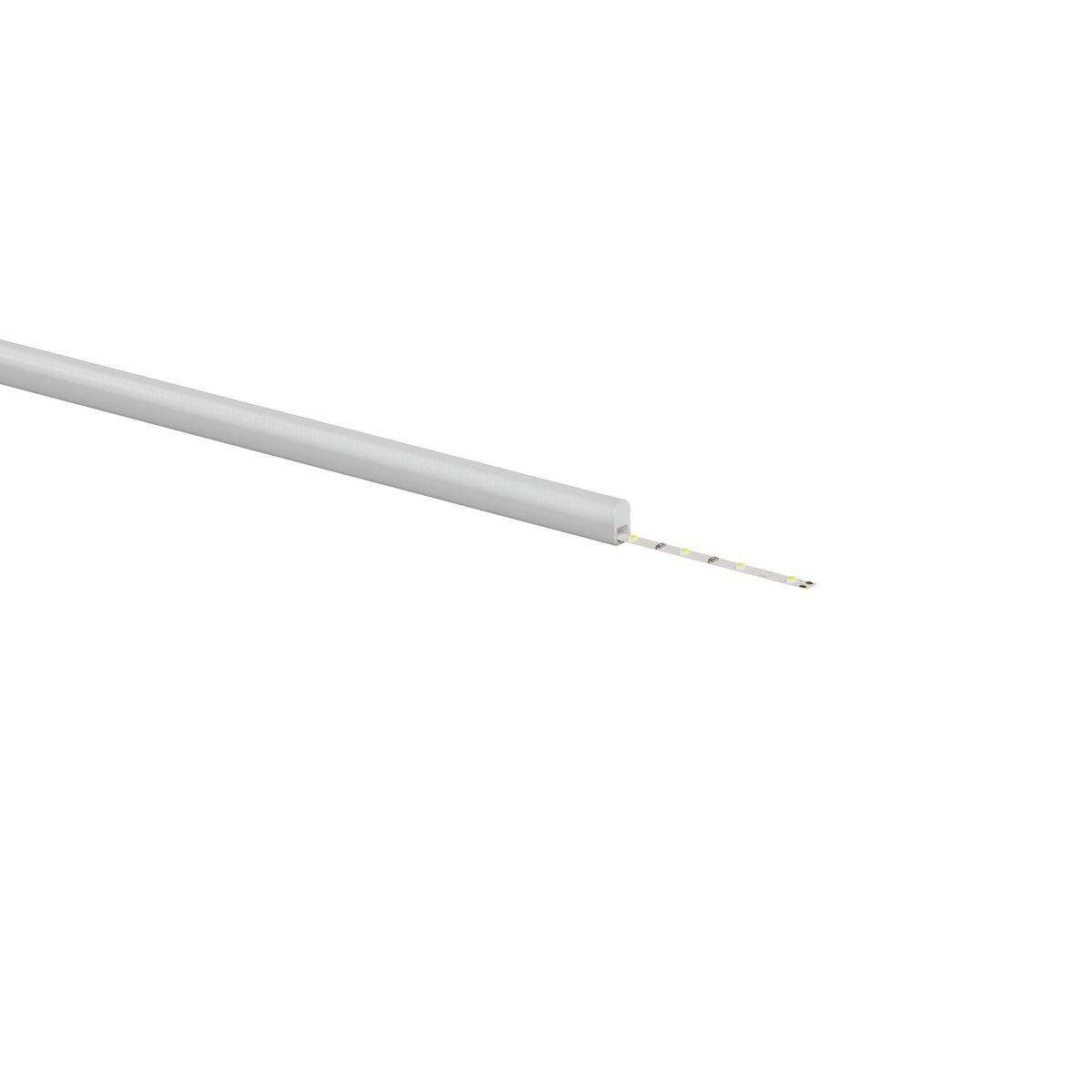

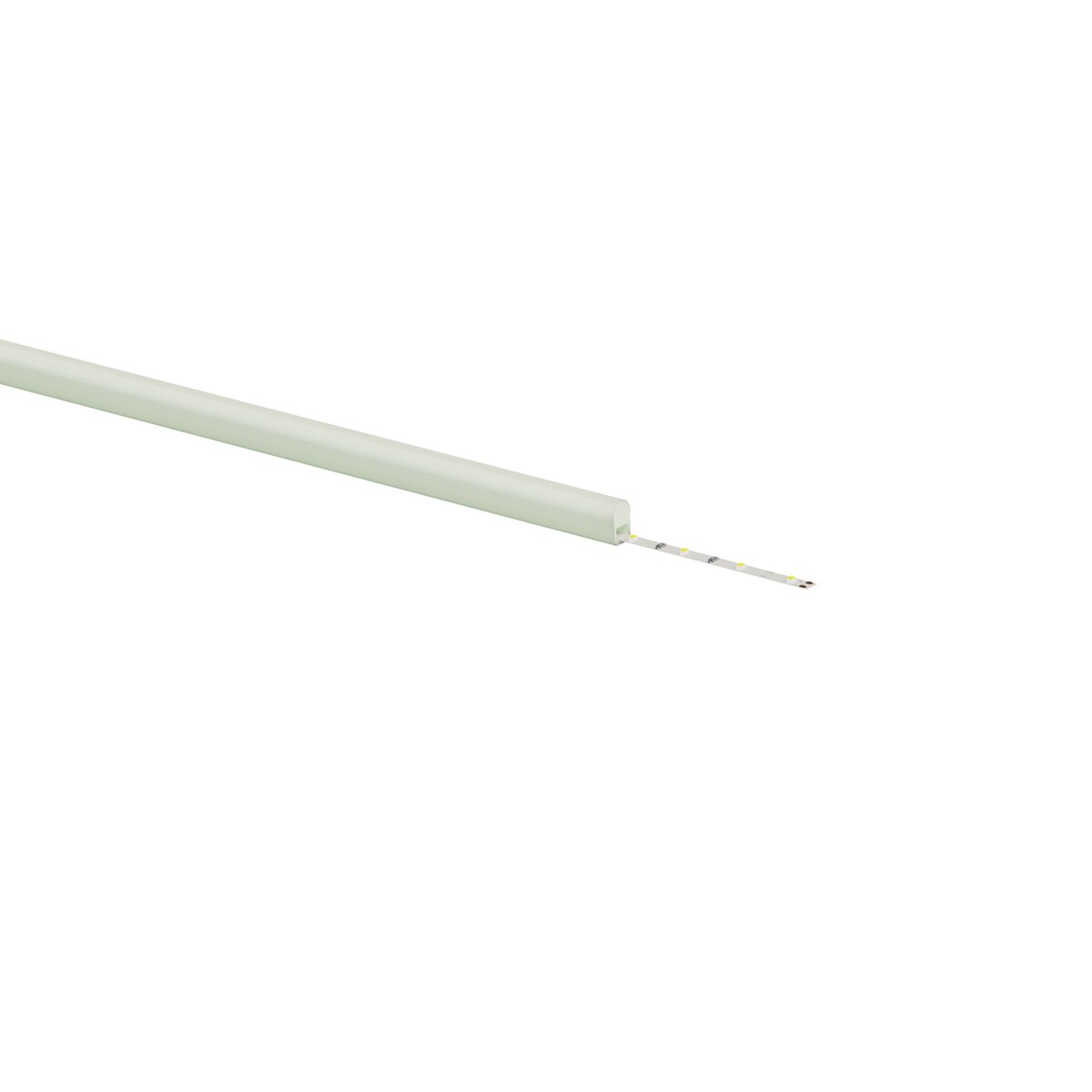

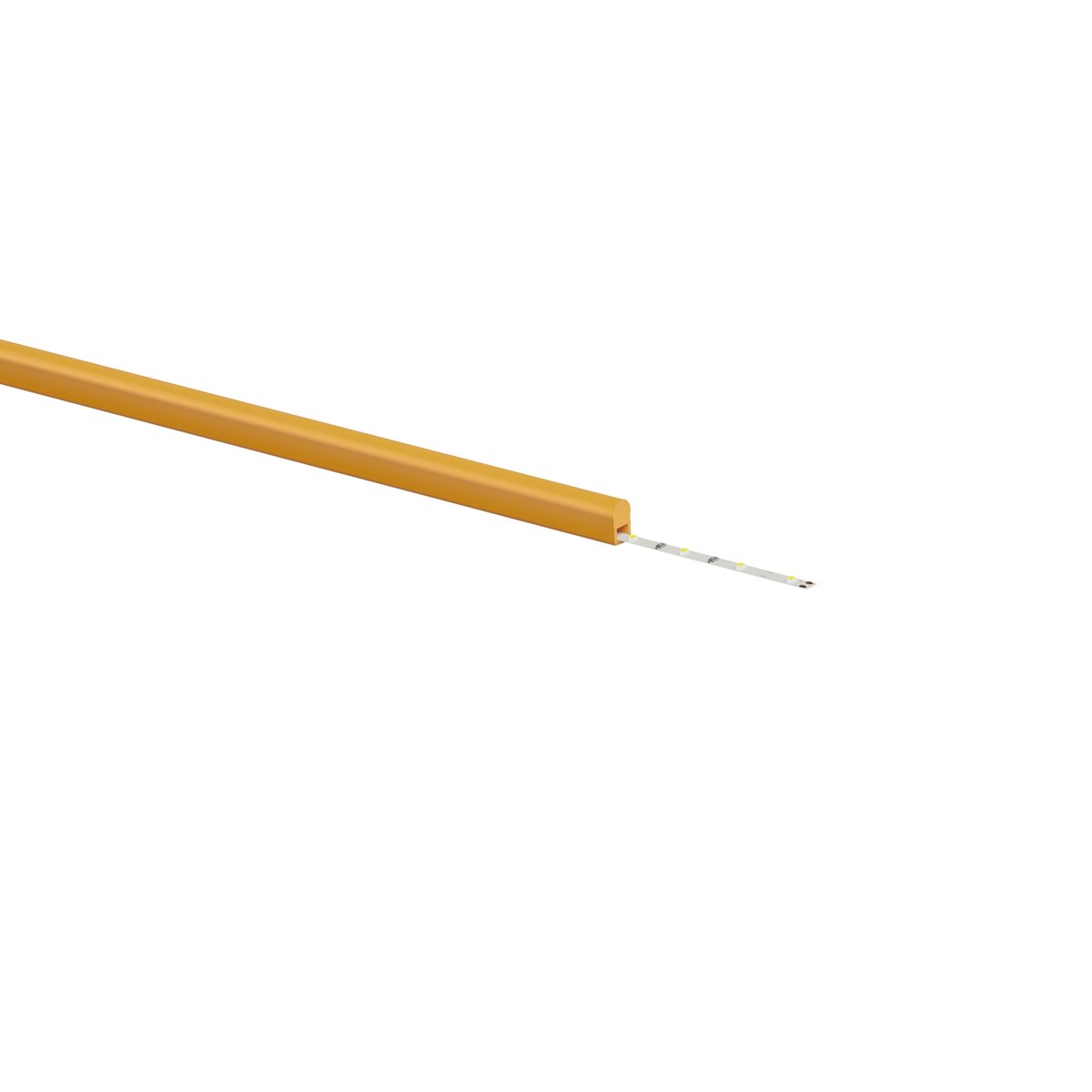

KWP-3SL-0480-24 LED tape, 31-137 lm/ft, IP65 (KWP-3SL-0480-24)

Compare

Compared

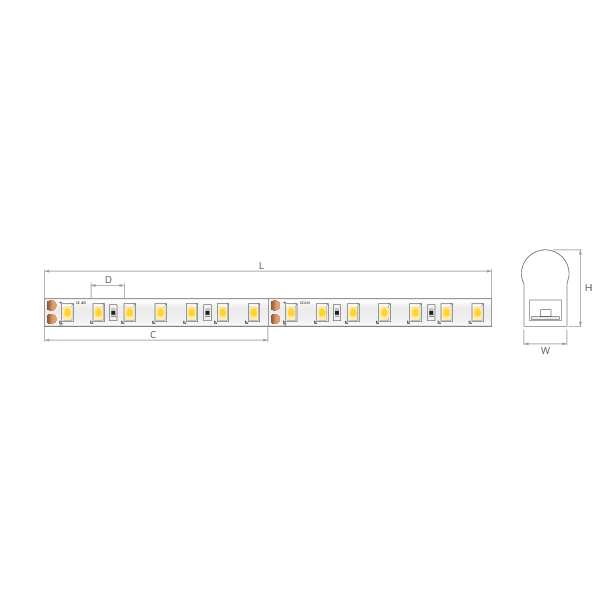

Dimensions:

Width [W]: 0.2" (5 mm)

Height [H]: 0.4" (9 mm)

Max run length [L]: 11'05" (3.5 m)

Cut every [C]: 1.5" (38.5 mm)

Dimensions:

Width [W]: 0.2" (5 mm)

Height [H]: 0.4" (9 mm)

Max run length [L]: 11'05" (3.5 m)

Cut every [C]: 1.5" (38.5 mm)

Dimensions:

Width [W]: 0.2" (5 mm)

Height [H]: 0.4" (9 mm)

Max run length [L]: 11'05" (3.5 m)

Cut every [C]: 1.5" (38.5 mm)

Dimensions:

Width [W]: 0.2" (5 mm)

Height [H]: 0.4" (9 mm)

Max run length [L]: 11'05" (3.5 m)

Cut every [C]: 1.5" (38.5 mm)

Many colors of the sealing sleeve, including phosphorescent
For the construction of sealed lighting fixtures

Description

Many colors of the sealing sleeve, including phosphorescent
For the construction of sealed lighting fixtures

Additional information

- NOTE! LED tapes in a silicone sleeve, with a degree of protection IP65 are made to the size specified by the customer only by KLUŚ

download

Specification sheet

Usage examples

Description
download

Additional information

- NOTE! LED tapes in a silicone sleeve, with a degree of protection IP65 are made to the size specified by the customer only by KLUŚ

Specification sheet

Technical specification

IP protection rating

Sealing type

silicon sleeve

Color temperature

4000 K

Input voltage

24 V DC

Power consumption

1.5 W/ft

Height [H]

0.4" (9 mm)

Width [W]

0.2" (5 mm)

Cut every [C]

1.5" (38.5 mm)

Number of LEDs per 1 ft

Number of LEDs per cut section

8 pcs

Max run length [L]

11'05" (3.5 m)

Dimmable

Yes

Working temperature

-20°F - 140°F

LED color	LED output	Efficiency	Ref No
phosphorescent	118 lm/ft	80 lm/W	KWP-3NSL40-0480-24
4000K	118 lm/ft 31 lm/ft 137 lm/ft	80 lm/W 21 lm/W 94 lm/W	KWP-3NSL40-0480-24 KWP-3RSL40-0480-24 KWP-3YSL40-0480-24
orange	31 lm/ft	21 lm/W	KWP-3RSL40-0480-24
gray	137 lm/ft	94 lm/W	KWP-3YSL40-0480-24

Related extrusions

Product name	IP rating	Key features	Ref No(Ref. arch.)
RGB+CCT, Wlightbox Controller	20		E60235
Controller LED MONO, Wlightboxs 120W IP20	20		E60228

KWP-3SL-0480-24 LED tape, 31-137 lm/ft, IP65 1.5 W/ft
