ROGER Extrusion

Ref No: A06885
  • For installation on wall corners
  • Space provided for an electrical connector
  • Colorful covers, including fluorescent
  • Possibility of continuing the light line in the corner
  • For installation on wall corners
  • Space provided for an electrical connector
  • Colorful covers, including fluorescent
  • Possibility of continuing the light line in the corner
Application
  • - warning lighting and corner protection
Mounting
  • - to the corner using glue
Additional information
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

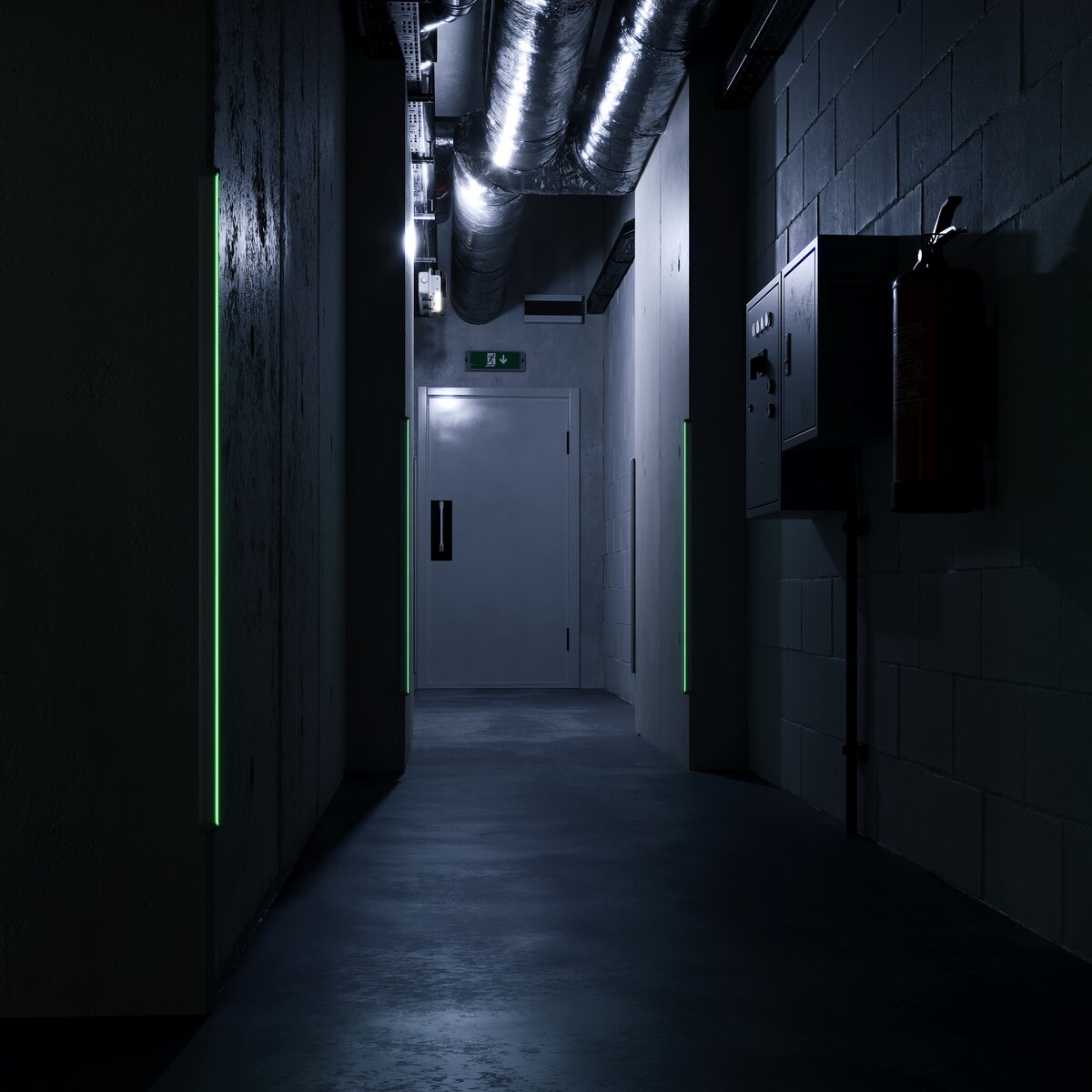

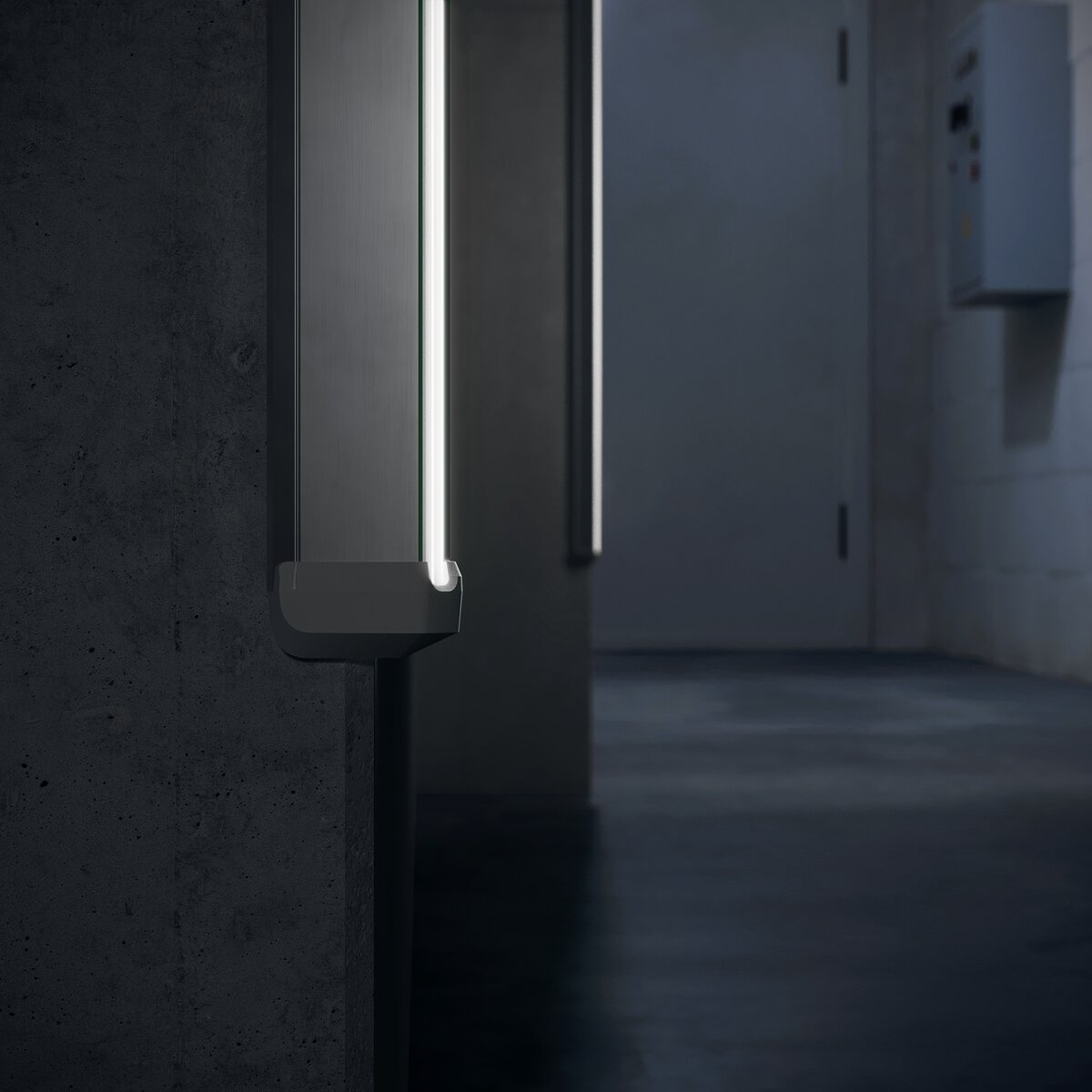

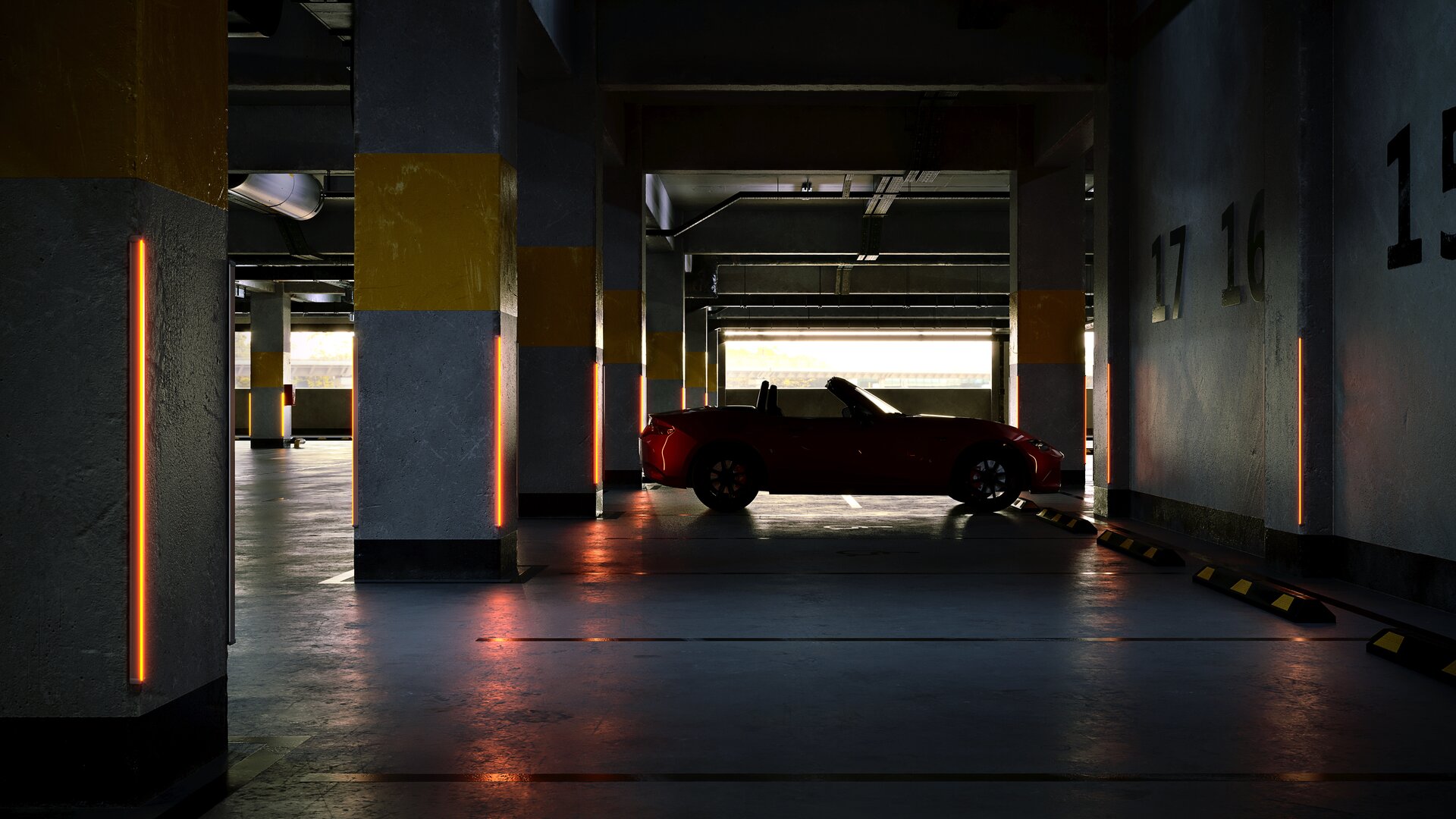

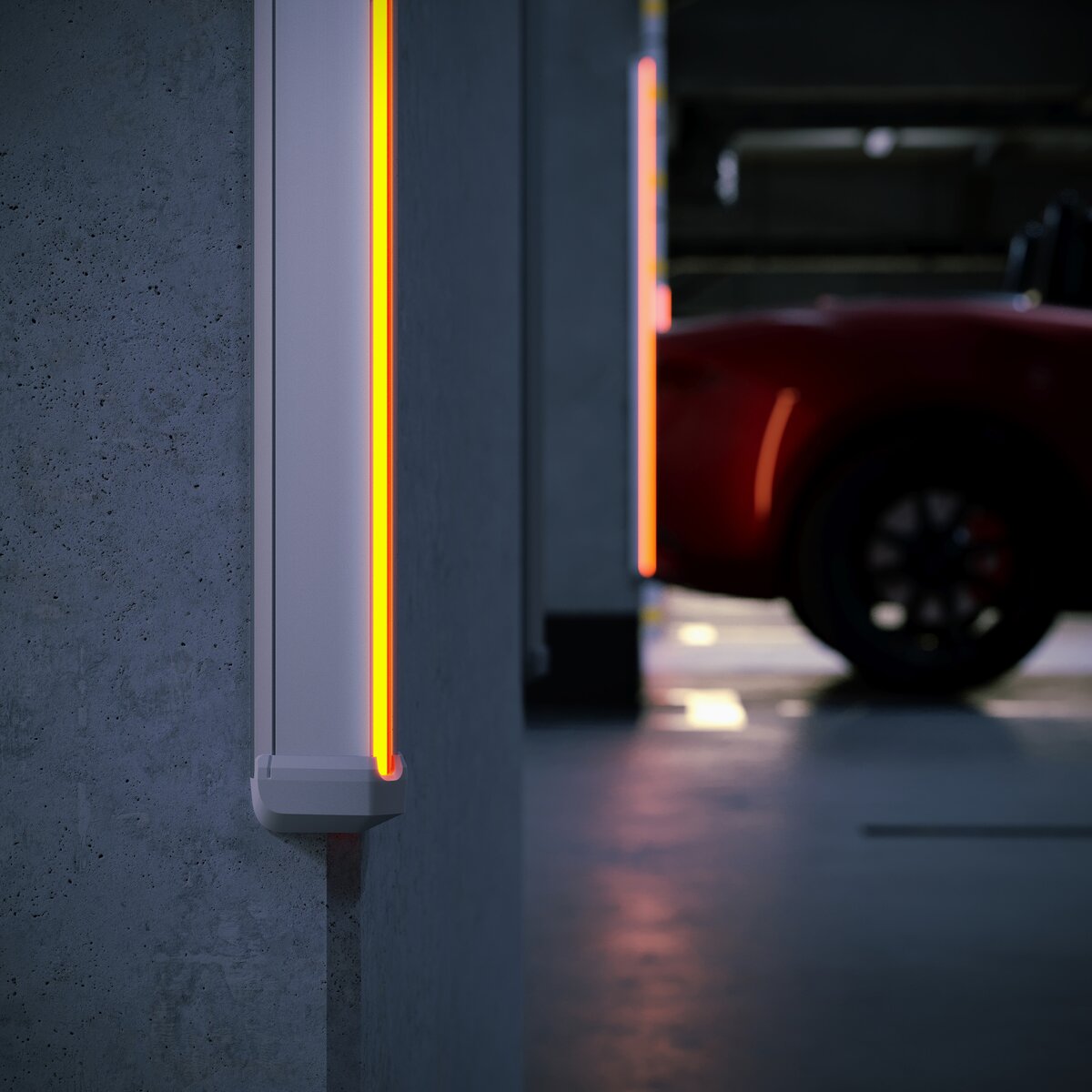

Usage examples

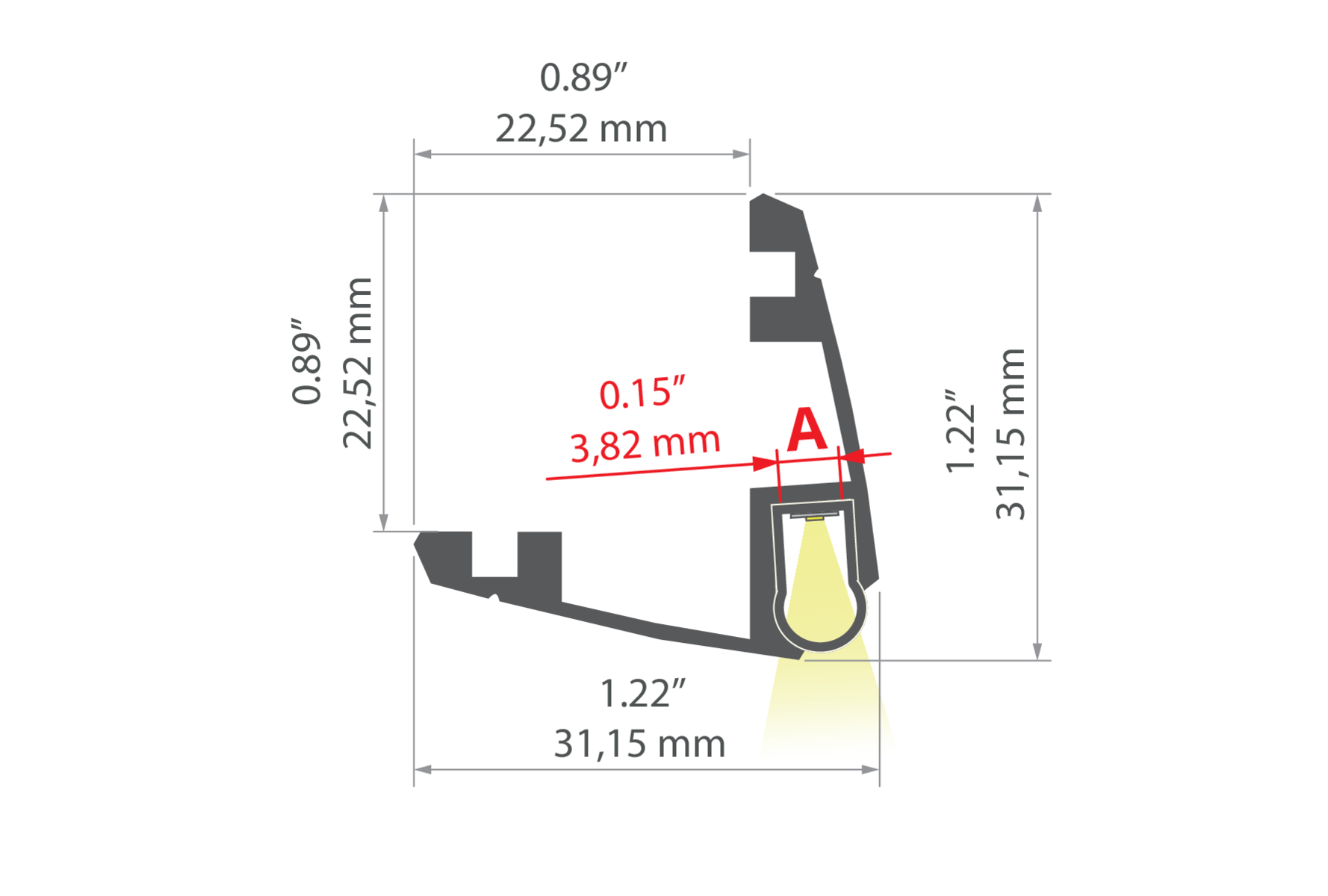

Technical drawing
Technical specification
Material
aluminum
Possible fixture IP
20, 65
Possible fixture shapes
linear
Max power of a single KLUŚ LED strip
1.5 W/ft
Width
1.2" (31.1 mm)
Height
1.2" (31.1 mm)
LED gluing width A
0.2" (4 mm)
The cover is cut to the length of the profile
Yes
Can be easily connected into runs
Yes
Warning lighting
Yes
Wire out back of extrusion
Yes
Building type
Commercial, Retail, Outdoor
Facility zone
parking / garage / driveway, decorative
Color Length Ref No
black anodized
78.7" (2000 mm)
A06885A07_2
silver anodized
78.7" (2000 mm)
A06885A_2
