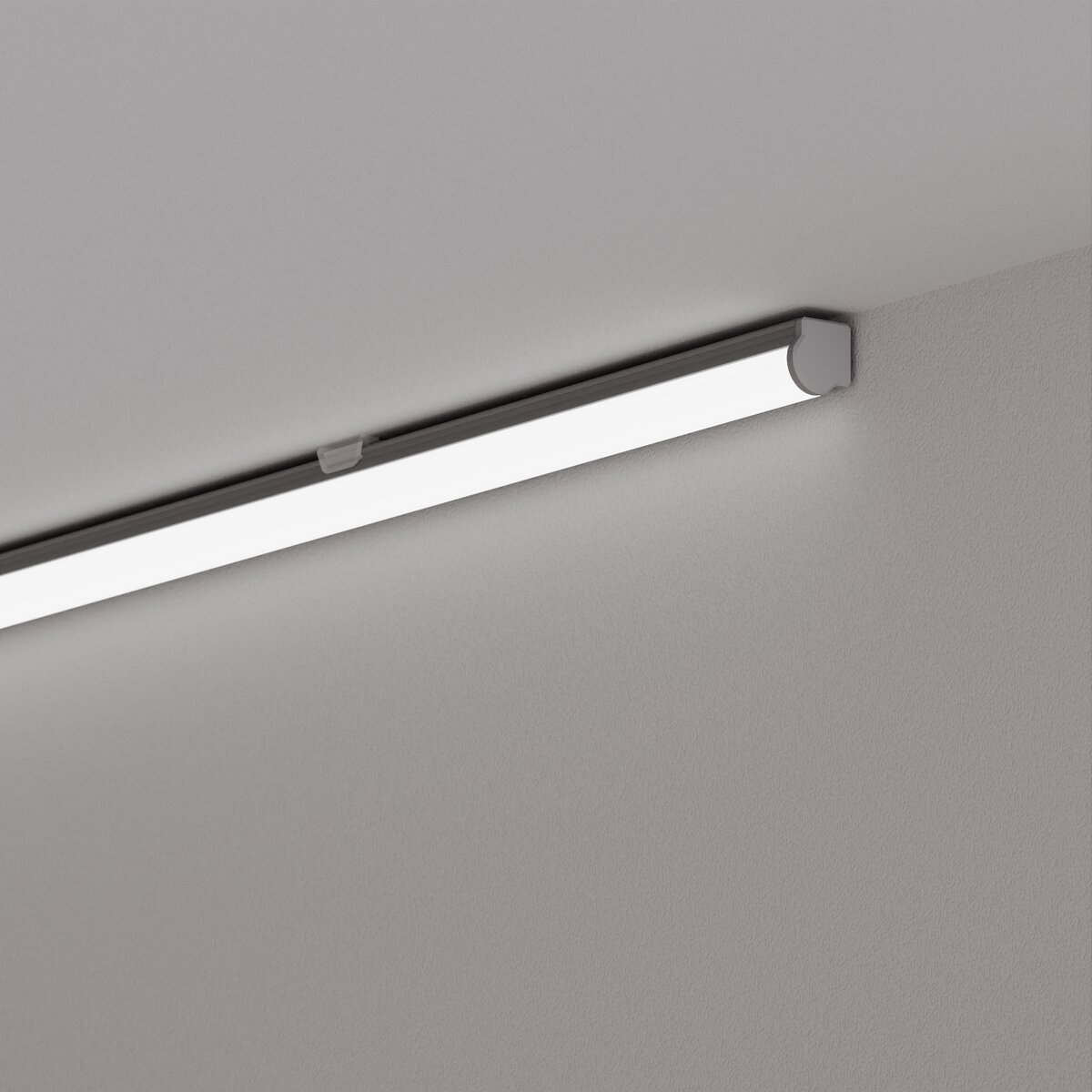

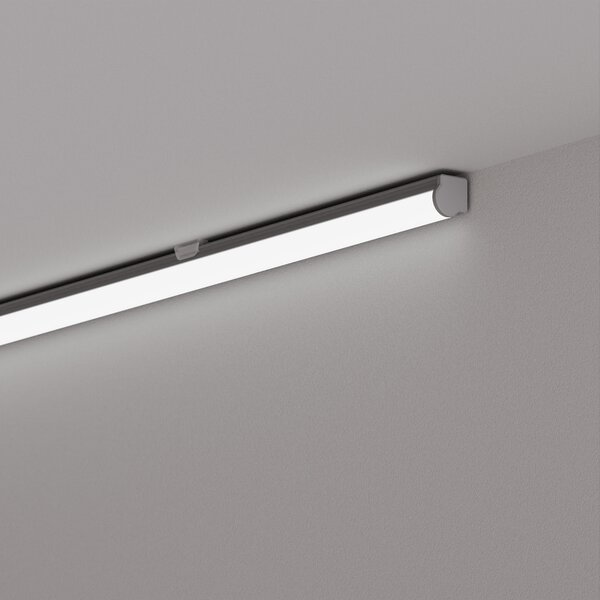

PIKO-45 Extrusion (A00014)

Compare

Compared

The smallest 45-degree angle lighting profile on the market
Compact dimensions allow the profile to be hidden in niches and recesses
Possibility of installing sealed 5K series LED strips
A wide range of accessories and mounting options
Possibility to integrate a touchless UNI switch

With the possibility of sealing up to IP20

With the possibility of sealing up to IP65

Configure

Color

Description

The smallest 45-degree angle lighting profile on the market
Compact dimensions allow the profile to be hidden in niches and recesses
Possibility of installing sealed 5K series LED strips
A wide range of accessories and mounting options
Possibility to integrate a touchless UNI switch

Application

- furniture, under-cabinet and decorative lighting

Mounting

- to the surface, suspended or recessed, using dedicated accessories, properly selected screws, with double-sided adhesive tape or mounting adhesive
- easy assembly and disassembly by snapping in and out

Additional information

- for suspending small-size extrusion, it is recommended to use a wire with a diameter of 0.5 mm
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

download

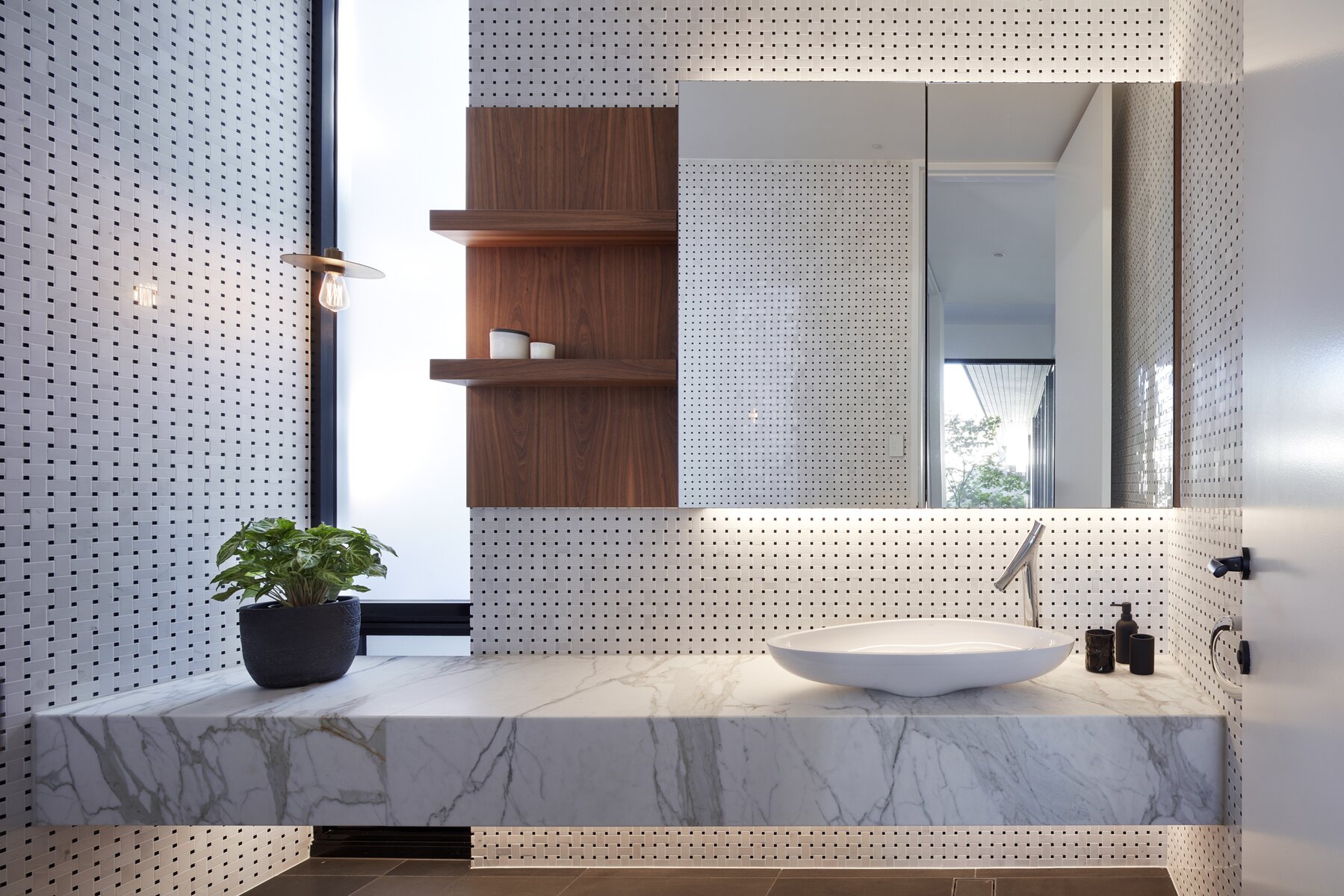

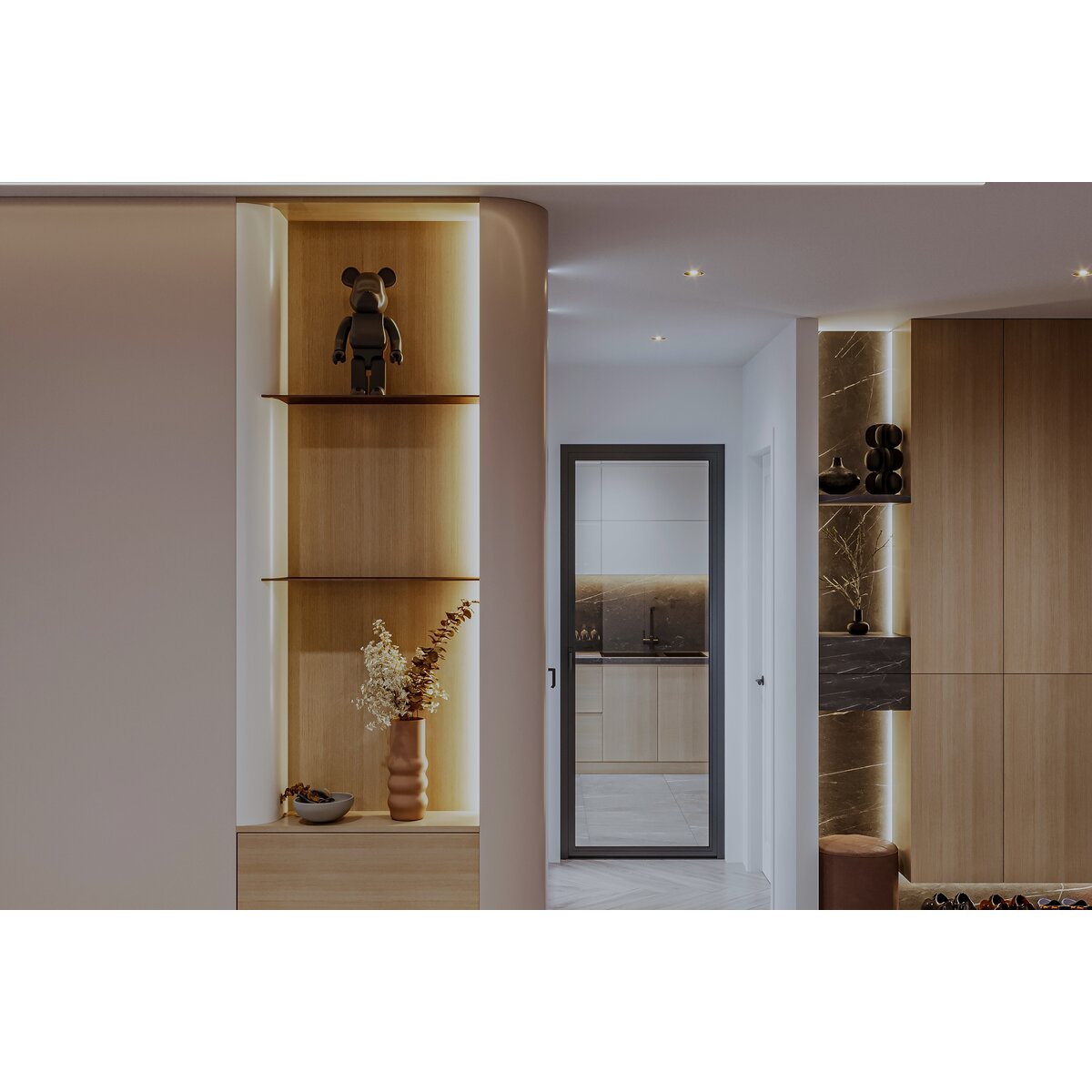

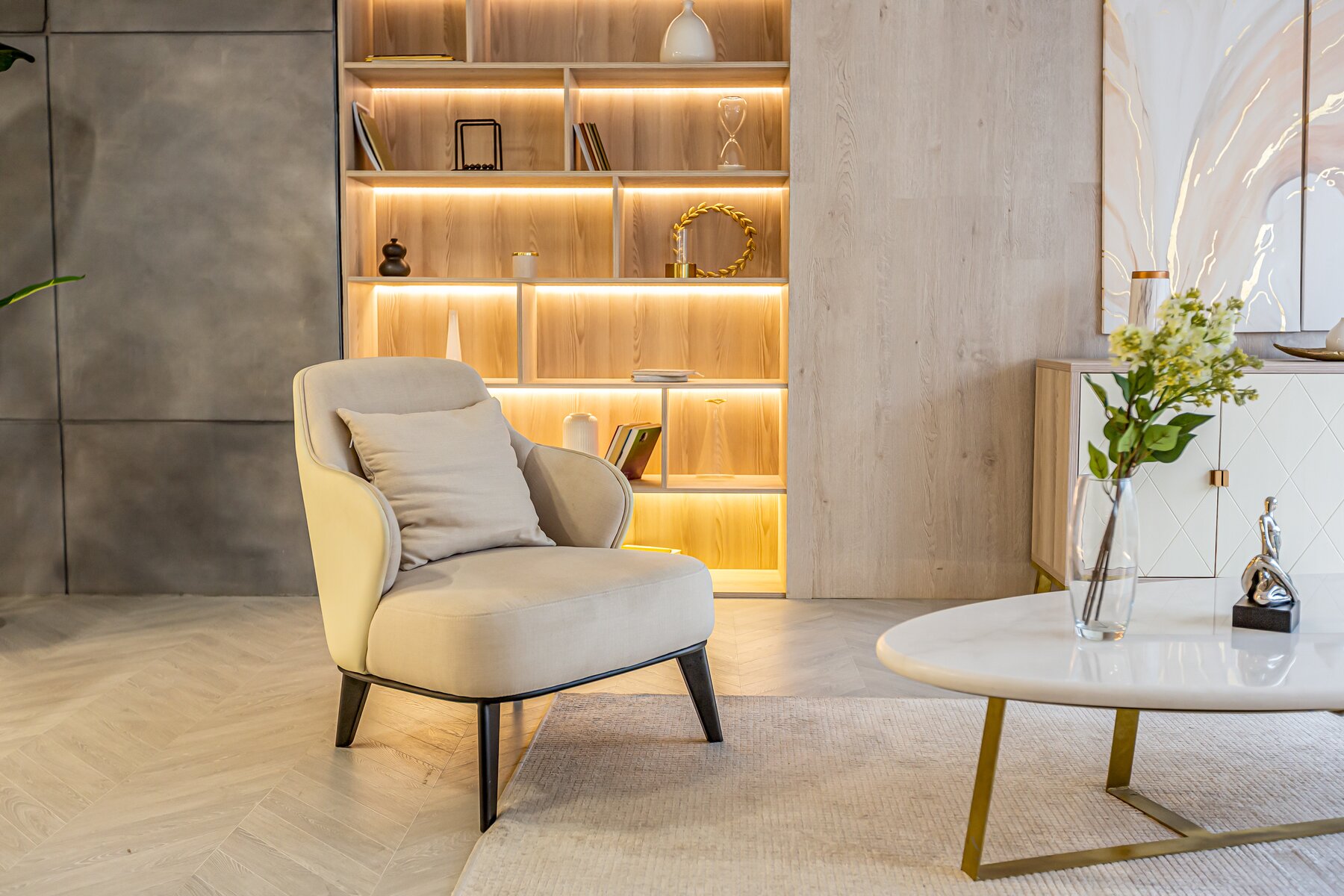

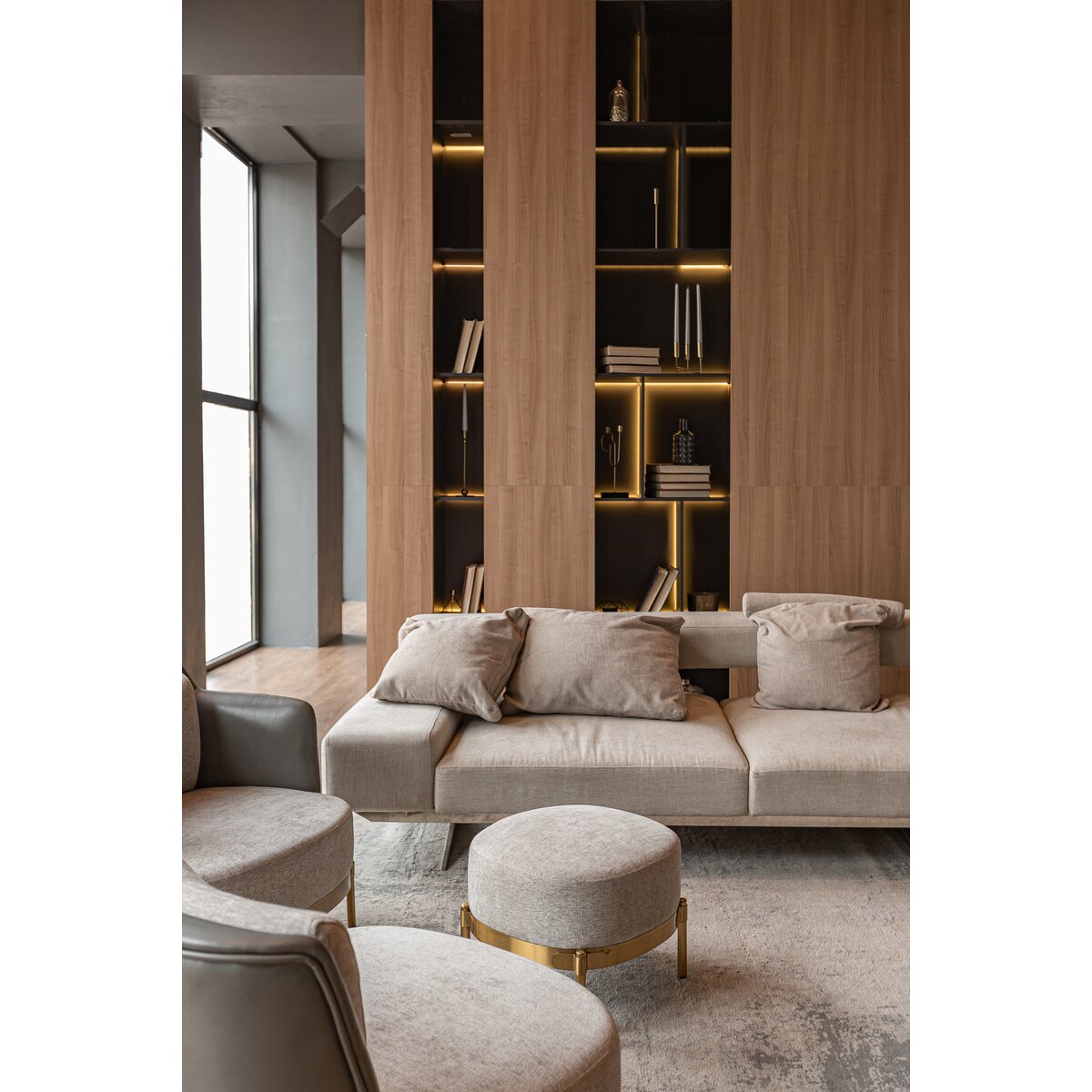

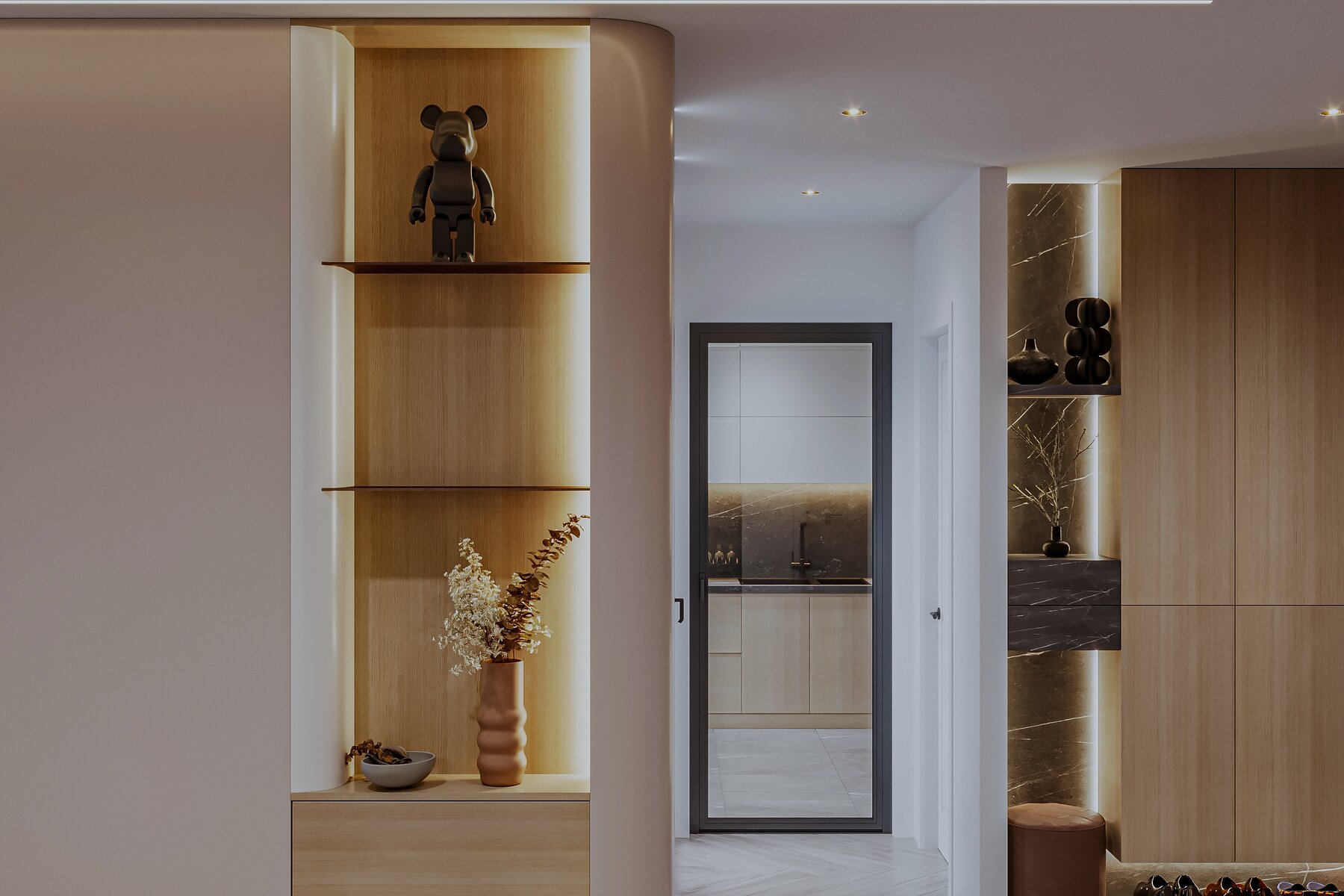

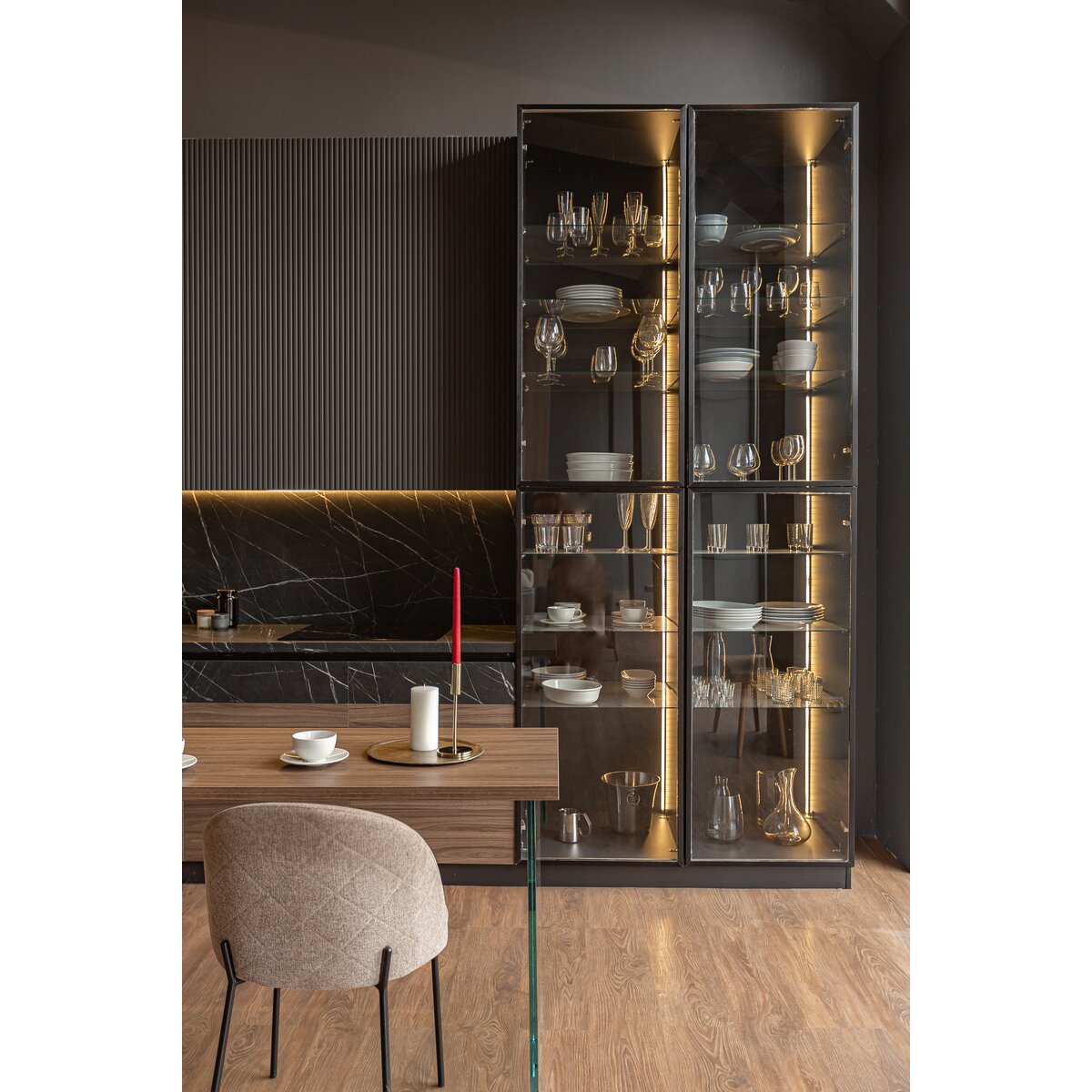

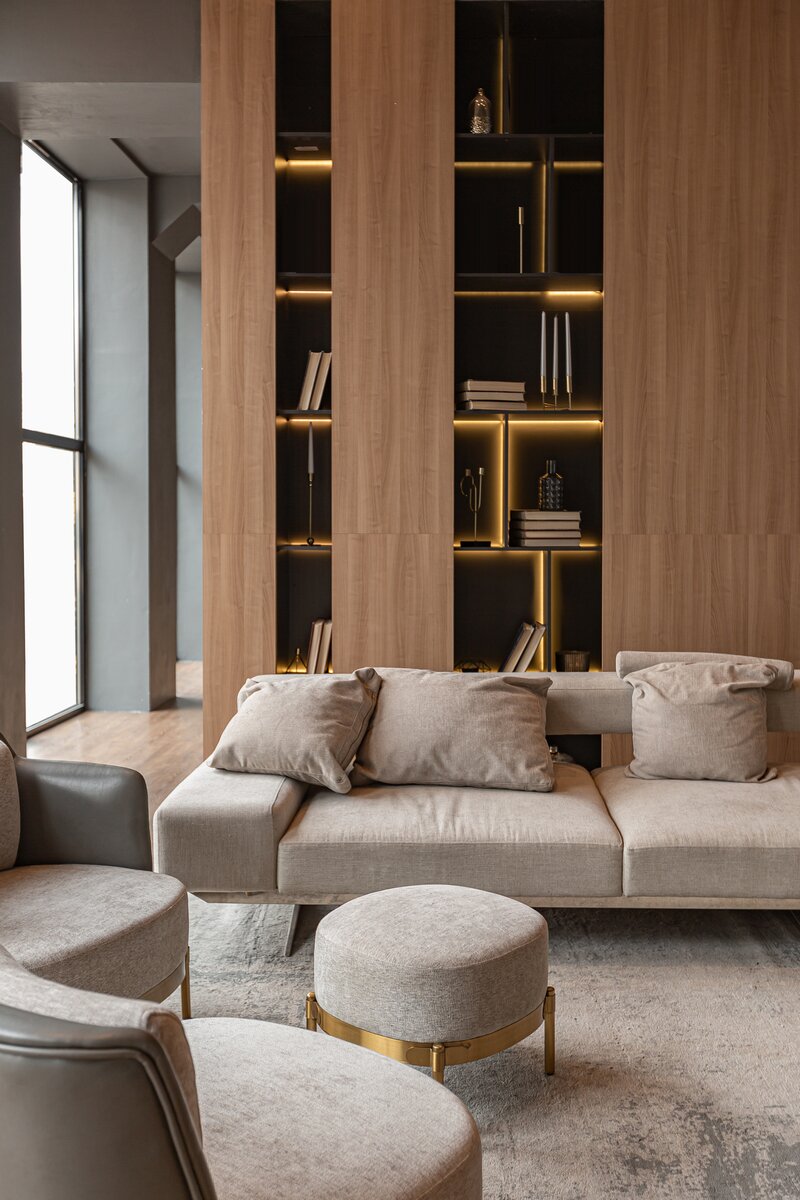

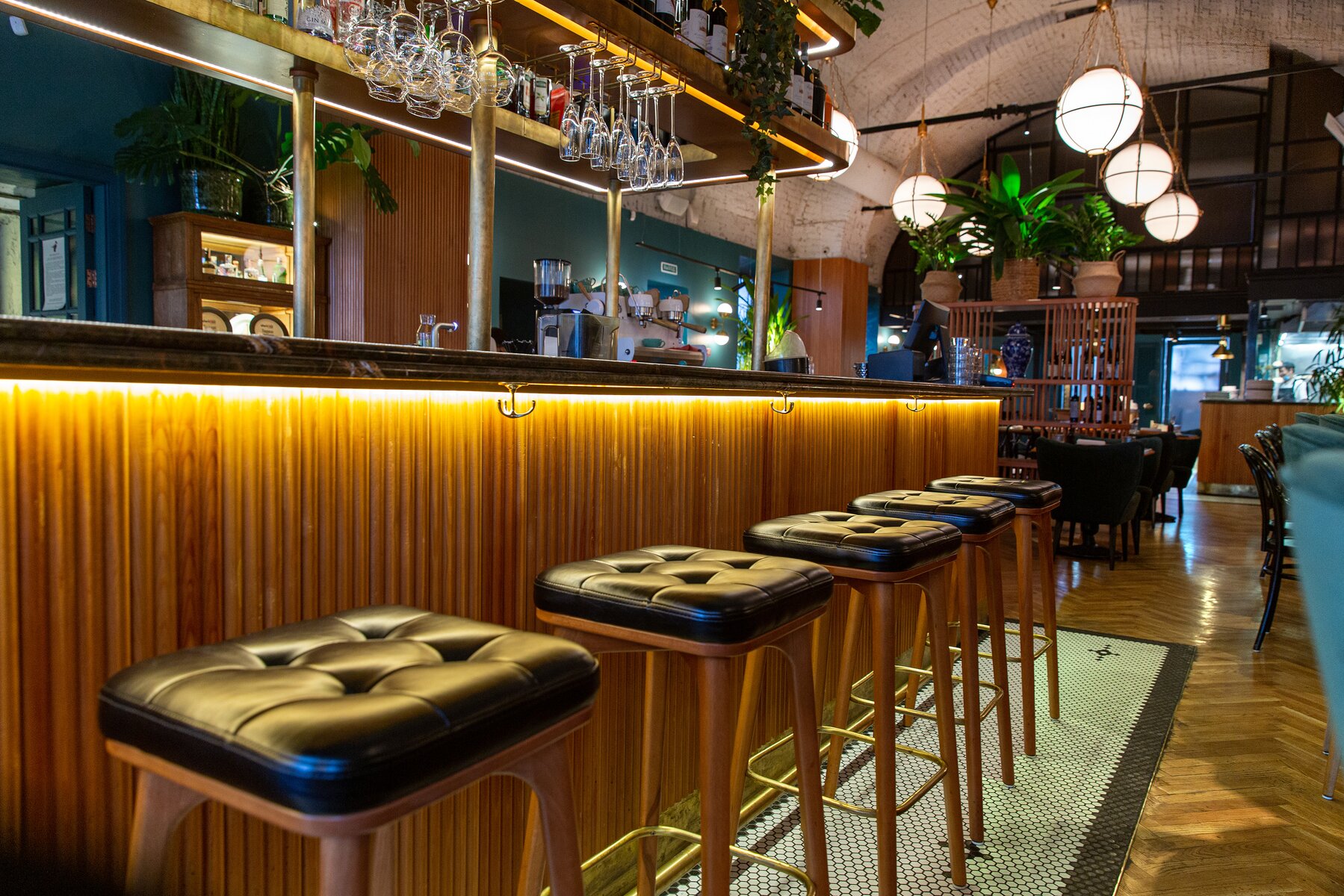

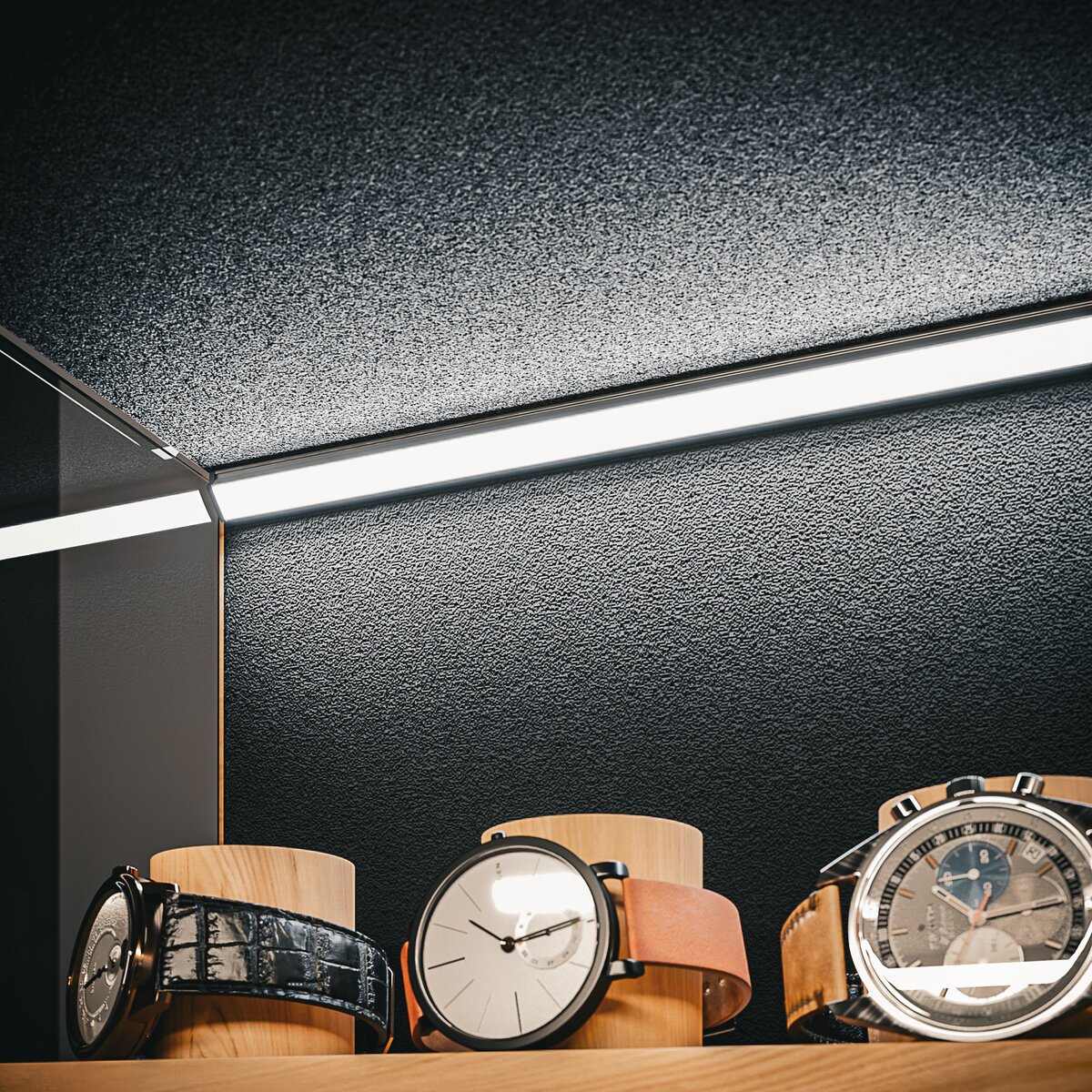

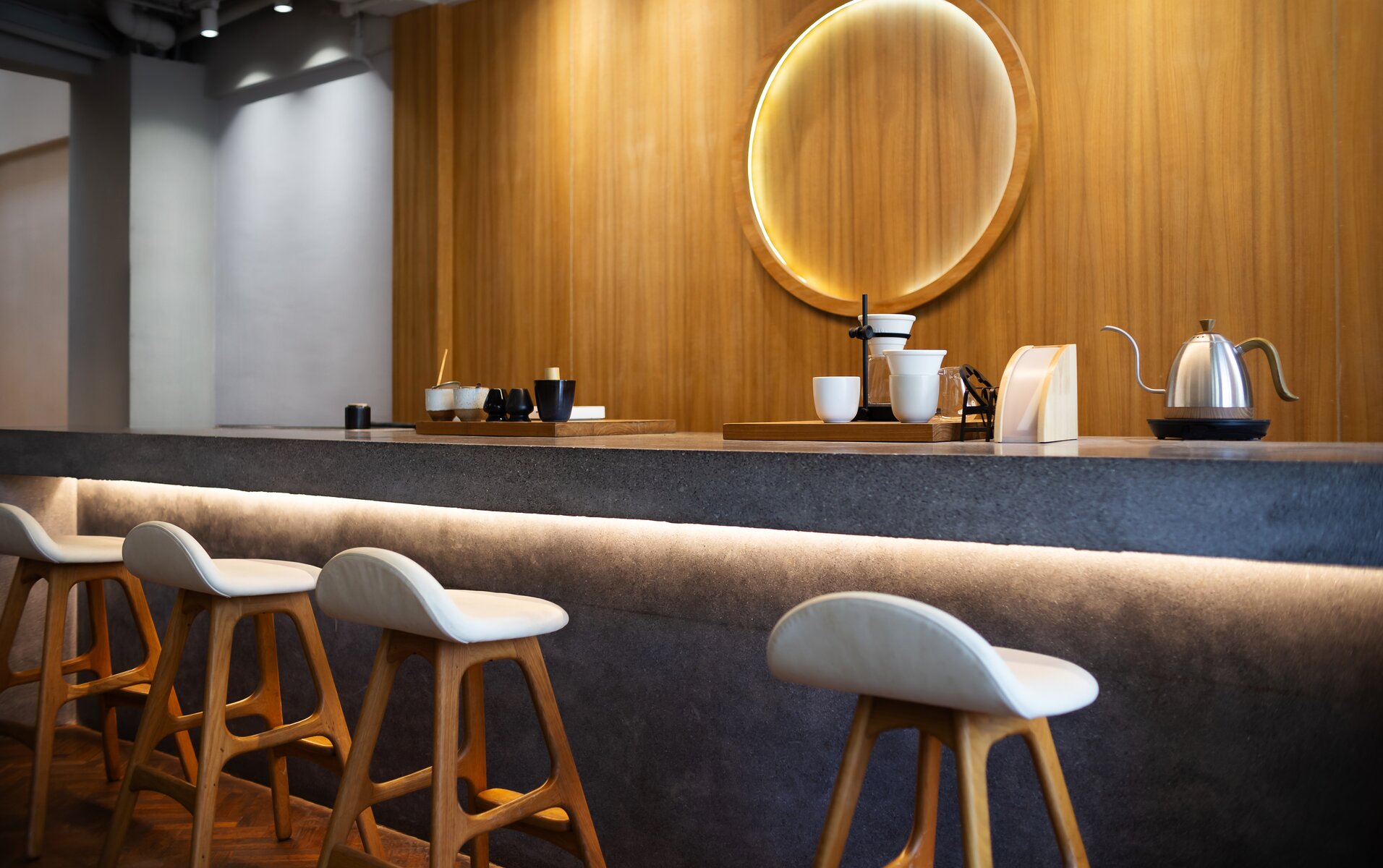

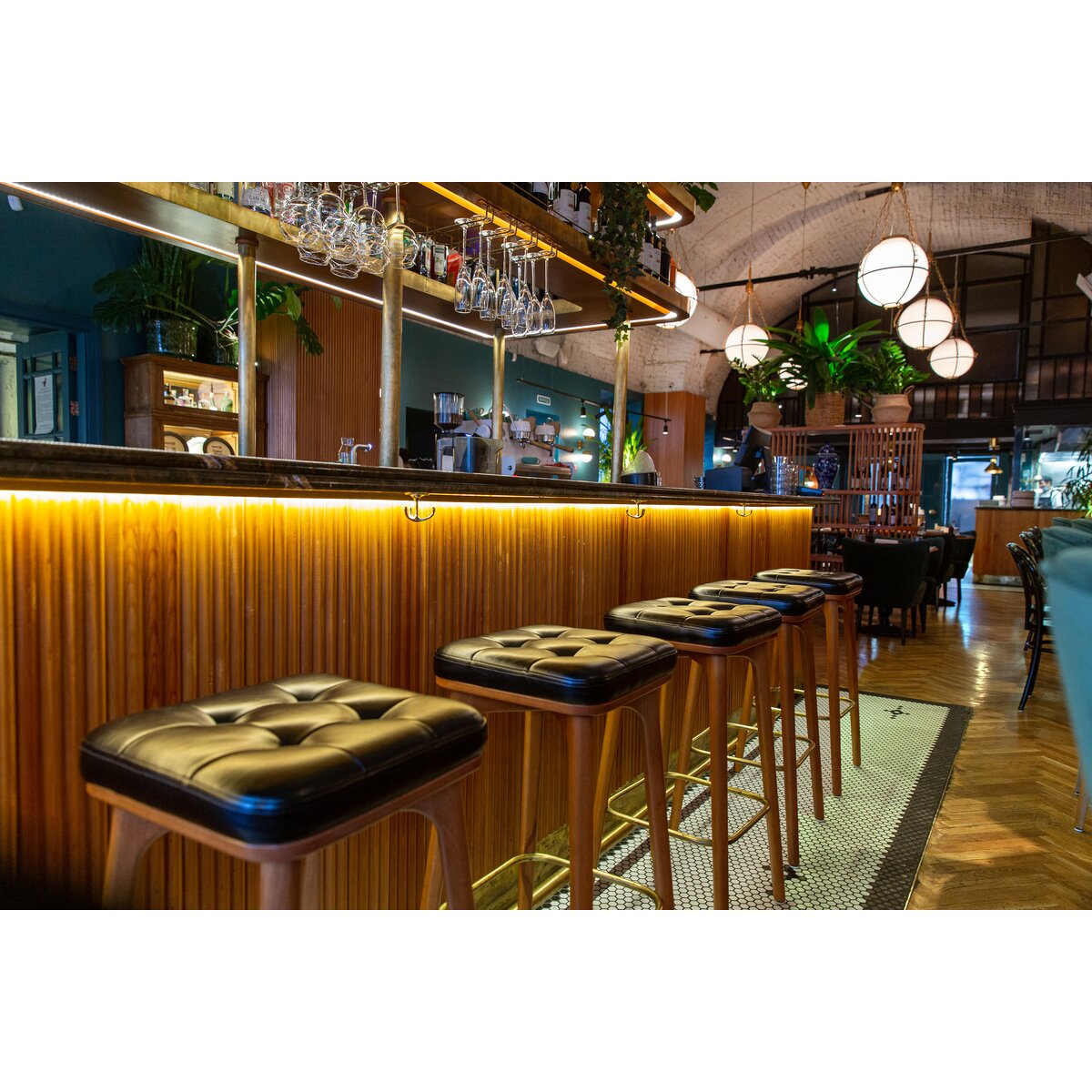

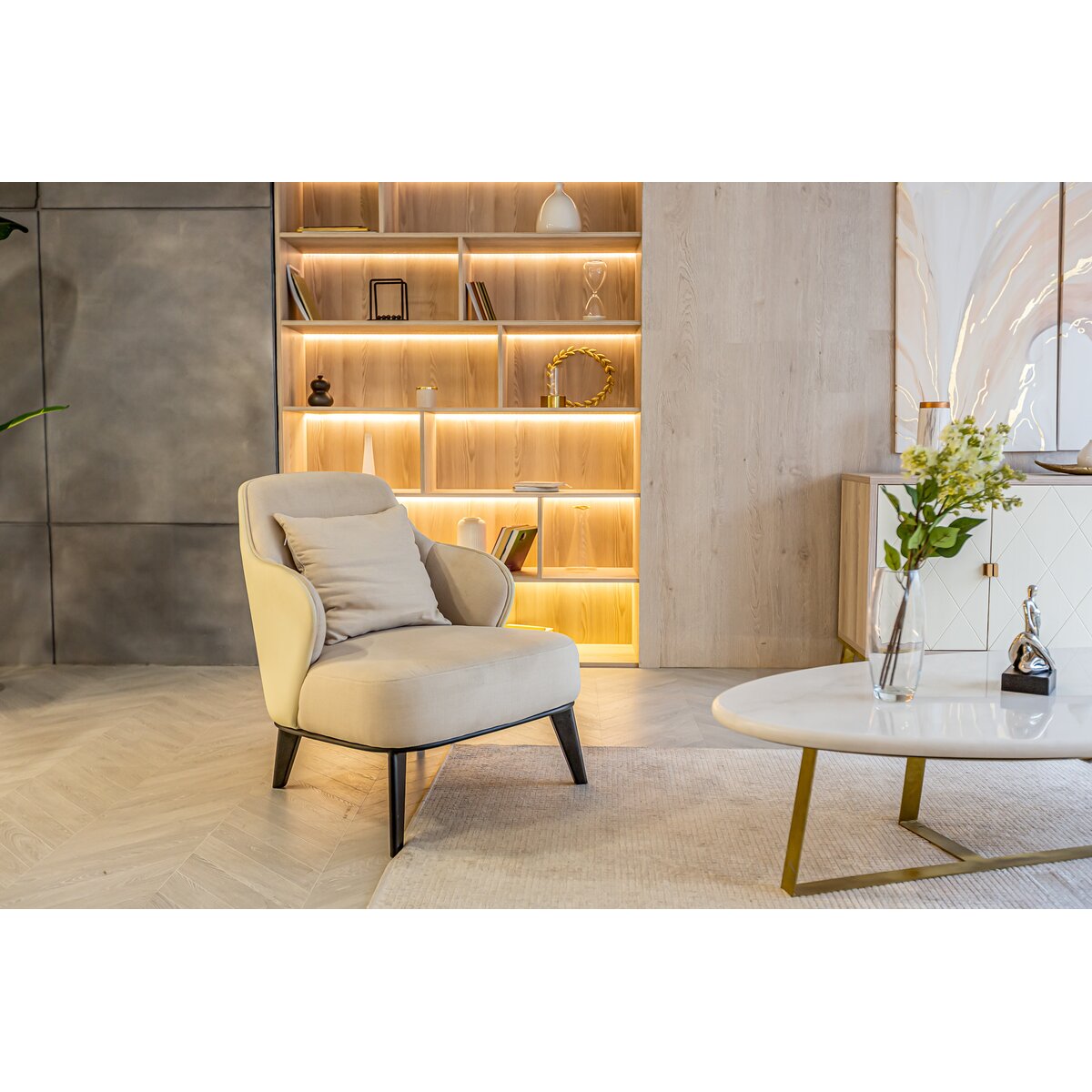

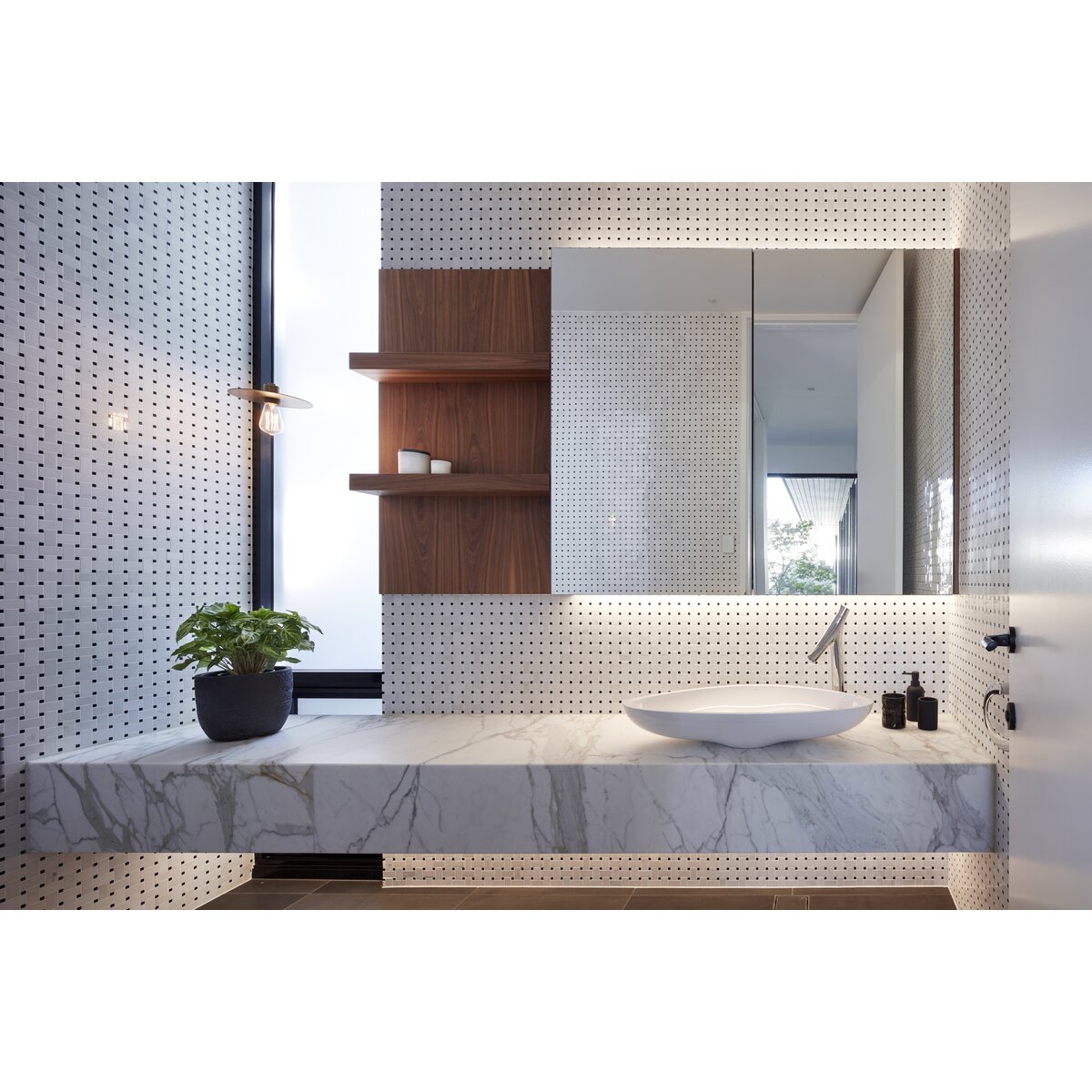

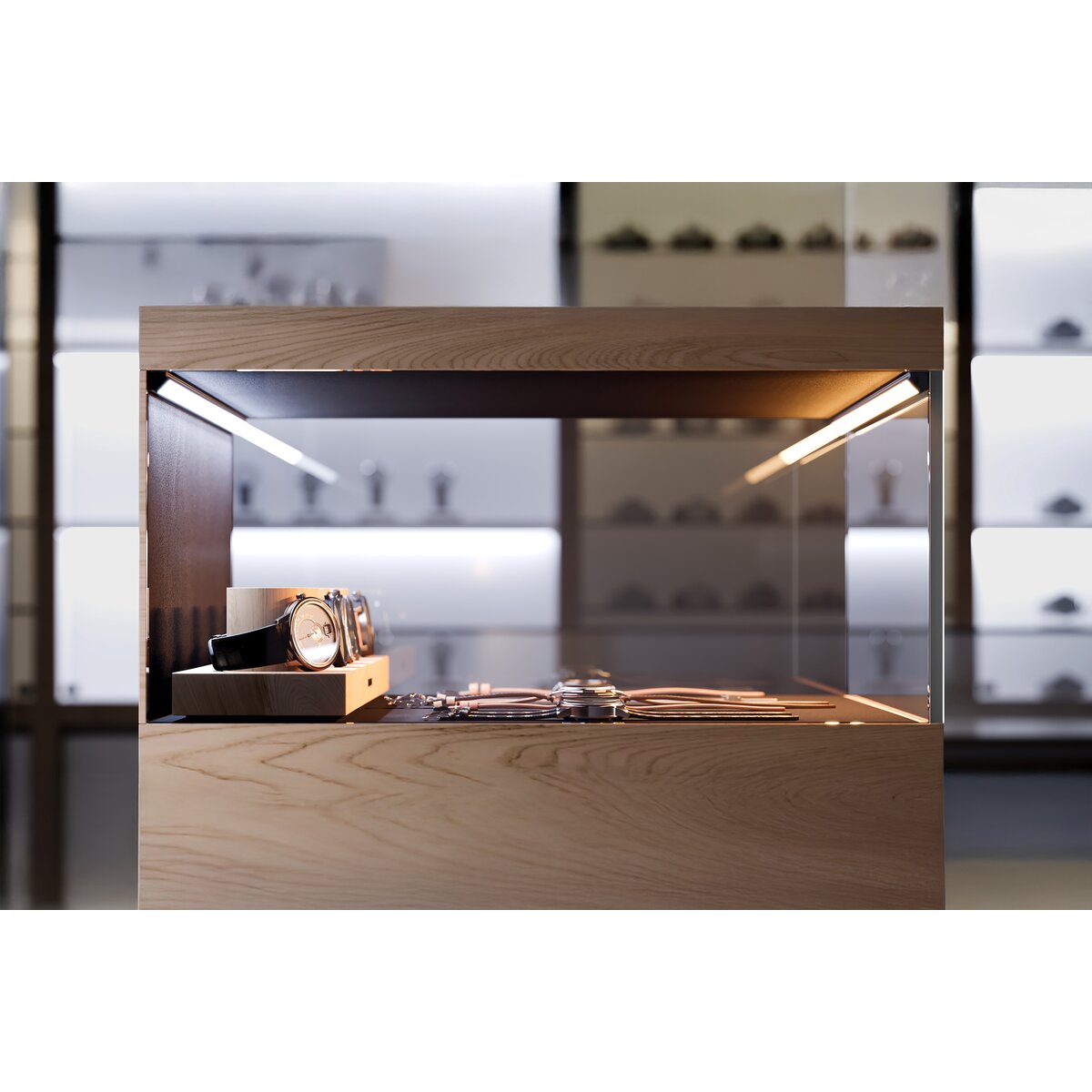

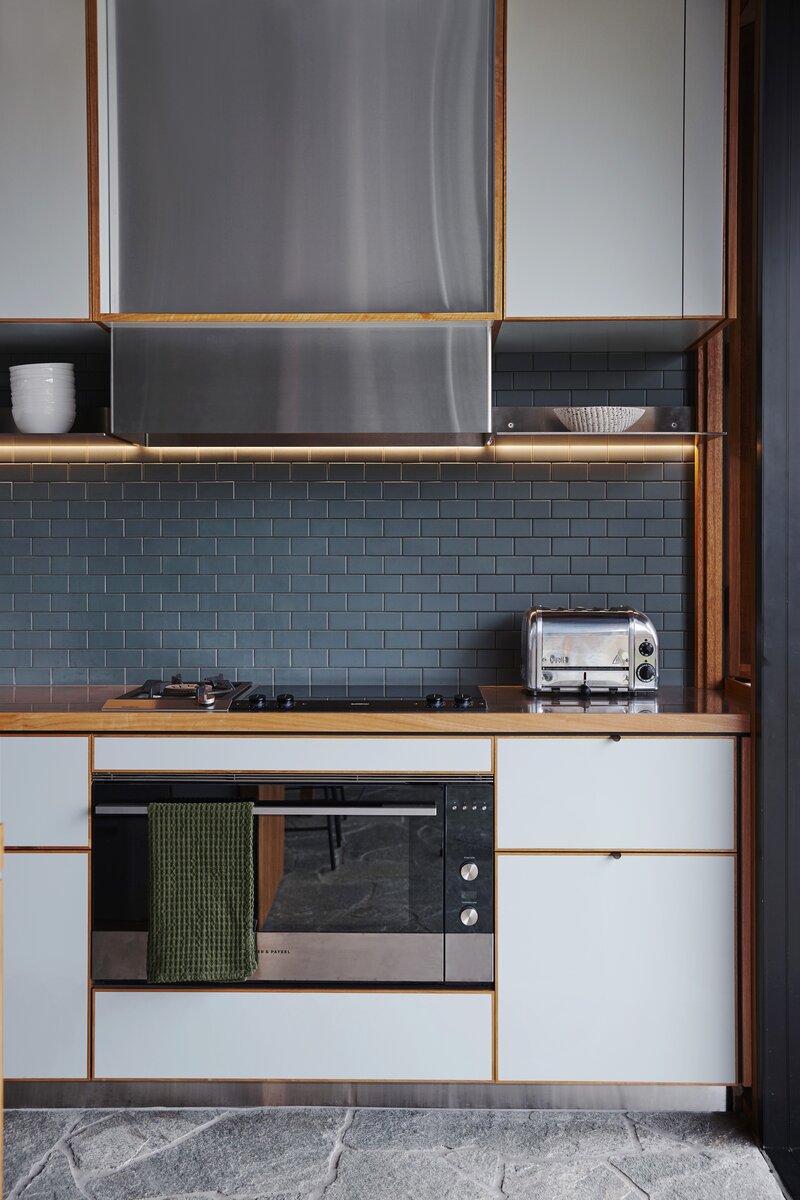

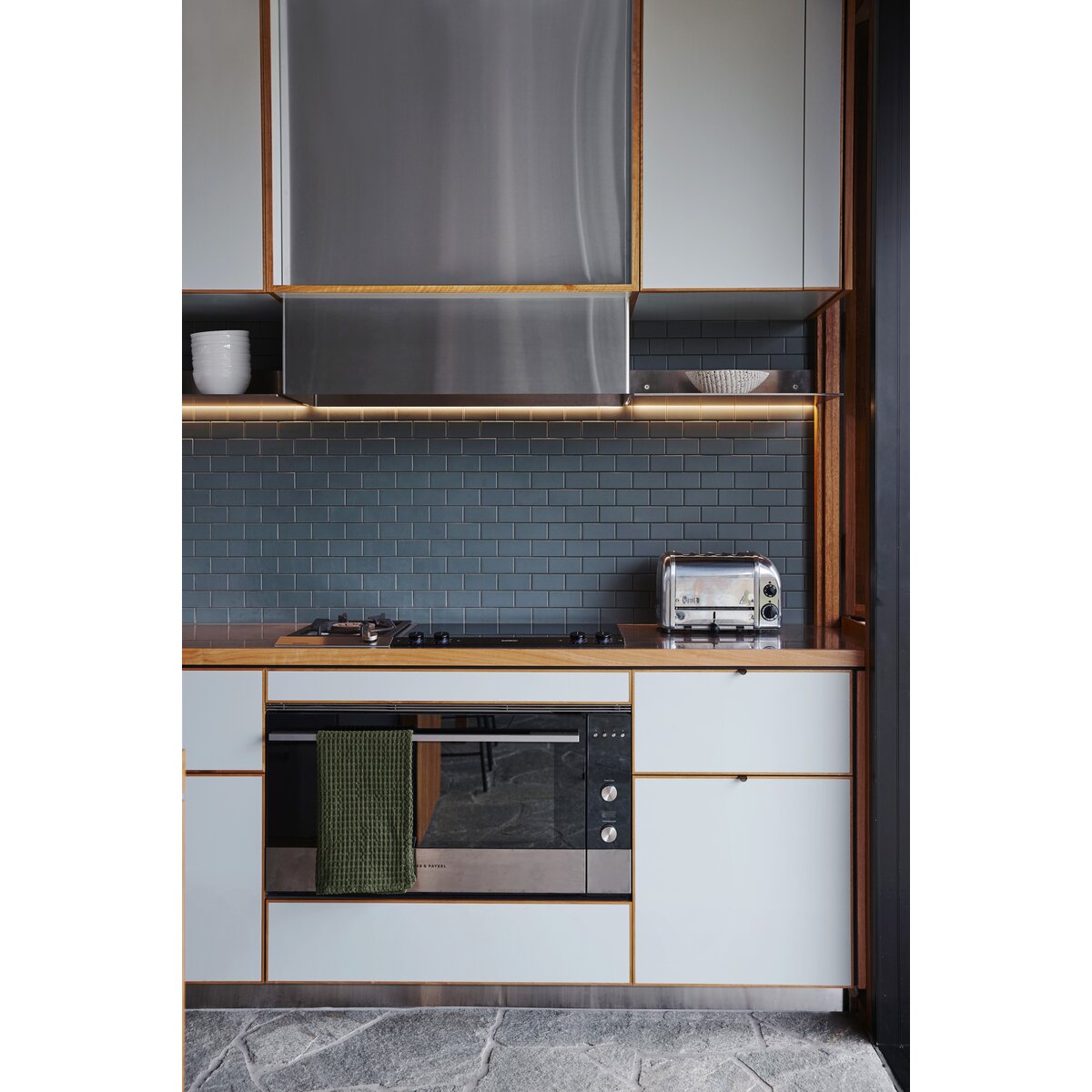

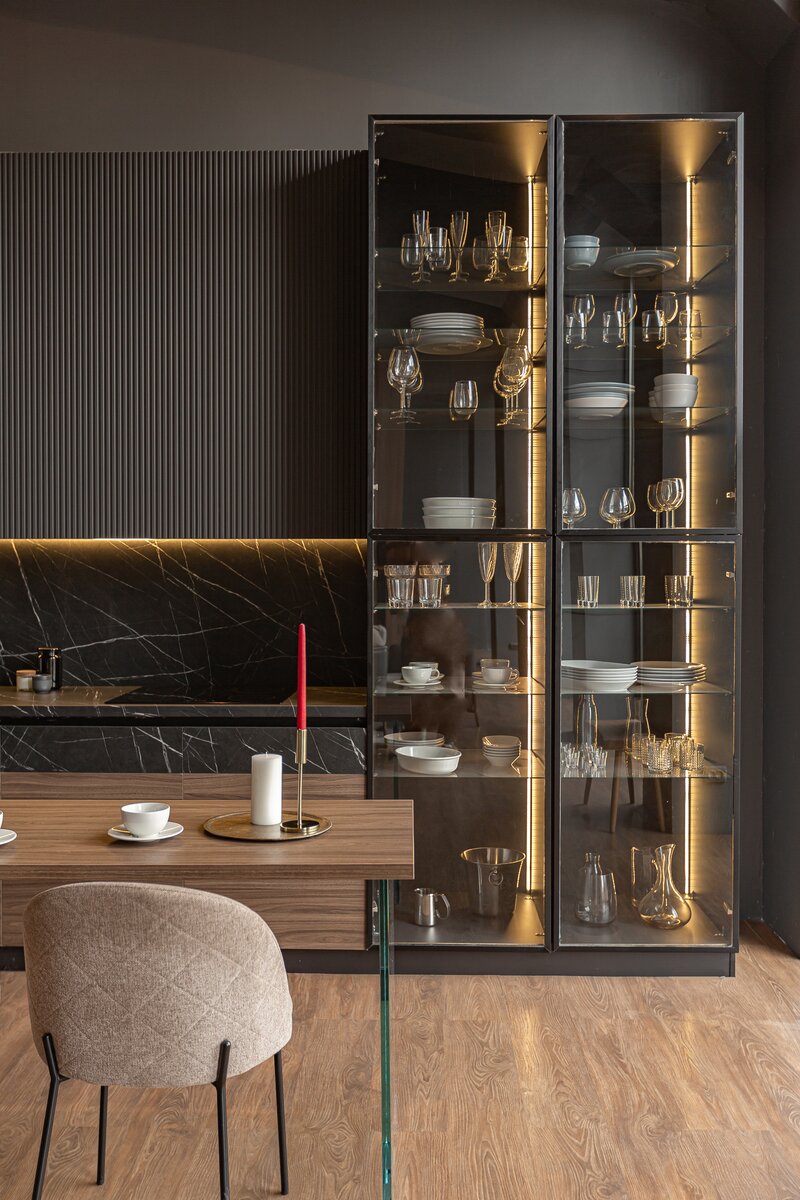

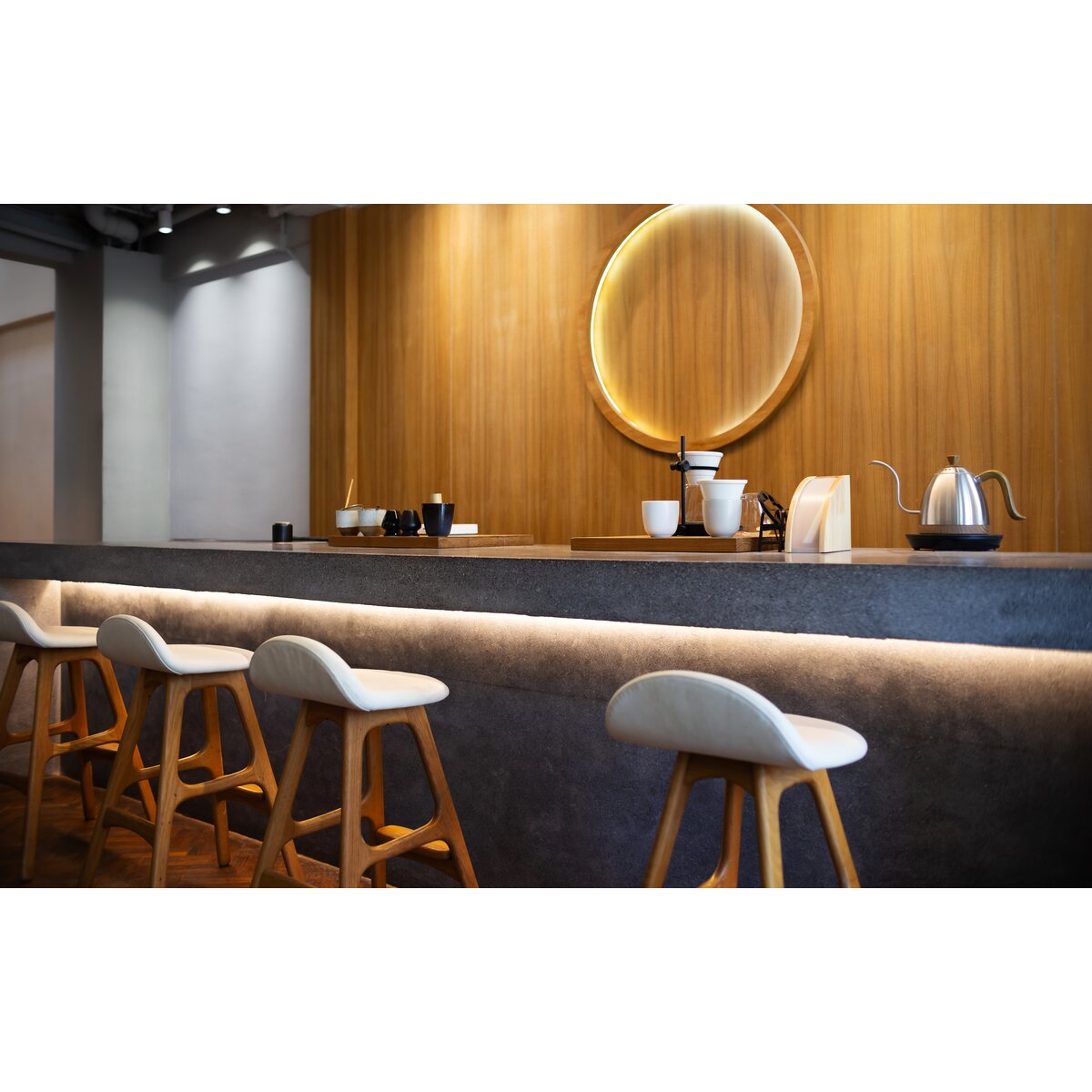

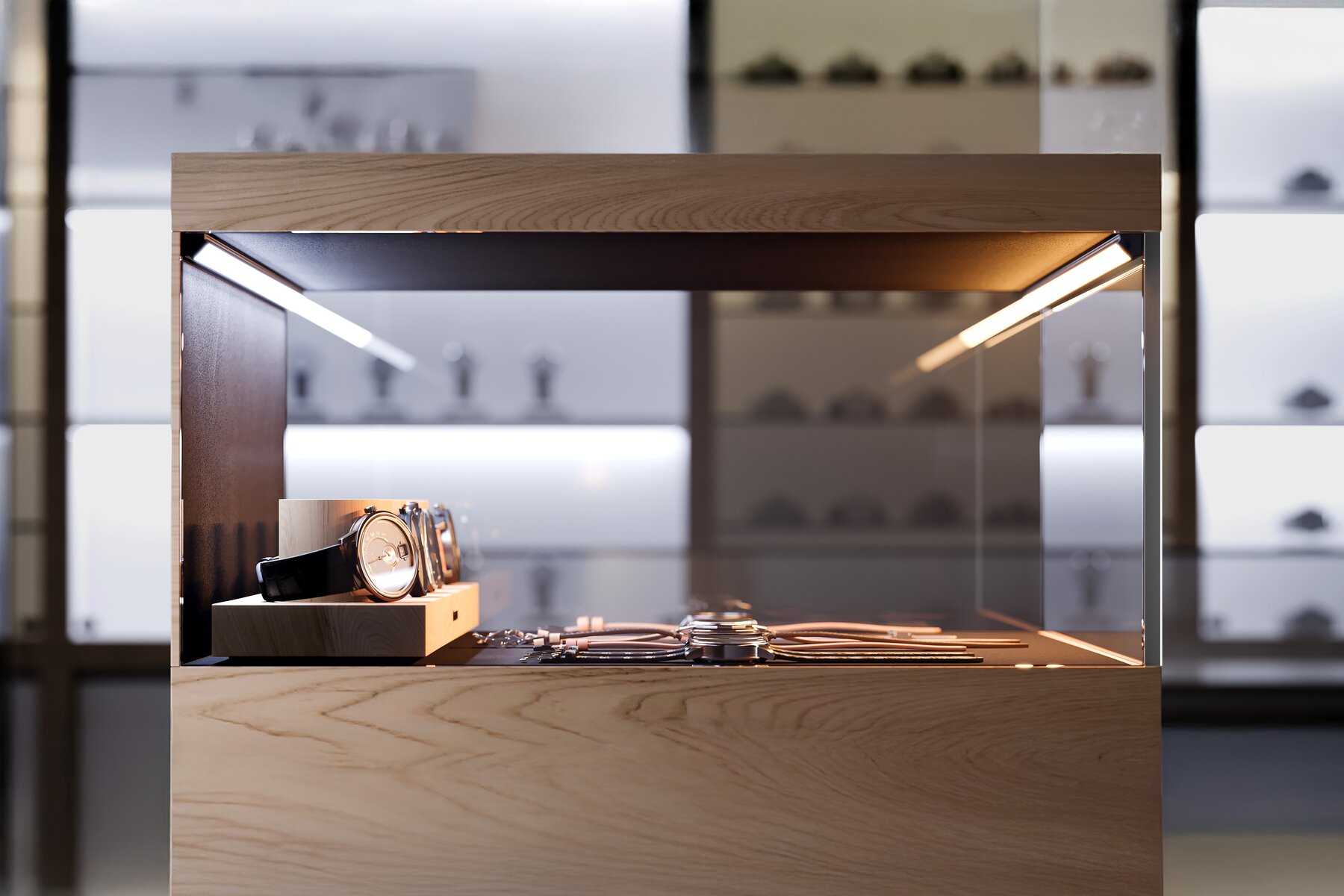

Usage examples

Description
download

Application

- furniture, under-cabinet and decorative lighting

Mounting

- to the surface, suspended or recessed, using dedicated accessories, properly selected screws, with double-sided adhesive tape or mounting adhesive
- easy assembly and disassembly by snapping in and out

Additional information

- for suspending small-size extrusion, it is recommended to use a wire with a diameter of 0.5 mm
- when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

Declaration of Conformity UKCA

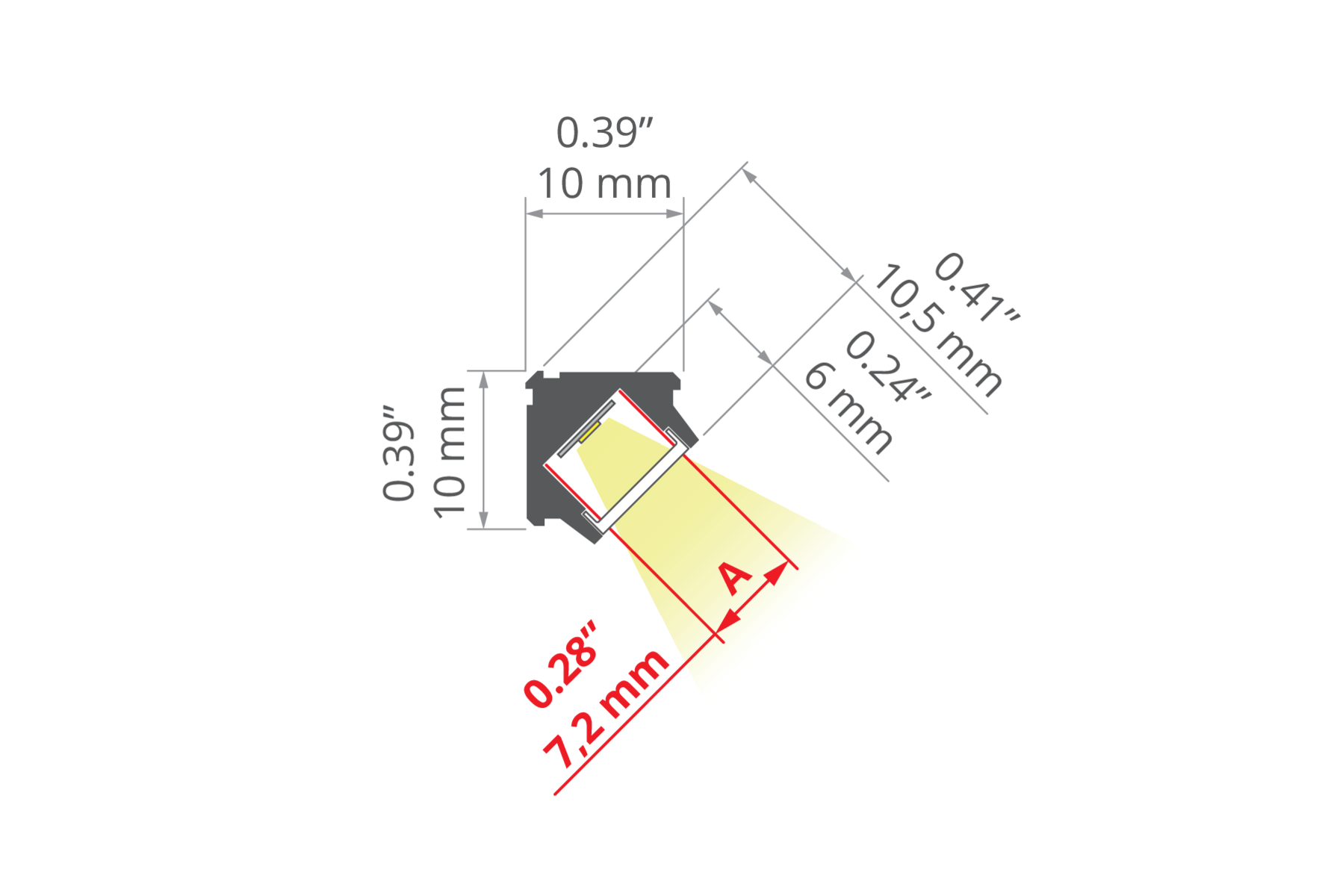

Technical drawing

Technical specification

Material

aluminum

Possible fixture IP

20, 65

Possible fixture shapes

linear

Profile cross-section

angled

Max power of a single KLUŚ LED strip

2.9 W/ft

Width

0.4" (11.1 mm)

Height

0.4" (11.1 mm)

LED gluing width A

0.3" (7.2 mm)

Lighting at an angle

Easy assembly and disassembly by snapping in and out

Yes

The cover is cut to the length of the profile

Yes

Furniture lighting

Yes

Decorative lighting

Yes

Functional lighting

Yes

Wire out end cap

Yes

Wire out back of extrusion

Yes

Closet Rated

Yes

Possibility of obtaining a line of light

Yes

Possibility of bending

Yes

Minimum radius of the light arc

Radius of the light arc

Yes

Inside

250 mm

Building type

Residential, Retail, Other, Hotel / Restaurant

Facility zone

under-cabinet / furniture, kitchen, bathroom, exhibition / tradeshow / display, cove / perimeter

Color	Length	Ref No
silver anodized	39.4" (1000 mm) 78.9" (2005 mm)	A00014A_1 A00014A_2
black anodized	39.4" (1000 mm) 78.9" (2005 mm)	A00014A07_1 A00014A07_2
white lacquered	78.9" (2005 mm)	A00014L10_2

Line of Light Table for Pixel Free Illumination

LED Tapes		Covers
Categories	LED tape type	BENCO-7 Cover frosted	PIKO-7 Cover satin
CRI 90+	K-SHD-0960-24	(1)	(1)
Adjustable White / Dim to Warm	K-30/18-1440-010-24	(1)	(1)

Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes

similar profiles

Related products

Covers

Product name	Material	Key features	Light transmittance [%]	Color	Ref No
PIKO-7R Cover	PMMA	- indoor use - perfectly diffusing - Thin line of light	52 % 24 %	satin black	B17164S B17164B
PIKO-7 Cover	PMMA	- For indoor and outdoor applications - perfectly diffusing - UV resistant - Thin line of light	43 % 17 %	satin black	B17001S B17001B
BENCO-7 Cover	silicon	- indoor use - perfect for bent extrusions	53 %	frosted	B17069F

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No

LED tapes
CRI 90+

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-SHD-0960-24 LED tape, 193-268 lm/ft, IP20,	20	-	2.9 W/ft	2200K 2500K 2700K 3000K 3500K 4000K 5000K	- ideal for use with black covers - high LED density	K-SHD22-0960-24 K-SHD25-0960-24 K-SHD27-0960-24 K-SHD30-0960-24 K-SHD35-0960-24 K-SHD40-0960-24 K-SHD50-0960-24
KWP-5KSHD-0960-24 LED tape	65	silicon sleeve	2.9 W/ft	2700K 3000K 3500K 4000K 5000K	- easy snap-in installation - high LED density - ideal for use with black covers	KWP-5KSHD27-0960-24 KWP-5KSHD30-0960-24 KWP-5KSHD35-0960-24 KWP-5KSHD40-0960-24 KWP-5KSHD50-0960-24

LED tapes
RGB / RGB-W / RGB-CTT

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-RGB-1560-24 LED tape, 194 lm/ft, IP20,	20	-	4.8 W/ft	RGB	- RGB	K-RGB-1560-24_

LED tapes
Adjustable White / Dim to Warm

Product name	IP rating	Sealing type	Power consumption [W/ft]	Color temperature	Key features	Ref No
K-30/18-1440-010-24 LED tape, 1800K, 234 lm/ft, 4.4 W/ft, IP20	20	-	4.4 W/ft	1800K	- Dim to Warm 1800K-3000K	K-30/18-1440-010-24

Accessories
End caps
Standard end caps

Product name	Material	Color	Ref No
PIKO-45 End cap	ABS	gray black white	C24545C02 C24545C07 C24545C10
PIKO-45-R End cap	ASA	white black gray	C24772C10 C24772C07 C24772C02

Accessories
End caps
End caps with holes

Product name	Material	Color	Ref No
PIKO-45-OTW	ABS	gray black white	C24545C02TW C24545C07TW C24545C10TW
PIKO-45-R-OTW	ASA	white black gray	C24772C10TW C24772C07TW C24772C02TW

Accessories
Mounting accessories
Mounting brackets

Product name	Key features	Material	Color	Ref No
K-10 Mounting bracket	- Transparent – aesthetic installation of minimalist linear fixtures	PC	transparent	C24340C00

Accessories
Suspension accessories
Fasteners and heads for extrusions

Product name	Key features	Material	Color	Ref No
K-10-PP Fastener	- Cross mounting	stainless steel, PC	silver	C28235N00

Electronics
Switches

Product name	IP rating	Key features	Ref No(Ref. arch.)
UNI Proximity switch	20	- touchless switch - width only 7mm	E61579
