PIKO-O Extrusion

Ref No: A01167
PIKO-O Extrusion
PIKO-O Extrusion
PIKO-O Extrusion
PIKO-O Extrusion
PIKO-O Extrusion
PIKO-O Extrusion
PIKO-O Extrusion
PIKO-O Extrusion
PIKO-O Extrusion
PIKO-O Extrusion
  • Lighting fixture with round cross-section
  • Minimum cross-section diameter
  • Smooth extrusion surfaces
  • Luminaire direction adjustment
  • Small bending radius

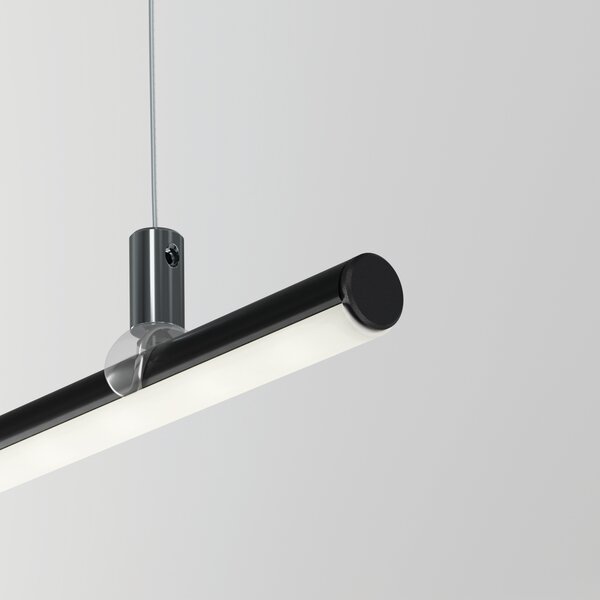

Suspended

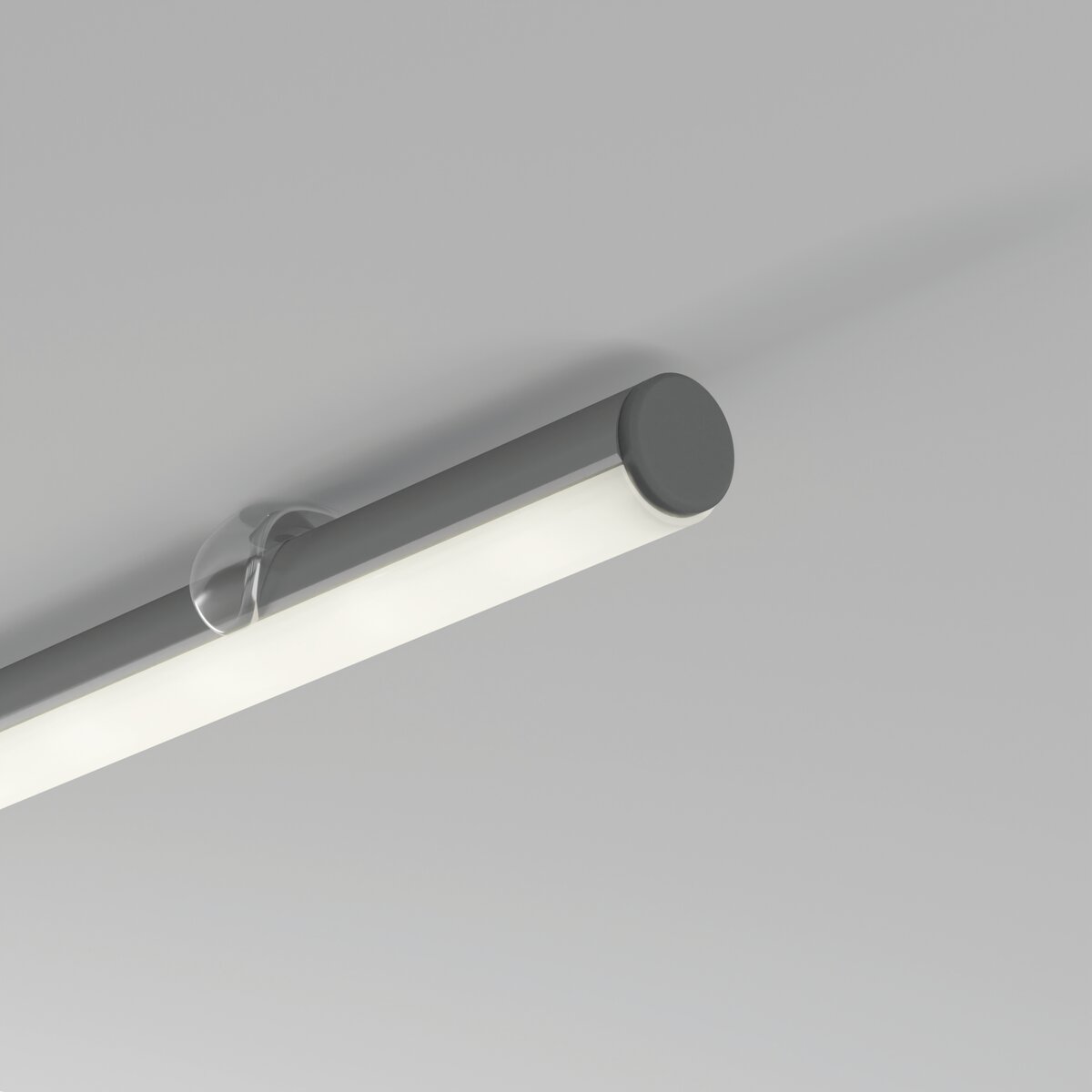

Surface mounted

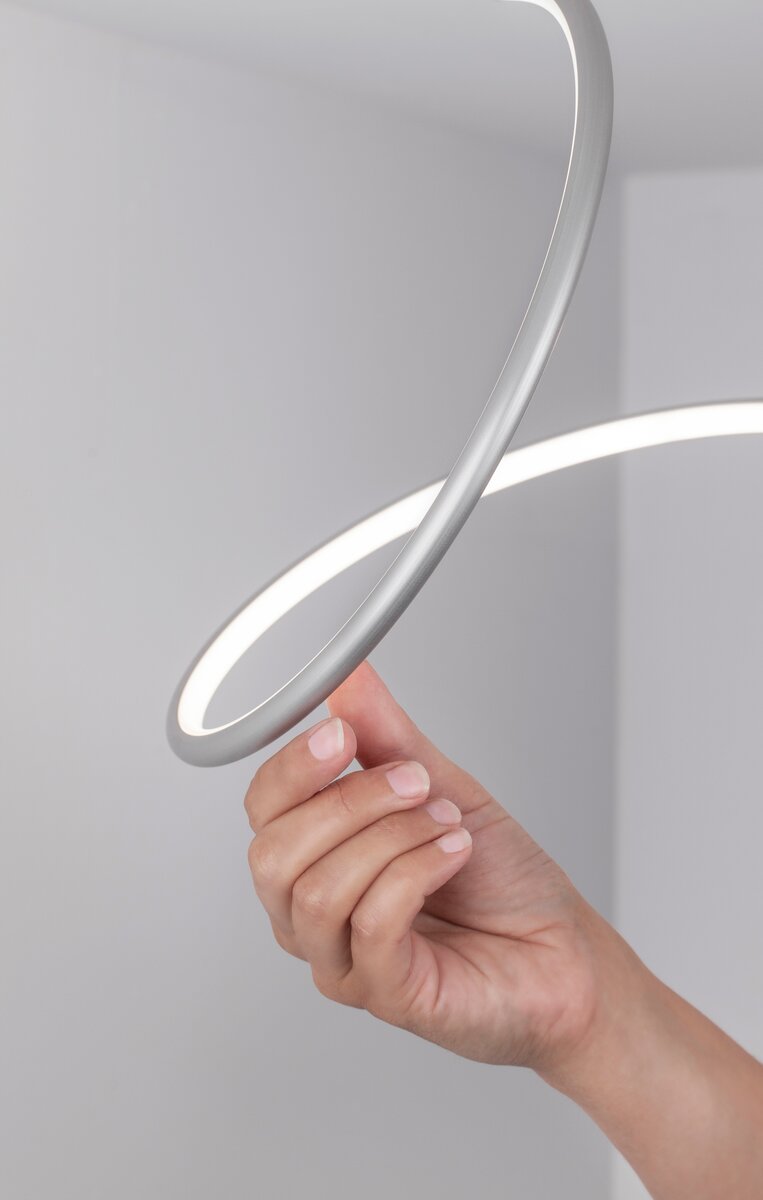

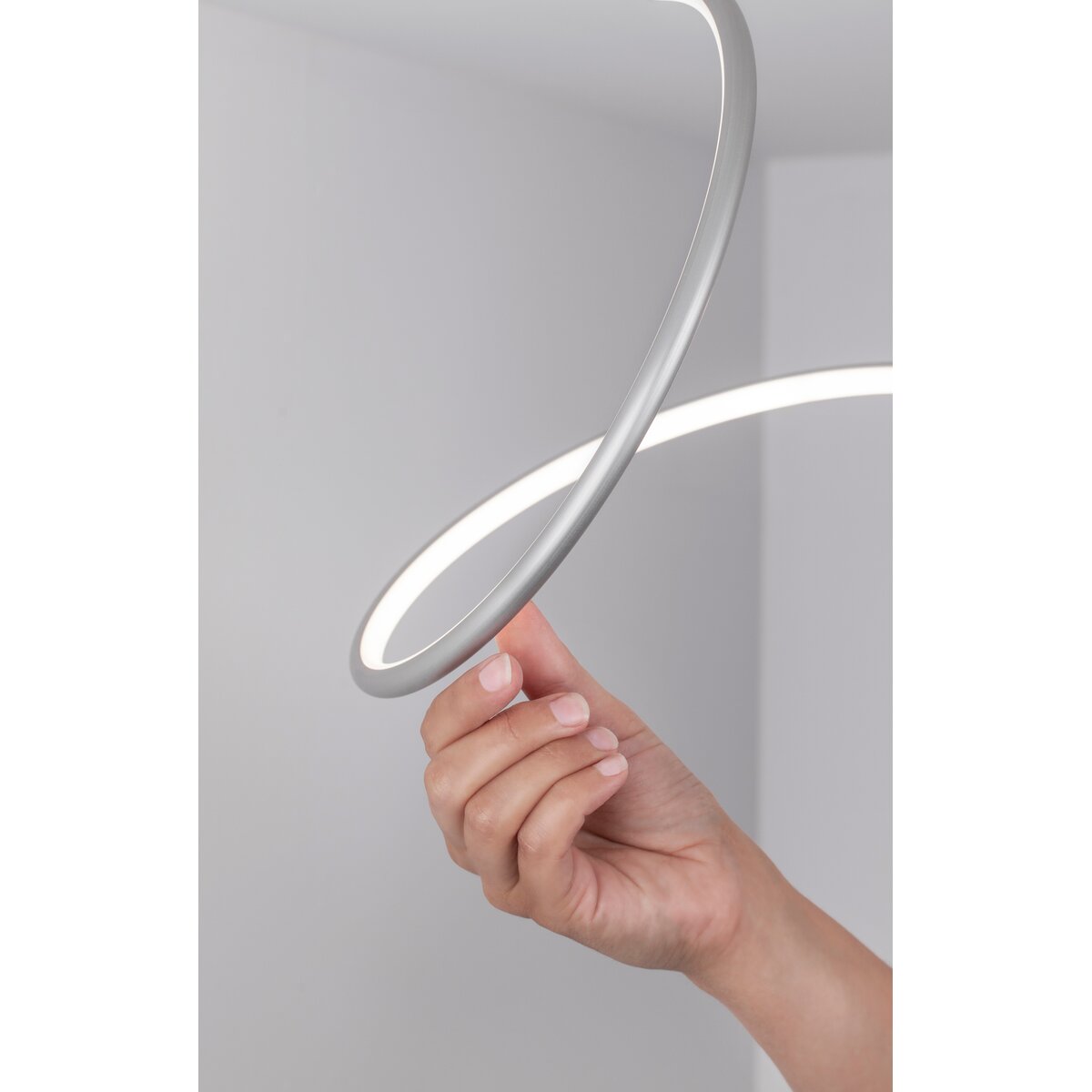

Possibility of bending
With the possibility of sealing up to IP20
CE Certificate
UKCA Certificate
RoHS Certificate
ETL
Closet Rated
Configure
Color
silver black white
  • Lighting fixture with round cross-section
  • Minimum cross-section diameter
  • Smooth extrusion surfaces
  • Luminaire direction adjustment
  • Small bending radius
Application
  • - decorative lighting and functional
Mounting
  • - suspended, using dedicated accessories
  • - easy assembly and disassembly by snapping in and out
Additional information
  • - for suspending small-size extrusion, it is recommended to use a wire with a diameter of 0.5 mm
  • - when choosing a different length of profiles / covers than available in the standard, you should additionally choose the cutting service at KLUŚ

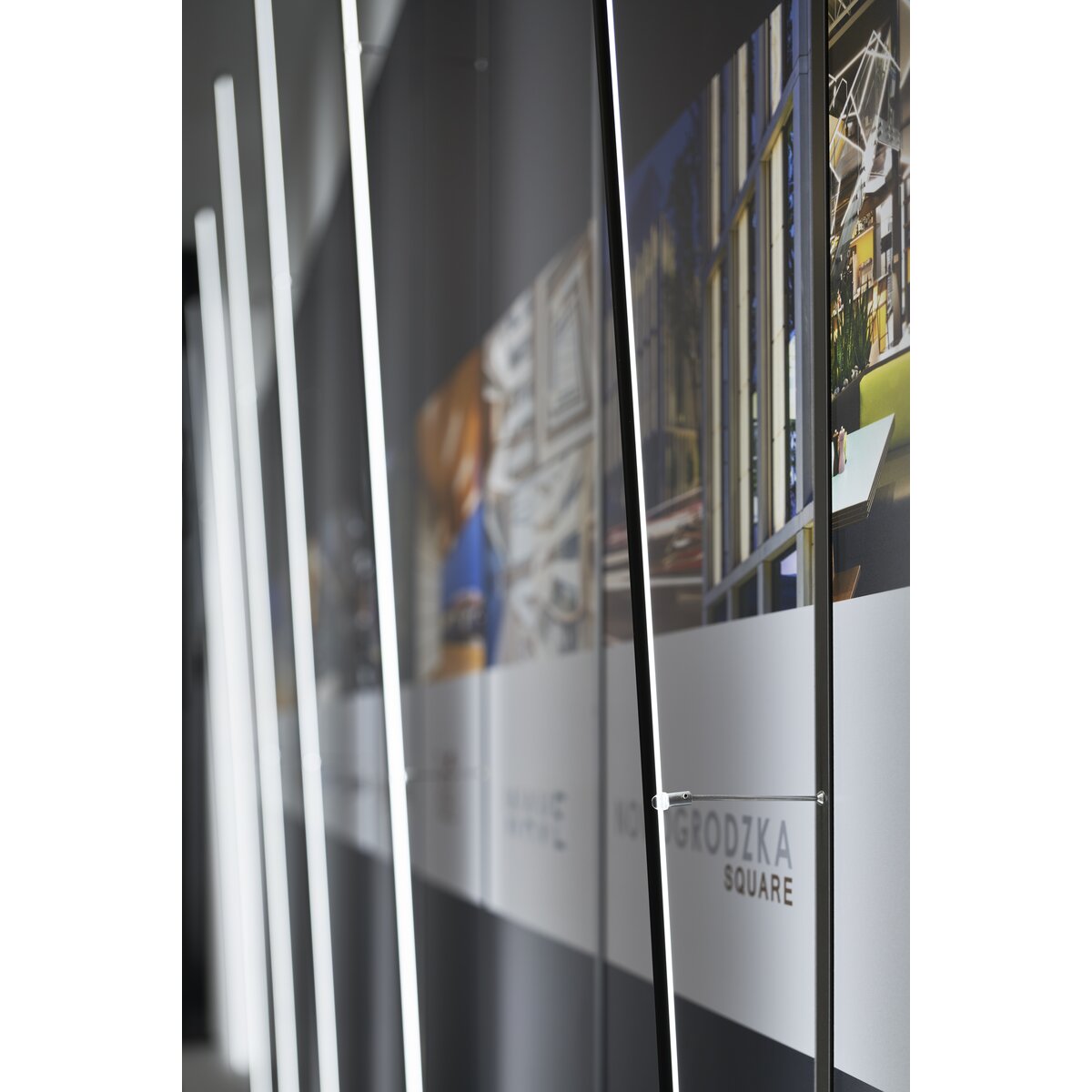

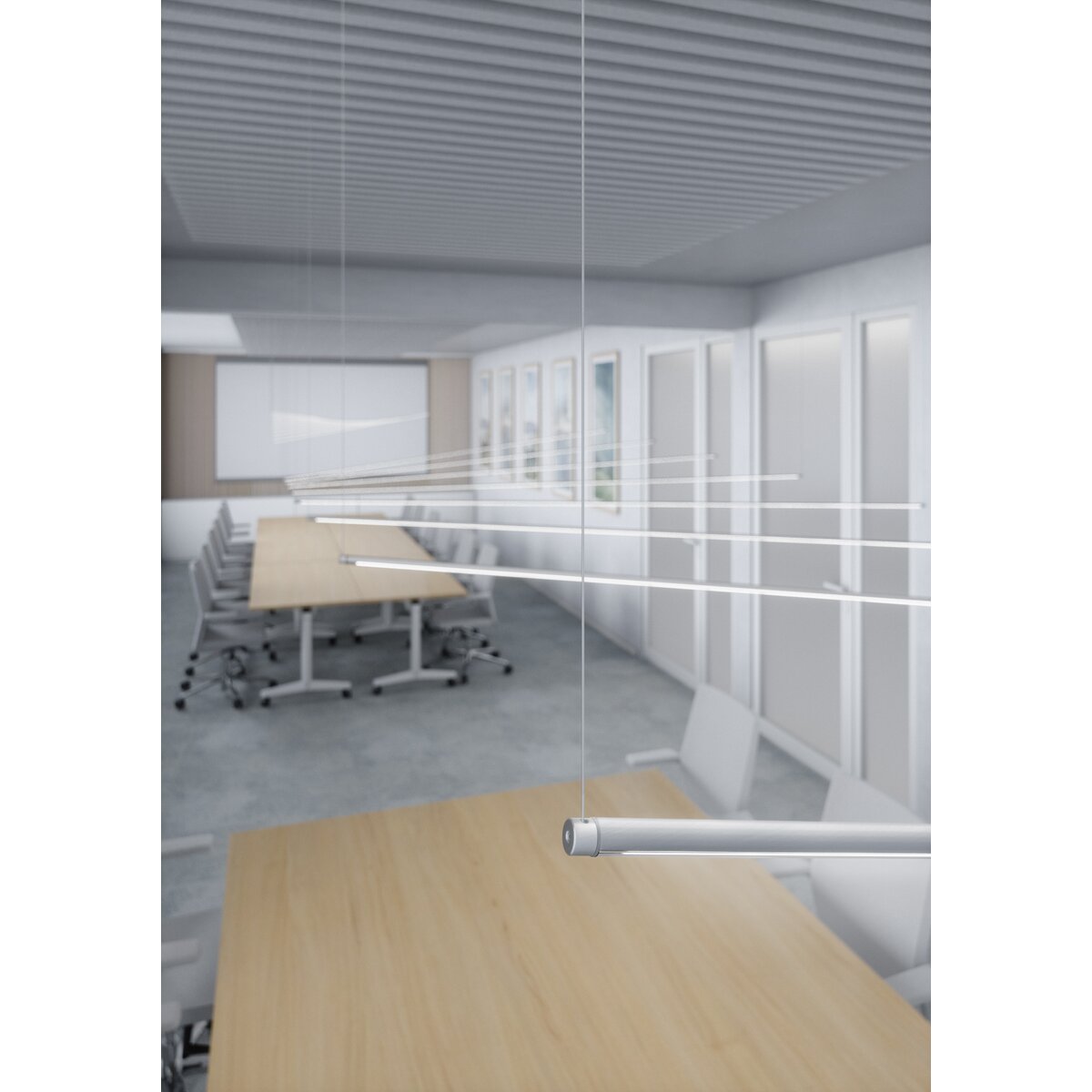

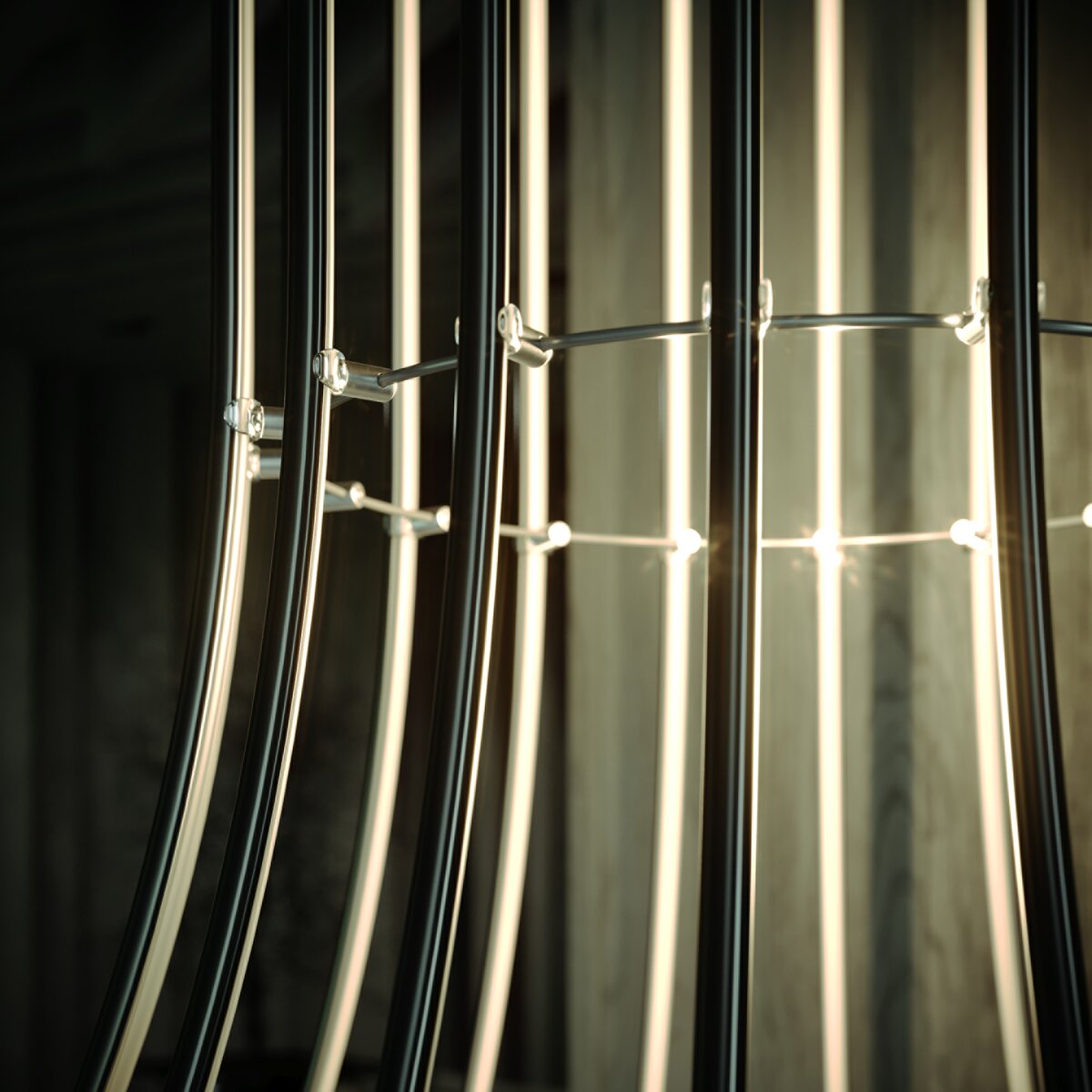

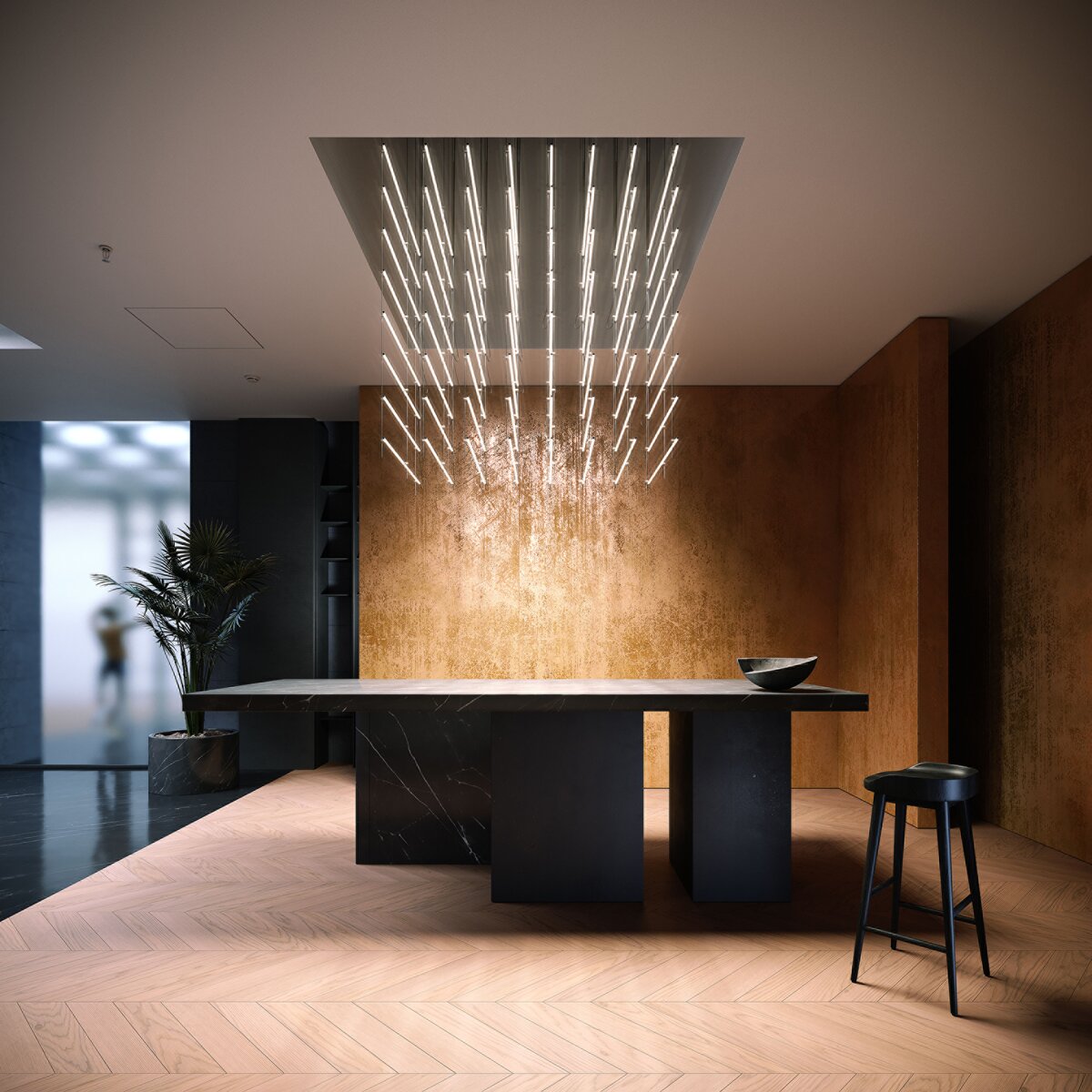

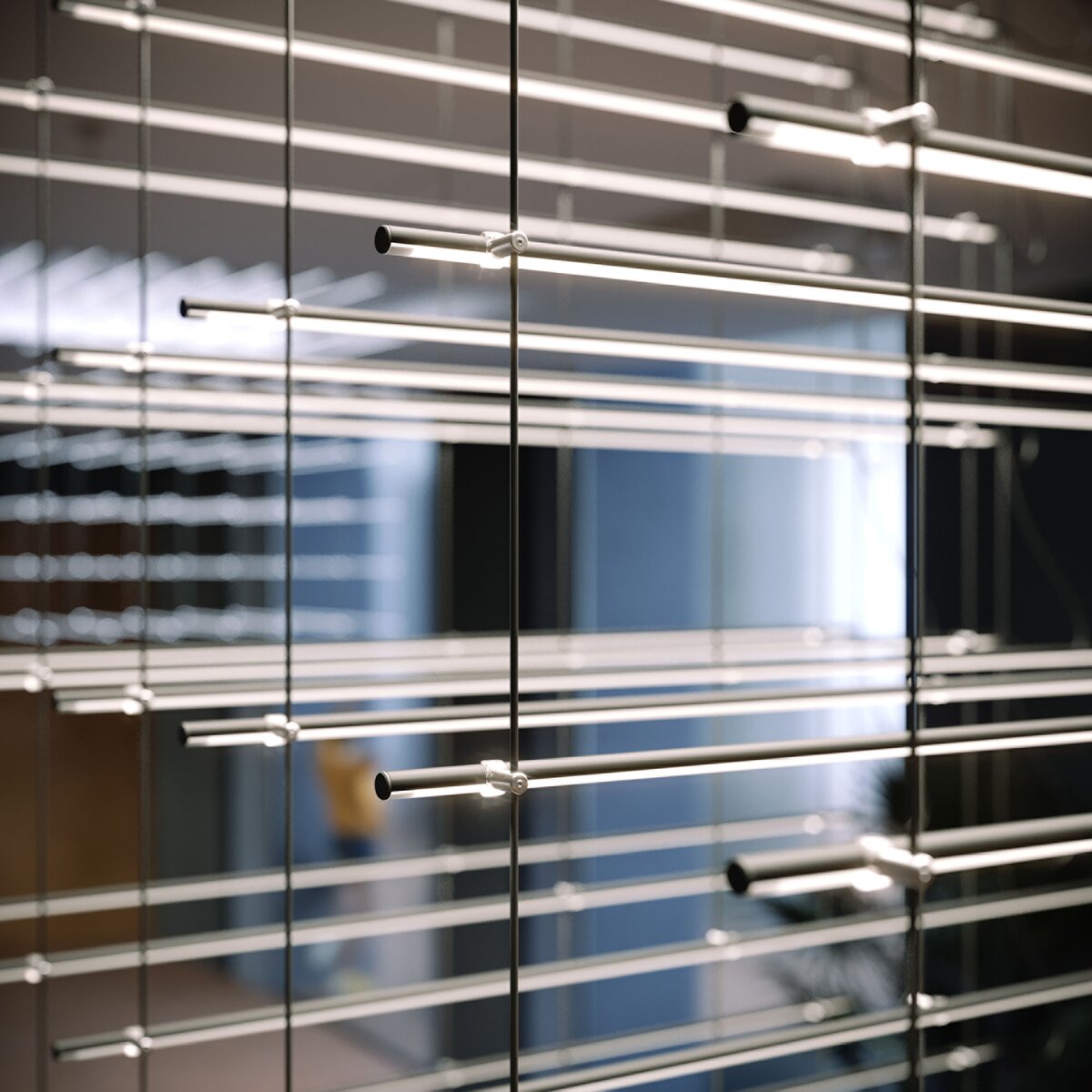

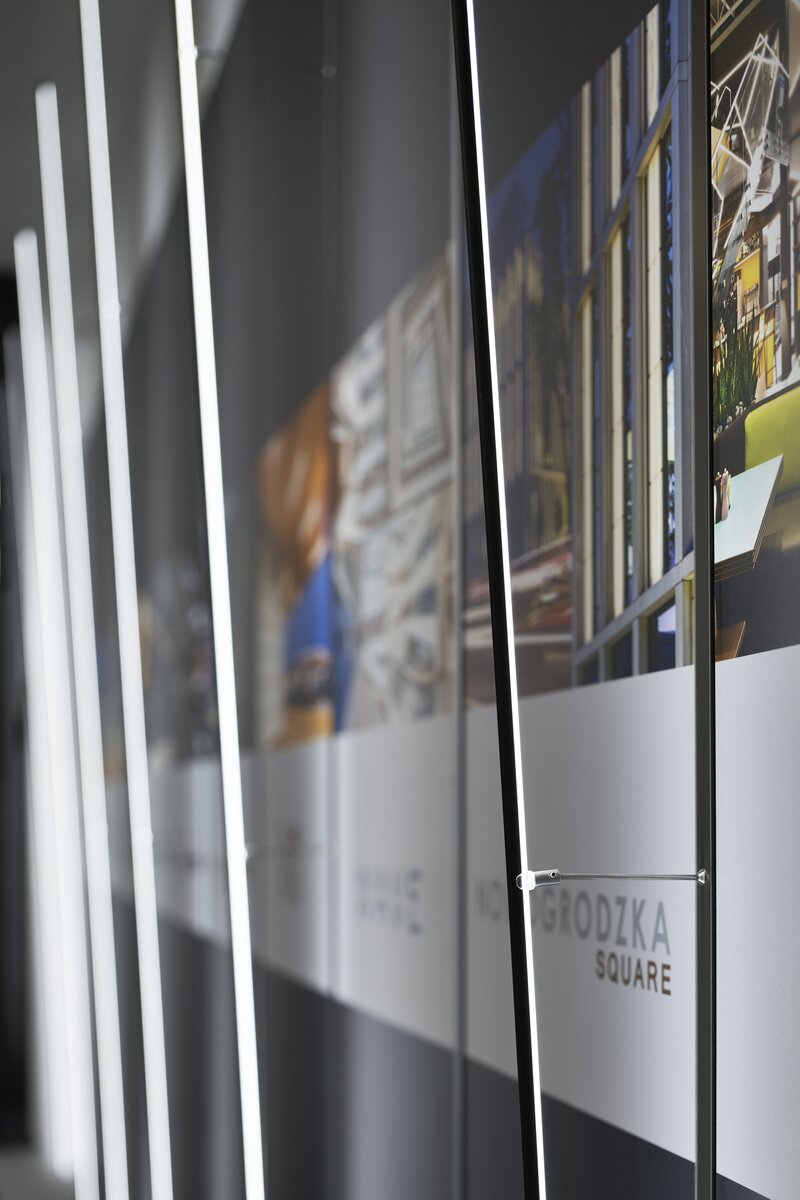

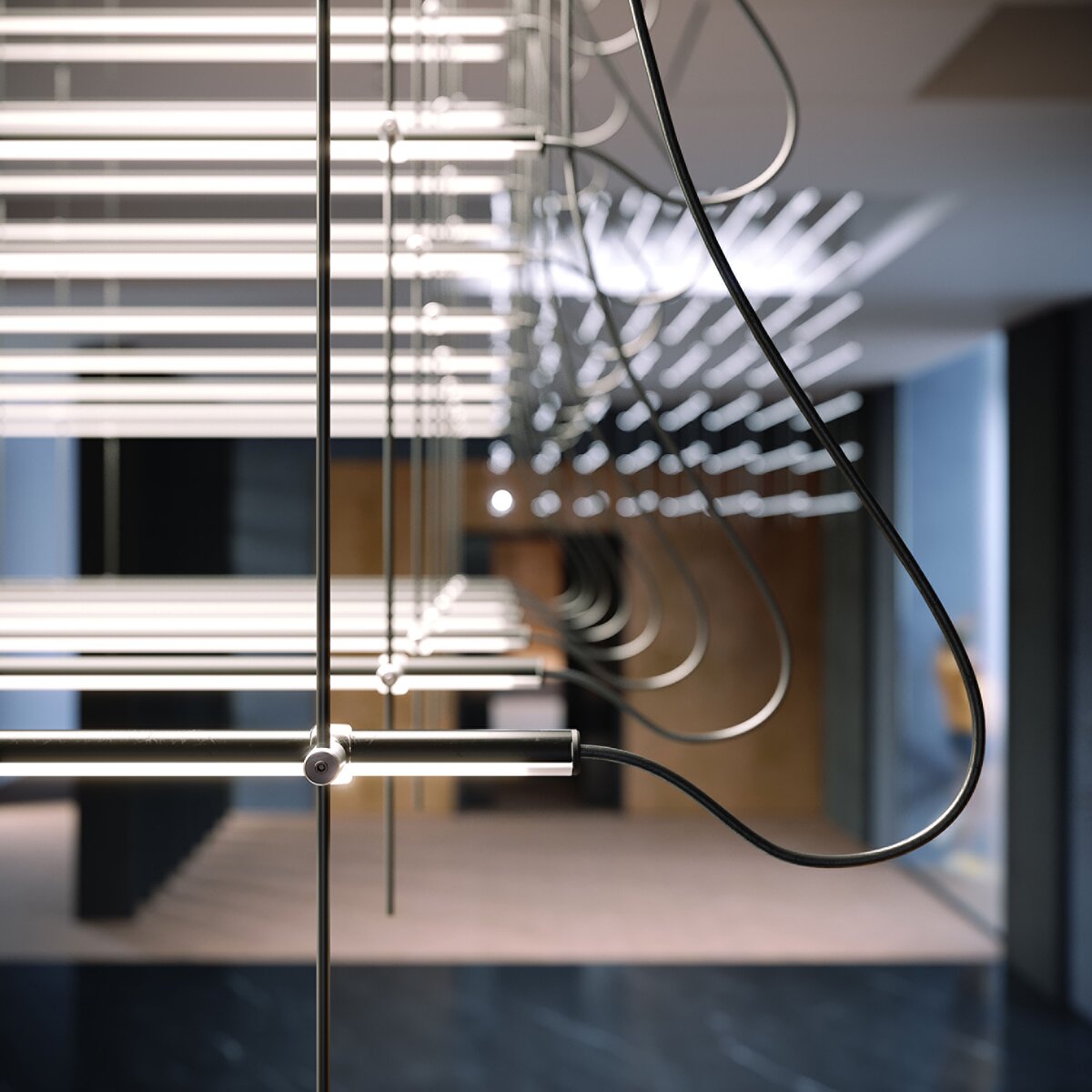

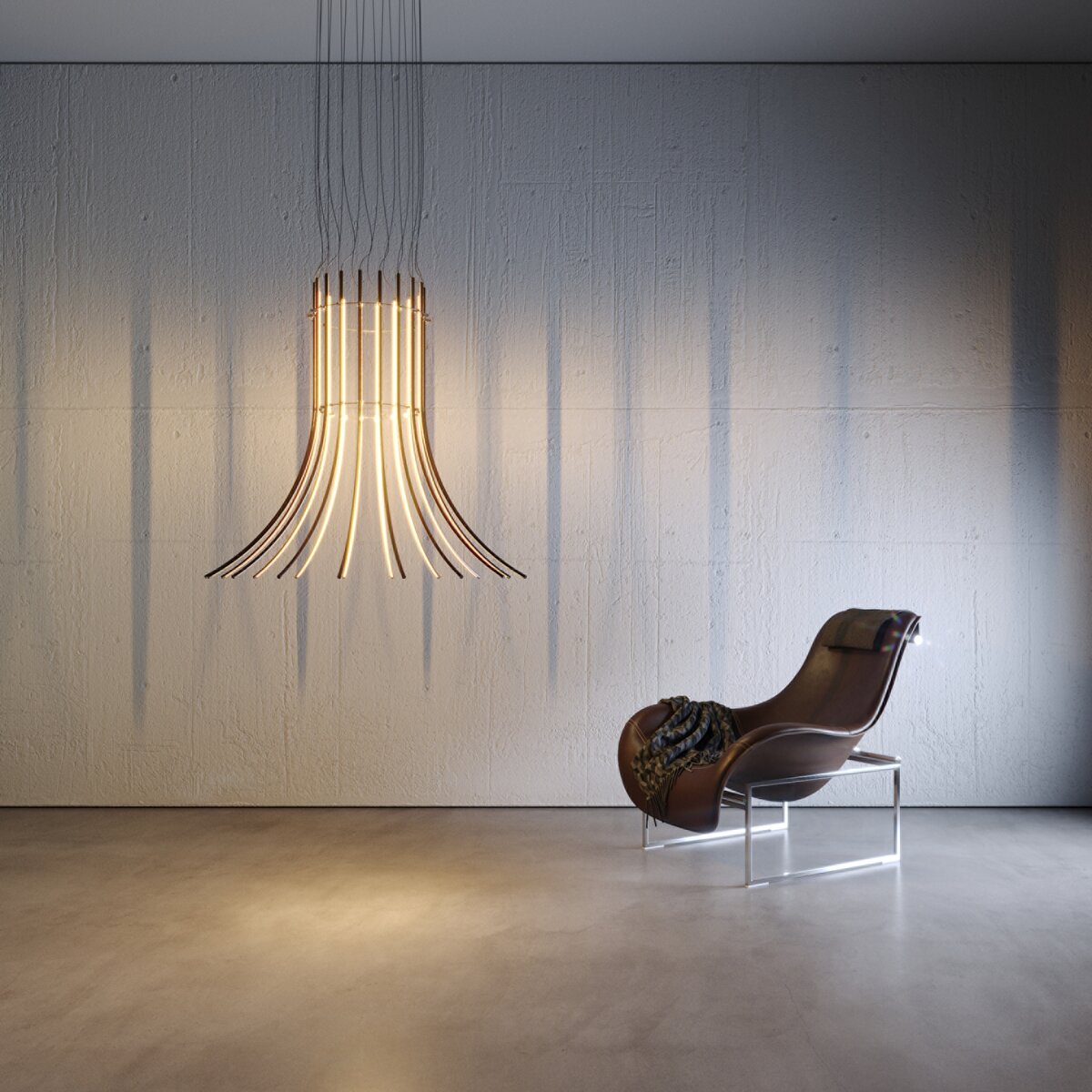

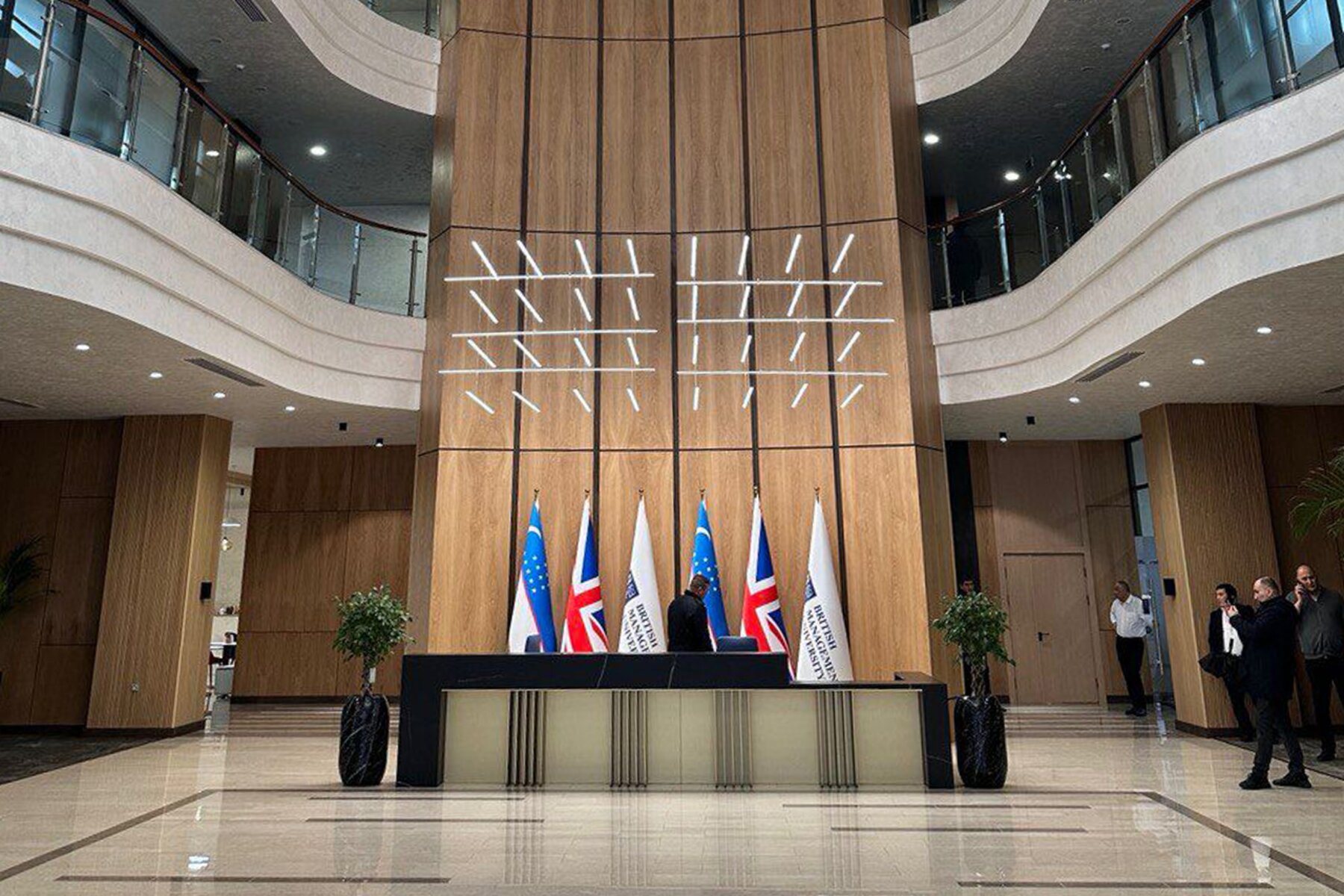

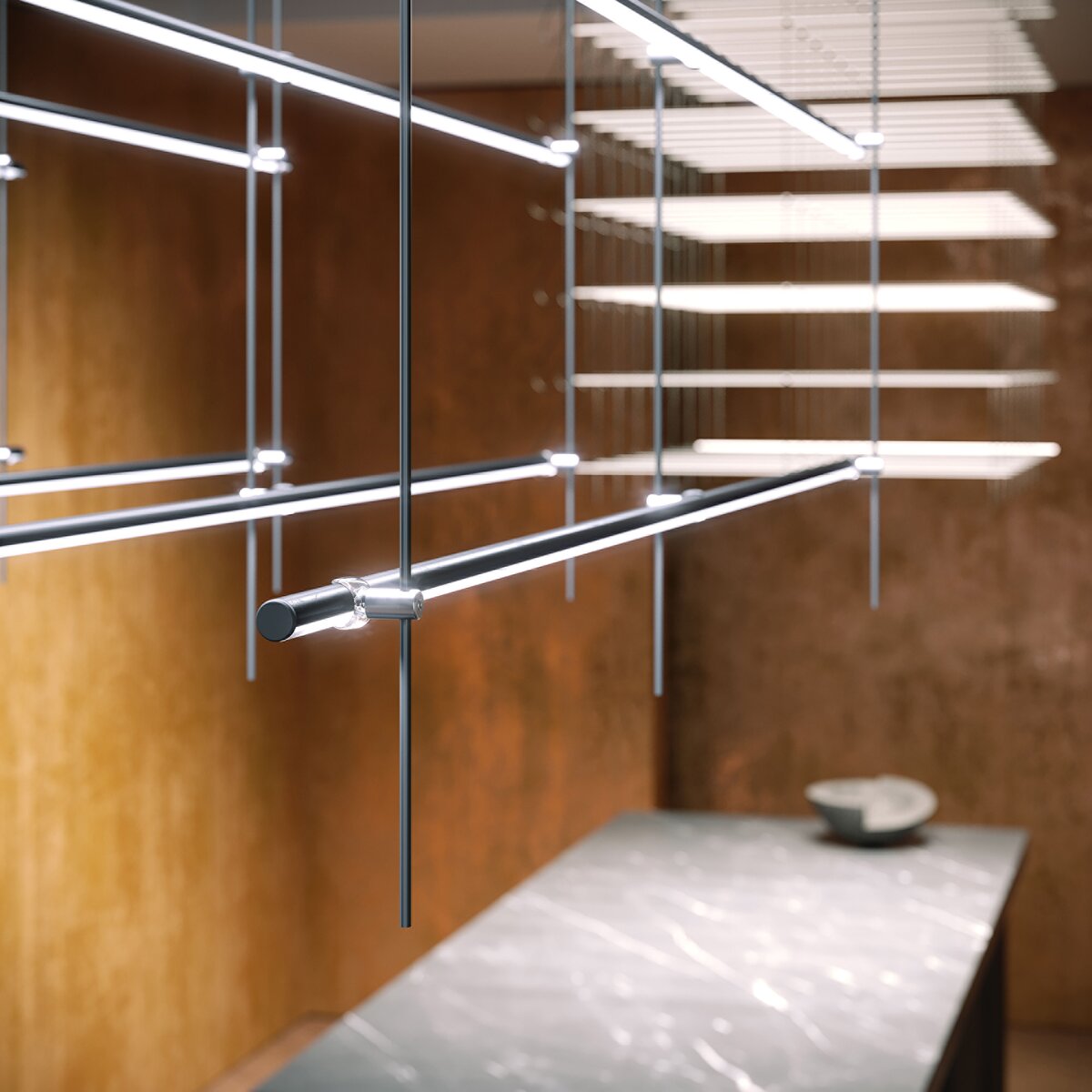

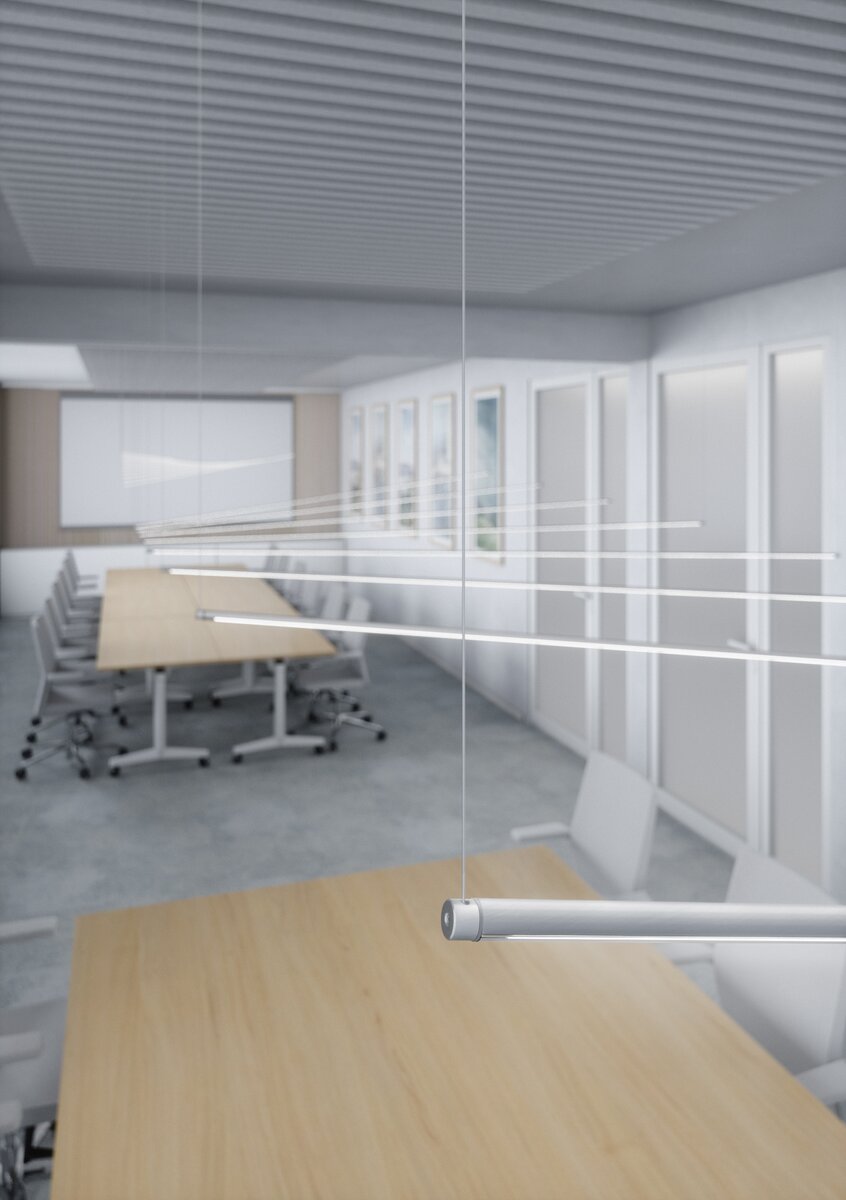

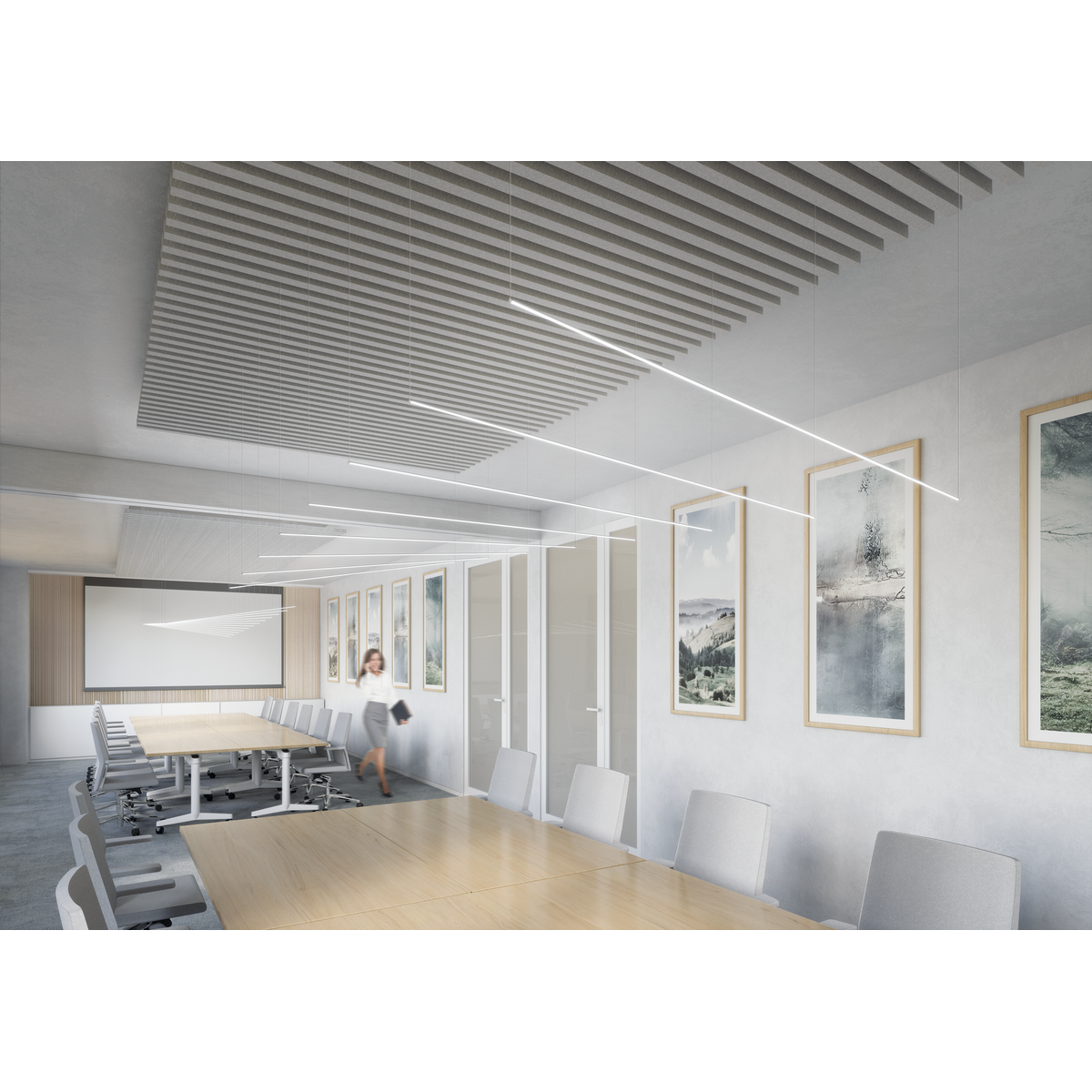

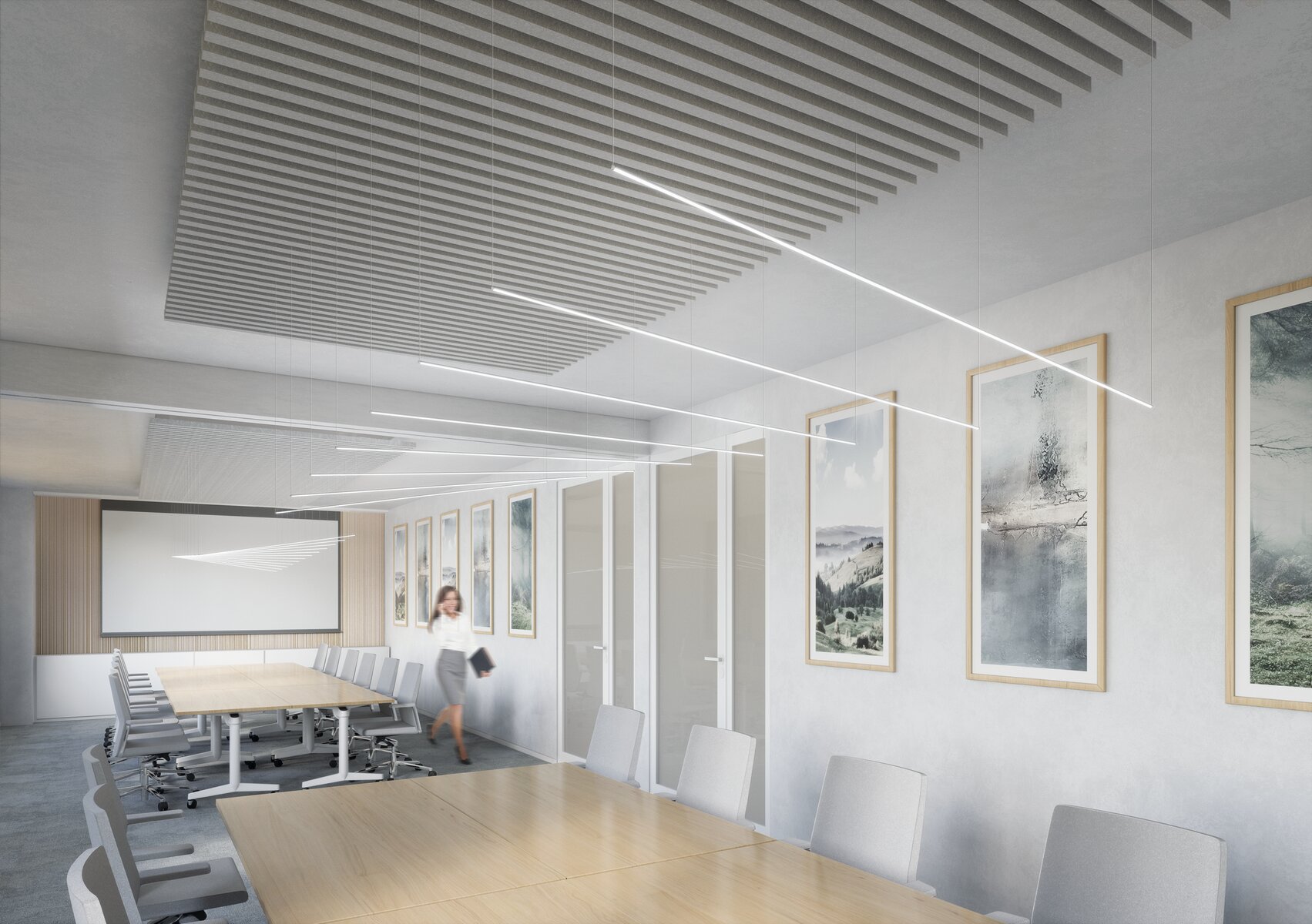

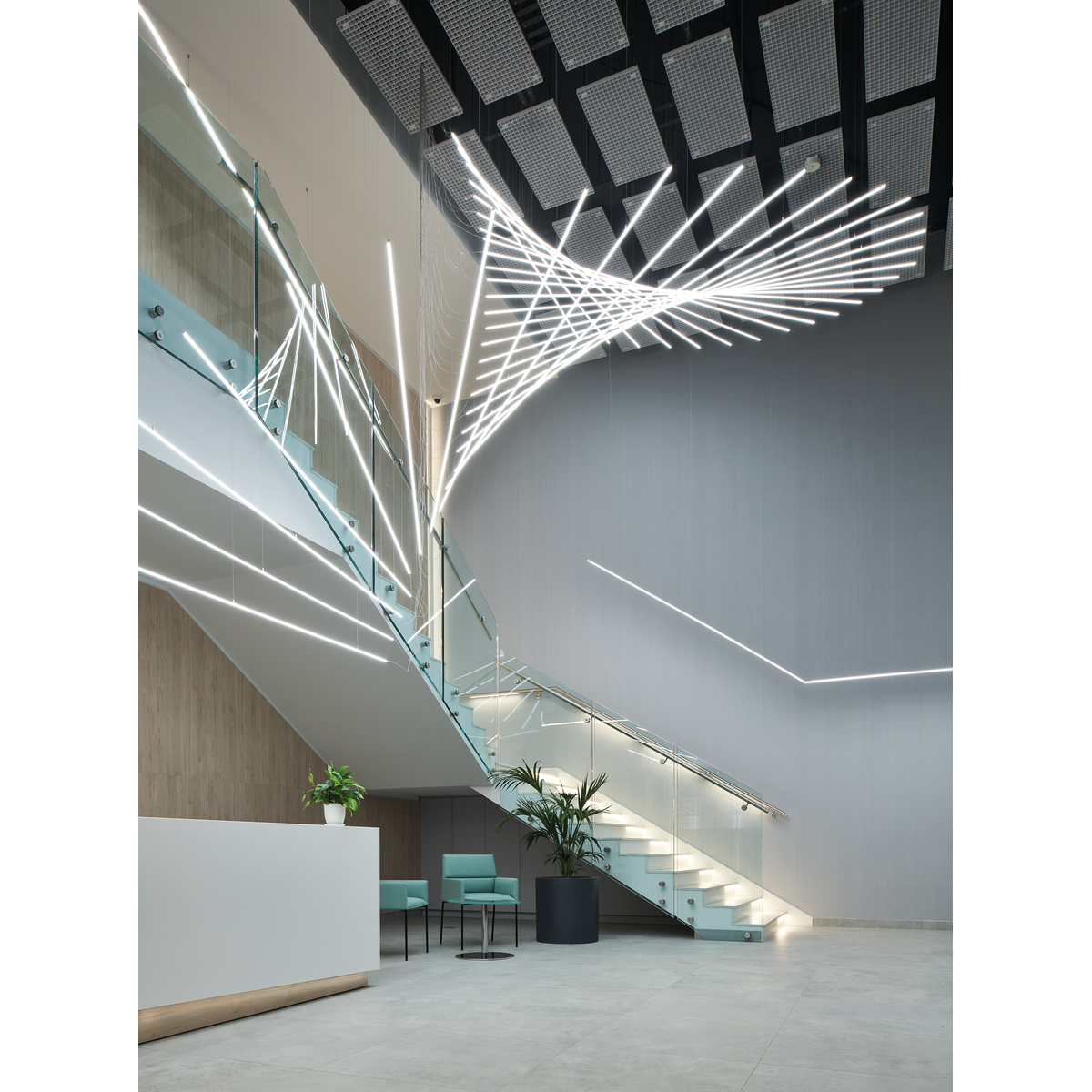

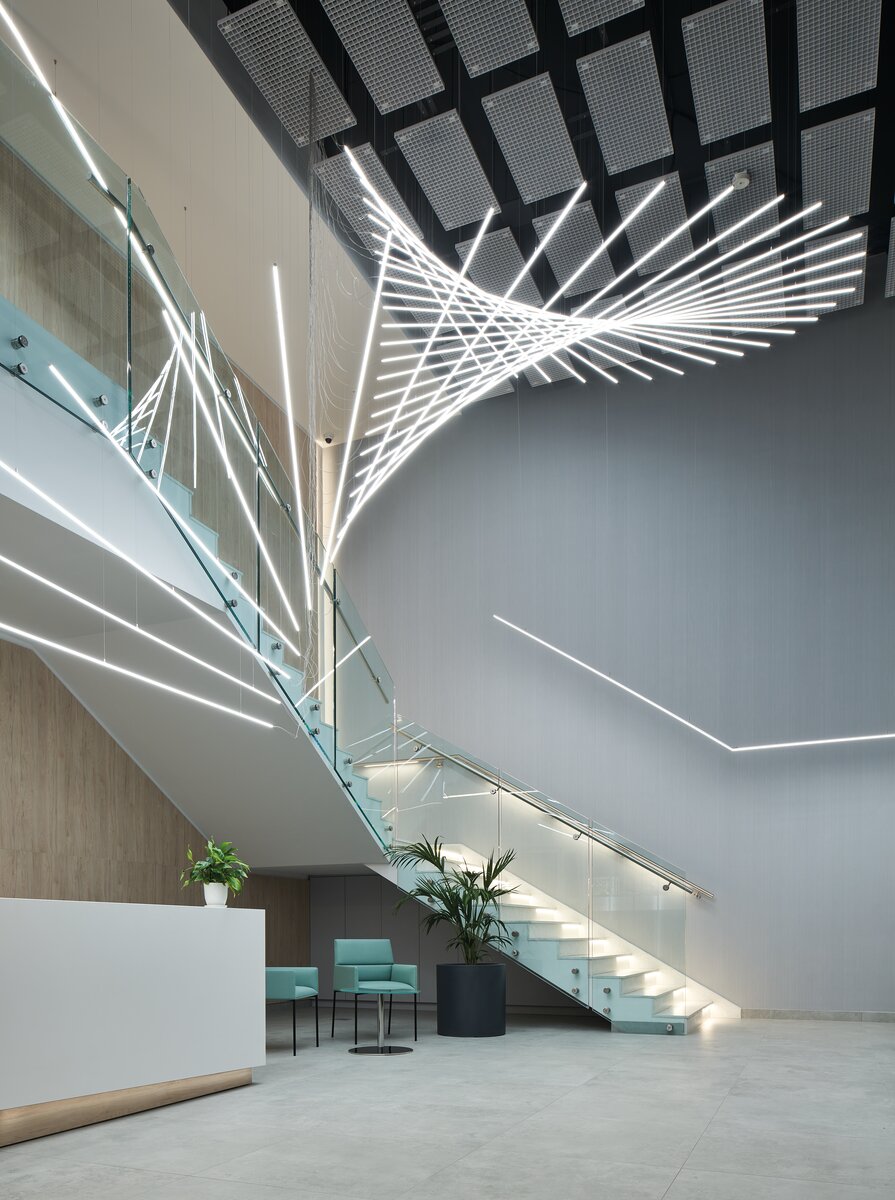

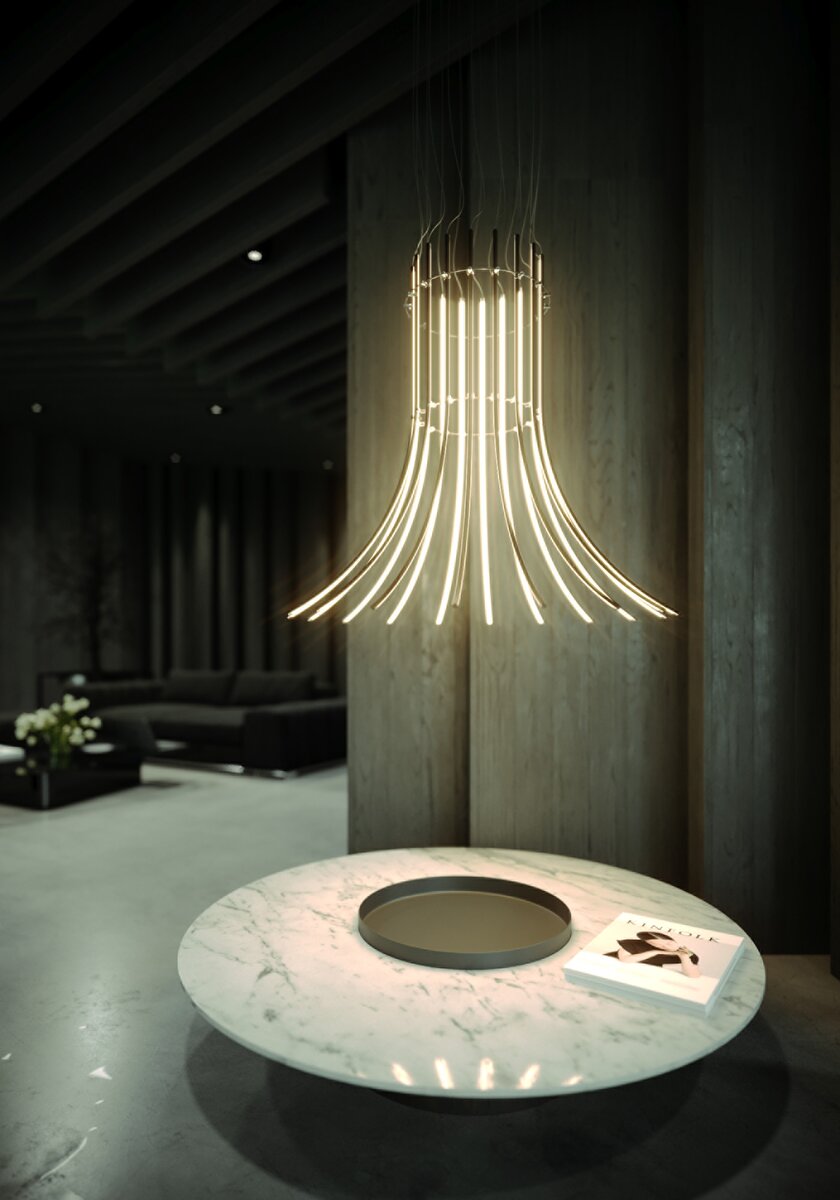

Usage examples
Technical drawing
PIKO-O Extrusion aluminum Technical drawing - A01167
Technical specification
Material
aluminum
Possible fixture IP
20
Possible fixture shapes
linear, round
Profile cross-section
round
Max power of a single KLUŚ LED strip
2.9 W/ft
Width
0.4" (10.5 mm)
Height
0.3" (7 mm)
LED gluing width A
0.2" (6 mm)
Lighting angle adjustment up to
360
Easy assembly and disassembly by snapping in and out
Yes
The cover is cut to the length of the profile
Yes
Wire out end cap
Yes
Wire out back of extrusion
Yes
Possibility of obtaining a line of light
Yes
Possibility of bending
Yes
Minimum radius of the light arc
Radius of the light arc
Yes
Inside
150 mm
Outward
1000 mm
Building type
Retail, Entertainment/ Arts, Hotel / Restaurant
Facility zone
under-cabinet / furniture, bathroom, kitchen, office, exhibition / tradeshow / display, decorative, fitness / spa, media rooms / av
Color Length Ref No
silver anodized
39.4" (1000 mm)
78.9" (2005 mm)
A01167A_1
A01167A_2
black anodized
39.4" (1000 mm)
78.9" (2005 mm)
A01167A07_1
A01167A07_2
white lacquered
78.9" (2005 mm)
A01167L10OD_2
Line of Light Table for Pixel Free Illumination
LED Tapes Covers
Categories LED tape type PIKO-7R Cover satin
CRI 90+ K-SHD-0960-24 Line of Light for a number (X) of rows (1)
Adjustable White / Dim to Warm K-30/18-1440-010-24 Line of Light for a number (X) of rows (1)
Line of Light for a number (X) of rows
Line of Light for a number (X) of rows - Pixel free imaging
Centered Line of Light
Centered Line of Light - Concentrated in middle
None
None - Visible dotting from diodes
Line of Light Guide

Clean Line of Light (Pixel free imaging)

Centered Line of Light

Visible Dotting from Diodes
similar profiles
Trimless
KOZEL-10
Ref No: A01575
Surface mounted
Recessed with suspension function
PIKO
Ref No: A08288
Suspended
Trimless
Recessed with suspension function
PIKO-ZM
Ref No: A01168
Related products
Product name Material Key features Light transmittance [%] Color Ref No
PIKO-7R Cover
PMMA - indoor use
- perfectly diffusing
- Thin line of light
52 %
24 %
satin
black
B17164S
B17164B
No results found for the selected filters.
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-SHD-0960-24 LED tape, 193-268 lm/ft, IP20,
20 - 2.9 W/ft
2200K
2500K
2700K
3000K
3500K
4000K
5000K
- ideal for use with black covers
- high LED density
K-SHD22-0960-24
K-SHD25-0960-24
K-SHD27-0960-24
K-SHD30-0960-24
K-SHD35-0960-24
K-SHD40-0960-24
K-SHD50-0960-24
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-RGB-1560-24 LED tape, 194 lm/ft, IP20,
20 - 4.8 W/ft
RGB
- RGB
K-RGB-1560-24_
Product name IP rating Sealing type Power consumption [W/ft] Color temperature Key features Ref No
K-30/18-1440-010-24 LED tape, 1800K, 234 lm/ft, 4.4 W/ft, IP20
20 - 4.4 W/ft
1800K
- Dim to Warm 1800K-3000K
K-30/18-1440-010-24
No results found for the selected filters.
Product name Material Color Ref No
PIKO-O
ABS
silver
C28223C7012
Product name Material Color Ref No
PIKO-O End cap
ABS
gray
black
C24321C02
C24321C07
No results found for the selected filters.
Product name Key features Material Color Ref No
Mounting bracket PLD-10
- Rotational mounting of minimalist linear fixtures
PC
transparent
C24375C00
Product name Key features Material Color Ref No
Fi-60mm Canopy
- Convenient cable length adjustment, in the ZM system
steel
gray
white
black
C24540L01
C24540L10
C24540L07
Product name Key features Material Color Ref No

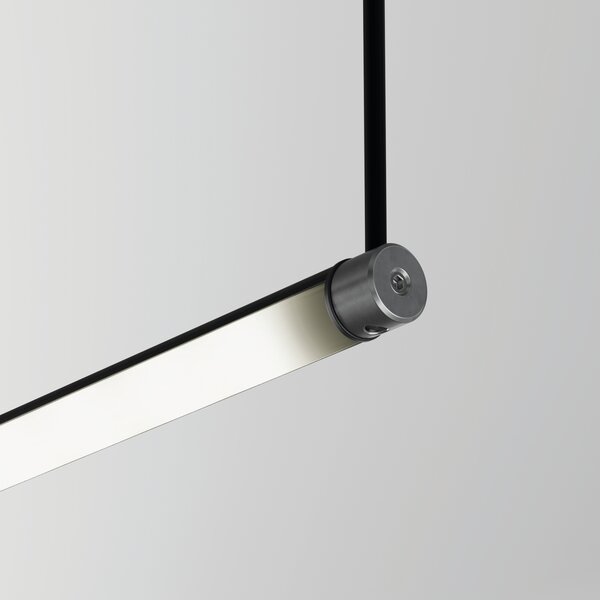

Fastener PLD-10-PP
- Cross mounting for PIKO-O
stainless steel, PC
silver
C28175N00
Fastener PLD-10-WL
- Longitudinal mounting with cable - PIKO-O
stainless steel, PC
silver
C28177N00
Fastener PLD-10-WP
- Longitudinal mounting with rod - PIKO-O
stainless steel, PC
silver
C28176N00
No results found for the selected filters.
Product name IP rating Key features Ref No(Ref. arch.)
UNI Proximity switch
20 - touchless switch
- width only 7mm
E61579
No results found for the selected filters.
Product name Material Color Ref No
Gland 6,4x3
C42264C07
No results found for the selected filters.
